055-026-415S: DescriptionCard Edge Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Gray Insulator; CategoryThe connector The connector; File Size207KB，2 Pages; ManufacturerPANCON CONNECTORS

Download Datasheet Parametric View All

055-026-415S Overview

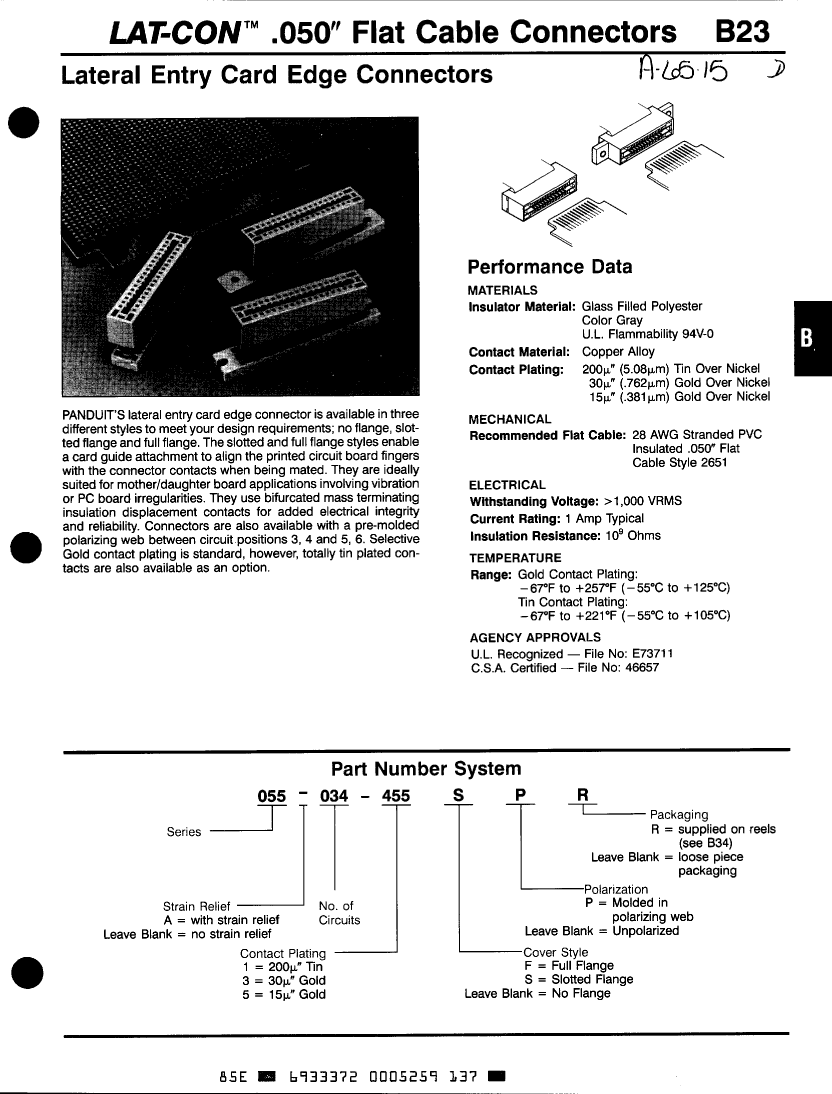

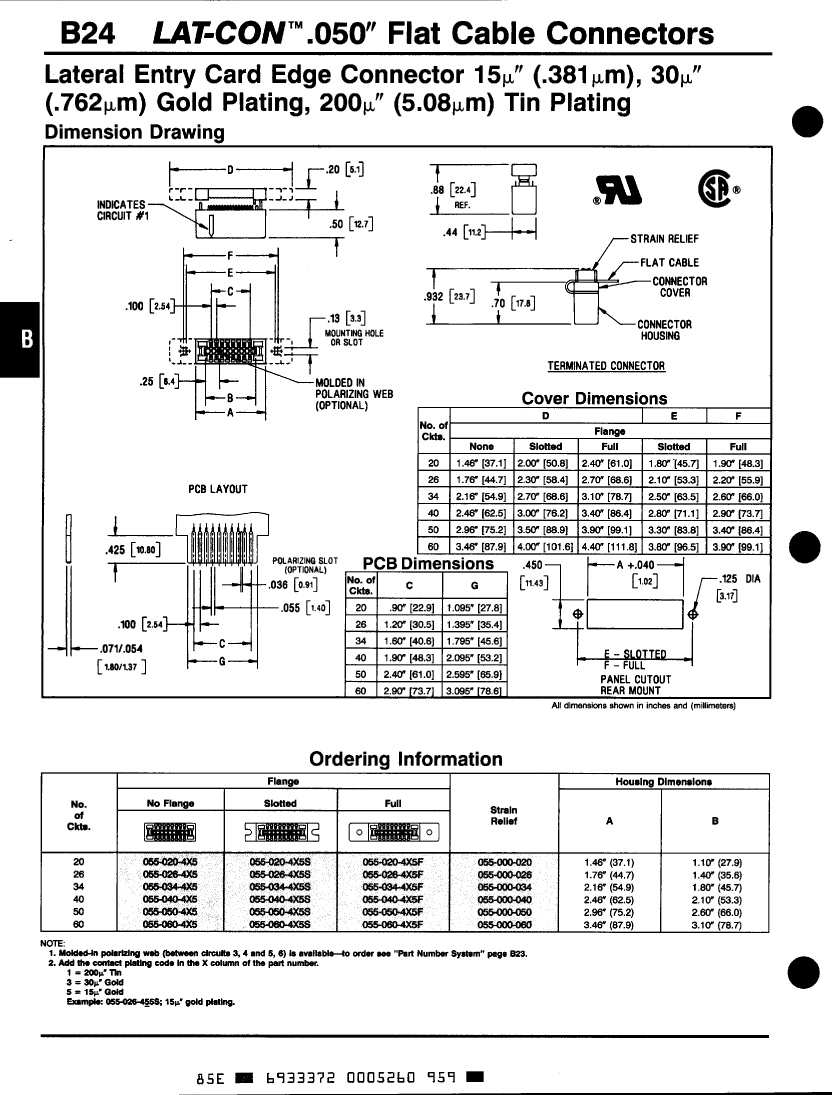

Card Edge Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Gray Insulator

Parameter Name	Attribute value
Maker	PANCON CONNECTORS
Reach Compliance Code	unknown
Is Samacsys	N
Other features	NONE
Board mount options	MOUNTING FLANGE
body width	0.44 inch
subject depth	0.88 inch
body length	2.3 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	SN ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	055
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	200u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	26
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1
