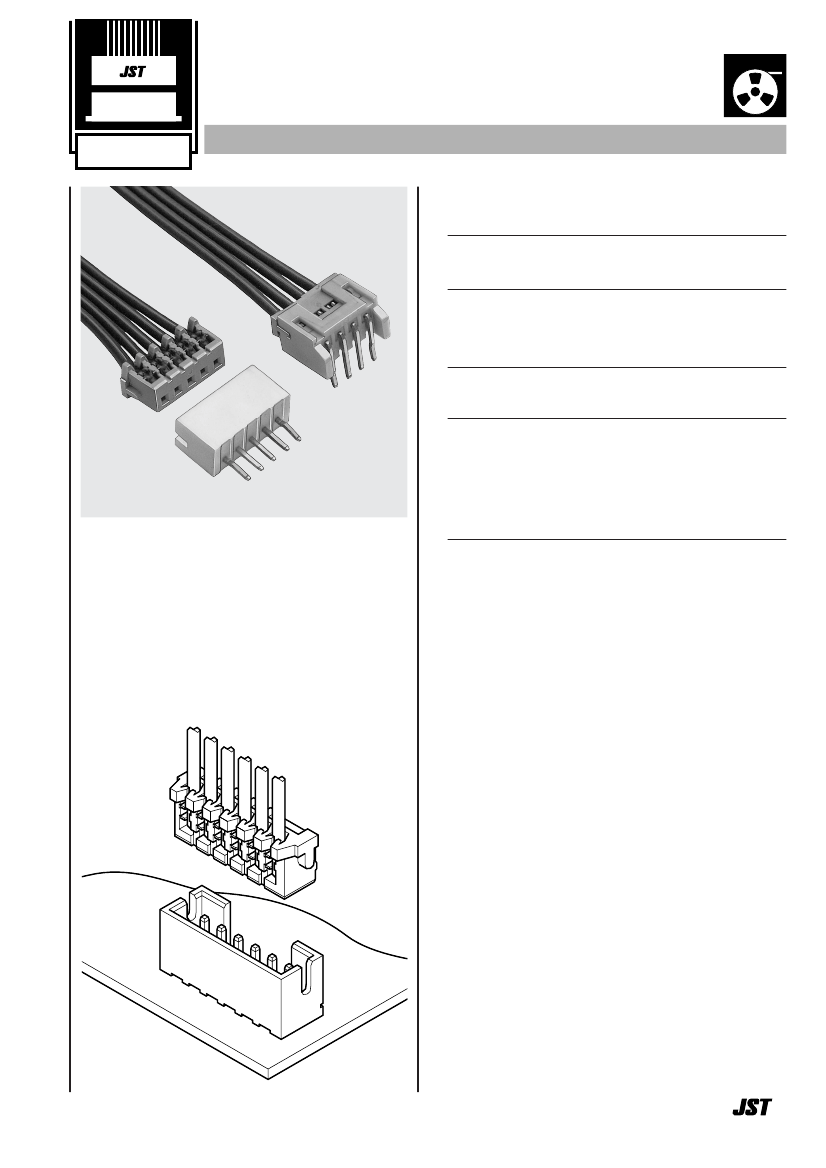

IDC
CR
CONNECTOR
Emboss Tape
2.0mm
pitch
Disconnectable Insulation displacement connectors
Features ––––––––––––––––––––––––
• Designed for connection of UL1007 wires
The 2.0mm pitch insulation displacement connector allows
automatic harness production for connection of UL1007 wires.
• Folded beam double-leaf contact construction
The contact springs are folded to increase their effective
strength. This design provides a safety margin that allows the
contacts to endure the distortion of misinsertion without being
permanently distorted.
• Twin U-slot insulation displacement section
The insulation displacement section connected to the wire
consists of twin U-slot for high reliability.
• Strain relief
The strain relief feature prevents stress caused by vibration,
impact or bending from effecting the insulation displacement
connection.This is accomplished by holding the outside of the
wire with the insulation gripping device on the housing. To
protect circuit integrity from vibration and undue tension, ample
clearance is provided between the insulation displacement
connection and the strain relief.
The CR 2.0mm insulation displacement
connector features a mounting height as
low as 6.9mm and a thickness as thin as
4.8mm (for top entry type). It’s suitable for
interconnection of UL1007 electric wires in
a wide range of electrical and electronic
equipment such as VCRs and video
cameras.
• Interchangeability
The shrouded headers of the top and side entry type CR
connectors are interchangeable with the KR and KRD insulation
displacement and PH crimp style connectors.
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: UL1007 (Contact JST for details regarding other
UL wires.)
AWG #26
Conductor/7 strands, tin-coated
Insulation O.D./1.3mm max.
• Applicable PC board thickness: 0.8 to 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
1
Recognized E60389
Certified LR20812
1
CR
CONNECTOR
Receptacle –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
3
Model No.
02CR-6H-P
03CR-6H-P
04CR-6H-P
05CR-6H-P
06CR-6H-P
07CR-6H-P
08CR-6H-P
09CR-6H-P
10CR-6H-P
11CR-6H-P
12CR-6H-P
Dimensions (mm)
A
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
B
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
Q'ty /
box
2,000
2,000
2,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
B
2.0
2.0
A
0.9
5.15
4
5
6
7
8
4.2
3.5
9
10
11
12
JST
Material and Finish
Post: Phosphor bronze, tin-plated (reflow treatment)
Housing: Glass-filled PA 66, UL94V-0, gray
RoHS compliance
Through-hole type shrouded header –––––––––––––––––––––––––––––––––––––––––
The shrouded headers are interchangeable with the PH crimp style connectors and, KR and KRD insulation displacement connectors.
Through-hole type PC board layout
(viewed from soldering side)
and Assembly layout –––
Top entry type
(4.8)
2.8min.
Side entry type
2.0±0.05 1.95min.
2.0±0.05 1.95min.
6.25min.
(8.5)
φ
0.7
+0.1
0
(6.9)
φ
0.7
+0.1
0
6.25min.
Note:
1. Tolerances are non-cumulative: ±0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. If PC boards made of hard materials are used, the hole dimensions should be
larger. The hole dimensions shown above are reference values.
Contact JST for details.
SMT type shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––
The shrouded headers are interchangeable with those of the PH crimp style connectors and KR and KRD insulation displacement
connectors.
2
(4.8)
