06-0518-11HE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 06-0518-11HE

06-0518-11HE: DescriptionIC Socket, SIP6, 6 Contact(s), 2.54mm Term Pitch, Solder; CategoryThe connector socket; File Size338KB，1 Pages; ManufacturerAries Electronics

Download Datasheet Parametric View All

06-0518-11HE Overview

IC Socket, SIP6, 6 Contact(s), 2.54mm Term Pitch, Solder

06-0518-11HE Parametric

Parameter Name	Attribute value
Maker	Aries Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	HEAVY GOLD PLATING ON COLLET
body width	0.1 inch
subject depth	0.173 inch
body length	0.6 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	SIP6
Shell material	NYLON
Manufacturer's serial number	518
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	6
Maximum operating temperature	125 °C
PCB contact pattern	RECTANGULAR
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

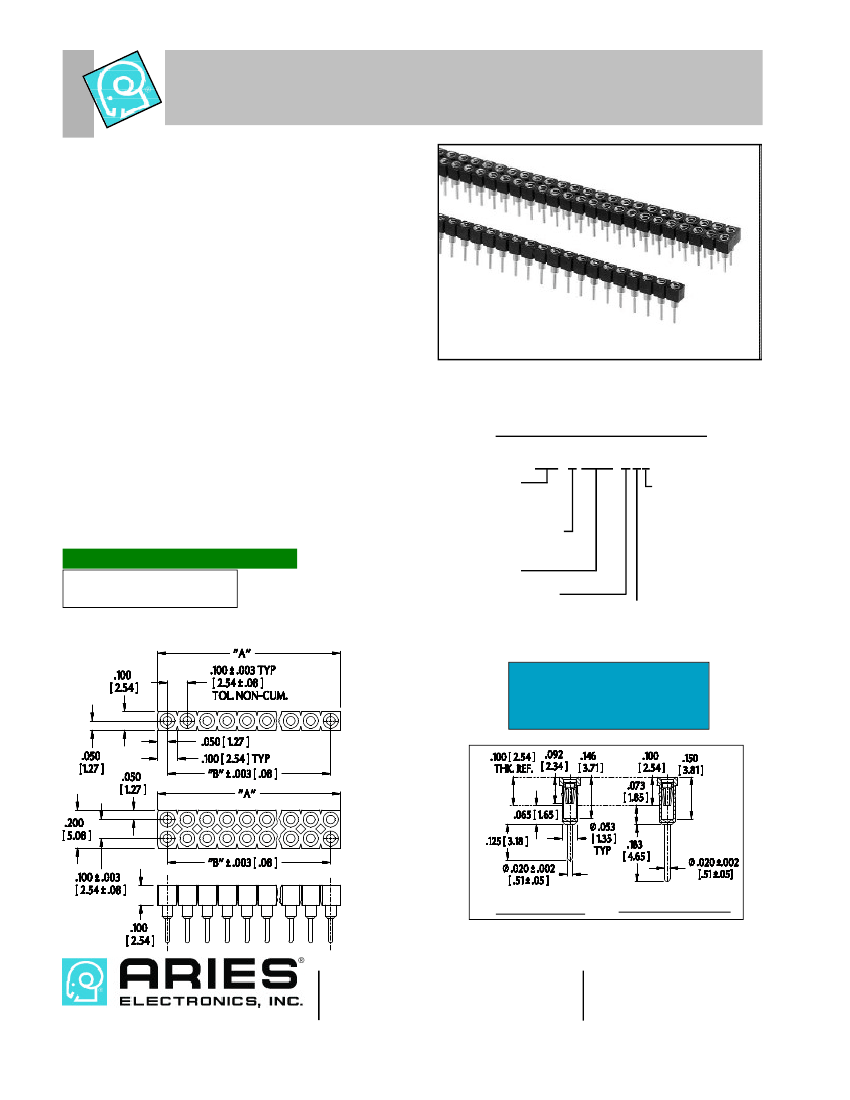

Series X518 Single and Dual Row

Collet Sockets with Solder Tail Pins

FEATURES:

• Aries collet sockets are available in single or dual rows.

• Cuttable to the number of pins desired to fit the application.

• Side-to-side and end-to-end stackable.

SPECIFICATIONS:

• Body material is black UL 94V-0 Nylon 4/6.

• Pin body is Brass Alloy 360 1/2 hard per UNS C36000

ASTM-B16-85.

• Pin body plating is either 10µ [.25µm] min. Gold per MIL-G-

45204 or 200µ [5.08µm] min. 93/7 Tin/Lead per MIL-P-81728

over 100µ [2.54µm] min. Nickel per QQ-N-290.

• 4-fingered collet contact is Beryllium Copper Alloy per UNS

C17200 ASTM-B194-92.

• Contact plating is either 150µ [3.81µm] min. 93/7 Tin/Lead

per MIL-P-81728 or 10µ [.25µm] min. Gold per MIL-G-45204

over 50µ [1.27µm] min. Nickel per QQ-N-290. Heavy 30µ

Note: Aries specializes in custom design and production. In addition to

the standard products shown on this page, special materials, platings,

[.76µm] Gold plating also available.

sizes, and configurations can be furnished, depending on quantities.

• Contact current rating=3 Amps.

Aries reserves the right to change product specifications without notice.

• Operating temperature=221°F [105°C] Tin plating,

=257°F [125°C] Gold plating.

ORDERING INFORMATION

• Insertion Force=180 grams/pin; Withdrawal Force=90

XX-X518-1XX

grams/pin; Normal Force=140 grams/pin; based on a .018

[.46] dia. test lead.

No. of pins:

• Accepts leads .015-.025 [.38-.64] in diameter.

Optional suffix:

Single row: 1-40 pins

• Accepts lead lengths from .100 [2.54] min.

H=Heavy Gold

Dual row: 2-60 pins

MOUNTING CONSIDERATIONS:

plating on collet

0=Single row

•Suggested PCB hole size=.030 ± .002 [.76 ± .05] dia.

T=Tin plating on

1=Dual row

Series

Solder tail pin

Plating:

0=Gold collet/Tin shell

1=Gold collet/Gold shell

DIMENSIONS

INCHES

[

MILLIMETERS

]

All tolerances ± .005 [.13]

unless otherwise specified

“A”=(NO. OF PINS PER ROW) X .100 [2.54]

“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]

collet

E=Extra long solder

tail pin

Consult Data Sheet No. 12021

for Series X518 Collet Sockets

with wire wrap pins.

SOLDER TAIL

EXTRA LONG “E”

12020

REV.D

http://www.arieselec.com • info@arieselec.com

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

NORTH AMERICA

Frenchtown, NJ USA

TEL: (908) 996-6841

FAX:(908) 996-3891

ABCDEFG

EUROPE

TEL: +44 870 240 0249

FAX: +44 871 919 6033

europe@arieselec.com
