Document 266-1

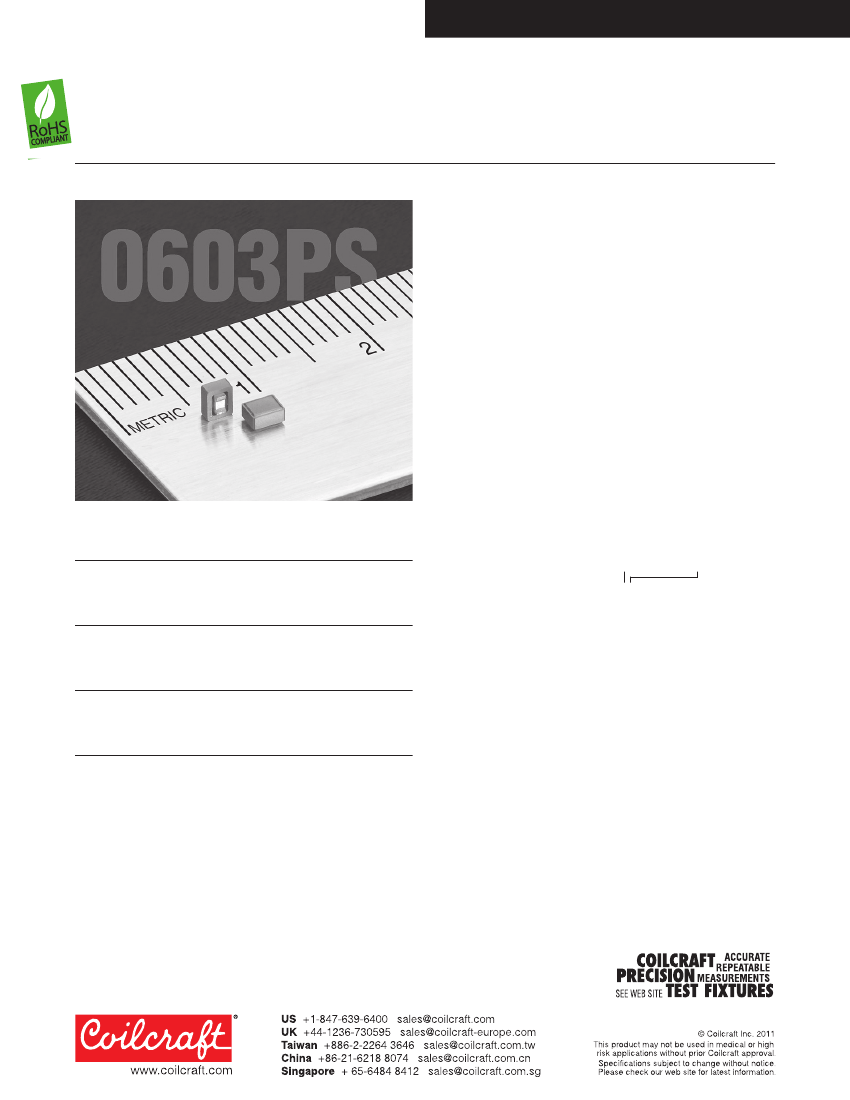

Shielded High SRF Inductors – 0603PS
• Higher SRF than our other power inductors
• High inductance with tight tolerance
• Excellent current handling for a part this size
Core material
Ceramic/Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
26.4 – 27.9 mg
Ambient temperature
–40°C to +65°C with
Irms
current, +65°C to
+105°C with derated current
Storage temperature
Component: –40°C to +105°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+50 to +150 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
2000/7″reel; 7500/13″ reel Plastic tape: 8 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.8 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Part
number
1
0603PS-781KL_
0603PS-102KL_
0603PS-182KL_
0603PS-222KL_
0603PS-272KL_
0603PS-332KL_
0603PS-392KL_
0603PS-472KL_
0603PS-562KL_
0603PS-682KL_
0603PS-822KL_
0603PS-103KL_
0603PS-153KL_
0603PS-223KL_
0603PS-333KL_
0603PS-473KL_
L ±10%
2
DCR
4
SRF
5
max
typ
(µH) at 1 MHz (Ohms) (MHz)
0.78
15
0.24
475
1.0
15
0.26
390
1.8
15
0.54
155
2.2
15
0.75
245
2.7
15
0.75
127
3.3
15
0.88
72
3.9
15
1.00
72
4.7
15
1.08
64
5.6
15
1.23
51
6.8
15
1.37
39
8.2
20
1.43
30
10
20
1.60
30
15
20
1.92
22
22
20
2.96
16
33
20
5.63
12
47
20
5.69
12
Q min
3
Isat
6
(A)
0.55
0.40
0.39
0.33
0.33
0.32
0.27
0.26
0.25
0.23
0.22
0.21
0.16
0.13
0.10
0.10
Irms
7
(A)
1.30
1.00
0.70
0.60
0.55
0.50
0.48
0.47
0.41
0.40
0.39
0.38
0.35
0.27
0.20
0.18
1. When ordering, please specify
termination
and
packaging
codes:
0603PS-473KLC
Termination: L
= RoHS compliant silver-palladium-platinum-glass
frit. Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (7500 parts per full reel).
2. Inductance measured at 100 kHz, 0.1 Vrms, using a Coilcraft SMD-A
fixture in an Agilent/HP 4263B LCR meter.
3. Q measured on an Agilent/HP 4291 with an Agilent/HP 16193 test
fixture.
4. DCR measured on a micro-ohmmeter and a Coilcraft CCF840 test
fixture.
5. SRF measured using an Agilent/HP 8753D network analyzer and a
Coilcraft SMD-D test fixture.
6. DC current at which the inductance drops 10% (typ) from its value
without current.
7. Current that causes a 40°C temperature rise from 25°C ambient.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Document 266-1
Revised 08/17/09
Document 266-2

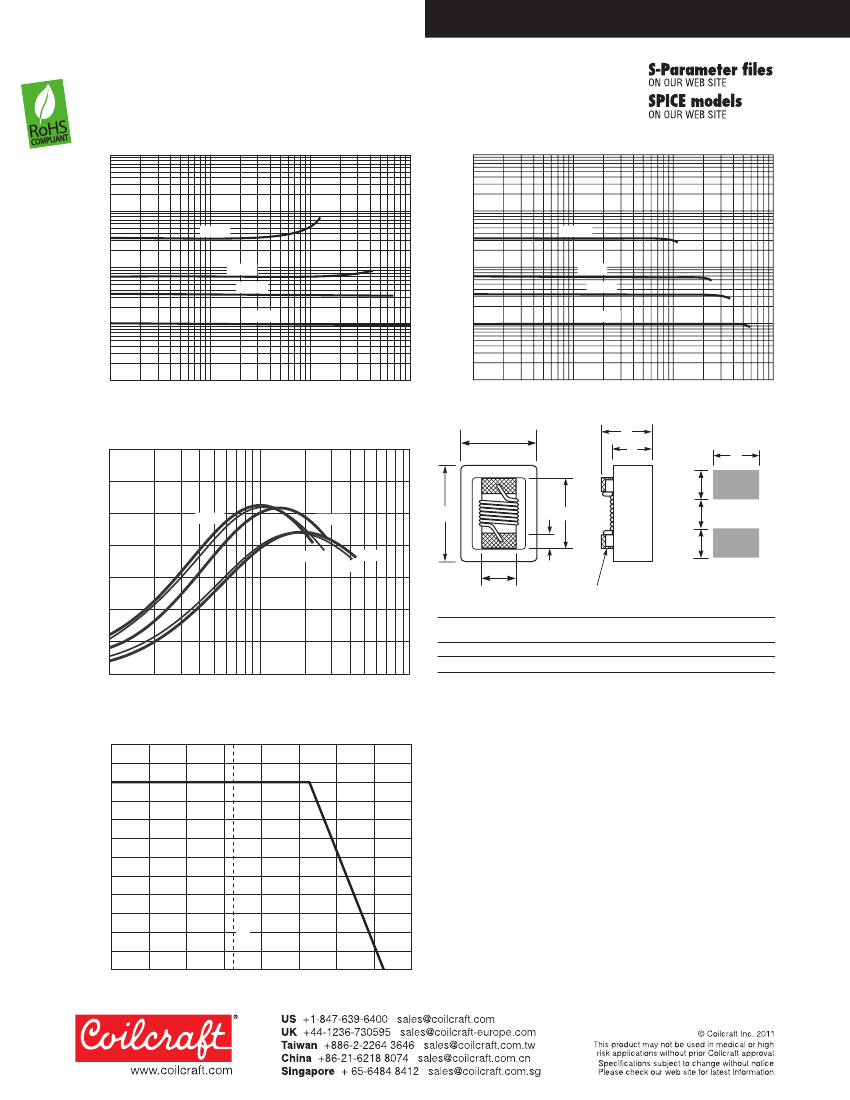

Power Chip Inductors - 0603PS Series
Typical L vs Frequency
1000
1000
100
100
Typical L vs Current
Inductance (µH)
Inductance (µH)
33 µH
33 µH
10
6.8 µH
3.3 µH
1 µH
10
6.8 µH
3.3 µH
1 µH
1
1
0.1
0.1
1
10
100
0.1
1
10
100
1000
Frequency (MHz)
Current (mA)
B
overall
C
D
Typical Q vs Frequency
35
30
25
33 µH
6.8 µH
H
I
A
F
G
J
I
Q factor
20
15
10
5
0
0.1
1
10 µH
1 µH
3.3 µH
E
terminal
Terminal wraparound:
approx 0.012/0,30 both ends
Recommended
Land
Pattern
A
B
C
max max max
D
E
F
G
H
I
J
0.102 0.082 0.071 0.049 0.030 0.060 0.013 0.040 0.025 0.025 inches
2,59 2,08 1,80 1,24 0,76 1,52 0,33 1,02 0,64 0,64 mm
10
Frequency (MHz)
Irms Derating
120
110
100
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120
Ambient temperature (°C)
Document 266-2
Revised 08/17/09
25°C
