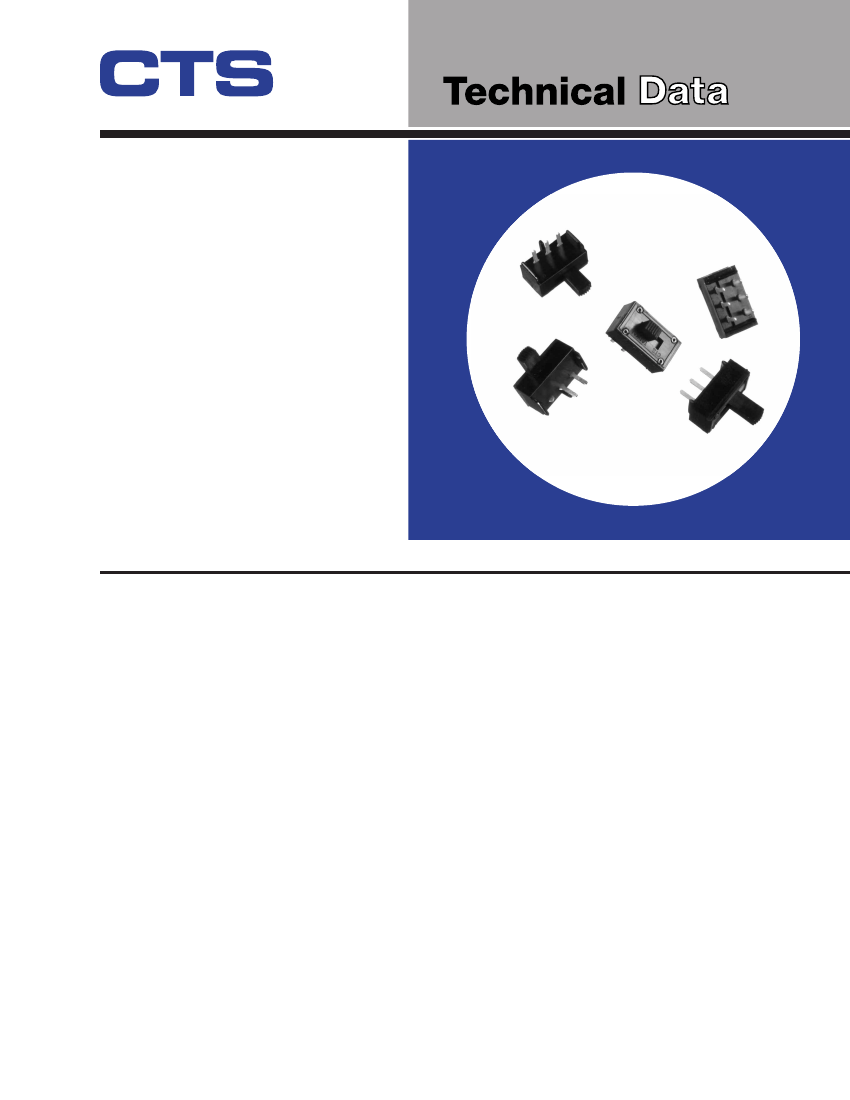

Series 065 Switch
®
Miniature
slide switch
Features
• UL and CSA approved for
SPST and SPDT functions
• Insulated case, UL grade 94V-2
fire retardant housing
• Dust-proof construction
• Metal to metal wiping contacts
• Withstands flow soldering without
deformation
• High performance, low cost design
Electrical and Mechanical Specifications
Switch Function
Single pole single throw
Single pole double throw
Double pole single throw (top actuated only)
Double pole double throw (top actuated only)
Current Rating
1A, 24 VDC/1A, 125VAC
Switch Contact Resistance
15 milliohm maximum initial
30 milliohm (normal) after life
(20,000 cycles @ 1A, 24VDC)
(6,000 cycles @ 1A, 125VAC)
Insulation Resistance
100 megohm minimum
Dielectric Strength
1,000 VAC (60Hz) for 1 minute
Switch Electrical Life
Normal: 20,000 cycles minimum @ 1A,
24 VDC full load
6,000 cycles minimum @ 1A,
125 VAC full load
Temperature
Operating: 0°C to +70°C
Storage: –25°C to +125°C
Operating Force
Normal: 100 grams – 350 grams (3.5 oz – 12.3 oz)
Housing and Actuator
Black nylon 6/6 UL 94V-2
Contactor
Silver plated phosphor bronze
Terminal
Silver plated brass
Spring
Music wire
Technical Data Sheet 1448C
Technical Data Sheet 4065A
CTS CORPORATION /
MANUFACTURER OF RELIABLE ELECTRONIC COMPONENTS

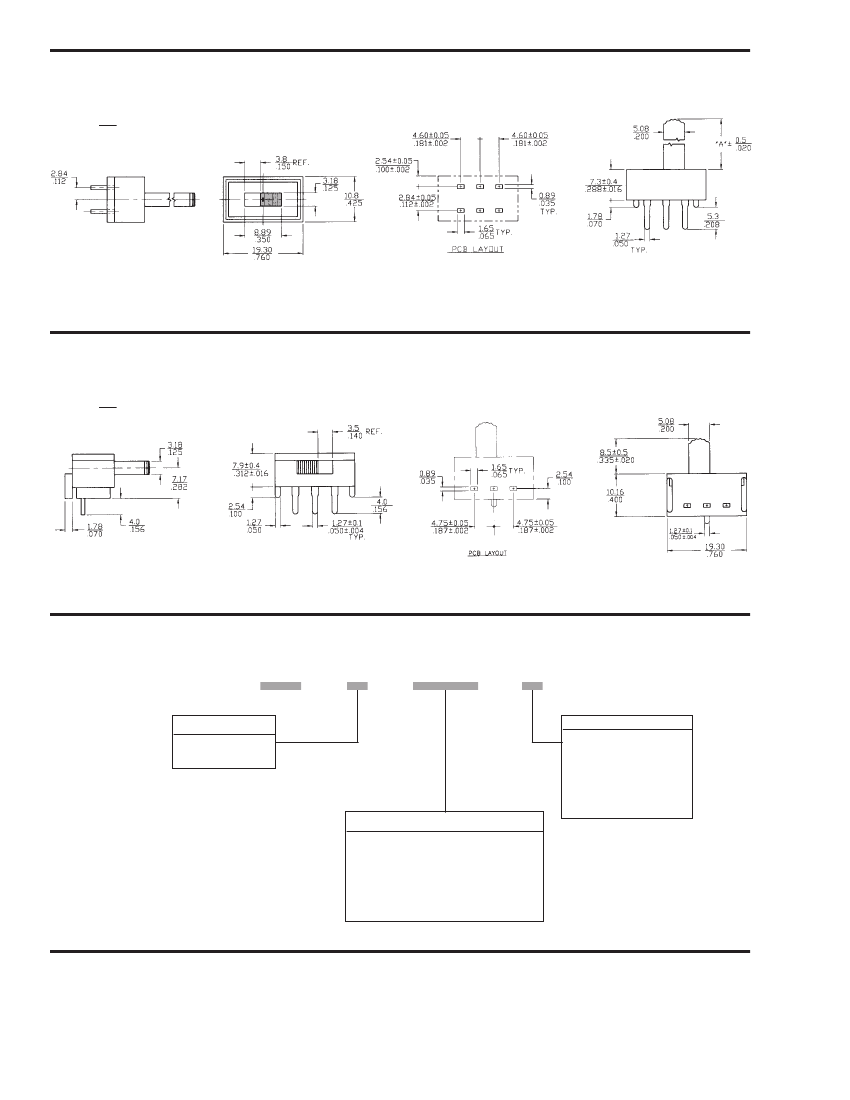

Top Adjust
DIMENSION:
MM
INCH
Side Adjust
DIMENSION:
MM
INCH
Ordering Information
065
SWITCH STYLE
T
– TOP ACTUATED
S
– SIDE ACTUATED
T
SPST
A
ACTUATOR LENGTH “L”
TOP ACTUATED
A
– 0.2" (5.08MM)
B
– 0.5" (12.7MM)
C
– 0.375" (9.53MM)
SIDE ACTUATED
0.335" (8.51MM) ONLY
SWITCH FUNCTION
CODE
SPST
–
SPDT
–
DPST
–
FUNCTION
SINGLE POLE SINGLE THROW
SINGLE POLE DOUBLE THROW
DOUBLE POLE SINGLE THROW
(TOP ACTUATED ONLY)
(TOP ACTUATED ONLY)
DPDT
– DOUBLE POLE DOUBLE THROW
Order From:
CTS CORPORATION, ELECTROCOMPONENTS
/ 1601 Mishawaka Street / Elkhart, Indiana 46514
North America Toll Free (888) 287-4690 / (219) 296-6700 / FAX: (219) 293-1240 http://www.ctscorp.com
CTS COMPONENTS TAIWAN, LTD.
/ 7, Central 6th Road (Chung Liu Road) / P.O. Box 26-20
Kaohsiung Export Processing Zone / Kaohsiung, Taiwan, Rep. of China
(07) 8216145 / FAX: (07) 8417642.8110040
5M-3-99I
