0674891081

Description
Telecom and Datacom Connector, 7 Contact(s), Female, IDC Terminal, HALOGEN FREE AND ROHS COMPLIANT
CategoryThe connector    The connector
File Size28KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0674891081 Overview

Telecom and Datacom Connector, 7 Contact(s), Female, IDC Terminal, HALOGEN FREE AND ROHS COMPLIANT

0674891081 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionHALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Codeunknown
Is SamacsysN
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationGOLD
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number67489
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
OptionsGENERAL PURPOSE
Termination typeIDC
Total number of contacts7
Base Number Matches1

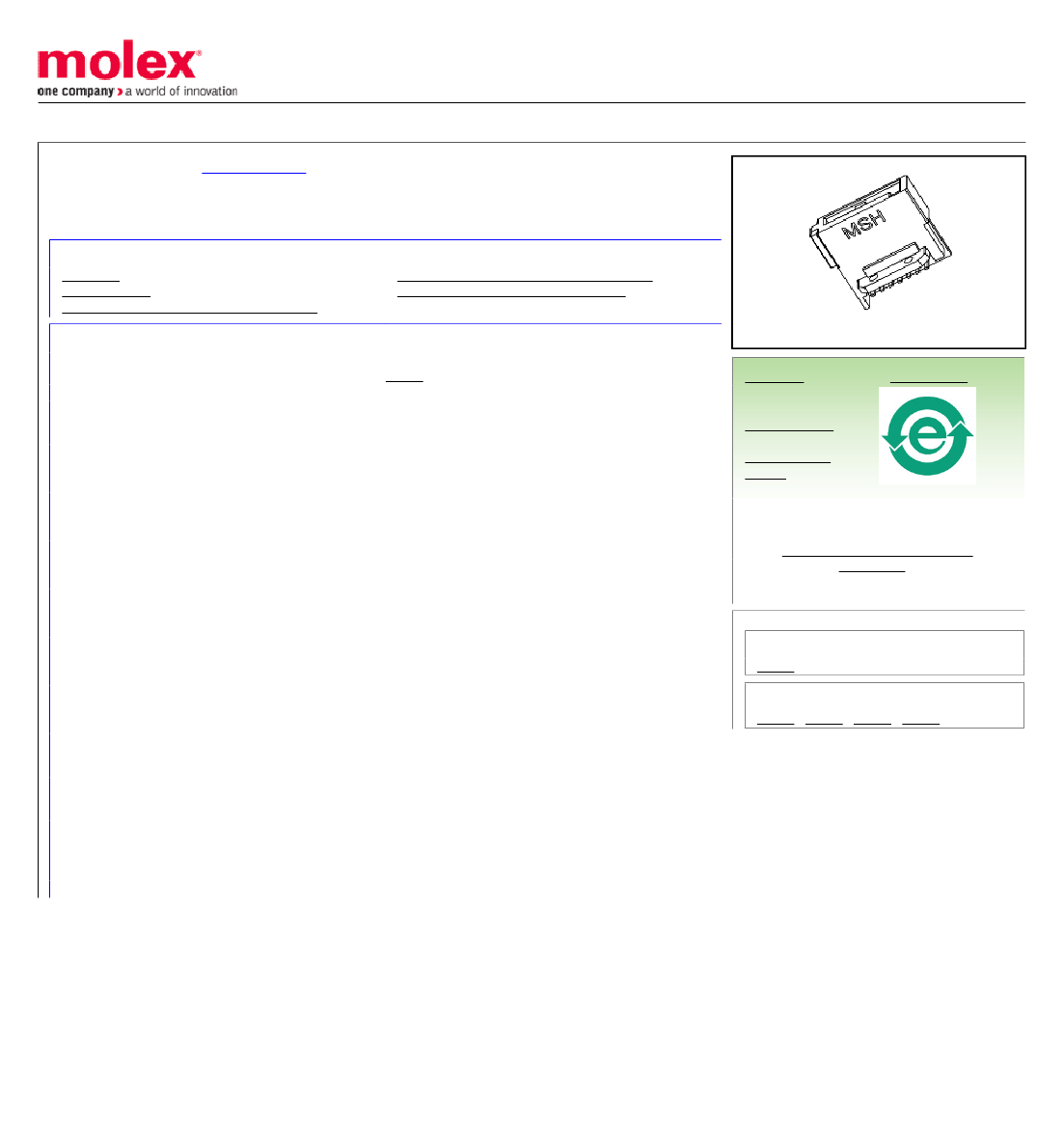

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0674891081
Active
1.27mm (.050") Pitch Serial ATA Signal Connector, Right Angle, Gold (Au) Flash
Plating, 7 Circuit, without Latch, Halogen Free, Lead free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-67490-001 (PDF)
General
Product Family
Series
Product Name
Physical
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Number of Rows
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size AWG
Electrical
Current - Maximum
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Product Specification
Product Specification
Sales Drawing
Product Specification PS-67490-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
IDT and Solder Connectors
67489
Serial ATA
7
7
50
Female
No
Yes
Copper Alloy
Gold
1
Tray
0.050 In
1.27 mm
0.050 In
1.27 mm
Yes
No
-35°C to +85°C
24
26
1.5A
15V DC
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
67489 Series
Mates With
67490 , 67491 , 67811 , 47080
PS-67490-001
PS-67490-002
SD-67489-003
This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
