069GSDA0160F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 069GSDA0160F

069GSDA0160F: DescriptionElectric Fuse, ELECTRIC FUSE, 160A, 690VAC, 690VDC, 200000A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size154KB，5 Pages; ManufacturerIXYS

Download Datasheet Parametric View All

069GSDA0160F Overview

Electric Fuse, ELECTRIC FUSE, 160A, 690VAC, 690VDC, 200000A (IR), INLINE/HOLDER

069GSDA0160F Parametric

Parameter Name	Attribute value
Maker	IXYS
Reach Compliance Code	unknown
Is Samacsys	N
Other features	RATED BREAKING CAPACITY AT 690 VDC: 200000 A
body width	30 mm
body height	65 mm
Body length or diameter	54 mm
Built-in features	INDICATOR
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	4270 J
Manufacturer's serial number	069GSDA0
Installation features	INLINE/HOLDER
physical size	54mm x 30mm x 65mm
Rated breaking capacity	200000 A
Rated current	160 A
Rated voltage (AC)	690 V
Rated voltage (DC)	690 V
Guideline	UL
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

WESTCODE

IXYS Company

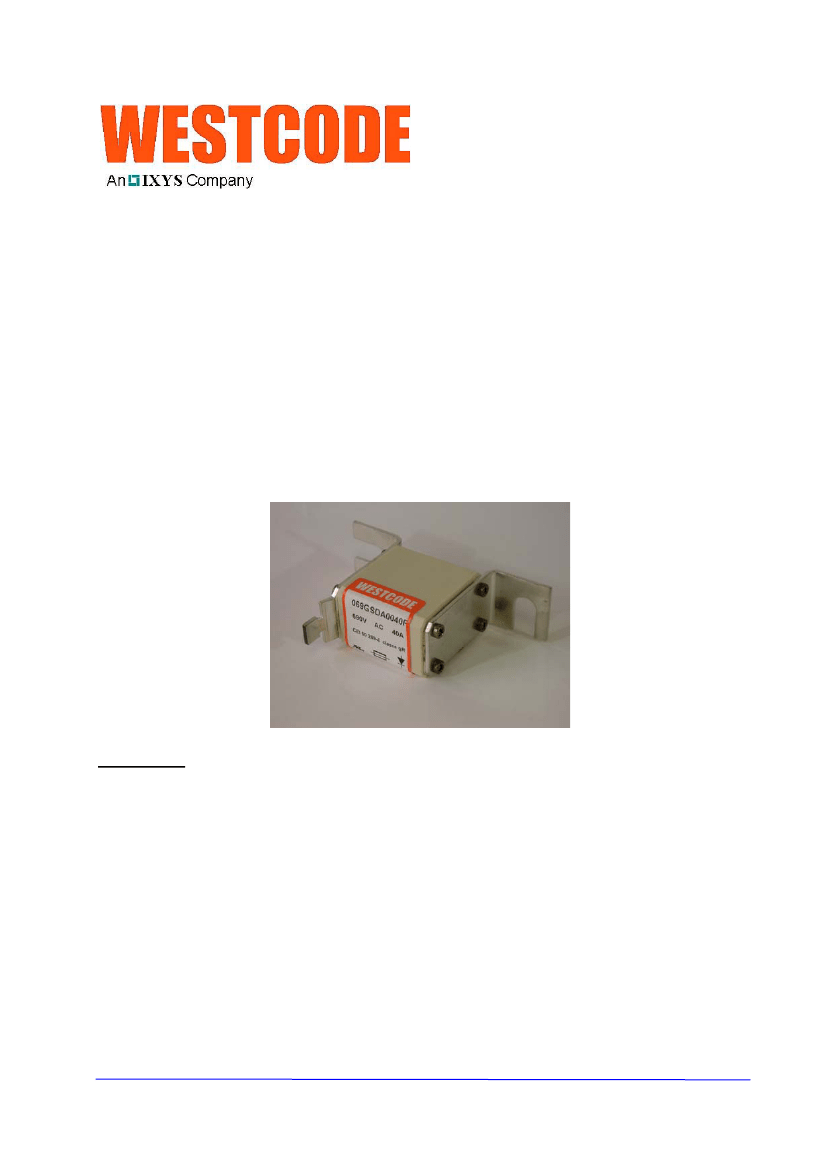

German Standard Square Body Fuses – 690V

Date:- 17 Mar, 2005

Data Sheet Issue:- 1

Ultra Rapid

Semiconductor Protection Fuse

European Square Body Fuses - 690V

German Standard Din 80

Voltage Rating - 690V

Current Ratings from 16A to 160A

gRB Characteristics

Size 00

Key Features:

Extremely high breaking capacity fuses for the protection of power semiconductors as per

IEC Standard 60269.1 and 4.

690V voltage rating complying with IEC 33

Non Magnetic construction

gRB Characteristics with ratings from 16 to 125A in accordance with VDE 636-23

Clearing all overloads

Improving safety and protection

Enabling selective co-ordination with all fuses

All models available with or without integrated trip indicator

Microswitch MS 4L 2-5 B

Fuse holder SI 00 DIN80

Data Sheet 069GSDAxxxxF

Issue 1

Page 1 of 5

March, 2005
