0728BTEXFREQ2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 0728BTEXFREQ2

0728BTEXFREQ2: DescriptionTTL Output Clock Oscillator, 12.1MHz Min, 30MHz Max; CategoryPassive components oscillator; File Size261KB，1 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

0728BTEXFREQ2 Overview

TTL Output Clock Oscillator, 12.1MHz Min, 30MHz Max

0728BTEXFREQ2 Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	unknown
Is Samacsys	N
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	072
Installation features	SURFACE MOUNT
Maximum operating frequency	30 MHz
Minimum operating frequency	12.1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	TTL
Output load	10 TTL
physical size	13.97mm x 11.43mm x 2.79mm
longest rise time	5 ns
surface mount	YES
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

Hybrid Clocks

PXO

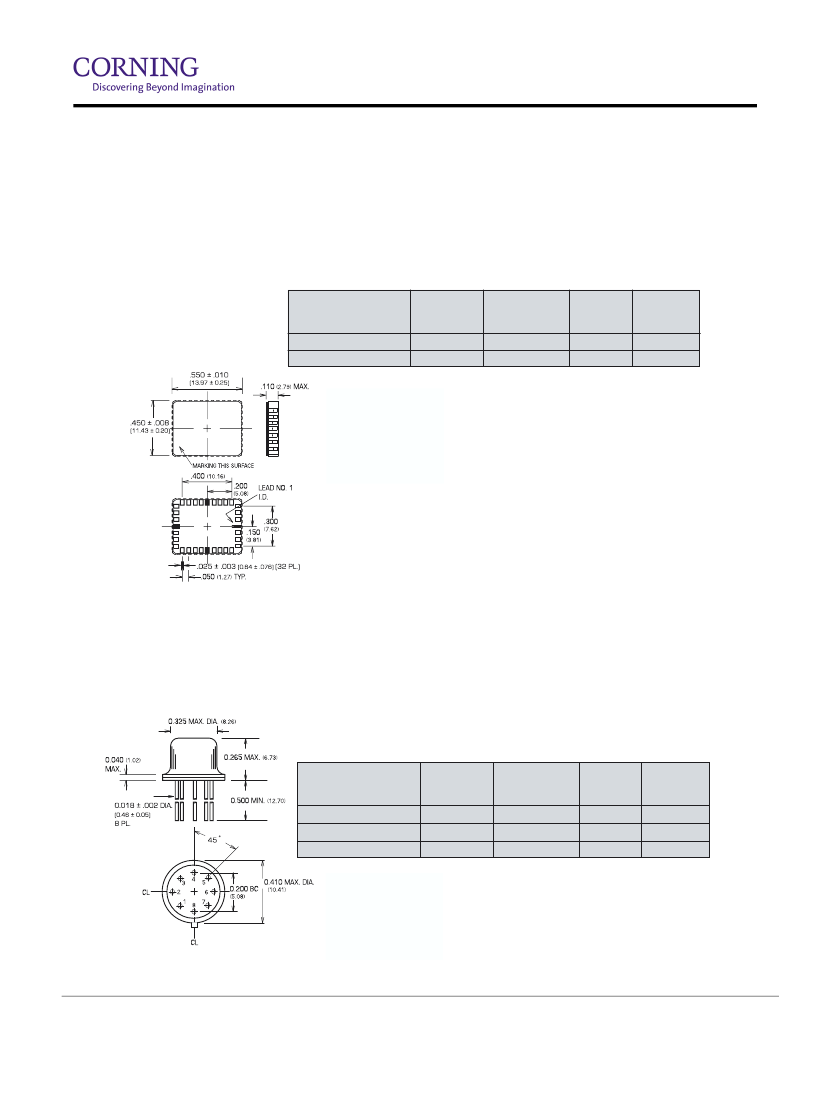

MODEL 072

750 kHz – 30 MHz TTL Oscillator

Surface Mount 32 Pad Leadless Chip Carrier

Frequency Range

750.0 kHz to 12.0 MHz

12.1 MHz to 30.0 MHz

Input Current

@ 5.25 V

Rise & Fall Time

(.8 & 2.0 V)

Duty Cycle

@ 1.4 V

45 to 55

40 to 60

Unit Loads

(max.)

10 TTL

PIN CONNECTIONS

12, 16 – GND

– Output

26, 32 – VCC

All Others N/C

MODEL 717

375 kHz – 65 MHz TTL Oscillator

8-Pin TO-5 Package

Generic Equivalent of MIL-PRF-55310/09

Optional Height 0.20" (5.08mm)

Frequency Range

375.0 kHz to 7.0 MHz

>7.0 MHz to 20.0 MHz

>20.0 MHz to 65.0 MHz

Input Current

@ 5.25 V

Rise & Fall Time

(.8 & 2.0 V)

Duty Cycle

@ 1.4 V

45 to 55

40 to 60

Unit Loads

(max.)

10 TTL

PIN CONNECTIONS

4 – GND/Case

5 – Output

8 – VCC

All Others N/C

Corning Frequency Control

· Crystal Specifications

Corning Frequency Control Inc.

100 Watts Street

Mount Holly Springs, PA 17065

USA

717-486-3411 tel

717-486-5920 fax

www.corningfrequency.com

sales@corningfrequency.com

Corning Frequency Control GmbH & Co. KG

Landstrasse

D-74924 Neckarbischofsheim

Germany

49-07268-801-0 tel

49-07268-801-281 fax

www.corningfrequency.de

sales@corningfrequency.de

v.2002-10-24

Corning Frequency Control (Shanghai) Co. Ltd.

1F.- 2F. No. 8 Workshop, No. 308 Fenju Rd.

WaiGaoQiao Free Trade Zone

Pudong New Area Shanghai, China

86-21-5048-0777 tel

86-21-5048-1881 fax

www.corningfrequency.com

sales@corningfrequency.com
