0780281101: DescriptionCard Edge Connector, 36 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0780281101 Overview

Card Edge Connector, 36 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, ROHS COMPLIANT

0780281101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN (15)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	78028
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	PRESS FIT
Total number of contacts	36
Base Number Matches	1

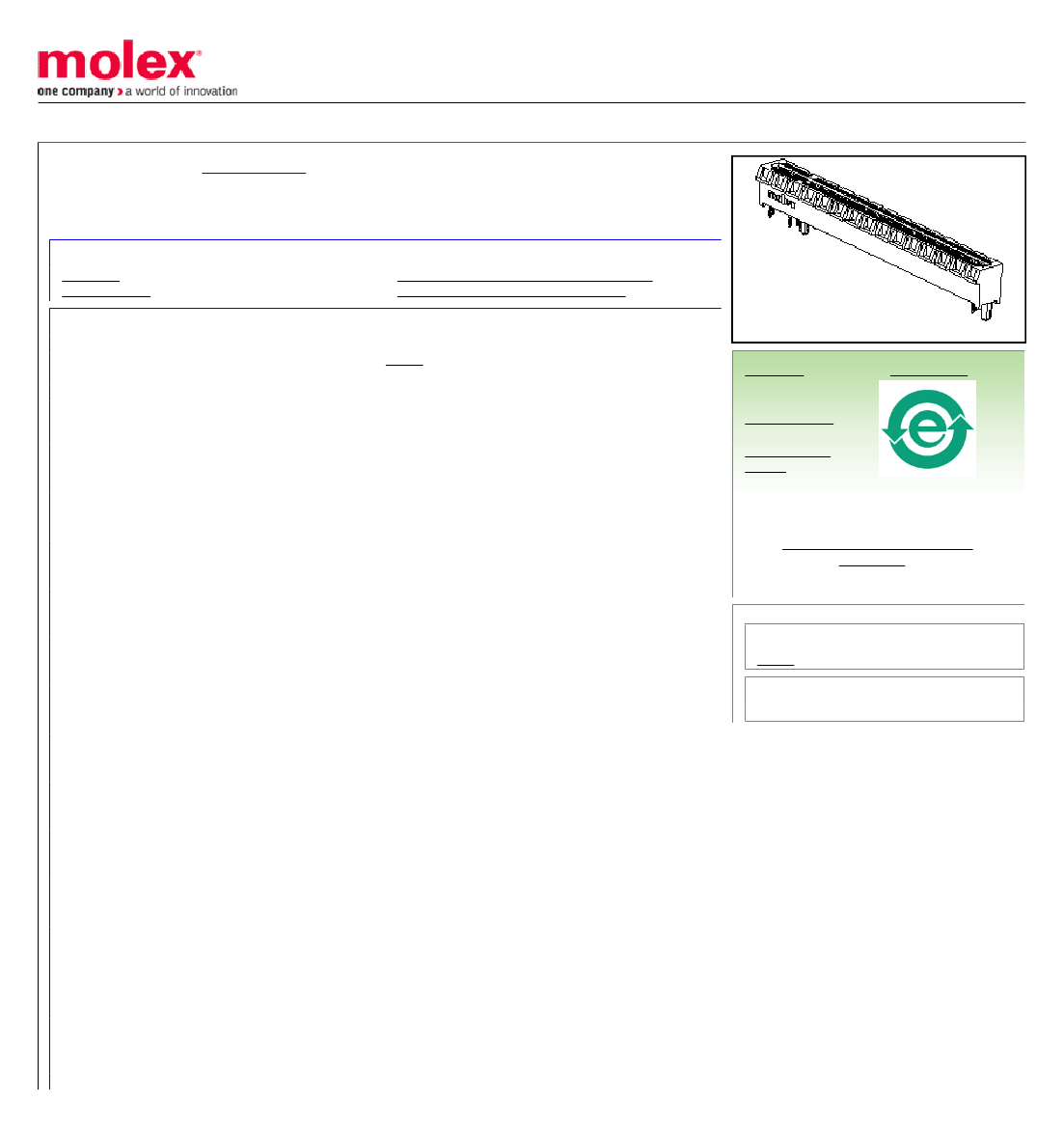

Preview

Download Datasheet

View All

This document was generated on 11/13/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0780281101

Active

1.00mm (.039") Pitch, PCI Express* Connector, Press-fit, 0.76µm (30µ") Gold (Au)

Plating, 3.43mm (.135") Tail Length, with Plastic Pegs, 1 Lanes, 36 Circuits, Leadfree

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Comments

Component Type

Product Name

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

Entry Angle

Keying to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Product Specification

Product Specification PS-78028-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

Edge Card Connectors

78028

PCI 1 lane

Edgecard to PCB

PCI Express*

All Signal

Black

Vertical

Yes

Gold

Tin

High Temperature Thermoplastic

0.135 In

3.43 mm

Yes

0.125 In

3.18 mm

Tray

0.039 In

0.118 In

1.00 mm

3.00 mm

0.039 In

0.118 In

1.00 mm

3.00 mm

0.760

0.380

Yes

-55°C to +85°C

Through Hole - Compliant Pin

1.1A

50V AC (RMS)/DC

Search Parts in this Series

78028 Series

Mates With

PCI Express Card

PS-78028-001
