396-030-526-802: Descriptionstandard card edge connectors 30p .125" x .250" black; CategoryThe connector; File Size210KB，3 Pages; ManufacturerEDAC; Environmental Compliance

Download Datasheet Parametric Compare View All

396-030-526-802 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	396-030-526-802	-	-	View	Buy Now

396-030-526-802 Overview

standard card edge connectors 30p .125" x .250" black

396-030-526-802 Parametric

Parameter Name	Attribute value
Manufacture	EDAC
Product Category	Standard Card Edge Connectors
RoHS	Yes
Factory Pack Quantity	25

Preview

Download Datasheet

View All

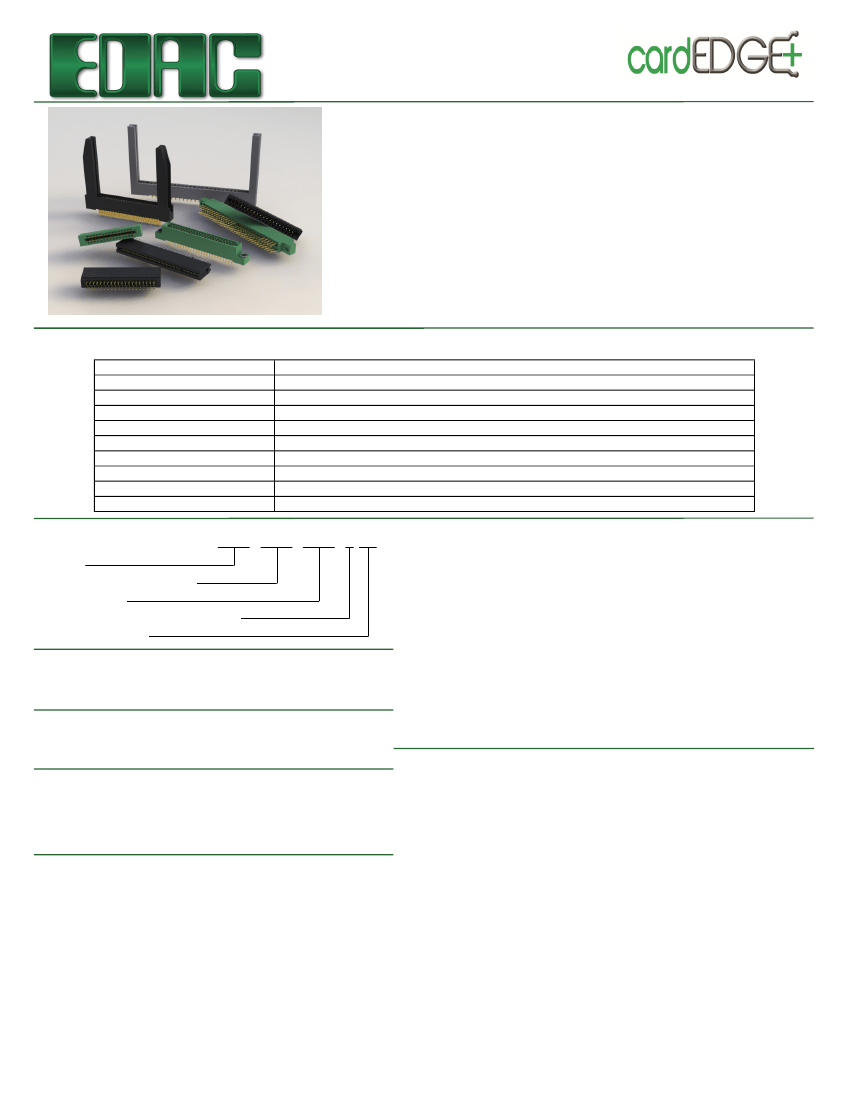

346/396 SERIES

Card Edge Connector 0.125" (3.175mm) Pitch

•

FEATURES:

•

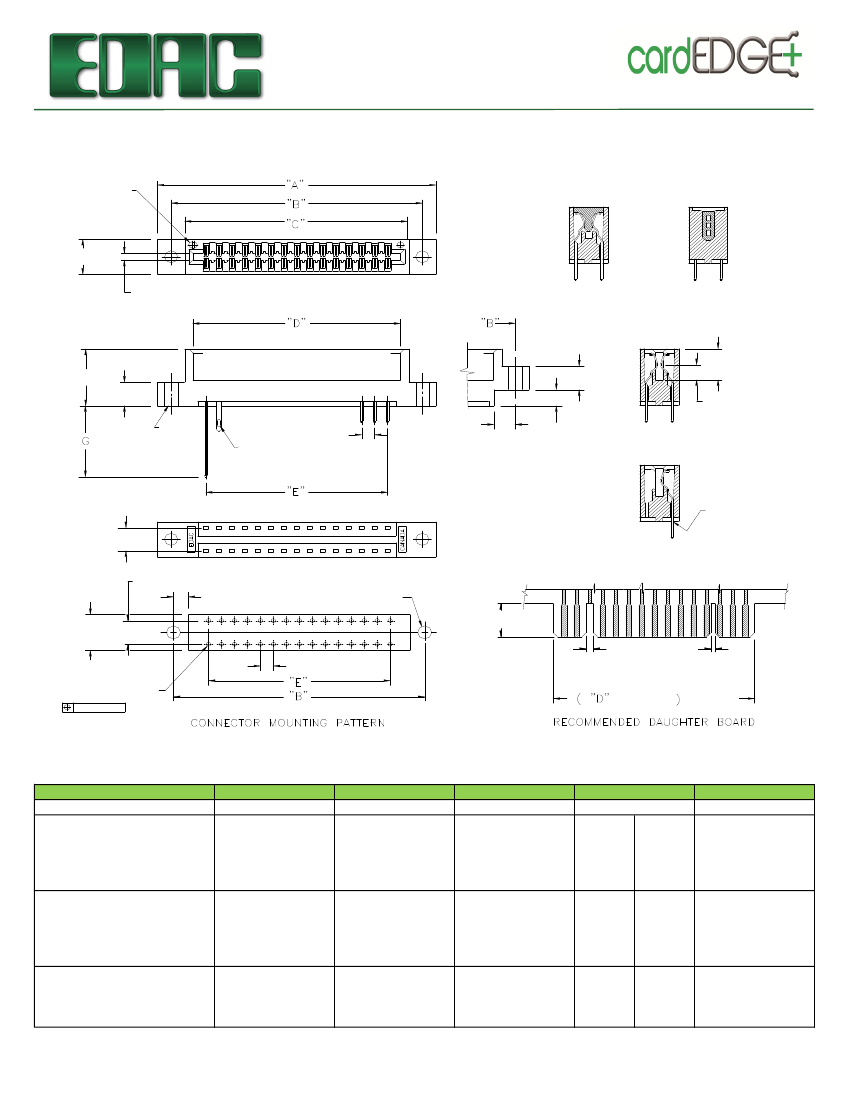

.125" (3.175mm) Contact Spacing x .250" (6.35mm) Row Spacing

Accepts .062" (1.57mm) Nominal Thickness P.C. Board

High Profile Insulator Body, .600" (15.24mm)

Contact Termination Options include P.C. Tail, Wire Wrap, 90

Degree Bends and Extender Board Bends

Single or Dual Row Configurations

Large Variety of Mounting Options, Flush or Offset Lugs

Accepts between Contact and In-Contact Polarizing Keys

Pre-assembled Card Guides are available

Automatic Wire Wrap Positioning Holes

RoHS Compliant & UL Recognized

Specifications:

Insulator Material

Contact Material

Contact Plating

Current Rating

Contact Resistance

Dielectric Withstand Voltage

Insulation Resistance

Operating Temperature

Insertion Force

Withdrawal Force

Example Part Number:

Series

Total Number of Contacts

Contact Code

Contact Rows and Insulator Style

Mounting Options

UL 94V-0 Thermoplastic Polyester

Copper Alloy

Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over

3 Amperes

10 milliohms maximum

1500 VAC rms at sea level between adjacent contacts

5000 Megohms minimum

-40°C to +105°C

16oz (4.45N) maximum per contact pair when tested with .070" (1.78mm) thick gauge

1oz (0.28N) minimum per contact pair when tested with .054" (1.37mm) thick gauge

346-056-540-802

Contact Code

500

520

521

522

526

540

541

555

556

558

559

560

Description & Tail Size

Tail Length "G"

.260 (6.60)

.175 (4.45)

.150 (3.81)

.440 (11.18)

.350 (8.89)

.560 (14.22)

.750 (19.05)

Series:

346

396

Insulator Color

Thermoplastic Polyester, Green

Thermoplastic Polyester, Black

Total Number of Contacts:

005, 006, . . . . 050

010, 012, . . . . 100

Contact Rows

Single Row

Dual Row

Wire Hole

.050 x .025 (1.27 x 0.64)

P.C. Tail

.025 Square (0.64 Square)

P.C. Tail

.025 Square (0.64 Square)

P.C. Tail

.025 Square (0.64 Square)

P.C. Tail

.025 Square (0.64 Square)

Wire Wrap

.025 Square (0.64 Square)

Wire Wrap

.025 Square (0.64 Square)

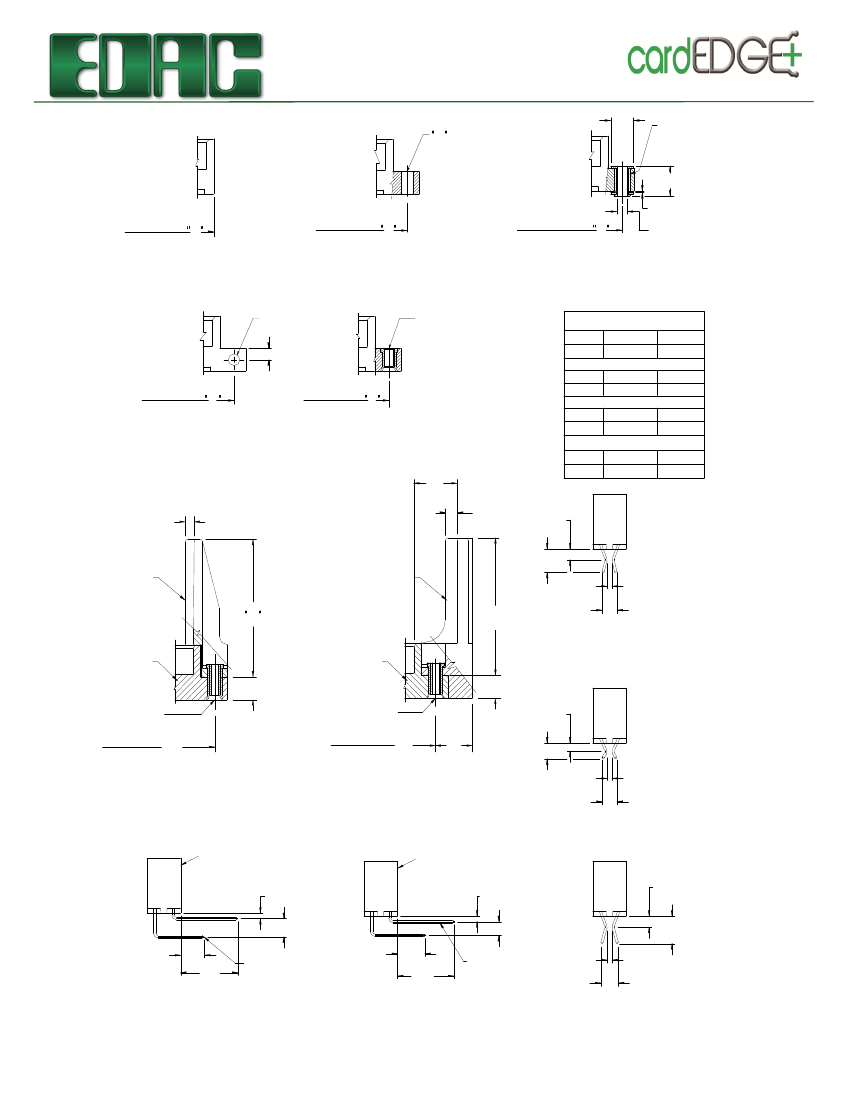

EXTENDER BOARD BEND (Code 500 Contacts)

EXTENDER BOARD BEND

(Code 520 Contacts)

90 DEGREE BEND

(Code 541 Contacts)

90 DEGREE BEND

(Code 541 Contacts)

EXTENDER BOARD BEND

(Code 526 Contacts)

Contact Rows and Insulator Style

Description

Ordering Code Notes:

1) All connector sizes up to 50 contacts single row / 100 contacts dual row are

available upon request.

2) The 500 contact code is only available in the 346 series. Green polyphenylene

sulphide insulator material will be supplied.

3) For details of the extender board and 90 degree bends refer to next pages.

4) Consult with EDAC Inc. regarding connectors with a .420" (10.67mm) card slot

depth.

5) For lug-less connectors, code 01 mounting, specify contact row code 1 or 2.

6) In-line card guides are only with offset mounting lugs.

7) For details of the mounting options refer to next pages.

Single Row, Flush Mounting Lugs

Dual Row, Flush Mounting Lugs

Single Row, .170 (4.32) Offset Lugs

Dual Row, .170 (4.32) Offset Lugs

Mounting Options:

Description

No Mounting Lug

Ø.128" (Ø3.25mm) Mounting Holes

Ø.116" (Ø2.95mm) I.D. Floating Eyelets

Ø.156" (Ø3.96mm) Mounting Holes

M3-0.5 Metric Threaded Inserts

#4-40 Unified Threaded Inserts

Ø.128" (Ø3.25mm) Side Mounting Holes

.468" (11.89mm) Offset Card Guides

In-Line Card Guides 2.750" (69.85mm) Long

In-Line Card Guides 1.250" (31.75mm) Long

www.edac.net

396-030-526-802 Related Products

	396-030-526-802	346-062-500-201	396-080-541-802
Description	standard card edge connectors 30p .125" x .250" black	standard card edge connectors 62p .125" x .250" green	standard card edge connectors 80p .125" x .250" black
Is it Rohs certified?	-	conform to	conform to
Reach Compliance Code	-	compliant	compli
ECCN code	-	EAR99	EAR99
Connector type	-	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	-	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	-	TIN OVER NICKEL	TIN OVER NICKEL
Contact material	-	COPPER ALLOY	COPPER ALLOY
JESD-609 code	-	e3	e3
Manufacturer's serial number	-	346	396
Base Number Matches	-	1	1
