Document 168-1
ChipInductors
–
0805HTSeries
(2012)
At just .035″ high, these are one of our lowest pro-
file surface mount inductors. Their wire wound
ceramic design provides tight tolerances, excep-
tional Q and high SRF values.
1
Coilcraft
Designer’s Kit C121
contains samples of
all 5% inductance tolerance parts. To order,
contact Coilcraft or visit
http://order.coilcraft.com
to order on-line.
4
Part Number
0805HT-1N8T _ B _
0805HT-3N9T _ B _
0805HT-4N7T _ B _
0805HT-6N8T _ B _
0805HT-8N2T _ B _
0805HT-10NT _ B _
0805HT-12NT _ B _
0805HT-15NT _ B _
0805HT-18NT _ B _
0805HT-22NT _ B _
0805HT-27NT _ B _
0805HT-33NT _ B _
0805HT-39NT _ B _
0805HT-47NT _ B _
0805HT-56NT _ B _
0805HT-68NT _ B _
0805HT-82NT _ B _
0805HT-R10T _ B _
0805HT-R12T _ B _
0805HT-R15T _ B _
0805HT-R22T _ B _
Inductance
2
(nH)
1.8 @ 250 MHz
3.9 @ 250 MHz
4.7 @ 250 MHz
6.8 @ 250 MHz
8.2 @ 250 MHz
10 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
27 @ 250 MHz
33 @ 250 MHz
39 @ 250 MHz
47 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
82 @ 150 MHz
100 @ 150 MHz
120 @ 150 MHz
150 @ 150 MHz
220 @ 150 MHz
Percent
Tolerance
3
10
10,5
10,5
10,5
10,5
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2
5,2
5,2
10,5
Q Min
55 @ 1500 MHz
50 @ 1000 MHz
50 @ 1000 MHz
50 @ 1000 MHz
50 @ 1000 MHz
55 @ 750 MHz
55 @ 750 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
55 @ 500 MHz
55 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
40 @ 250 MHz
40 @ 250 MHz
39 @ 150 MHz
SRF Min
5
(MHz)
9400
6100
5500
5500
4800
3300
3800
2950
3100
2900
2450
2350
2200
2000
1850
1500
1500
1200
1150
1050
820
DCR Max
6
I
DC
Max
7
(Ohms)
(mA)
.03
800
.055
800
.06
800
.08
800
.08
800
.08
.10
.10
.13
.15
.19
.19
.27
.30
.39
.40
.44
.64
.68
.80
1.29
800
800
800
800
800
700
600
600
600
500
500
500
400
300
300
200
Color
Code
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Orange
1. When ordering, please specify tolerance and packaging codes:
Inductance tolerance code:
Table above shows stock tolerances in bold.
F=
±1%,
G=
±2%,
J=
±5%,
K=
±10%
0805HT-R15T_ B_
Packaging code:
C
=
7″ machine-ready reel
EIA RS-481 clear plastic
tape. 2000 per reel.
B
=
Less than full reel
Not machine-ready. The car-
rier tape may not be a single continuous length. To
have a leader and trailer added ($25 charge), use
code letter C instead.
D
=
13″ machine-ready reel
EIA RS-481 clear plastic
tape. Factory order only, not stocked. 7500 per
reel.
2. Inductance measured using the Agilent/HP4291A impedance analyzer
with the Agilent/HP16193A test fixture with Coilcraft-provided correlation
pieces. For recommended test procedures, contact Coilcraft.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using Agilent/HP4291A with Agilent/HP16193 test fixture and
on Agilent/HP8753D with Coilcraft SMD-D test fixture.
5. SRF measured using Agilent/HP8720D network analyzer and Coilcraft
SMD-D test fixture.
6. DCR measured on Cambridge Technology micro-ohmmeter and Coilcraft
CCF858 test fixture.
7. For 15° C rise.
8. Operating temperature range
−40°
C to +125° C.
9. Electrical specifications at 25° C.
For environmental data see Product Specifications section.
Specifications subject to change without notice. Document 168-1 Revised 4/23/02
Document 168-2
0805HT Series (2012)

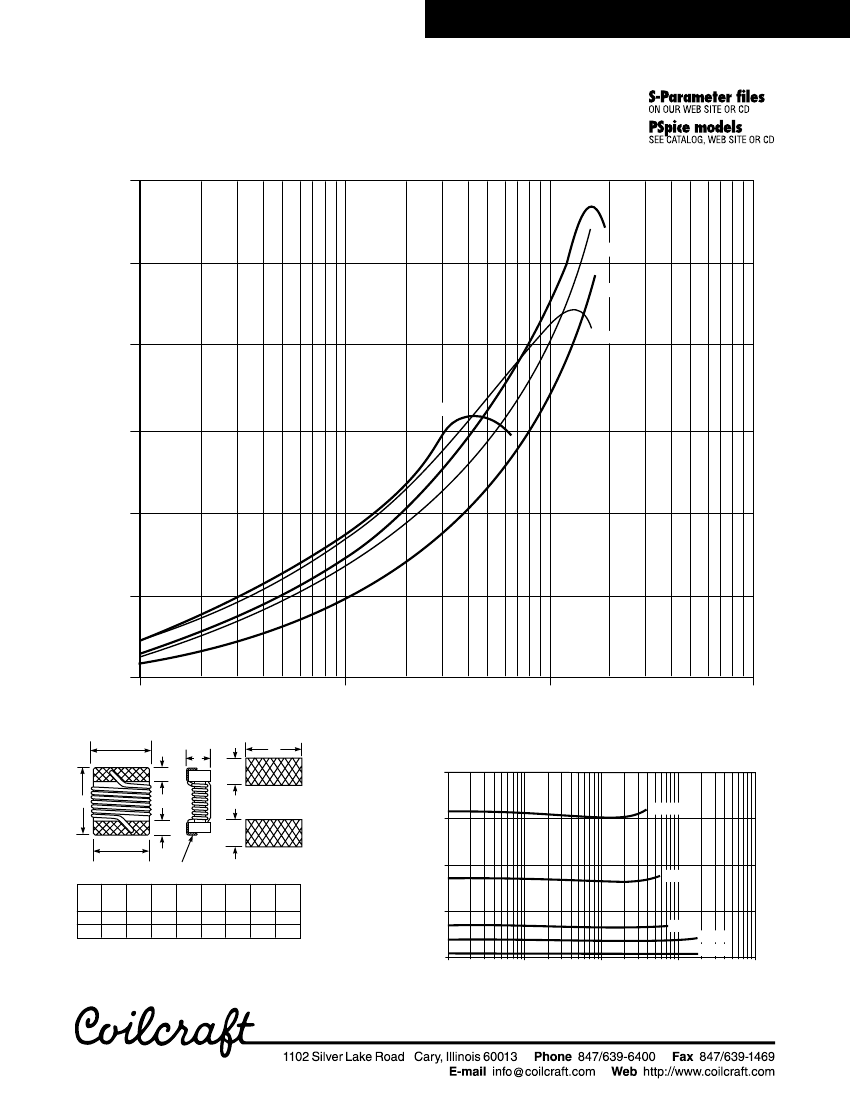

TYPICAL Q vs FREQUENCY
120
22 nH
12 nH
100
3.9 nH
80
39 nH
120 nH
Q
60
40
20
0
10
100
Frequency (MHz)
1000
10000
B
overall
F
A
G
F
E
terminal
C
I
J
I
H
L vs FREQUENCY
200
150 nH
Land
Pattern
Inductance (nH)
150
Terminal wraparound:
approx. .010/0,25 both ends
100
82 nH
A
B
C
E
F
G
H
I
J
Max. Max. Max.
.085 .060 .035 .050 .017 .045 .070 .040 .030
2,16 1,52 0,89 1,27 0,43 1,14 1,78 1,02 0,76
Parts/reel: 7″ 2,000; 13″ 7,500 Tape width: 8 mm
For packaging data see Tape and Reel Specifications section.
50
33 nH
18 nH
3.9 nH
0
1
10
100
1000
10000
Frequency (MHz)
Specifications subject to change without notice. Document 168-2 Revised 4/22/02
