09-52-4164 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 09-52-4164

Preview

09-52-4164: DescriptionCard Edge Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size131KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

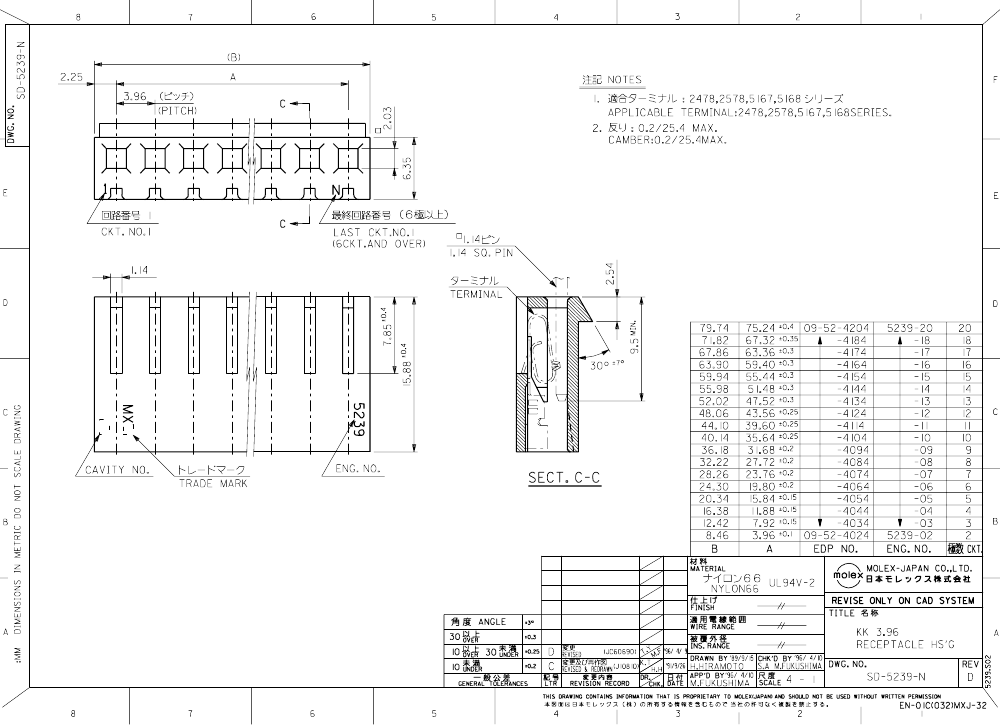

09-52-4164 Overview

Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Locking, Natural Insulator, Receptacle

09-52-4164 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	ZIF
subject depth	0.625 inch
body length	2.516 inch
Body/casing type	RECEPTACLE
Connector type	FFC/FPC CONNECTOR
Contact arrangement	S0P16
Contact point gender	FEMALE
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.625 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 6 to 30 circuits

s

For 0.20mm thick FPC

s

Metal solder tabs provide PCB hold-down

and strain relief for SMT tails

Reference Information

Packaging: Embossed tape

Designed In: Millimeters

Electrical

Voltage: 50V

Current: 0.2A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 250V AC/1 min.

Insulation Resistance: 50 M

Ω

min.

Physical

Housing: 4/6 nylon, UL 94V-0

Actuator: PPS, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin

Solder Tabs: Copper Alloy, Tin plating

Operating Temperature: -20 to +85˚C

0.625mm (.0246") Pitch

FPC Connector

52396

Right Angle, SMT, ZIF

Bottom Contact Style

G

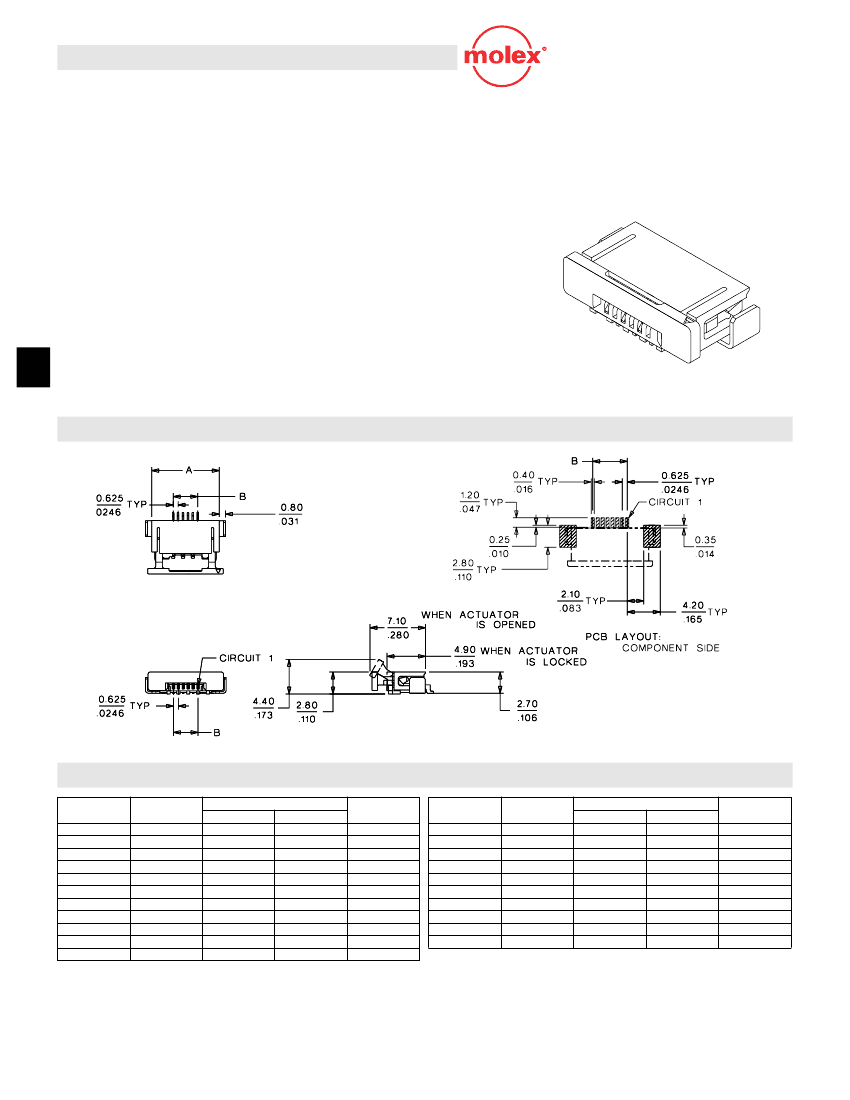

CATALOG DRAWING (FOR REFERENCE ONLY)

FFC/FPC Connectors

ORDERING INFORMATION AND DIMENSIONS

Circuits

6

7

8

9

10

11

12

13

14

15

16

Order No.

52396-0690

52396-0790

52396-0890

52396-0990

52396-1090

52396-1190

52396-1290

52396-1390

52396-1490

52396-1590

52396-1690

Dimension

A

8.575 (.337)

9.200 (.362)

9.825 (.386)

10.450 (.411)

11.075 (.436)

11.700 (.460)

12.325 (.485)

12.950 (.509)

13.575 (.534)

14.200 (.559)

14.825 (.583)

B

3.125 (.123)

3.750 (.147)

4.375 (.172)

5.000 (.196)

5.625 (.221)

6.250 (.246)

6.875 (.270)

7.500 (.295)

8.125 (.319)

8.750 (.344)

9.375 (.369)

Carrier

Tape Width

24.000

(.945)

Circuits

17

18

20

22

23

24

25

26

29

30

Order No.

52396-1790

52396-1890

52396-2090

52396-2290

52396-2390

52396-2490

52396-2590

52396-2690

52396-2990

52396-3090

Dimension

A

B

15.450 (.608)

10.000 (.393)

16.075 (.632)

10.625 (.418)

17.325 (.682)

11.875 (.467)

18.575 (.731)

13.125 (.516)

19.200 (.755)

13.750 (.541)

19.825 (.780)

14.375 (.565)

20.450 (.805)

15.000 (.590)

21.075 (.829)

15.625 (.615)

22.950 (.903)

17.500 (.688)

23.575 (.928)

18.125 (.713)

Carrier

Tape Width

24.000

32.000

44.000

(.945)

(1.260)

(1.732)

Note: For cable speciﬁcation dimensions, see cable pages at end of section

G-20

MX01
