09731067801 datasheet, PDF - EEWORLD Datasheet

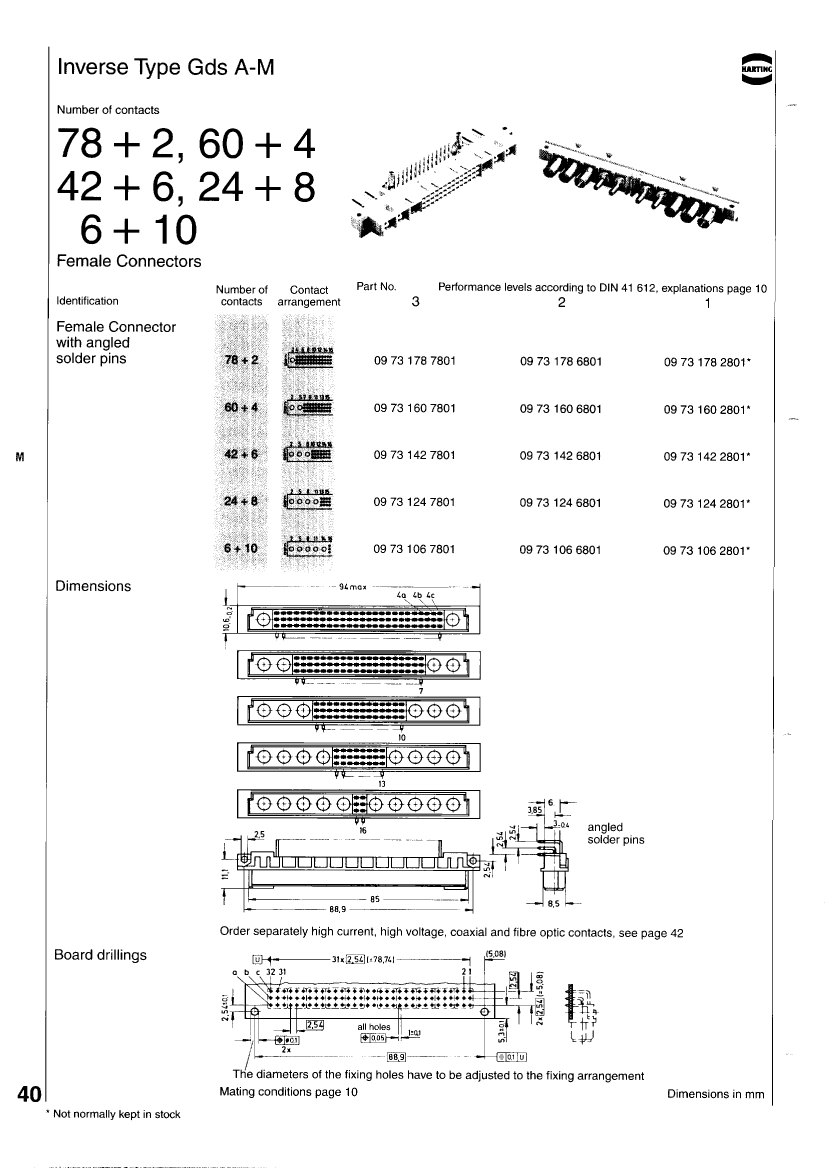

09731067801: DescriptionBoard Euro Connector, 16 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric View All

09731067801 Overview

Board Euro Connector, 16 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-2
body width	0.417 inch
body length	3.701 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	GDSA-M
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Evacuation force-minimum value	.9452 N
Base Number Matches	1
