39-28-1123 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-28-1123

39-28-1123: DescriptionRectangular Power Connector, 12 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39-28-1123 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-28-1123	-	-	View	Buy Now

39-28-1123 Overview

Rectangular Power Connector, 12 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE

39-28-1123 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	365136
Samacsys Pin Count	12
Samacsys Part Category	Connector
Samacsys Package Category	Header, Shrouded
Samacsys Footprint Name	39-28-1123
Samacsys Released Date	2016-10-10 13:31:02
Is Samacsys	N
Other features	MINI-FIT
body width	0.38 inch
subject depth	0.5 inch
body length	1.08 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P12
Contact to complete cooperation	TIN
Contact completed and terminated	Tin/Copper (Sn/Cu)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	14.6784 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e2
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	35u inch
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Terminal length	0.14 inch
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-2
Evacuation force-minimum value	.5004 N
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Positive housing locks to mate with Mini-Fit, Jr. receptacle

Fully isolated terminals to protect contacts from damage

Drain hole option available

Electrical (cont’d)

Contact Resistance: 10m

Ω

max.

Dielectric Withstanding Voltage: 1500V AC

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Contact Insertion Force: 1.5kg max.

Contact Retention to Housing: 3.0kg min.

Wire Pull-Out Force: 9.0kg min.

Insertion Force to PCB: 5.0kg max.

Mating Force: 0.7kg (1.54 lb) max.

Unmating Force: 0.35kg (0.7 lb) min.

Normal Force: 200g min.

Durability: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact: Brass or Phosphor Bronze

Plating: Tin, select Gold or overall Gold

Operating Temperature: -40 to +105˚C

4.20mm (.165") Pitch

Mini-Fit, Jr.

™

Header

5566

Vertical, Dual Row

Without Pegs

Reference Information

Product Speciﬁcation: PS-5556-0001

Packaging: Tray or bag

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5557 dual row receptacle

Designed In: Millimeters

Electrical

Voltage: 600V

Current: (Used with 16 AWG)

Circuits

Amperes-Jr.

2–3

4–6

7–10

12–24

Power Connectors

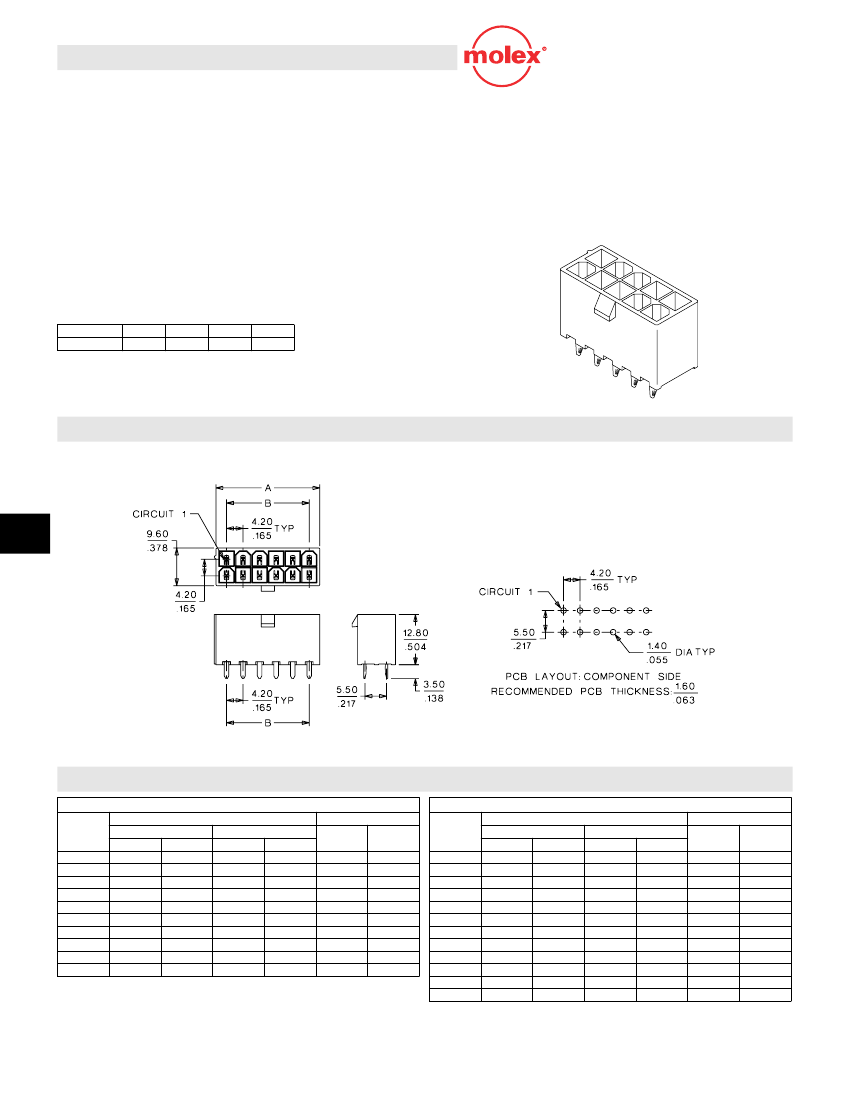

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

With Drain Holes

Order No.

Circuits

Tin Plated

94V-2

94V-0

•39-29-3026

•39-31-0020

•39-29-3046

•39-31-0040

•39-29-3066

•39-31-0060

•39-29-3086

•39-31-0080

•39-29-3106

•39-31-0100

•39-29-3126

•39-31-0120

•39-29-3146

•39-31-0140

•39-29-3166

•39-31-0160

•39-29-3206

•39-29-3226

Gold Plated (30

94V-2

94V-0

•39-31-0027

•39-31-0028

•39-31-0047

•39-31-0048

•39-31-0067

•39-31-0068

•39-31-0087

•39-31-0088

•39-31-0107

•39-31-0108

•39-31-0127

•39-31-0128

•39-31-0147

•39-31-0148

•39-31-0167

•39-31-0168

•39-31-0207

•39-31-0227

5.40

9.60

13.80

18.00

22.20

26.40

30.60

34.80

43.20

47.40

(.210)

(.380)

(.540)

(.710)

(.870)

(1.040)

(1.200)

(1.370)

(1.700)

(1.870)

4.20

8.40

12.60

16.80

21.00

25.20

29.40

37.80

42.00

Dimension

(.170)

(.330)

(.500)

(.660)

(.830)

(.990)

(1.160)

(1.490)

(1.650)

Circuits

Without Drain Holes

Order

Tin Plated

94V-2

94V-0

•39-28-1023

•39-28-8020

•39-28-1043

•39-28-8040

•39-28-1063

•39-28-8060

•39-28-1083

•39-28-8080

•39-28-1103

•39-28-8100

•39-28-1123

•39-28-8120

•39-28-1143

•39-28-8140

•39-28-1163

•39-28-8160

•39-28-1183

•39-28-8180

•39-28-1203

•39-28-8200

•39-28-1223

•39-28-8220

•39-28-1243

•39-28-8240

No.

Gold Plated (30

94V-2

94V-0

•39-29-0023

•39-29-6028

•39-29-0043

•39-29-6048

•39-29-0063

•39-29-6068

•39-29-0083

•39-29-6088

•39-29-0103

•39-29-6108

•39-29-0123

•39-29-6128

•39-29-0143

•39-29-6148

•39-29-0163

•39-29-6168

•39-29-0183

•39-29-6188

•39-29-0203

•39-29-6208

•39-29-0223

•39-29-6228

•39-29-0243

•39-29-6248

5.40

9.60

13.80

18.00

22.20

26.40

30.60

34.80

39.00

43.20

47.40

51.60

(.210)

(.380)

(.540)

(.710)

(.870)

(1.040)

(1.200)

(1.370)

(1.540)

(1.700)

(1.870)

(2.030)

4.20

8.40

12.60

16.80

21.00

25.20

29.40

33.60

37.80

42.00

46.20

Dimension

(.170)

(.330)

(.500)

(.660)

(.830)

(.990)

(1.160)

(1.320)

(1.490)

(1.650)

(1.820)

• US Standard Product, available through Molex franchised distributors

K-18

MX01
