MITSUMI
Rectangular Connectors
IAM-D01 · D02, CAM-C27 · C68
Connectors

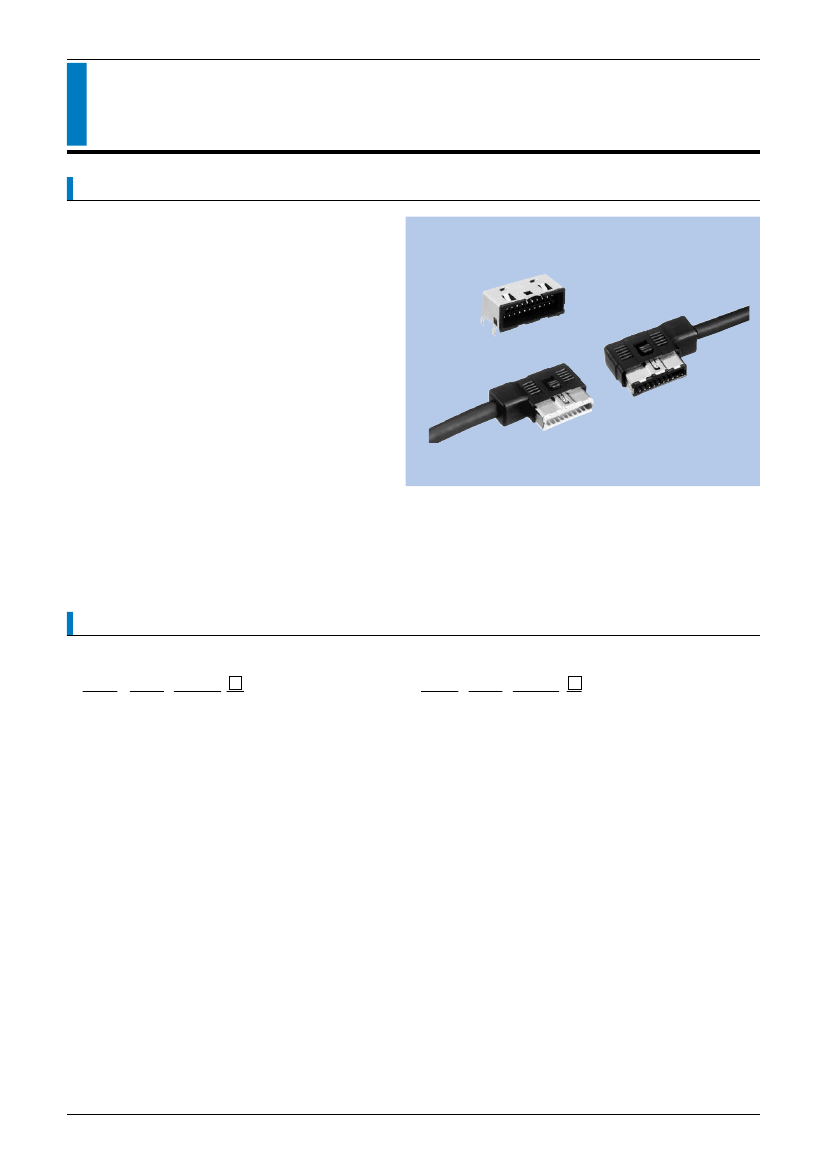

FEATURES
1.These are external interface connectors for 20
pins. IAM-D01 and D02 are cable assembly
type L plugs (D01 : right out ; D02 : left out).
There are two types of sockets: CAM-C27, the
angle dip type, and CAM-C68, the angle SMT
type.
2.The coupling/decoupling cycle life is 10,000
times and a one-touch locking mechanism is
used. The unit is also thin and the area
occupied by the circuit board is small.
Occupation ratio : Approx. 63% (MITSUMI
comparison).
CAM-C27 (20pins)
IAM-D02
IAM-D01
HOW TO ORDER
1. IAM-D01
2. IAM-D02
D01-020-2063
1
1
2
3
4
2
3
4
Series No.
No. of contacts (020 : 20pins)
Running No. assigned by us
Housing Color (A : Black, B : Sky blue, C : Green)
D02-020-2022
1
1
2
3
4
2
3
4
Series No.
No. of contacts (020 : 20pins)
Running No. assigned by us
Housing Color (A : Black, B : Sky blue, C : Green)
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
MITSUMI
Rectangular Connectors
3. CAM-C27
4. CAM-C68
C27-020-020-BGBAA
1
2
3
1 Series No.(C27)
2 No. of contacts (020 : 20pins)
3 Connector style (A : Black, B : Sky blue, C : Green)
C68-020-050-BGBAA
1
2
3
1 Series No.(C68)
2 No. of contacts (020 : 20pins)
3 Connector style (A : Black, B : Sky blue, C : Green)
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
14V DC
1A
AC 500V (rms) 1minute
100MΩ min. (at 500V DC)
100mΩ max.
MECHANICAL CHARACTERISTICS
Life (Matching Cycle)
Total Insertion Force
Total Withdrawal Force
Using Temperature Range
10,000 times
29.4N (3kgf) min.
1.96~29.4N (0.2~3kgf)
-30~+85
˚C
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
MITSUMI
MATERIAL & FINISH
Component Parts
Housing
Contact
IAM-D01
•
D02
Shielded Case
Case
Locks
Cord Clamper
Housing
CAM-C27
Contact
Shielded Case
Housing
CAM-C68
Contact
Shielded Case
Material
PBT resin
Copper Alloy
Steel
PBT resin
Copper Alloy
Aluminum
PBT resin
Copper Alloy
Copper Alloy
46 Nylon resin
Copper Alloy
Copper Alloy
Finish
——
Gold plating
Nickel plating
——
Nickel plating
——
——
Gold plating
Tin reflow plating
——
Gold plating
Tin reflow plating

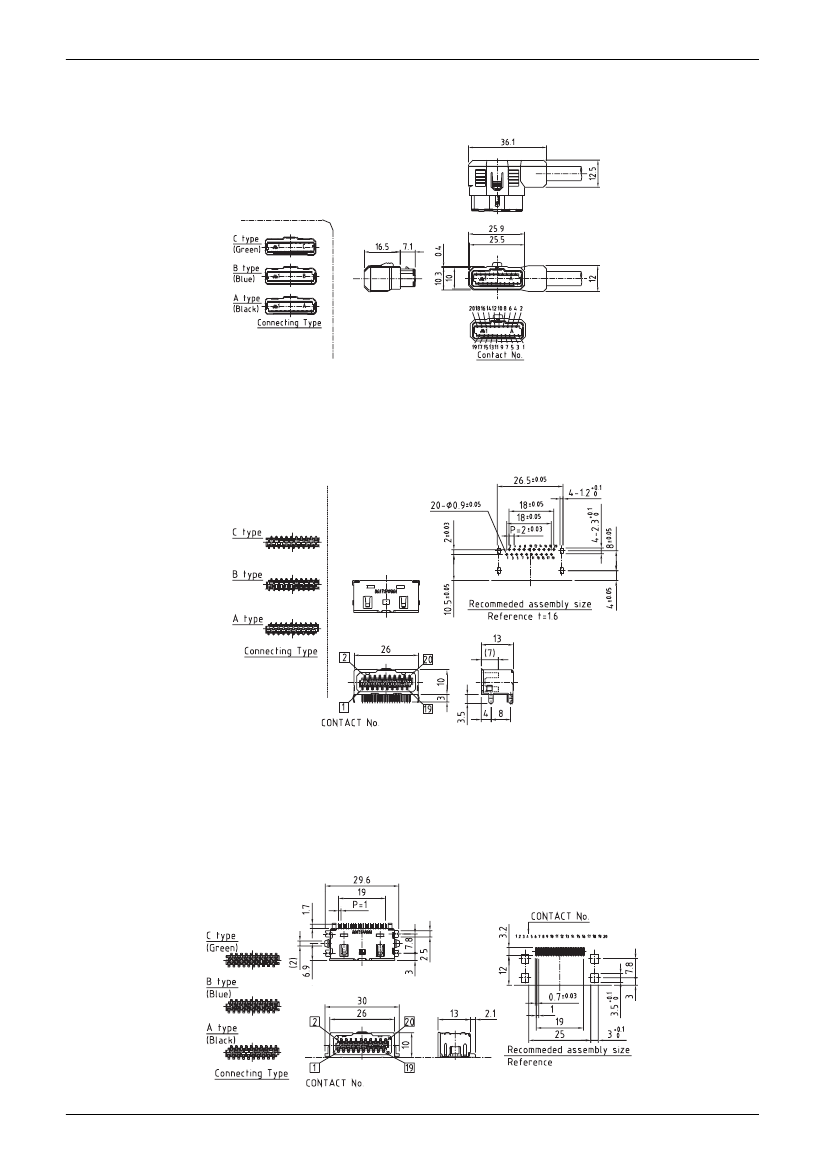

DIMENSIONS
IAM-D01
Unit : mm
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
MITSUMI
Rectangular Connectors
IAM-D02
CAM-C27 (20pins)
CAM-C68
Unit : mm
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
