2
DWG. NO.
1
CIRCUIT
2,4
1,3,5
USE
POWER
SIGNAL
MAXIMUM
CURRENT (AMP)
44
13
MAXIMUM
VOLTAGE (VAC)
600
250
MAXIMUM
WIRE
(mm)
6.3
3.3
NOTES:
1.
2.
3.
4.
4.1
4.2
5.
5.1
5.2
5.3
5.4
5.5
5.6
6.
6.1
MATES WITH UTS6__18X2M3P.
CIRCUITS 2 & 4 USE
SEPARATELY.
3.6mm TRIM TRIO SOCKET CONTACTS ORDERED
S100043
THIS DRAWING IS A CONTROLLED DOCUMENT FOR SOURIAU USA, INC.
IT IS SUBJECT TO CHANGE WITHOUT NOTIFICATION.
CONTACT THE DOCUMENT CONTROL CENTER FOR THE LATEST REVISION.
PANEL SEAL
WASHER
CIRCUITS 1, 3, AND 5 USE 1.6mm TRIM TRIO SOCKET CONTACTS ORDERED
SEPARATELY.
MATERIALS: ALL RoHS COMPLIANT
RECEPTACLE SHELL: POLYAMIDE UL94VO, COLOR-BLACK.
WASHER: RUBBER
MECHANICAL / ENVIRONMENTAL PERFORMANCE
OPERATING TEMPERATURE: -40$TO +105°C.
CORROSION: SALT SPRAY, 500 HOURS.
DURABILITY: 250 MATE-UNMATE CYCLES.
VIBRATION: SINUSOIDAL PER CEI 60512-4; 10-TO-2,000 Hz.
THERMAL SHOCK: 5 CYCLES X 30-MINUTES: -40 TO +105°C.
$
SEALING IN MATED CONDITION: IEC 60529-IP68: 10M WATER, 1-WEEK;
DYNAMIC-IP69K: HIGH-PRESSURE WATER, DIN 40050.
ELECTRICAL PERFORMANCE:
DIELECTRIC WITHSTANDING VOLTAGE / INSULATION RESISTANCE
2200 VRMS MAX. BETWEEN CIRCUITS 2,4 / 5000 M Ohm MIN. @ 500 VDC.
1500 VRMS MAX. BETWEEN CIRCUITS 1,3,5 / 5000 M Ohm MIN. @ 500 VDC.
PACKAGED WITH SEALING WASHER
SOURIAU LABEL INCLUDES PART NO.,QTY. & UL INFORMATION.
UL 1977 RECOGNIZED
POWER CONTACT RESISTANCE: </= 0.9 Milli Ohm.
SIGNAL CONTACT RESISTANCE </=5 Milli Ohm.
U.S. PATENT 7,955,125.
MOLDING VOID CORES ARE INDICATED "X".
TYPICAL USE: OUTLET BOX.
RECOMMENDED TOOLS; 8 POINT 1 1/4 SOCKET: MAX. TORQUE 66 IN-LBS.
FOR THREADED INSTALLATION:
TAP DRILL 59/64 OR .922 IN (23.42mm) 3/4-NPT INTERNAL THREADS.
FOR JAMNUT INSTALLATION:
SECURE WITH 3/4-NPT NUT:THRU-HOLE 1.05 INCH (26.7mm)
B
1.42
[
36.1
]
.68
[
17.2
]
MATING SIDE
1.12
[
28.5
]
.43
[
10.9
]
WIRE SIDE
7
8.
9.
.77
[
19.5
]
10.
X
X
11
X
X
X
X
X
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND MAY NOT BE
DISCLOSED WITHOUT WRITTEN CONSENT FROM SOURIAU USA, INC.
X
12
4X 1.25
[
31.8
]
THREAD
3/4"-NPT
A
REV
RELEASED PER ECN 11916
DESCRIPTION
RSK
02-15-13
NPP
02-15-13
A
BY
DATE
CHKD
DATE
DRAWING TITLE

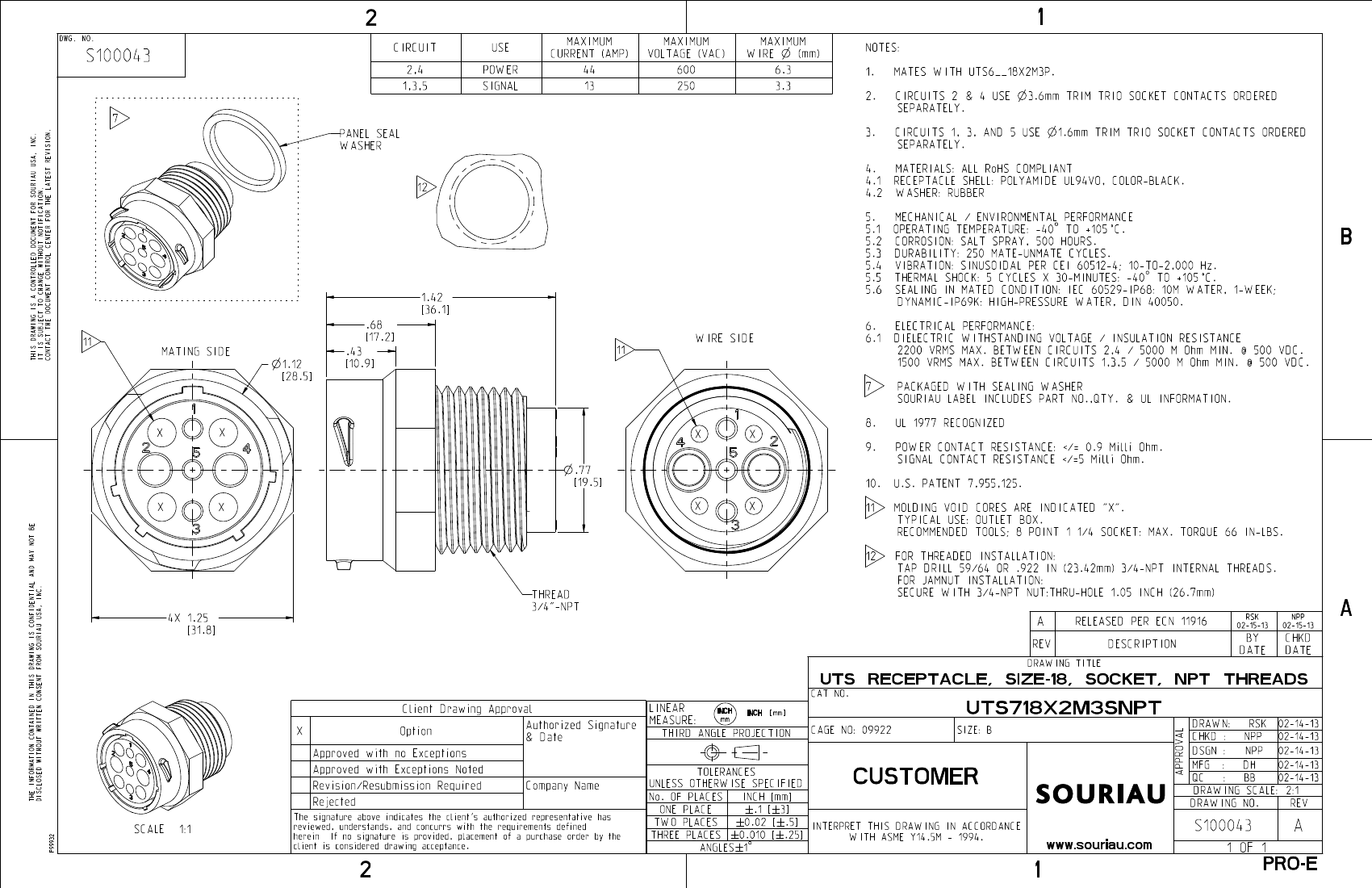

UTS RECEPTACLE, SIZE-18, SOCKET, NPT THREADS
CAT NO.
Client Drawing Approval
X
Option
Approved with no Exceptions
F99932
SCALE 1:1
TOLERANCES
UNLESS OTHERWISE SPECIFIED
Revision/Resubmission Required
Company Name
No. OF PLACES
INCH [mm]
Rejected
ONE PLACE
#.1 [ #3]
The signature above indicates the client's authorized representative has
TWO PLACES
#0.02 [ #.5]
reviewed, understands, and concurrs with the requirements defined
THREE PLACES
#0.010 [ #.25]
herein If no signature is provided, placement of a purchase order by the
client is considered drawing acceptance.
ANGLES #1 $
Approved with Exceptions Noted
CUSTOMER
INTERPRET THIS DRAWING IN ACCORDANCE
WITH ASME Y14.5M - 1994.
APPROVAL
LINEAR
MEASURE:
Authorized Signature
THIRD ANGLE PROJECTION
& Date
UTS718X2M3SNPT
CAGE NO: 09922
SIZE: B
DRAWN:
CHKD :
DSGN :
MFG :
QC
:
DRAWING
DRAWING
02-14-13
RSK
02-14-13
NPP
02-14-13
NPP
02-14-13
DH
02-14-13
BB
SCALE: 2:1
NO.
REV
S100043
www.souriau.com
1 OF 1
