M85049/3610N01: Descriptioncircular mil spec backshells backshell; CategoryThe connector; File Size171KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

M85049/3610N01 Overview

circular mil spec backshells backshell

M85049/3610N01 Parametric

Parameter Name	Attribute value
Manufacture	Glenai
Product Category	Circular MIL Spec Backshells
RoHS	Yes
MIL Type	MIL-DTL-38999 I, II
Shell Size	10
Shell Material	Aluminum
Mating Style	Threaded

Preview

Download Datasheet

View All

EMI/RFI Non-Environ.

Backshells

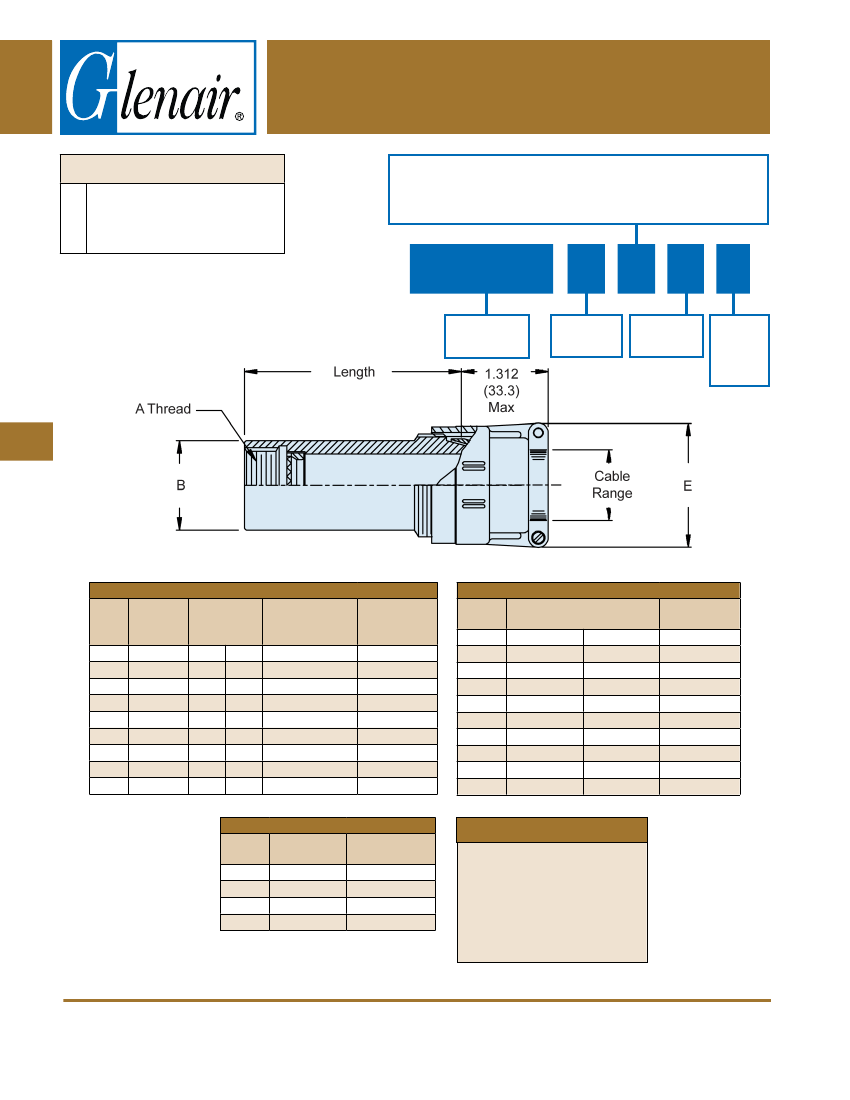

CONNECTOR DESIGNATOR:

AS85049/36 and M38999/7

Straight EMI/RFI Non-Environmental Backshell

F

MIL-DTL-38999, Series I & II

40M38277, PAN 6433-1

PATT 614, PATT 616

NFC93422 Series HE308 and HE309

Finish

N

= Electroless Nickel

X

= Nickel Fluorocarbon Polymer

W

= 1,000 Hr. Cadmium Olive Drab

Z

= Zinc-Nickel, Black

over Electroless Nickel

M85049/36

Basic

Part Number

10

Shell Size

(Table I)

N

03

A

Length

Code

(Omit for

Standard)

Clamp Size

(Table I)

Table III

38

TABLE I: Shell Size and Clamp Size

TABLE II: Cable Range and Dimensions

Shell Series I

Size Shell Size

Ref.

08

10

12

14

16

18

20

22

24

09

11

13

15

17

19

21

23

25

Clamp Size

(Table II)

Min Max

01

02

03

04

02

03

04

05

06

07

08

09

10

A Thread

Class 2B

.438 - 28 UNEF

.562 - 24 UNEF

.688 - 24 UNEF

.813 - 20 UNEF

.938 - 20 UNEF

1.063 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

B Dia

Max

.65

.77

.89

1.02

1.15

1.23

1.36

1.48

1.73

(16.5)

(19.6)

(22.6)

(25.9)

(29.2)

(31.2)

(34.5)

(37.6)

(43.9)

Clamp

Size

01

02

03

04

05

06

07

08

09

10

Cable Range

Min Max

.062 (1.6)

.125 (3.2)

.250 (6.4)

.375 (9.5)

.312 (7.9)

.500 (12.7)

.437 (11.1)

.625 (15.9)

.562 (14.3)

.750 (19.1)

.687 (17.4)

.875 (22.2)

.812 (20.6) 1.000 (25.4)

.937 (23.8) 1.125 (28.6)

1.062 (27.0) 1.250 (31.8)

E

Max

.781

.969

1.062

1.156

1.250

1.375

1.500

1.625

1.750

1.875

(19.8)

(24.6)

(27.0)

(29.4)

(31.8)

(34.9)

(38.1)

(41.3)

(44.5)

(47.6)

TABLE III: Length Code

Length

Code

Std.

A

B

C

Available

Shell Sizes

08 - 24

14 - 24

20 - 24

APPLICATION NOTES

1.

2.

3.

For complete dimensions see the

applicable Military Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as the

accommodation range for the wire

bundle or cable. Dimensions shown

are not intended for inspection

criteria.

Length

1.500 (38.1)

2.500 (63.5)

3.500 (88.9)

4.500 (114.3)

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com
