DB3CA1AA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DB3CA1AA

DB3CA1AA: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, 0.1A, 80VDC, 1.6mm, Solder Terminal, Spherical Head Type Actuator, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size471KB，4 Pages; ManufacturerThe Cherry Corporation; Environmental Compliance

Download Datasheet Parametric View All

DB3CA1AA Overview

Snap Acting/Limit Switch, SPDT, Momentary, 0.1A, 80VDC, 1.6mm, Solder Terminal, Spherical Head Type Actuator, Panel Mount, ROHS COMPLIANT

DB3CA1AA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	The Cherry Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Actuator length	0.087 inch
Actuator stroke	1.6 mm
Actuator type	SPHERICAL HEAD TYPE
Other features	ELECTRICAL LIFE AND ELECTRICAL RATING FOR EN ALSO AVAILABLE
body width	6.45 mm
body height	9.65 mm
Body length or diameter	20 mm
Contact (AC) maximum rated R load	10.1A@250VAC
Maximum contact current (AC)	10.1 A
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@80VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	80 V
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	DB
Installation features	PANEL MOUNT
Maximum operating force	1.5 N
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Maximum pre-travel	1 mm
seal	IP50
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.132 inch
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

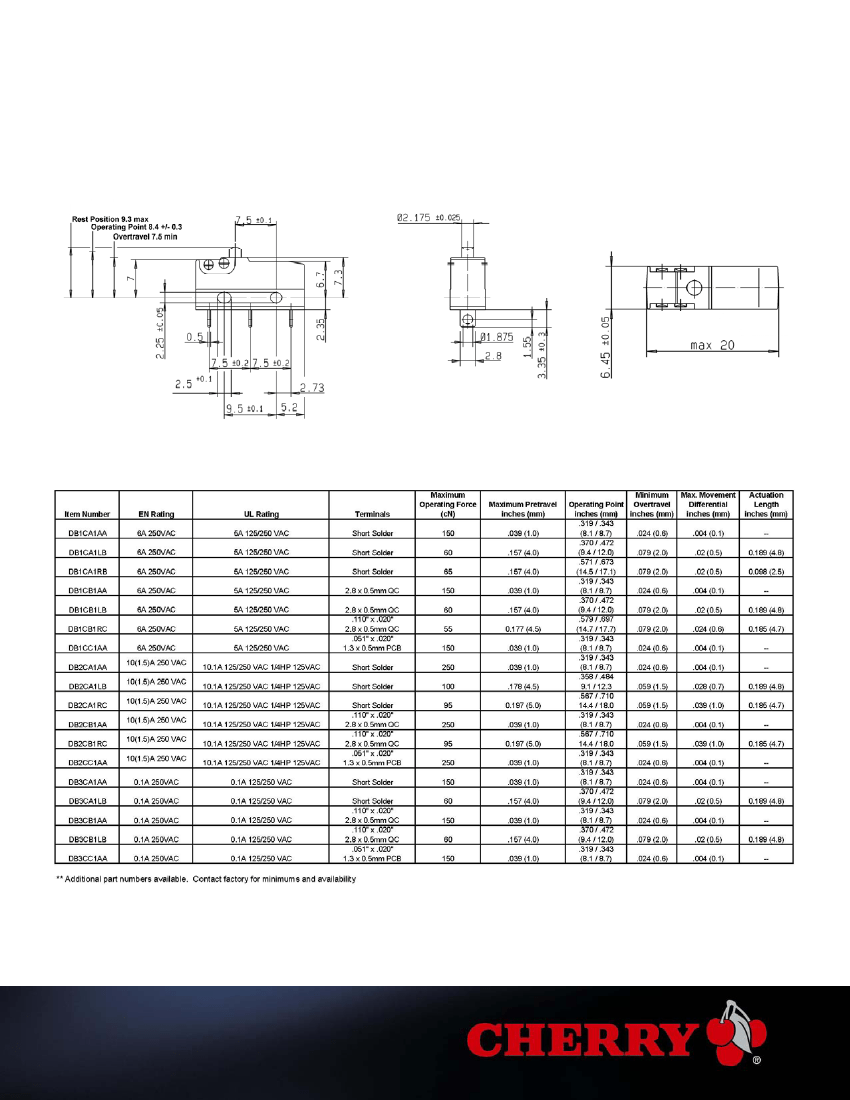

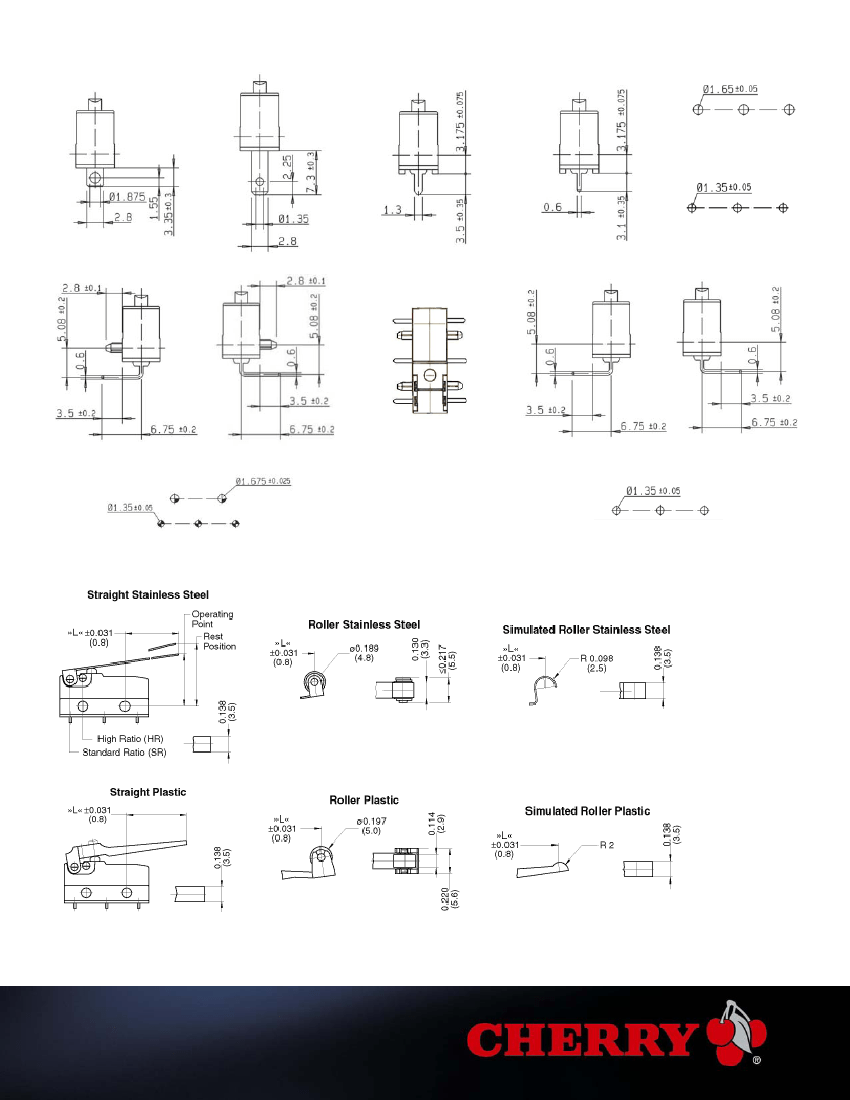

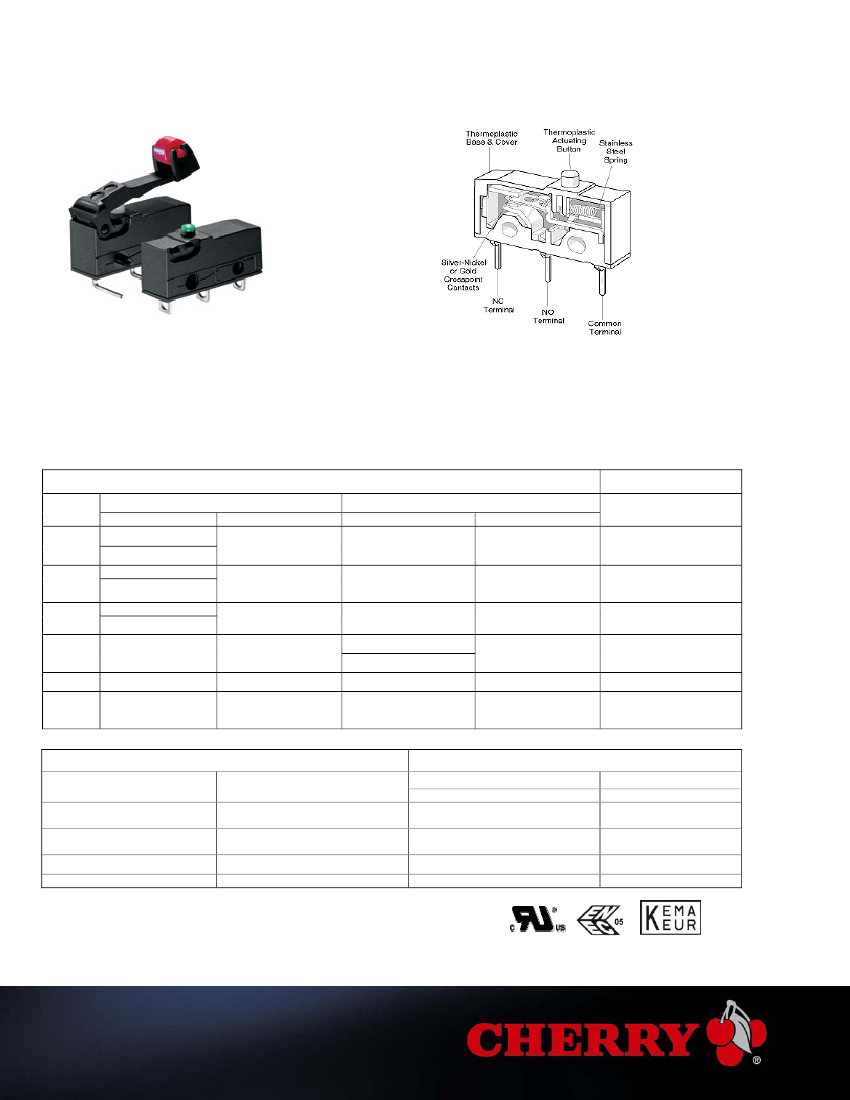

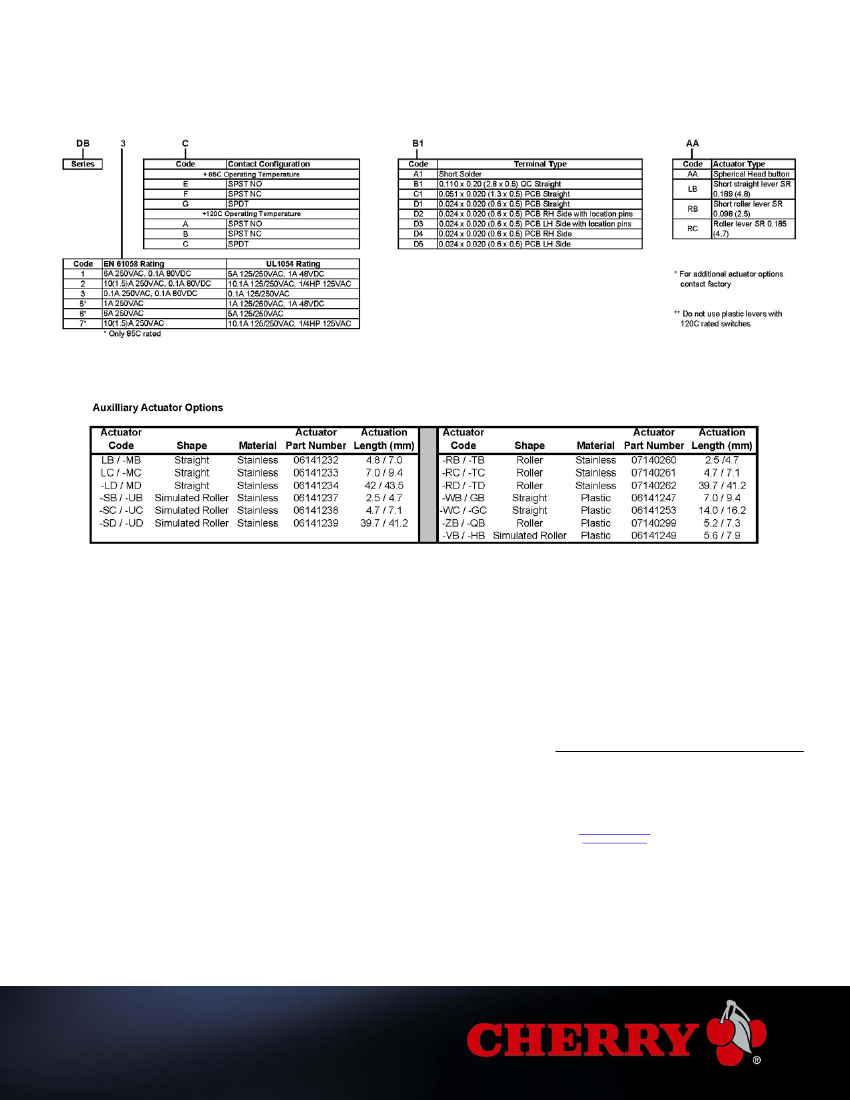

Subminiature Snap Action Switch

DB Series

Features



Precision switch with high repeat accuracy

Models available for operating temperatures up to 120°C

Rated for currents up to 10A @ 250VAC

Range of snap-on auxiliary actuators, two mounting positions



Wide variety of terminal options available

International approvals standard

Mechanical life up to 15 x 10

RoHS Compliant

Electrical Ratings and Operating Life

Switch

Series

DB1

According to EN61058-1

Nominal Load

6A, 250V~

0.1A 80 VDC

10(1.5)A, 250 V~

DB2

DB3

DB5*

DB6*

DB7*

0.1A 80 VDC

0.1A 250 V~

0.1A 80 VDC

1A 250 V~

6A 250 VAC~

10(1.5)A 250 V~

Operation cycles

10,000

50,000

According to UL1054

Nominal Load

5A 125/250 VAC

1A 48 VDC

10.1A 125/250 VAC

¼ HP 125 VAC

0.1A 125/250 VAC

1A 125/250 VAC

1A 48VDC

5A 125/250 VAC

10.1A 125/250 VAC

¼ HP 125 VAC

Operation cycles

6,000

15,000

6,000

100,000

6000

15,000

6,000

Mechanical Life

15 x 10

10 x 10

15 x 10

10 x 10

*Only 85°C Rated

Technical Specifications

Temperature Rating:

Degree of Protection:

Contact Gap

-40°C to 85°C or -40°C to 120°C

IP50

< 3mm (μ)

Material Specifications

Base:

Cover:

Actuator button:

Contacts:

Terminals:

Auxiliary actuator:

PET (UL 94 V-0)

PBT (UL 94 V-0)

PBT (UL 94 V-0) 120°C

POM (UL 94 HB) 85°C

AuAgPt (Crosspoint),

AgNi,

CuZn (silver plated)

Stainless steel or plastic

Proof Tracking Index

PTI 175

UL File Number:

E314201

Specifications subject to change
