MSFB43-85-001M0 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> MSFB43-85-001M0

MSFB43-85-001M0: DescriptionSAW Filter, 1 Function(s), 85.38MHz; CategoryAnalog mixed-signal IC filter; File Size152KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

MSFB43-85-001M0 Overview

SAW Filter, 1 Function(s), 85.38MHz

MSFB43-85-001M0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
Reach Compliance Code	compliant
Is Samacsys	N
Center frequency or cutoff frequency (fo/fc)	85.38 MHz
filter type	SAW FILTER
high	1.8 mm
Maximum insertion loss	12 dB
length	9.15 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
physical size	L9.15XB4.8XH1.8 (mm)
width	4.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

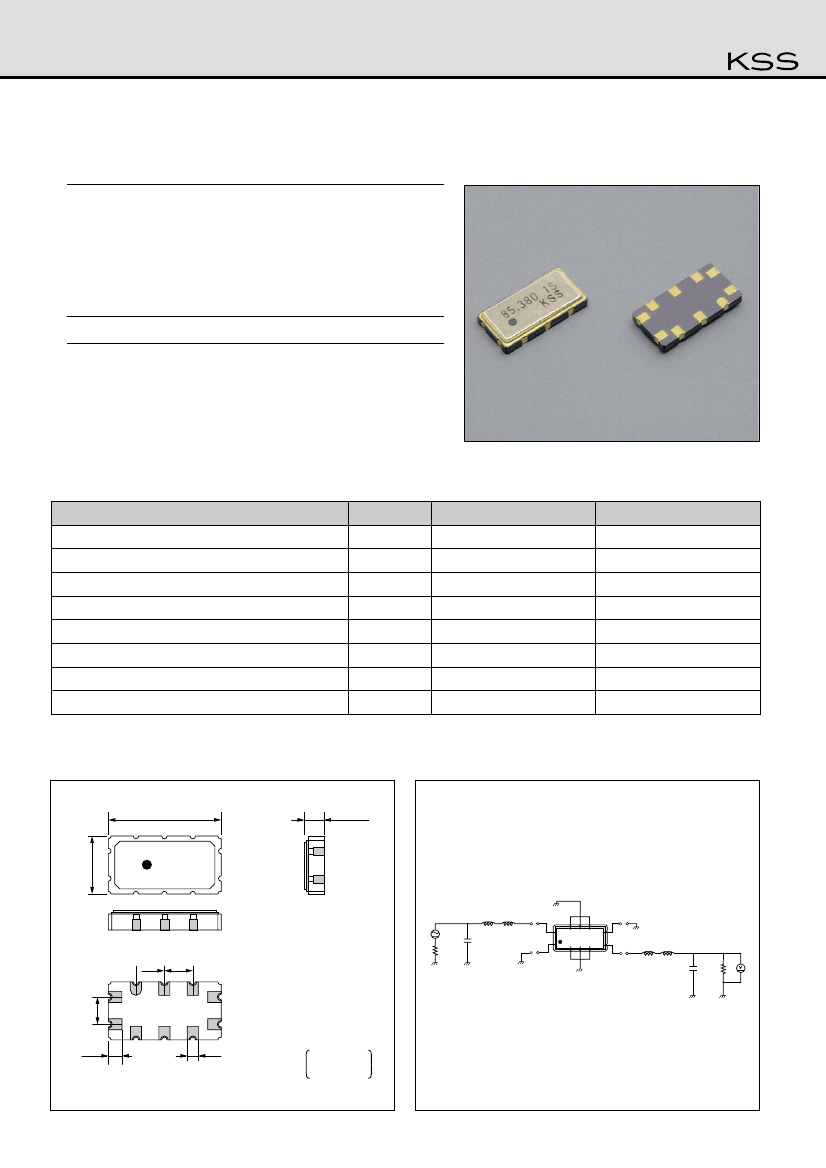

MSFB43-85-001M0

cdmaOne-IF

Features

¡Wide-Band

IF filter for cdmaOne.

¡Because

it is leadless type, automatic mounting is possible.

¡Excellent

phase characteristics.

¡Balance

connection type of input and output is available.

Standard Frequencies

¡85.380MHz

Specifications

Item

Nominal Frequency

Operating Temperature Range

Storage Temperature Range

Pass Bandwidth

Ripple

Insertion Loss

Guaranteed Attenuation

Group Delay Deviation

Unit

MHz

kHz

Conditions

––––––

–30~+80

–40~+85

–5dB

±300kHz

Typical

Fo±0.9MHz

Fo±300kHz

Specifications

85.38

––––––

±620

MIN.

1.0 MAX.

9.1

33 MIN.

500 MAX.

Outline

MSFB43

9.15±0.2

4.8±0.2

Measurement Circuit

1.8 max.

KSS

CONNECTION

1:GND

2:GND

3:GND

4:OUT

5:GND

6:GND

7:GND

8:GND

9:IN

10:GND

Balance

9,10:IN

4,5:OUT

SSG

Ω

8 7 6

85.380 9K

KSS JAPAN

Volt meter

Ω

2.54

1 2 3

1.0

0.8

Dimensions(mm)
