R574.123.610 datasheet, PDF - EEWORLD Datasheet

R574.123.610: DescriptionRF Relay, SP6T, Latched, 0.125A (Coil), 28VDC (Coil), 3500mW (Coil), 12400MHz, 200W (RF Input), DC Input, Panel Mount; CategoryMechanical and electronic products relay; File Size142KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

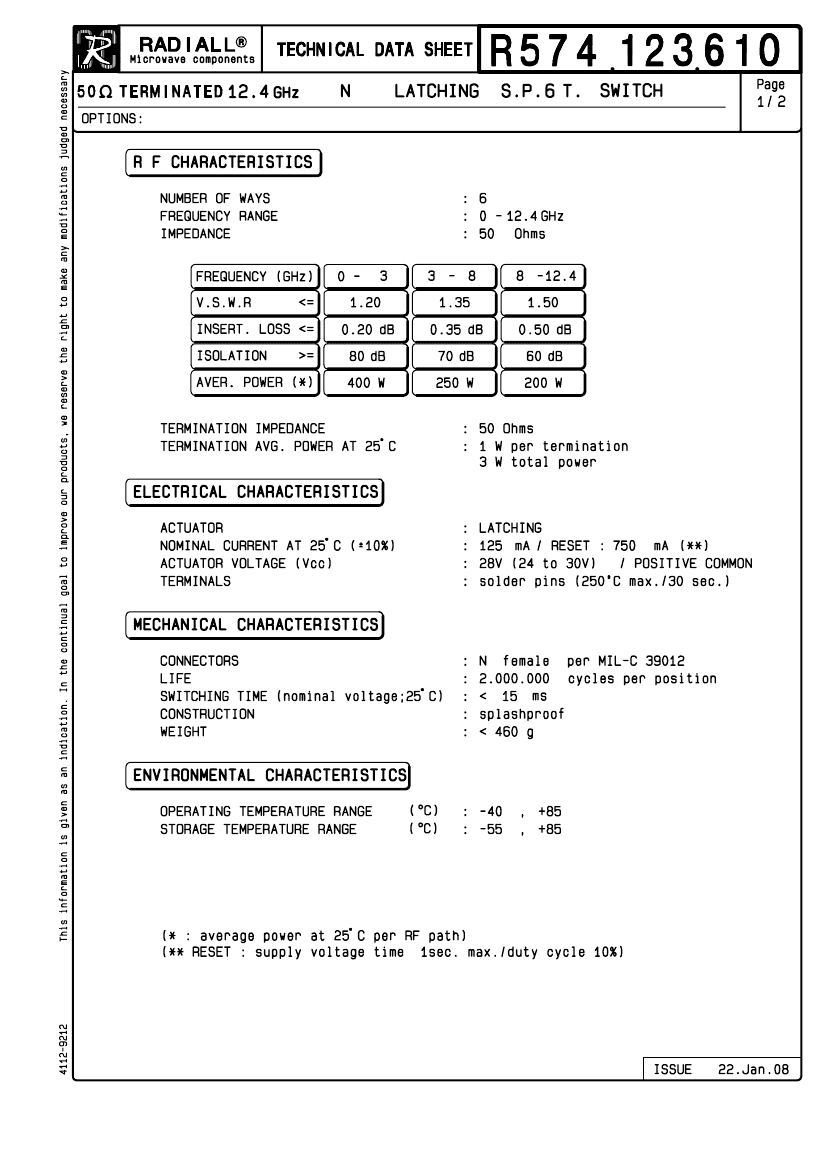

R574.123.610 Overview

RF Relay, SP6T, Latched, 0.125A (Coil), 28VDC (Coil), 3500mW (Coil), 12400MHz, 200W (RF Input), DC Input, Panel Mount

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	5 weeks 5 days

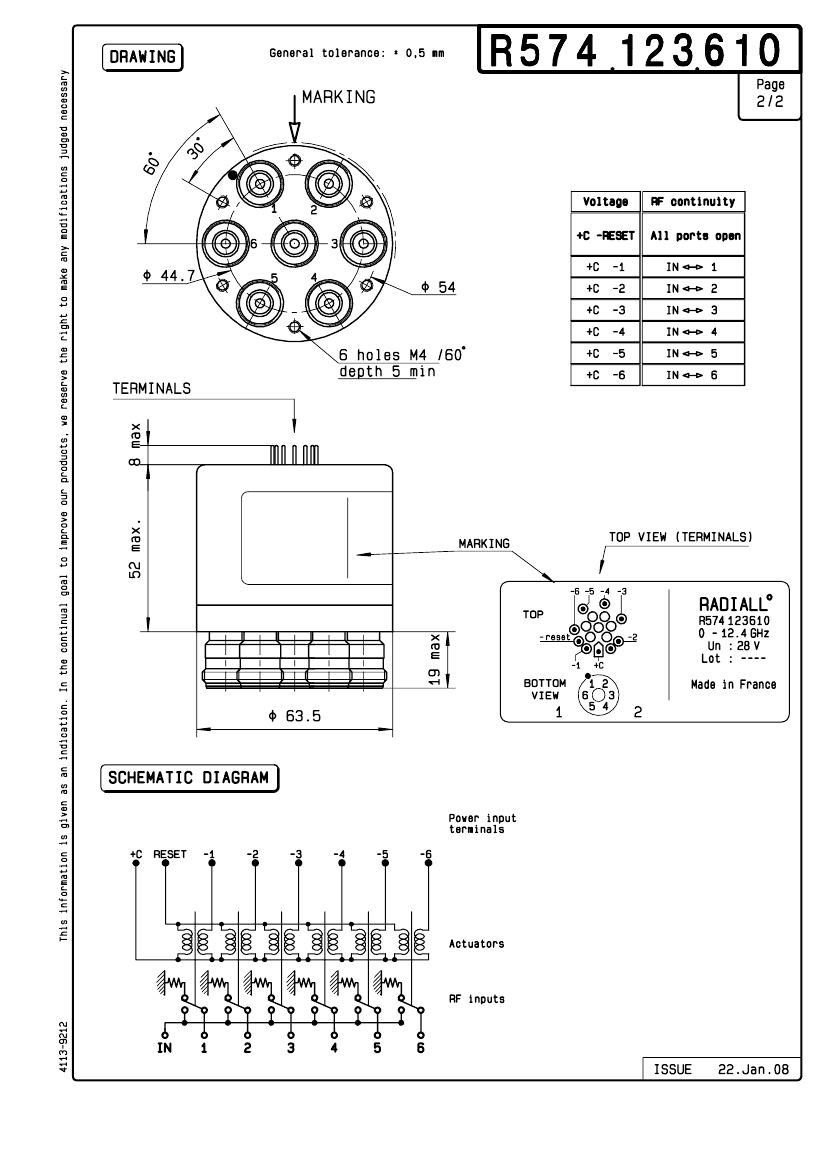

body height	52 mm
Body length or diameter	63.5 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.125 A
Coil power	3500 mW
Coil resistance	224 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Maximum input power	200 W
Maximum insertion loss	0.5 dB
Maximum isolation	60 dB
Manufacturer's serial number	R574.123.610
Installation features	PANEL MOUNT
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Relay action	LATCHED
Relay function	SP6T
Relay type	RF RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	15 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.5
