MJ-11U2GYA4-G31S

Description
Telecom and Datacom Connector
CategoryThe connector    The connector
File Size251KB,4 Pages
ManufacturerElec & Eltek
Websitehttp://www.eleceltek.com
Download Datasheet Parametric View All

MJ-11U2GYA4-G31S Overview

Telecom and Datacom Connector

MJ-11U2GYA4-G31S Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Connector typeTELECOM AND DATACOM CONNECTOR
Base Number Matches1

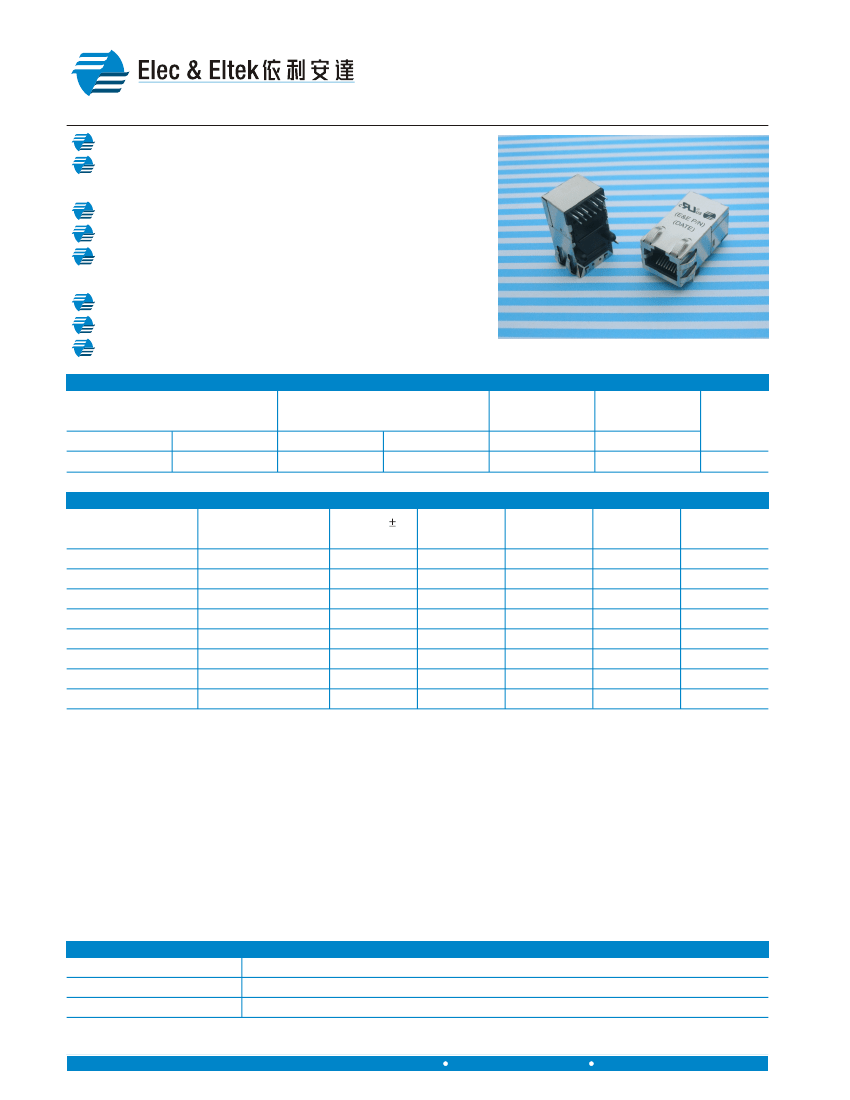

E & E Magnetic Products Limited
1000 Base-T Applications
Single Port, Through Hole, Tab Up
Straight-row Output Pins Pattern
Magnetic Integrated Connector Modules
Compliant with IEEE802.3 standard including 350µH OCL
with 8mA DC Bias
1500Vrms isolation voltage per IEEE802.3
Enhanced performance on EMI suppression with metal shield
Support 4 pairs fo Category 5 UTP cable with
1000Base-T full duplex applications
Operating temperature 0
o
C to +70
o
C
UL 1863 listed
RoHS compliant versions are available
G
ENERAL
E
LECTRICAL
S
PECIFICATION
Insertion Loss
(dB Max)
0.1-100MHz
1.0
100-125MHz
1.2
Return Loss
(dB Min)
0.5-40MHz
18.0
1
@
25°C
CMRR
(dB Min)
0.1-100MHz
32.0
Crosstalk
(dB Min)
1
Hipot
(Vrms)
1500
40-100MHz
12-20Log(F/80)
0.1-100MHz
33-20Log(F/50)
P
ART
N
UMBER
T
ABLE
Part Number
2
RoHS Part Number
MJR11U2GYA4-G109
MJR11U2GYA4-G11S
MJR11U2GYA4-G309
MJR11U2GYA4-G31S
MJR11U2NNA4-G109
MJR11U2NNA4-G11S
MJR11U2NNA4-G309
MJR11U2NNA4-G31S
Turn Ratio ( 3%)
(Chip : Cable)
1CT:1CT
1CT:1CT
1CT:1
1CT:1
1CT:1CT
1CT:1CT
1CT:1
1CT:1
Configuration
TC
TC
TCA
TCA
TC
TC
TCA
TCA
3
LED
(Left / Right)
G/Y
G/Y
G/Y
G/Y
4

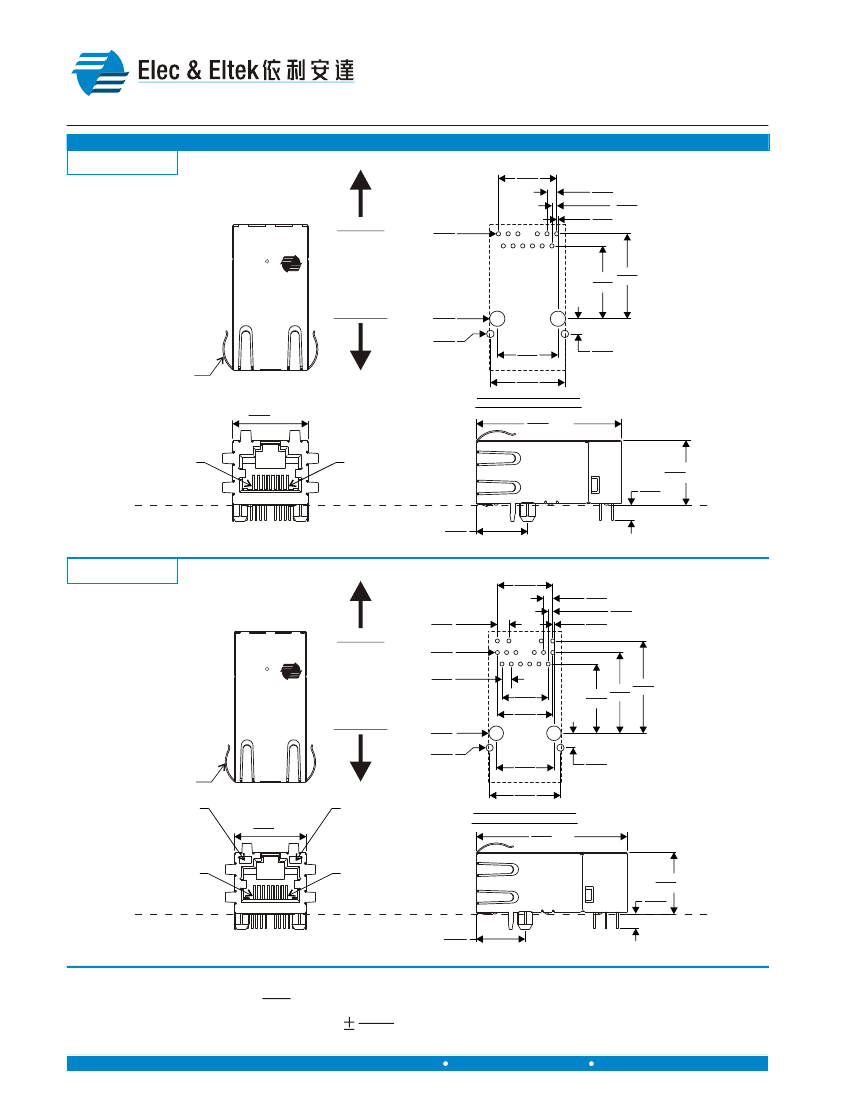

Mechanical
Package
MJ11U-06A
MJ11U-06A
MJ11U-06A
MJ11U-06A
MJ11U-05A
MJ11U-05A
MJ11U-05A
MJ11U-05A

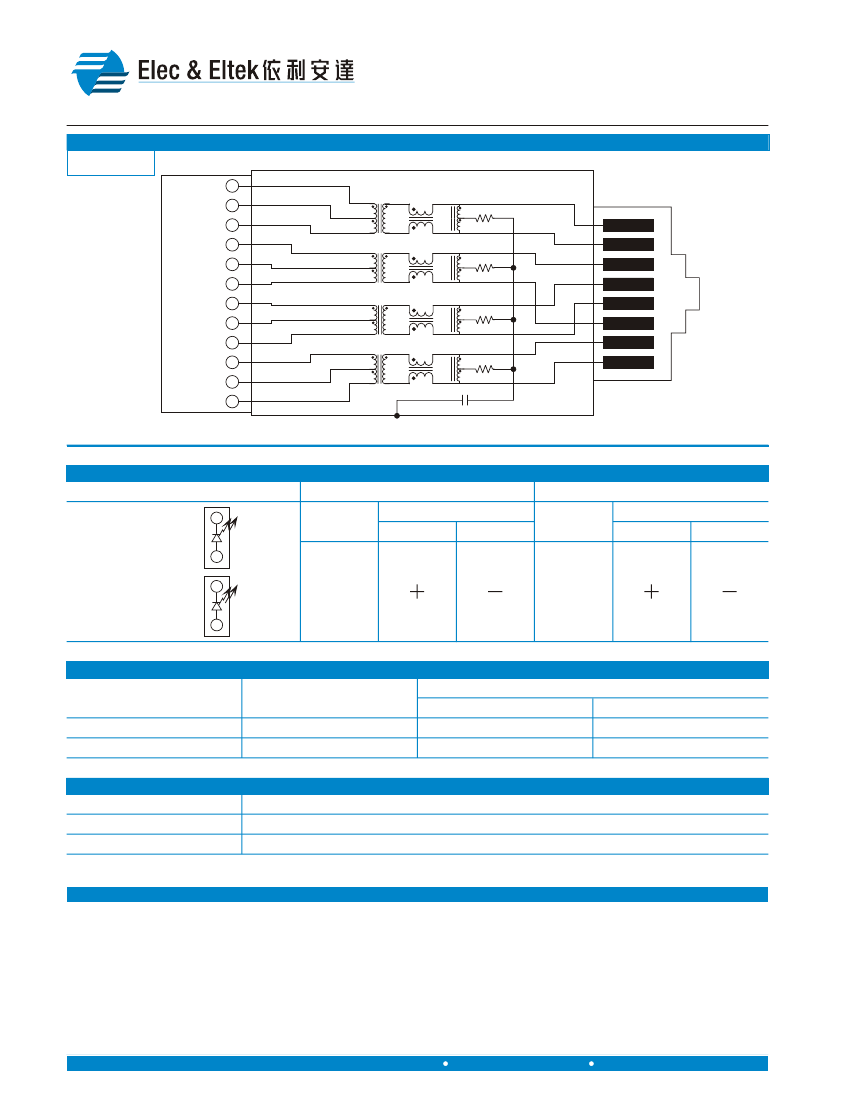

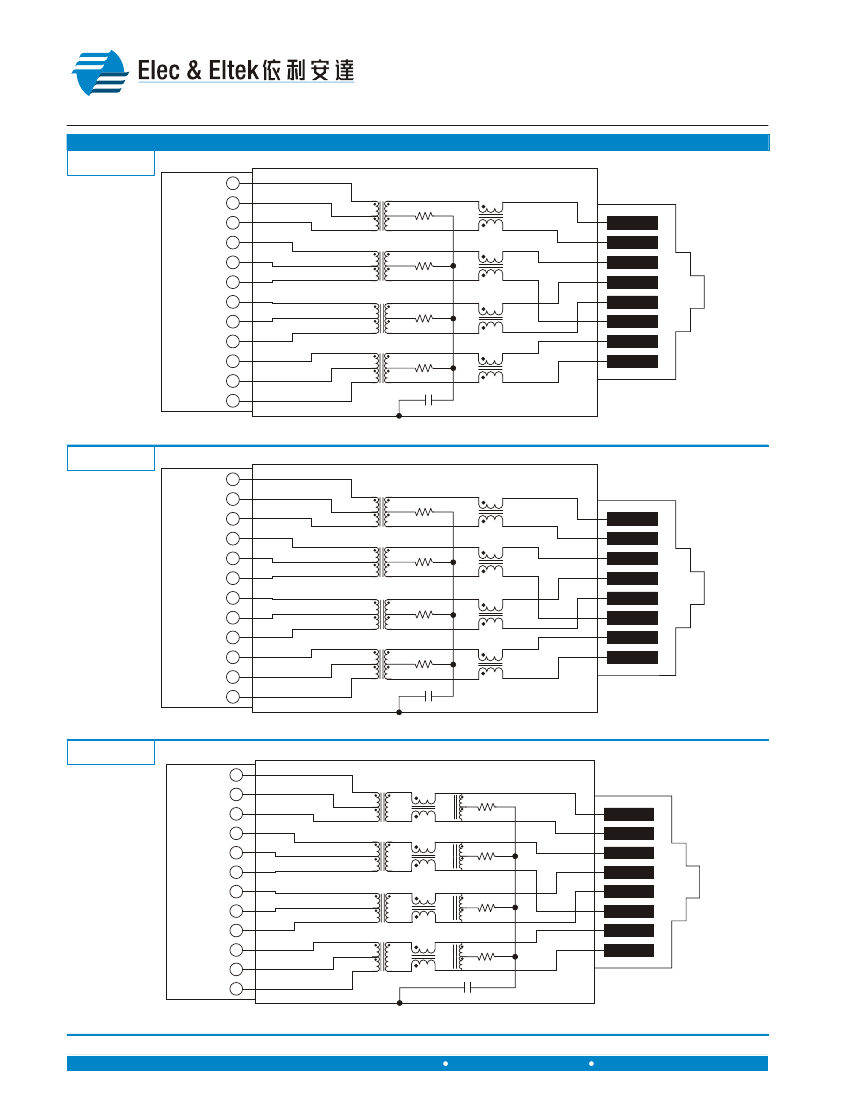

Schematic
G109
G11S
G309
G31S
G109
G11S
G309
G31S
MJ-11U2GYA4-G109
MJ-11U2GYA4-G11S
MJ-11U2GYA4-G309
MJ-11U2GYA4-G31S
MJ-11U2NNA4-G109
MJ-11U2NNA4-G11S
MJ-11U2NNA4-G309
MJ-11U2NNA4-G31S
Notes:
1. “F” represents the test frequency specified in MHz.
2. For different electrical and mechanical specifications, please contact E&E Magnetic Products Limited.
3. Core location are counted from PCB (Chip) side to Cable (Media) side, where:
"T" = Isolation transformer ; "C" = Common-mode choke, "A" = Auto-transformer ;
4. LEDs (Left / Right) : “G” = Green ; “Y” = Yellow ; “—” = None. For different LED color requirements, please contact
E&E Magnetic Products Limited.
5. Panel tabs are optional.
6. All parts shown in this datasheet have gold plating thickness of 10 micro-inch (min.) over contact area.
Advance options including 30 micro-inch (min.) and 50 micro-inch (min.) are also available.
M
ATERIALS
Housing
Contact Pins
PCB Pins
6
Consist of thermoset & thermoplastic materials, all of them are UL 94-V0 rated.
Phosphor bronze, plated with nickel under-plating and hard gold over contact area.
Copper wire which meets solderability requirements per MIL-STD-202, method 208.
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
1
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ105(05)
Revised in 06/07
