M85049/1917W05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M85049/1917W05

M85049/1917W05: Descriptioncircular mil spec backshells backshell non env emi/rfi ST cad SZ 17; CategoryThe connector; File Size6MB，30 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

M85049/1917W05 Overview

circular mil spec backshells backshell non env emi/rfi ST cad SZ 17

M85049/1917W05 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	Circular MIL Spec Backshells
RoHS	N
MIL Type	MIL-DTL-38999 III, IV
Shell Style	Straigh
Shell Size	17
Shell Material	Aluminum Alloy
Mating Style	Rotatable Coupling
Mounting Angle	Straigh
Shell Plating	Olive Drab Cadmium over Electroless Nickel

Preview

Download Datasheet

View All

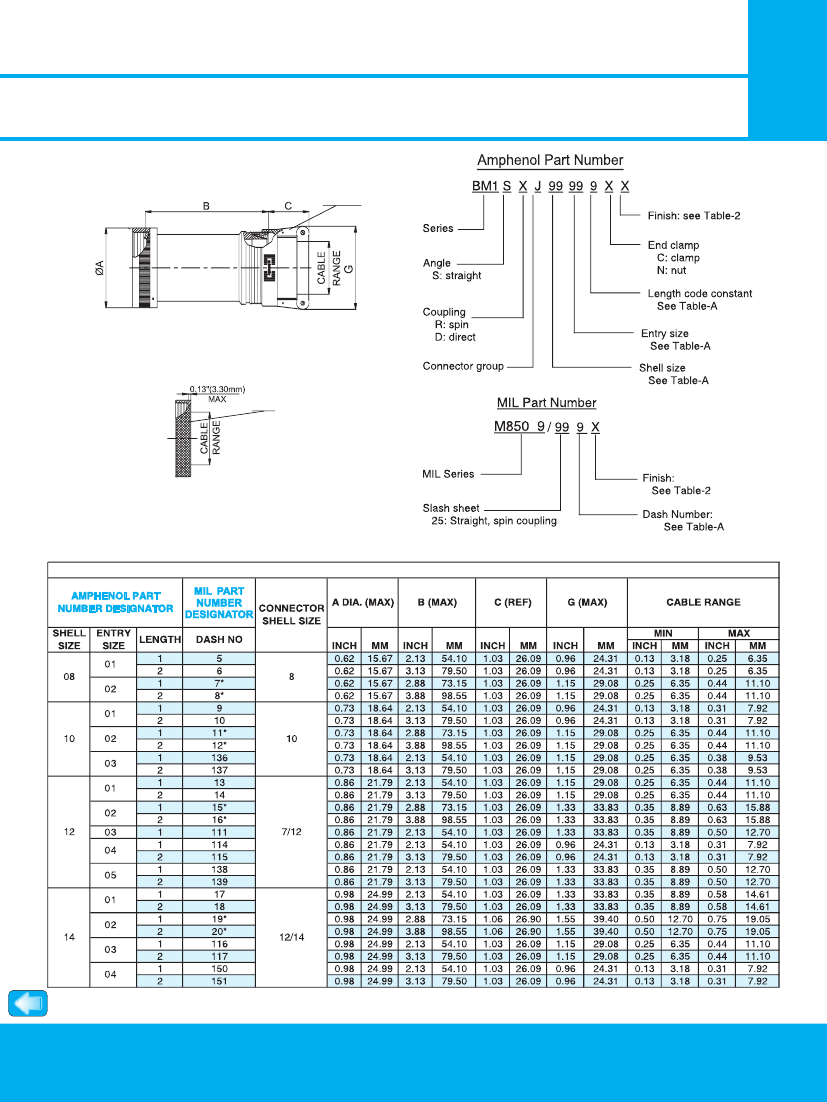

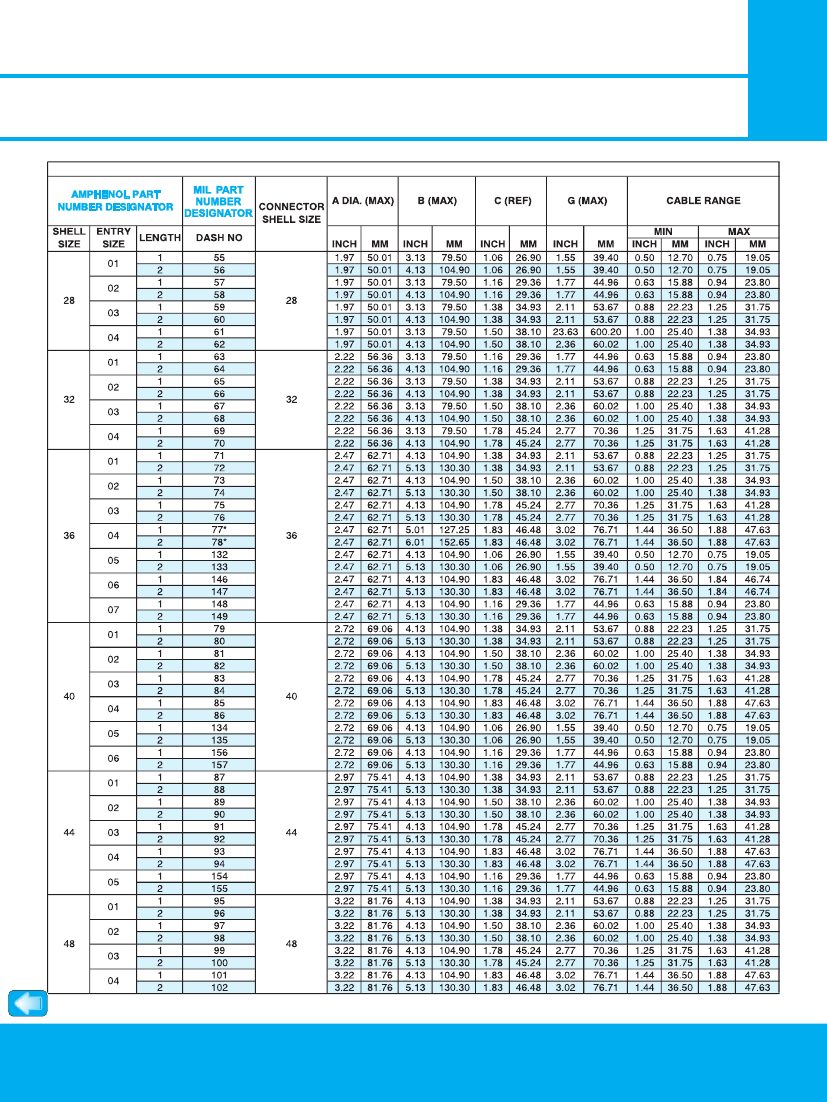

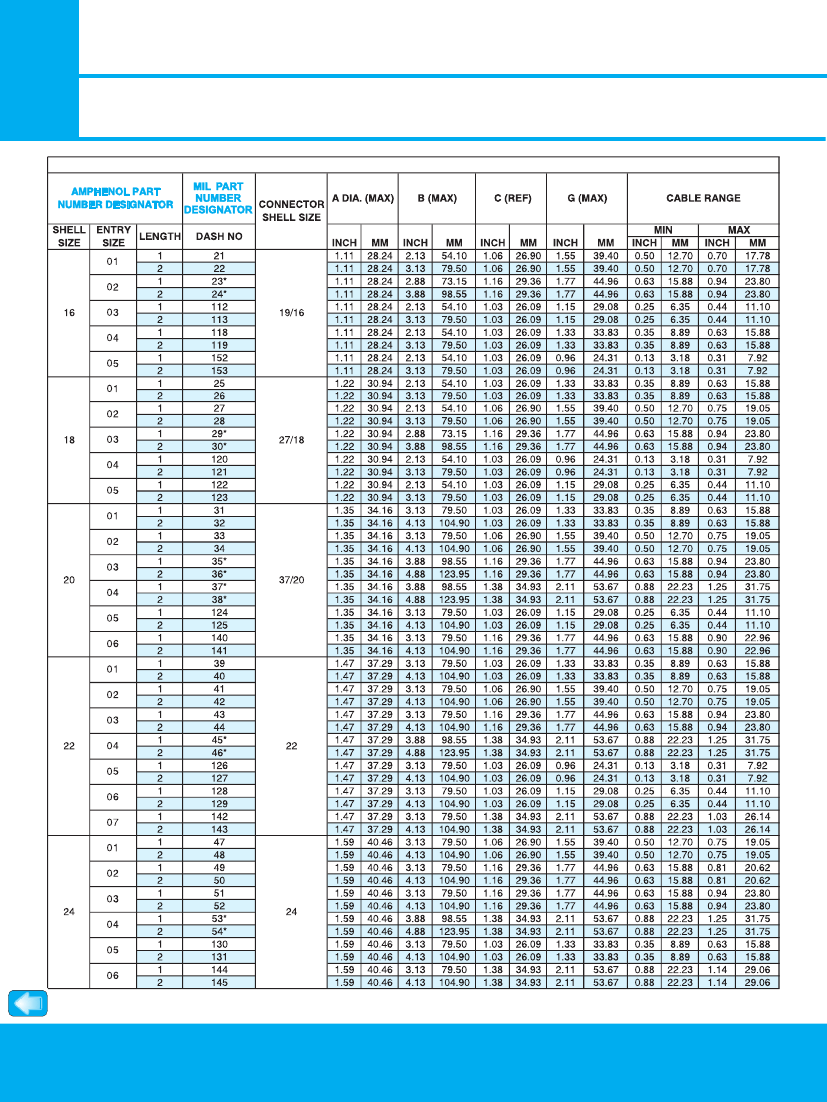

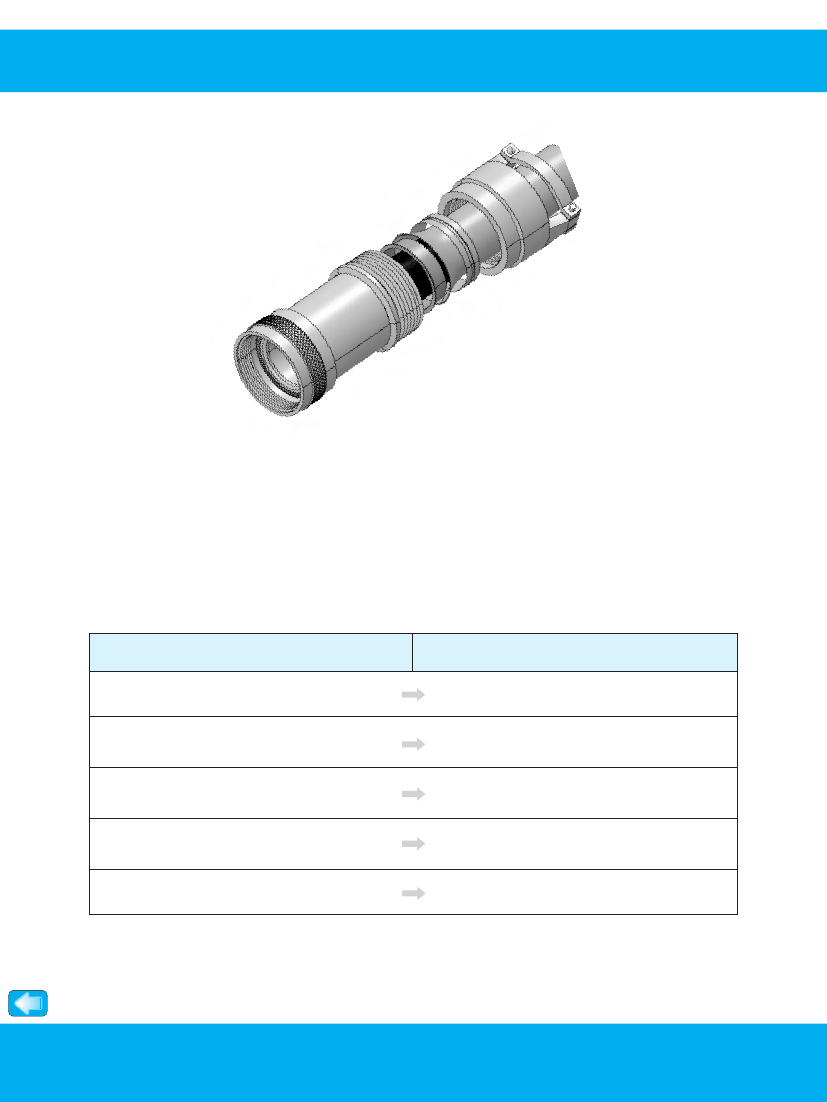

NON-ENVIRONMENTAL EMI / RFI BACKSHELL

360-degree screen termination facility is offered in this Backshell in addition to other

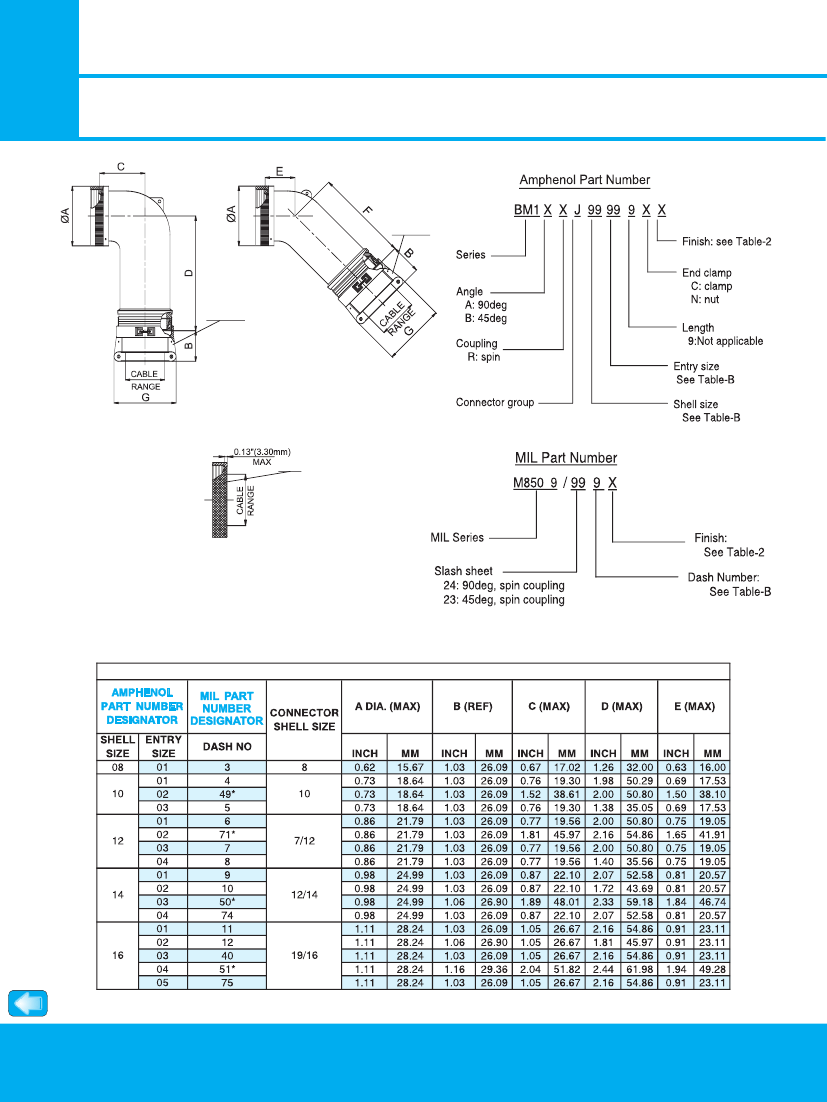

features of the Non-Environmental type. Available in straight, 90 degree bent and 45

degree bent varieties, it accommodates both individual and overall shielding.

For Connector Group

Page No.

III-1

III-8

III-7

III-12

III-17

III-23

III-29

III-13 -

III-18 -

III-24 -

Note:

For Connector group Identification refer Table 1 - A, B, C, D

(Page 7-11)

and for Material / Plating Finish, Refer Table-2

(Page 12)

Amphenol Backshells

III

email: sales@backshellworld.com

www.backshellworld.com
