Eurocard Connectors Types B, C, M, Q,
R, and Enhanced Type C
(Board- to- Board Application)
NOTE
Application Specification
18 JUN 12
114-- 9014
Rev K
i
All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and
inches]. Unless otherwise specified, dimensions have a tolerance of +0.13 [+.005] and angles have a tolerance of +2_.
Figures and illustrations are for identification only and are not drawn to scale.
1. INTRODUCTION
This specification covers requirements for the printed circuit (pc) board--to--board application of Eurocard
Connectors Types B, C, M, Q, R, and Enhanced Type C. These two--piece, 2.54 mm [.100 in.] row--to--row and
in--row centerline contact connectors are designed to mate with all DIN 41612 and IEC 603--2 connectors of
similar type and contact arrangement. The two-- and three--row connectors are available in 32, 64, and 96
positions, as well as half sizes and expanded sizes as mating pin and receptacle connectors.
The housings are available pre--loaded with ACTION PIN* thin stock and square stock contacts (0.64 mm
[.025 in.]), solder tines and wrap--type contacts in various lengths. Type M housings have contact cavities at
each end that will accept solder cup, coaxial crimp--type, and solder type contacts. Multiple pin heights for
connectors with make first, break last (MFBL) contacts and selective contact loading are available.
When corresponding with TE Connectivity Personnel, use the terminology provided in this specification to
facilitate your inquiries for information. Basic terms and features of these components are provided in Figure 1.

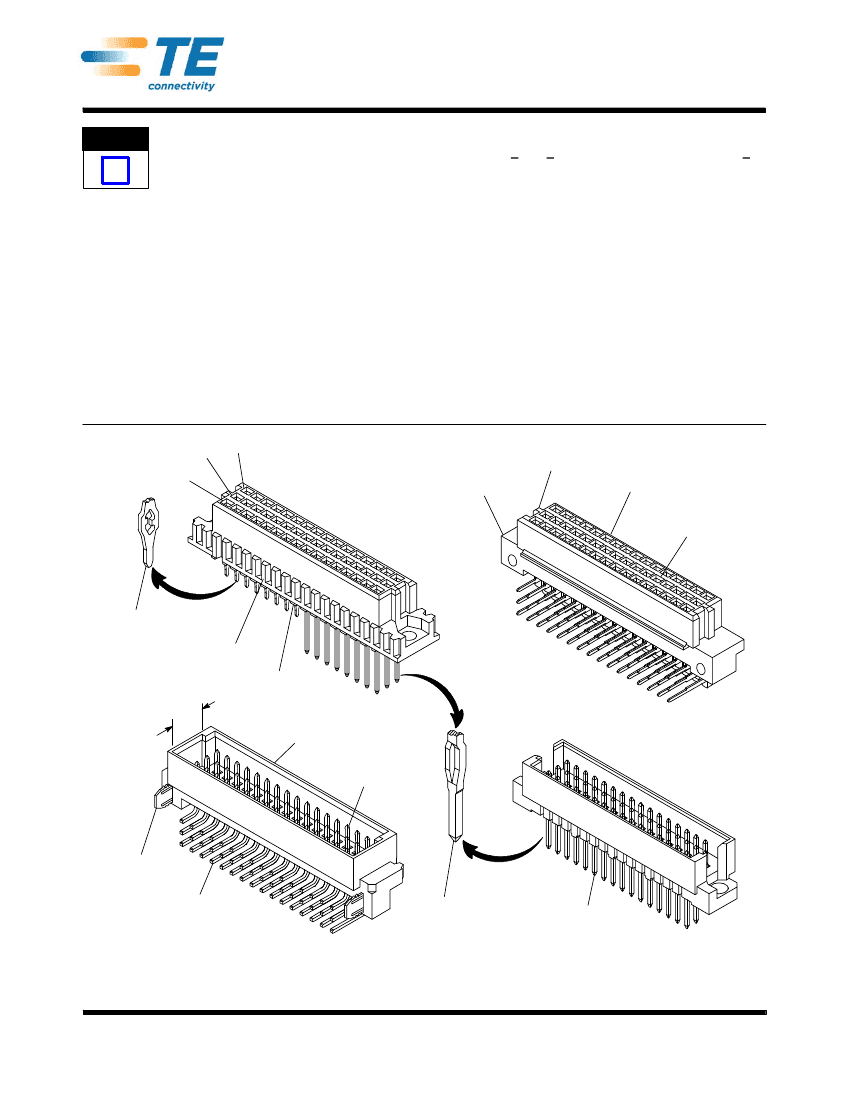

Row B
Row C
Type C
Receptacle
Connector
Row A
Mounting
Ear
Polarizing
Bar
Housing
Socket
Contacts
ACTION PIN
Thin Stock Contact
Ribbing
Standoff
Pin
Hood
Pin
Contact
Type R Receptacle
Connector
Polarizing
Indent
Boardlock
Solder Tine
Type C Pin Connector
ACTION PIN 0.64 mm
[.025 in.] Square Stock
Contact
Figure 1 (cont’d)
Wrap-- Type
Contact
Type R Pin Connector
E2012
Tyco Electronics Corporation, a TE Connectivity Ltd. Company TOOLING ASSISTANCE CENTER 1--800--722--1111
All Rights Reserved
PRODUCT INFORMATION 1--800--522--6752
TE logo is a trademark.
*Trademark. Other product names, logos, or company names might be trademarks of their respective owners.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.te.com
1
of 18
LOC B
114- 9014
PC Board Mount
Power Contact
ACTION PIN
Thin Stock Contact
Solder Tine
Solder Cup
Power Contact
Coaxial Cable
In-- Line Contact
Solder Cup
Power Contact
Coaxial Cable
In-- Line Contact
Coaxial Solder
Tine Contact

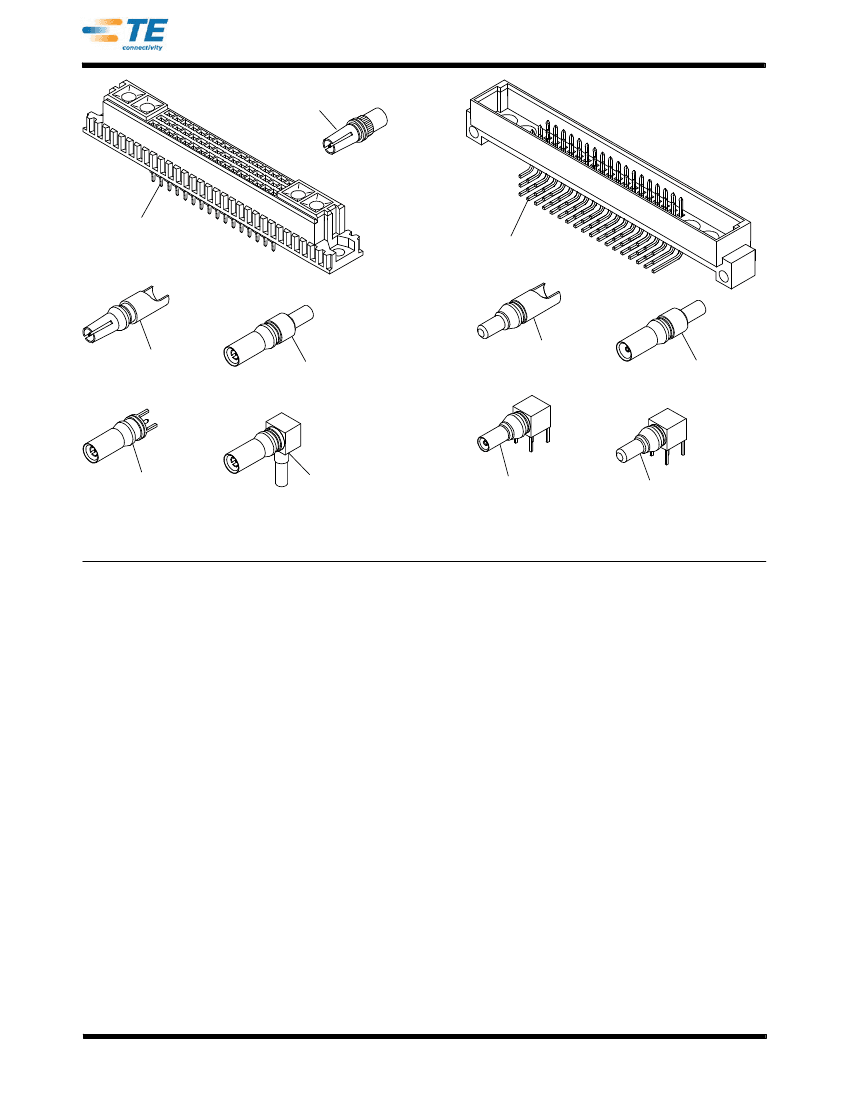

Type M Receptacle Connector
Right-- Angle
Cable Contact
PC Board Mount
Coaxial Contact
Right-- Angle PC Board
Mount Power Contact
Type M Pin Connector
Figure 1 (end)
2. REFERENCE MATERIAL
2.1. Revision Summary
The following revision summary of changes and additions have been made to this specification for this revision.
S
Updated document to corporate requirements
S
Corrected dimension line in Figure 10
2.2. Customer Assistance
Product Base Part Number 535032 and Product Code 5607 are representative of Eurocard Connectors. Use of
these numbers will identify the product line and expedite your inquiries through a service network established
to help you obtain product and tooling information. Such information can be obtained through a local TE
Representative or, after purchase, by calling the Tooling Assistance Center number at the bottom of page 1.
2.3. Drawings
Customer Drawings for product part numbers are available from the service network. The information
contained in Customer Drawings takes priority if there is a conflict with this specification or with any other
technical documentation supplied by TE.
2.4. Specifications
Product Specification 108--26003 provides information for ACTION PIN contacts. Product Specification
108--5299 contains information for ACTION PIN contacts and solder type contacts for Type Q connectors.
2
of 18
Rev K
114- 9014
2.5. Instructional Material
Available instruction sheets (408--series) and customer manuals (409--series) contain detailed assembly
instructions and repair procedures for product and tooling. Documents available which pertain to Eurocard
connectors are:
408--9027 Adapter Kit for Greenerd Frame Assembly
408--9623 Seating Tool 535072--1 (for Type C Receptacle Connectors and Seating Tool 148090--[ ] for
Type M Receptacle Connectors)
408--9740 Seating Tools 768211--[ ] (for Type R Connectors with ACTION PIN Contacts)
408--9894 Programmable Seating Tools 768216--[ ] (for Type R Connectors with MFBL Contacts)
2.6. Manuals
Manual 402--40 is available upon request and can be used as a guide in soldering. This manual provides
information on various flux types and characteristics along with the commercial designation and flux removal
procedures. A checklist is included in the manual as a guide for information on soldering problems.
3. REQUIREMENTS
3.1. PC Board
A. Thickness
1. Connectors with ACTION PIN contacts are available in two designs: one for pc boards with a
minimum thickness of 1.57 mm [.062 in.] and one for pc boards with a minimum thickness 2.36 mm
[.093 in.].
2. Connectors with solder tines or ACTION PIN thin stock contacts require a minimum pc board
thickness of 1.57 mm [.062 in.].
B. Layout
The suggested pc board layout should be as specified in Figure 2.
Rev K
3
of 18
114- 9014

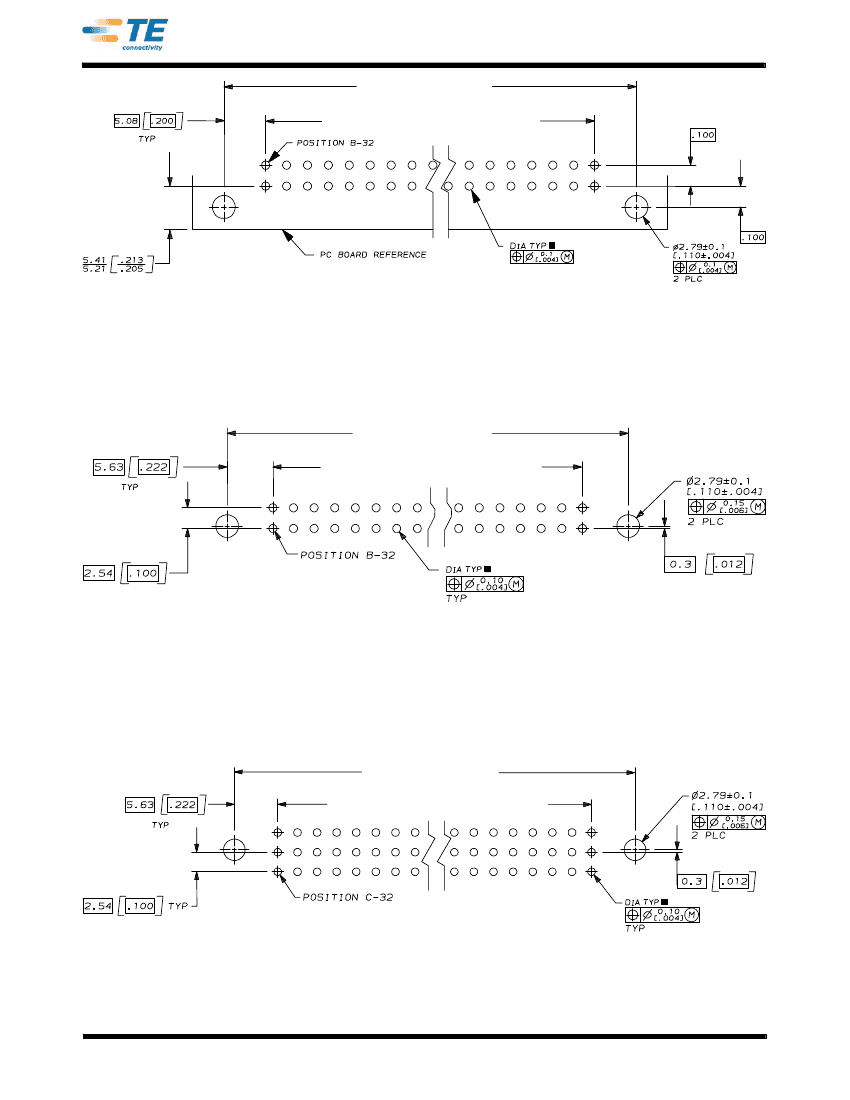

“B”
Dim. A + (Two x Dim. B)
“A” (Number of Spaces x 2.54 [.100])
Type B Pin Connector and Type Q Receptacle Connector
“B”
Dim. A + (Two x Dim. B)
“A” (Number of Spaces x 2.54 [.100])
Type Q Pin Connector and Type B Receptacle Connector
“B”
Dim. A + (Two x Dim. B)
“A” (Number of Spaces x 2.54 [.100])
Type R Pin Connector and Type C Receptacle Connector
H
See Figure 3
Figure 2 (cont’d)
4
of 18
Rev K
114- 9014

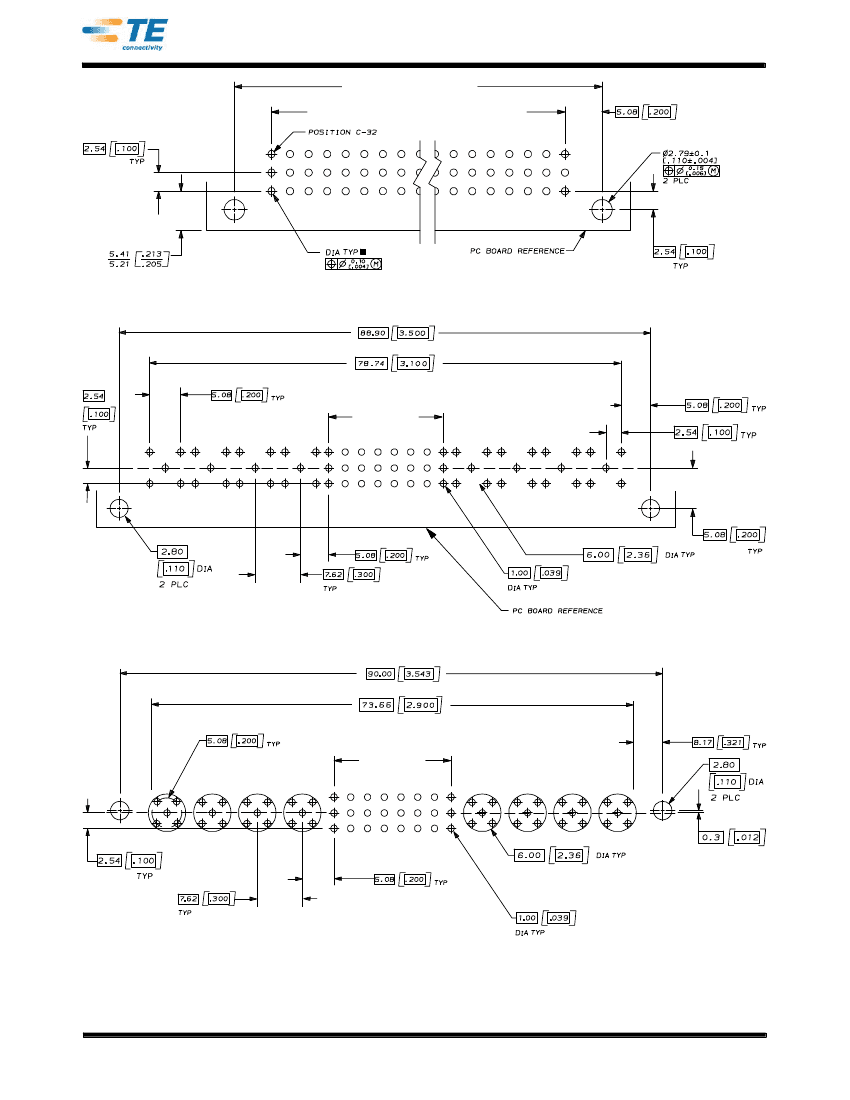

Dim. A + (Two x Dim. B)
“A” (Number of Spaces x 2.54 [.100])
“B”
Type C Pin Connector and Type R Receptacle Connector
(For Solder Tine
Coaxial Connectors)
“A”
(Number of Spaces x
2.54 [.100])
(For Crimp-- Type, Solder Cup Type
and Power Contacts)
Type M Pin Connector
(For Solder Tine
Coaxial Connectors)
“A”
(Number of Spaces x
2.54 [.100])
(For Crimp-- Type, Solder Cup Type
and Power Contacts)
Type M Receptacle Connector
H
See Figure 3
Figure 2 (cont’d)
Rev K
5
of 18
