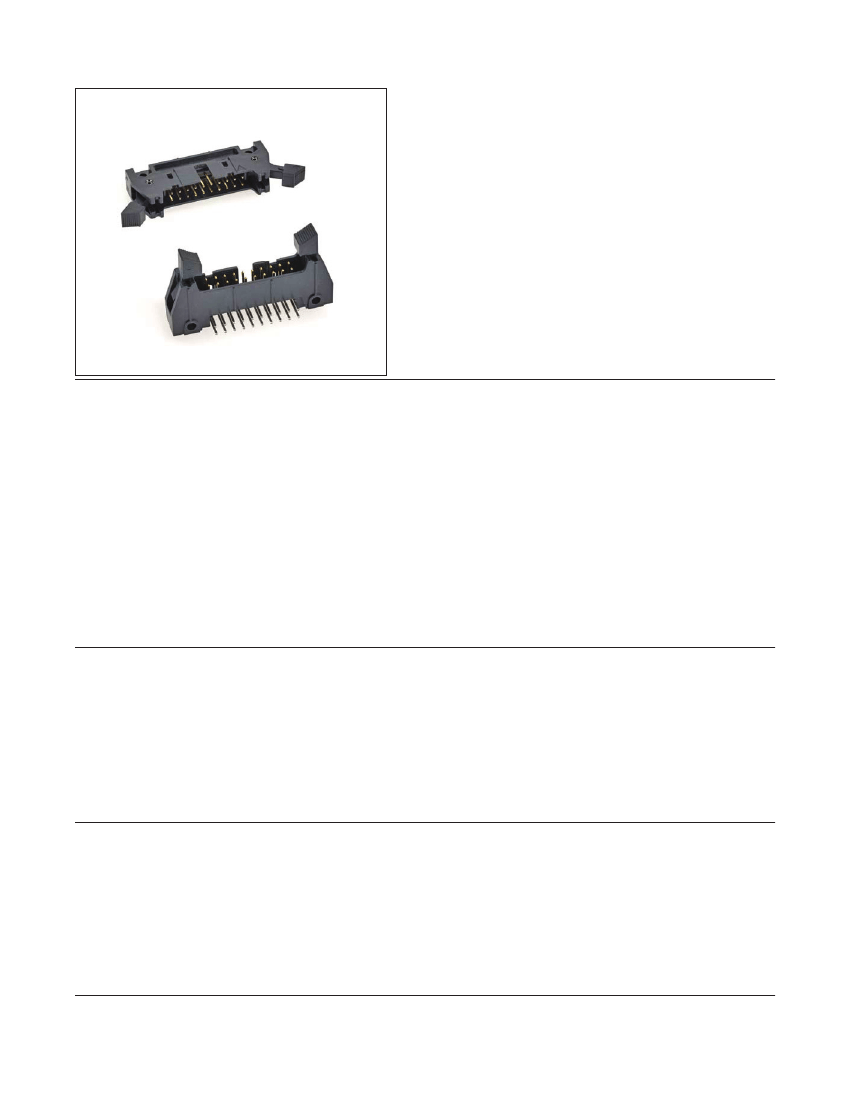

.100" × .100" Latch/Ejector, Straight and Right Angle
3000 Series
• Military (with 3M’s 3518 & N3518 polarizing key) and
centerbump polarization
• Optional ejector latches
• Mounting holes for securing header to board
• Optional polarizing posts available
• High temperature insulator option suitable for “no lead”
soldering operations
• High temperature option suitable for reflow soldering
using “paste in hole” techniques
• Solder tail option
• See the Regulatory Information Appendix (RIA) in the
“RoHS compliance” section of www.3Mconnectors.com
for compliance information
Date Modified: October 2, 2012
TS-0772-P
Sheet 1 of 4
Physical
Insulator:
Material: Glass Filled Polyester (PBT)
Glass Filled Polyester (PCT) - (High Temp Option)
Flammability: UL 94V-0
Color: Gray (PBT), Black (PCT)
Contact:
Material: Copper Alloy
Plating:
Underplating: 100 µ” [2.54 µm] Nickel - Overall
Wiping Area: 30 µ” [ 0.76 μm ] Gold
Solder Tails: Tin Lead or Matte Tin (See Ordering Information)
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
3.00 A, 6 Contacts Powered
1.75 A, All Contacts Powered
Rating Conditions: EIA-364-070 Method 2, 30°C maximum temperature rise,
20% derated. Reference appropriate 3M Product Specification for detailed current
derating curves.
Insulation Resistance:
>1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1,000 V
RMS
at Sea Level
Current Rating:
5.00 A, 1 Contact Powered
Environmental
PBT insulator version: 191°C, maximum insulator temperature, solder wave
process only
Moisture Sensitivity Level:
1 (per J-STD-020C) High Temp. (PCT) versions only
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Temperature Rating:
-55°C to +105°C
Process Rating:
High Temp PCT insulator version: 260°C, per J-STD-020C, single pass
3M
™
Four-Wall Header
-X0XX
Header without Latch Ejector

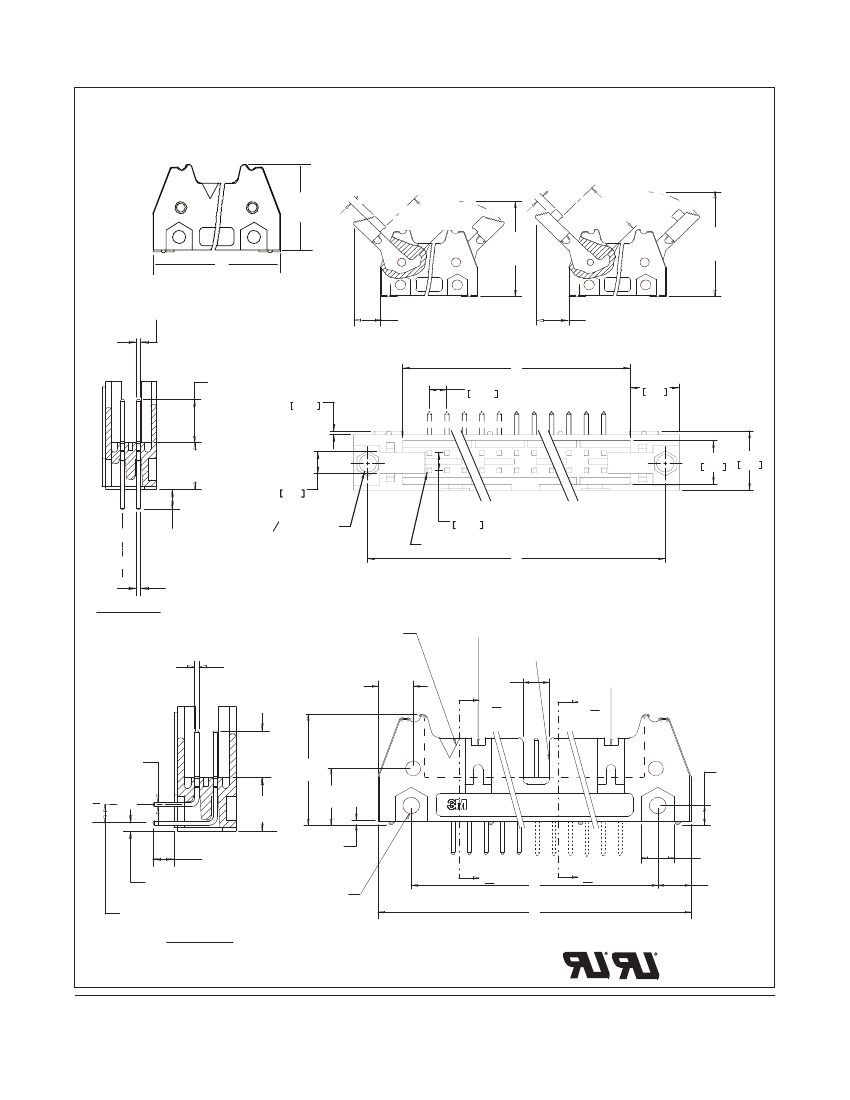

.100" × .100" Latch/Ejector, Straight and Right Angle
-X2XX
Header with
Short Ejector/Latch
for 3M Sockets without
Strain Relief
3000 Series
-X3XX
Header with
Long Ejector/Latch
for 3M Sockets with
Strain Relief
.68
[17.3]
.08
[2.0]
.424
±
.010
[ 10.77 ]
.97 Ref
[24.6]
.08
[2.0]
.573
±
.010
[ 14.55 ]
1.07 Ref
[27.2]
A
.025
±
.002 Sq Typ
[ 0.64 ]
.37 Ref
[9.4]
D
.24
[6.1]
.46 Ref
[11.7]
.020
0.51
.100
2.54
REF.
.28
7.1
.30
[7.6]
.25
6.4
.13
3.3
2X
O
.100 [2.54]
SEE NOTE #2
.100
2.54
POSITION #1
B
REF.
.34
8.6
C
L
“Y”
Dim. E
F Typ
Section A-A
(Straight)
Position 1
Orientation
Triangle
Notch A
(See Table 1 & Note1)
Notch B
(See Table 1)
.16
[4.1]
Notch C
(See Table 1 & Note 1)
.025
±
.002 Sq Typ
[ 0.64 ]
.21
[5.3]
A
B
F Typ
.24
[6.1]
.68
[17.3]
.35
[8.9]
.12
[3.0]
C
L
“Y”
.30
[7.6]
Dim. E
.049 Ref
[1.24]
.100 Ref
[2.54]
.020
[0.51]
2X ø .100
[2.54]
(See Note 2)
A
C
A
B
.197
[5.00]
.20
[5.1]
Section B-B
(Right Angle)
C
TS-0772-P
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Four-Wall Header
Pin Qty
06
08
10
14
16
20
24
26
30
34
40
50
60
64
.100" × .100" Latch/Ejector, Straight and Right Angle
3M Part
Number
3869
3889
3793
3314
3408
3428
3627
3429
3440
3431
3432
3433
3372
3764
3000 Series
D
Polarizing
Notches
B*
B*
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
A
1.065 (27.05)
1.165 (29.59)
1.265 (32.13)
1.465 (37.21)
1.565 (39.75)
1.765 (44.83)
1.965 (49.91)
2.065 (52.45)
2.265 (57.53)
2.465 (62.61)
2.765 (70.23)
3.265 (82.93)
3.765 (95.63)
3.965 (100.71)
Table 1
Dimensions
B
0.905 (22.99)
1.005 (25.53)
1.105 (28.04)
1.305 (33.12)
1.405 (35.66)
1.605 (40.74)
1.805 (45.82)
1.905 (48.36)
2.105 (53.44)
2.305 (58.52)
2.605 (66.14)
3.105 (78.84)
3.605 (91.54)
3.805 (96.62)
C
0.665 (16.89)
0.765 (19.43)
0.865 (21.97)
1.065 (27.05)
1.165 (29.59)
1.365 (34.67)
1.565 (39.75)
1.665 (42.29)
1.865 (47.37)
2.065 (52.45)
2.365 (60.07)
2.865 (72.77)
3.365 (85.47)
3.565 (90.55)
0.505 (12.83)
0.605 (15.37)
0.705 (17.91)
0.905 (22.99)
1.005 (25.53)
1.205 (30.61)
1.405 (35.69)
1.505 (38.23)
1.705 (43.31)
1.905 (48.39)
2.205 (56.01)
2.705 (68.71)
3.205 (81.41)
3.405 (86.49)
Tolerance Unless Noted
.0
Inch
± .1
.00
Inch
(mm)
.000
± .01 ± .005
[ ] Dimensions for
Reference only
* Available without center notch B. Contact 3M.
Table 2
3M Part
Number Suffix
-5XX2
-6XX2
-5X03
-6X03
Contact Tail
Solder Tail for
.062 (1.57)
Thick PC Board
Solder Tail for 0.94
(2.39) to .125 (3.18)
Thick PC Board
Dim E
.112 ± .010
(2.84)
.155 ± .010
(3.94)
Pin Cross Section
Dim F
.0245 ± .0005
(0.622)
.0245 ± .0005
(0.622)
Diagonals
.028 ± .001
(0.71)
.028 ± .001
(0.71)
Corner Radii
.0075 Ref
(0.191)
.0075 Ref
(0.191)
Dim G
0.035 ± .003
(0.89) (See Note 3)
0.035 ± .003 (0.89)
.300
[7.62]
Side to Side Stackability
or ø.116
ø.106
[2.69]
[2.95]
(See Note 2)
Dim G
ø.106 or ø.116
[2.95]
[2.69]
.41
(See Note 2)
[10.4]
Max to Edge of PCB
Dim G
for Daisy Chain
“Y”
C
L
"Y"
C
L
Position 1
.100
±
.003
[2.54]
.232
[5.89]
C
.060
[1.52]
Position 1
.100
±
.003
[2.54]
.352
[8.94]
B
.029
[0.74]
.100
±
.003
[2.54]
.100
±
.003
[2.54]
Recommended Mounting Hole Pattern
(Straight)
Recommended Mounting Hole Pattern
(Right Angle)
Notes: 1. Notches A & C will accomodate 3M Polarizing Keys (3M Part #3518 or #N3518).
2. Mounting hardware: From solder side of pc board use #4-24 thread cutting screw (3M Part # 3341-5) and .116 [2.95] dia mounting hole. For right angle version only, #2-56 bolt and nut (3M
Part # 3341-6) with .106 [2.69] dia mounting hole may be used. See illustrations on page 4.
3. The recommended PCB hole size for the kinked tail positions on the .112 solder tail connector is .035 ± .002. See page 4 for kink position details (K2 version).
4. Contact your 3M sales representative for custom requirements.
RB = 30 μ” [ 0.76 μm ] Gold and 200 μ” [ 5.08 μm ] Matte Tin
(App. E1 & C1 Apply)
Blank or UB = 30 μ” (0.76 μm ] Gold and 200 μ” [ 5.08 μm ]
Tin Lead (App. E3 & C2 Apply)
Tail
02 = for .062 [1.57] thick board
03 = for .094 to .125 [2.39 to 3.18] thick board
K2 = kinked for .062 [1.57] thick board
Latch/Ejector System
0 = No Latch/Ejector installed
2 = Short Roll Pin Latch/Ejectors
3 = Long, Roll Pin Latch/Ejectors
5 = Short, Snap-In Latch/Ejectors
6 = Long, Snap-In Latch/Ejectors
TS-0772-P
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Four-Wall Header

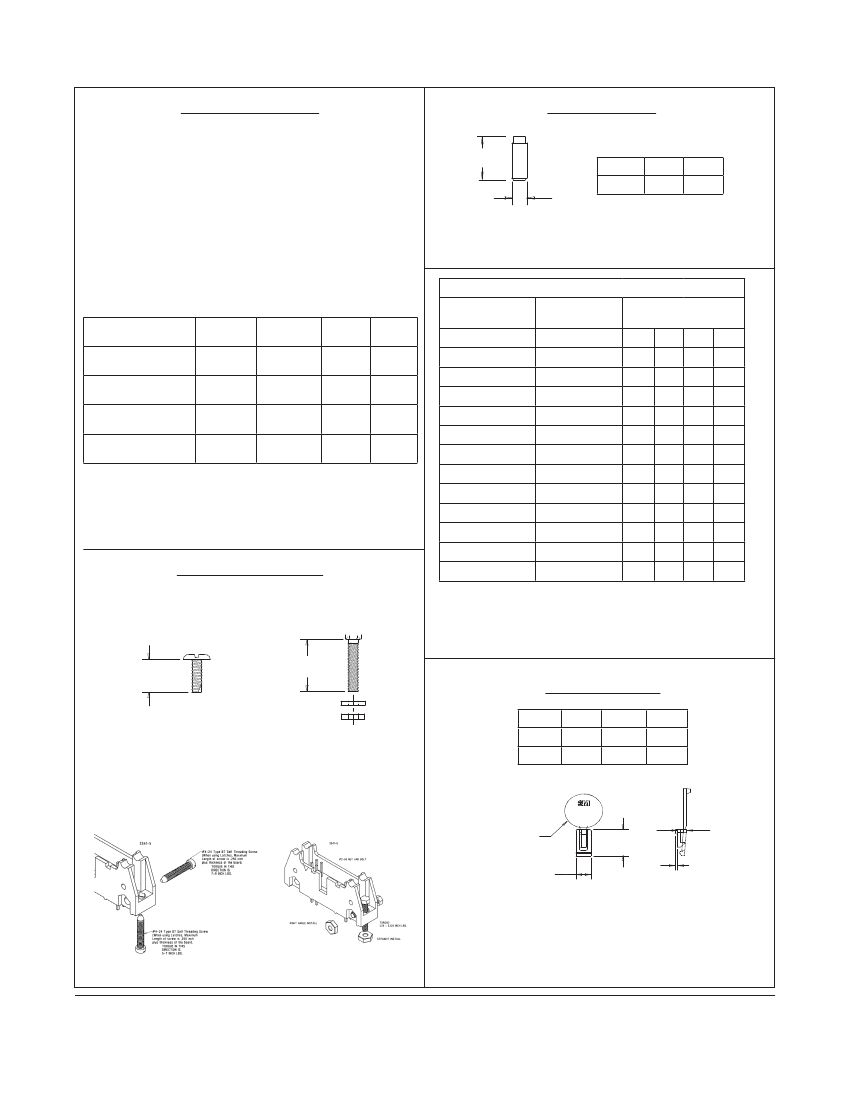

Part Customization
This spec sheet details our standard offering.
.100" × .100" Latch/Ejector, Straight and Right Angle
Polarizing Post
.318
[8.08]
.100 Dia
[2.54]
3000 Series
3M has several capabilities that can provide a part tailored
to your specific needs. Ask your 3M sales representative
or customer service for more details.
3201-4
3201-5
LCP
PBT
Black
Gray
Both snap in and roll pin latches may be ordered sepa-
rately. Snap in and roll style latches are dimensionally and
functionally equivalent. If ordering snap-in or roll pin style
latches separately, please use the below chart.
Short
Latch
Standard Temperature
(PBT)
High Temperature
(PCT)
High Temperature
(PBT)
High Temperature
(PPA)
3505-2
N3505-2B
3505-30
N3505-30B
Long Latch
3505-3
N3505-3B
3505-31
N3505-31B
Latch
Style
Roll Pin
Roll Pin
Snap-In
Snap-In
Color
Gray
Black
Gray
Black
Note: Insert Post into one mounting hardware hole on bottom of header.
Set post to protrude .115” [2.92].
2500 & 3000 Series Shrouded Header
Total Number
of Pins
10
14
16
20
24
26
30
34
36
40
50
60
64
Number of
Tails Kinked
4
4
4
4
4
4
4
4
4
4
4
4
4
Positions Kinked
3
3
3
3
3
3
5
7
7
7
7
11
11
4
4
4
4
4
4
6
8
8
8
8
12
12
7
11
13
17
21
23
25
27
27
33
43
49
53
8
12
14
18
22
24
26
28
28
34
44
50
54
• Selective pin removal (ATA or other compatability)
• Wire wrap tails styles
Mounting Hardware
3341-5
(Installed from bottom of board)
3341-6
(Must be inserted prior to latch on
vertical headers)
Kinked Tail Detail:
Kink is located .05” below bottom surface of plastic.
External radius of kink toward part centerline.
.31
[7.9]
.50
[12.7]
Polarizing Keys
Dim A
N3518
3518
LCP
PBT
Black
Gray
.02
.02
Panhead Thread Cutting Screw:
#4-24 X 5/16”
Type: USA Std BT, Federal BG
Hex Head Bolt, Nut and Washer
Bolt - #2-56 X 1/2”
3341-5 & 6
Material - Stainless Steel
Breakaway Tab
.15
[3.8]
.34 Ref
[8.6]
A
.09
[2.3]
Note: #2216 B/A Scotchweld can be used to adhere keys.
TS-0772-P
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M is a trademark of 3M Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
[i=s]This post was last edited by lonerzf on 2014-7-19 11:02[/i] I was so excited that I typed the wrong title. . . I also received the mobile hard disk yesterday afternoon. 250G, hahaha, it's great. ...
Mini2440 One-week Learning Process[table][tr][td] It has been 7 days since I received the mini2440 development board. Here is a record of this process: Day 1: The night I received the board, I excited...
A wireless LAN can be used as an extension of a wired LAN or as an independent replacement for a wired LAN, so wireless LANs provide strong networking flexibility. The growth of wireless LAN (WLAN) te...
The intelligent driving community has its own rhythm. Some are busy pushing new versions and focusing on R&D, others are busy with publicity and promotion, and still others are immersed in mass pro...[Details]
EtherCAT (Ethernet for Control Automation Technology) is a real-time industrial fieldbus communication protocol based on an Ethernet-based development framework. EtherCAT is one of the fastest indu...[Details]
What is "Car Electronic Fence"
Fleet managers can define a graphical area (regular or irregular) or divide it into administrative zones in Yamei Technology's vehicle backend management system ...[Details]
New energy vehicles are increasingly popular with consumers due to policies and energy conservation. Once you've purchased your vehicle, maintenance is essential. However, due to the different powe...[Details]
Capable of providing precise and efficient thermal management for artificial intelligence computing power, intelligent sensing and autonomous driving systems
Shenzhen, ...[Details]
Core point: The automotive industry chain and the humanoid robot industry have collaborative advantages in hardware, software, and scenarios. Upstream and downstream companies in the automotive ind...[Details]
Recently, Tesla released the "Tesla Car Voice Assistant Terms of Use", announcing that the car voice assistant will be connected to the Doubao large model (Skylark large model) and DeepSeek Chat pr...[Details]
The digital TV set-top box consists of a tuner, QAM demodulator, TS demultiplexer, MPEG-2 decoder, PAUNTSC video encoder, embedded CPU system and peripheral interfaces, CA module, and uplink data m...[Details]
Pure electric vehicles, structurally speaking, have components such as a power battery. In addition to the power battery, a small battery also powers some low-voltage electrical components and even...[Details]
There are basically three causes of spontaneous combustion of electric vehicles: The first is that the battery components are punctured or suffer fatal damage due to a collision accident, and part ...[Details]
With the advent of the electric car era, the number of pure electric vehicles has increased significantly, but many car owners do not know how to properly maintain pure electric vehicles. In additi...[Details]
Spark plugs are an indispensable device for engines. As the saying goes, without spark plugs, the engine cannot work properly. The serious consequence is that when driving at high speeds, the engin...[Details]
Magna's integrated in-cabin perception system fuses vision and millimeter-wave radar data to detect the presence of passengers, identify stranded children, monitor driver fatigue and vital signs, a...[Details]
Before understanding single-phase control transformers, let's briefly understand what a single-phase transformer is. A single-phase transformer uses a single-phase input. Compared to a three-phase ...[Details]
The second-generation Snapdragon W5+ and second-generation Snapdragon W5 platforms support users sending and receiving messages via satellite when there is no cellular and Wi-Fi coverage.
...[Details]
PCB Design
京公网安备 11010802033920号
EEWORLD
