7011X1/7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 7011X1/7

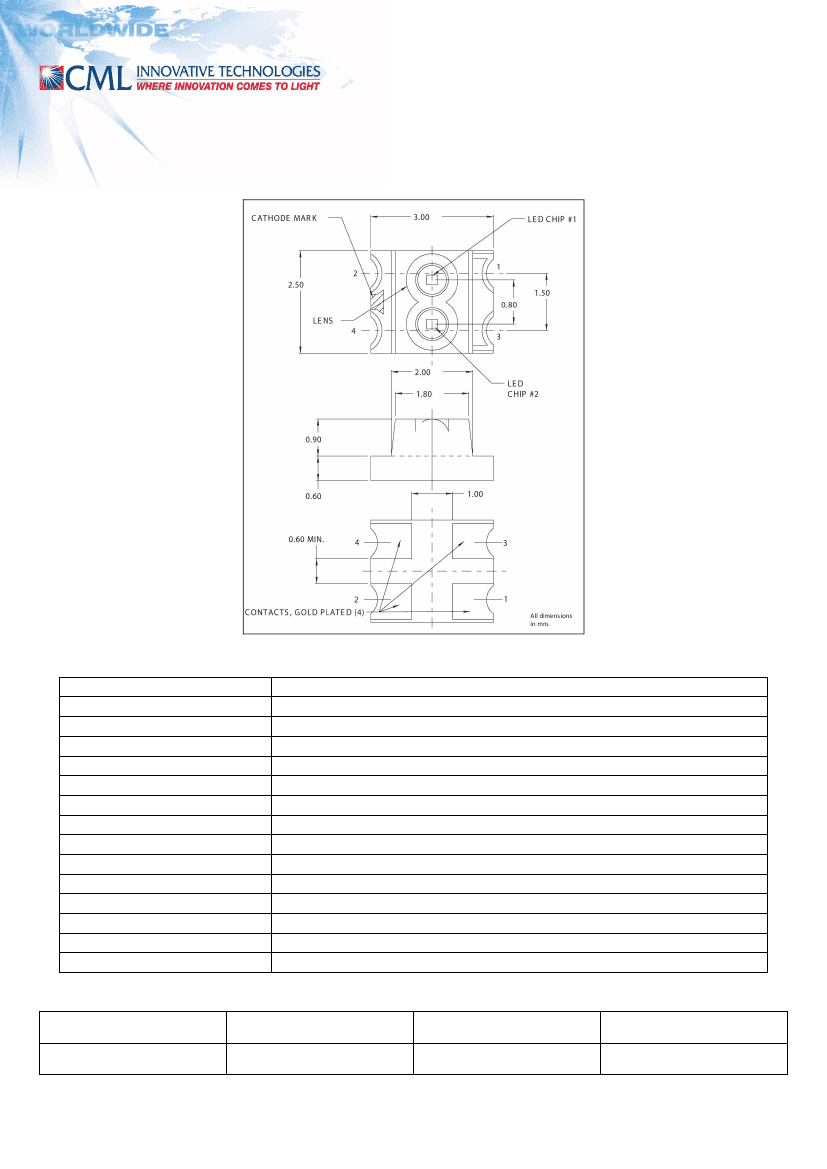

Preview

7011X1/7: DescriptionDual Color LED, Red/yellow, Nondiffused, 2.5mm, SMT, 4 PIN; CategoryLED optoelectronic/LED photoelectric; File Size134KB，2 Pages; ManufacturerChicago Miniature; Environmental Compliance

Download Datasheet Parametric View All

7011X1/7 Overview

Dual Color LED, Red/yellow, Nondiffused, 2.5mm, SMT, 4 PIN

7011X1/7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Chicago Miniature
package instruction	SMT, 4 PIN
Reach Compliance Code	unknown
color	RED/YELLOW
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	NONDIFFUSED
Nominal luminous intensity	11.5/9.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	DUAL COLOR LED
total height	1.5 mm
method of packing	TAPE AND REEL
peak wavelength	660/570 nm
shape	RECTANGULAR
size	2.5 mm
surface mount	YES
perspective	100 deg
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number : 7011X1/7

Serial Number : 7011

LEDs

Led type

Industry size

Size (mm)

Output color

Epoxy

Peak Wave Lenght (mA)

Min. Mcd

Typical mcd

Forward volt typ.

Forward volt max.

Rated current (mA)

Viewing angle (°)

Op. temperature (°C)

Storage temperature (°C)

Power Dissipation

SMT

1210

3.0 x 2.5 x 1.1 mm

RED / YELLOW

CLEAR NON-DIFFUSED

660 / 570

6.0 / 6.0

17.0 / 12.0

1.7 / 2.1

2.0 / 2.5

20

100

-0,352941176

-0,333333333

60 / 75

Drawn : EQ

Revision :

Ch'd : EQ

Revision date : 2006-03-06

Datasheet : 7011

Name : EQ

Print date : 12/09/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
