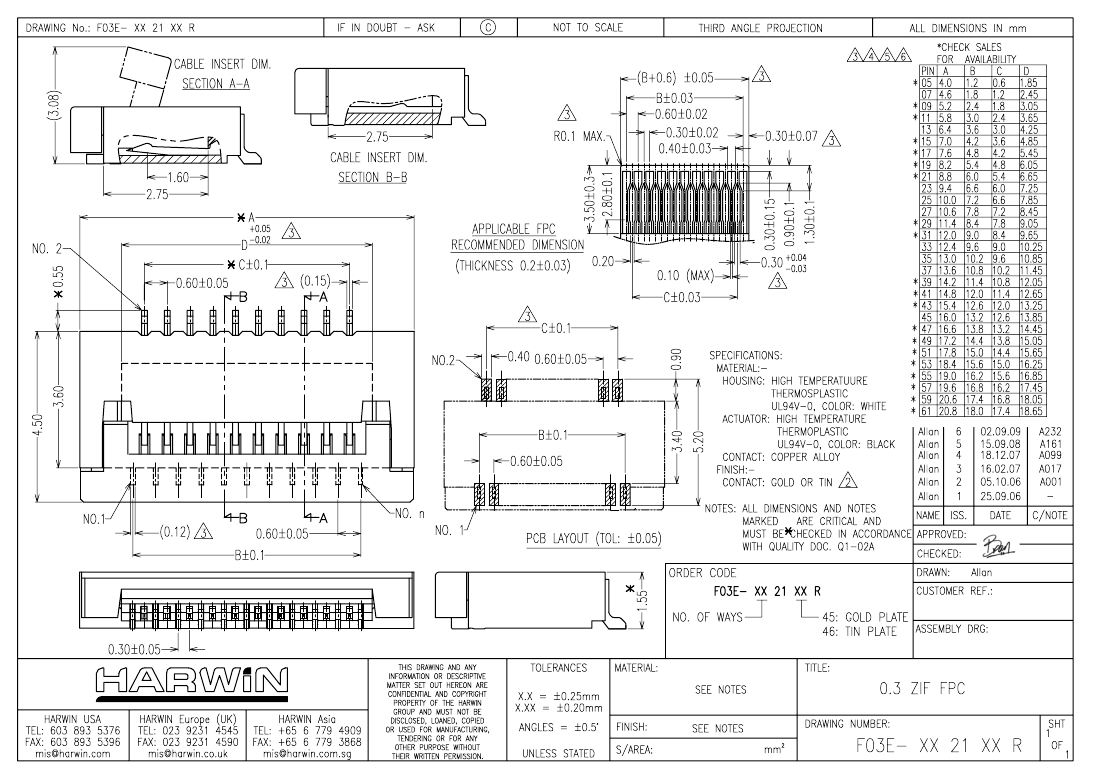

F03E-092145R datasheet, PDF - EEWORLD Datasheet

F03E-092145R: DescriptionCard Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.024 inch Pitch, Surface Mount Terminal, Locking, White Insulator; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

F03E-092145R Overview

Card Edge Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.024 inch Pitch, Surface Mount Terminal, Locking, White Insulator

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	ROHS COMPLIANT
body width	0.061 inch
subject depth	0.177 inch
body length	0.205 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	50VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.024 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	4.2926 mm
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

Limited availability -

contact Harwin Asia
