DATA SHEET
PHOTOCOUPLER
PS2561-1,-2,-4,PS2561L-1,-2,-4
PS2561L1-1,-2,-4,PS2561L2-1,-2,-4
HIGH ISOLATION VOLTAGE
SINGLE TRANSISTOR TYPE
MULTI PHOTOCOUPLER SERIES
DESCRIPTION
The PS2561-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon
phototransistor.
The PS2561-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2561L-1, -2, -4 are lead bending type
(Gull-wing) for surface mount.
The PS2561L1-1, -2, -4 are lead bending type for long creepage distance.
The PS2561L2-1, -2, -4 are lead bending type for long creepage distance (Gull-wing) for surface mount.
−NEPOC
Series−
FEATURES
• High Isolation voltage (BV = 5 000 Vr.m.s.)
• High collector to emitter voltage (V
CEO
= 80 V)
• High current transfer ratio (CTR = 200 % TYP.)
• High-speed switching (t
r
= 3
µ
s TYP., t
f
= 5
µ
s TYP.)
• Ordering number of taping product: PS2561L-1-E3, E4, F3, F4, PS2561L-2-E3, E4, PS2561L2-1-E3, E4
• UL approved: File No. E72422
• CSA approved: No. CA 101391
• BSI approved: No. 7112/7420
• SEMKO approved: No. 0144211
• NEMKO approved: No. A21409
• DEMKO approved: No. 300535
• FIMKO approved: No. FI10620A1
• VDE approved (Option)
APPLICATIONS
• Power supply
• Telephone/FAX.
• FA/OA equipment
• Programmable logic controller
The information in this document is subject to change without notice. Before using this document, please confirm that
this is the latest version.
Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices
representative for availability and additional information.
Document No. PN10234EJ02V0DS (2nd edition)
Date Published December 2003 CP(K)
Printed in Japan
The mark
shows major revised points.
NEC Compound Semiconductor Devices 1992, 2003
PS2561-1,-2,-4,PS2561L-1,-2,-4,PS2561L1-1,-2,-4,PS2561L2-1,-2,-4

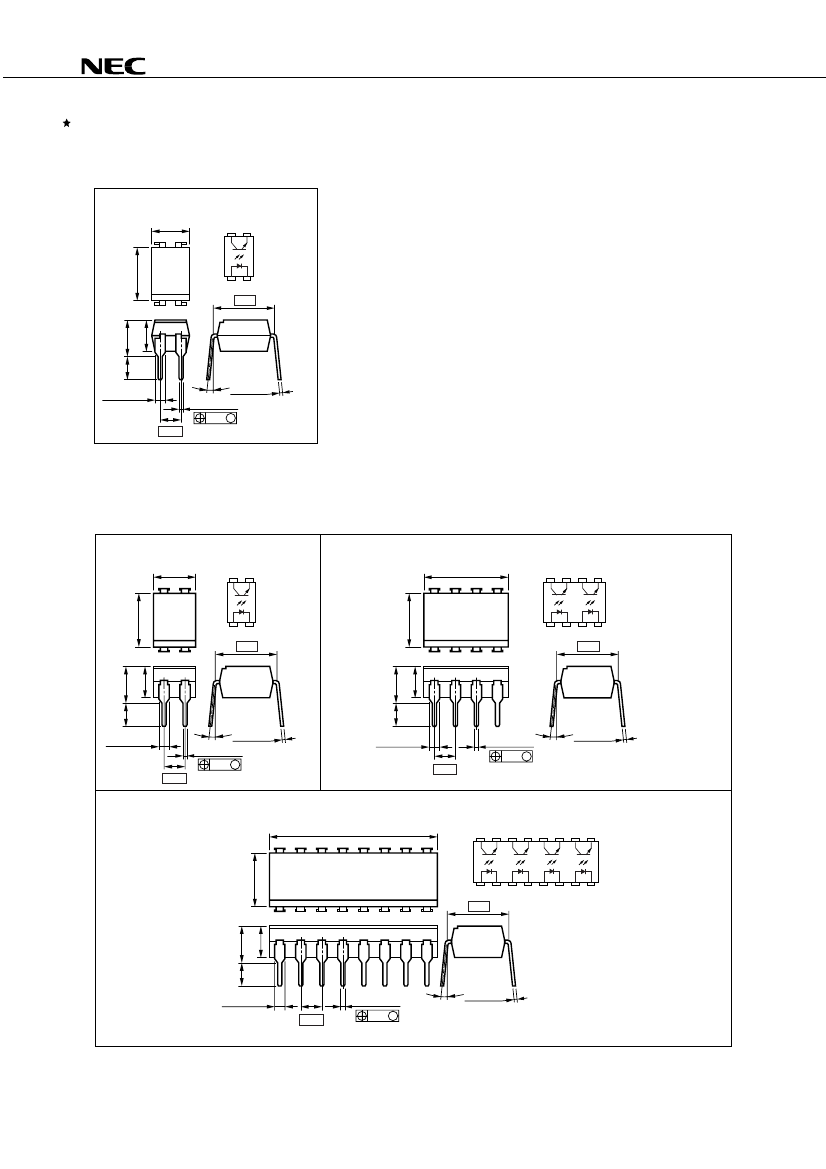

PACKAGE DIMENSIONS (UNIT : mm)
DIP Type (New package)
PS2561-1
4.6±0.35
4
TOP VIEW
3
1. Anode
2. Cathode
3. Emitter
4. Collector
6.5±0.5
1
2
7.62
3.2±0.4 4.15±0.4
3.5±0.3
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
Caution New package 1-ch only
DIP Type
PS2561-1
TOP VIEW
4
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
7.62
PS2561-2
9.7±0.5
8
7
4.6±0.5
TOP VIEW
6
5
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
6.5±0.5
6.5±0.5
1
2
3 4
7.62
3.3±0.5 4.15±0.4
3.3±0.5 4.15±0.4
3.5±0.3
3.5±0.3
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
PS2561-4
19.8±0.5
TOP VIEW
16 15 14 13 12 11 10 9
6.5±0.5
1
7.62
2
3
3.3±0.5 4.15±0.4
3.5±0.3
4 5 6 7
1, 3, 5, 7.
2, 4, 6, 8.
9, 11, 13, 15.
10, 12, 14, 16.
8
Anode
Cathode
Emitter
Collector
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
+0.1
0.25
–0.05
2
Data Sheet PN10234EJ02V0DS
PS2561-1,-2,-4,PS2561L-1,-2,-4,PS2561L1-1,-2,-4,PS2561L2-1,-2,-4

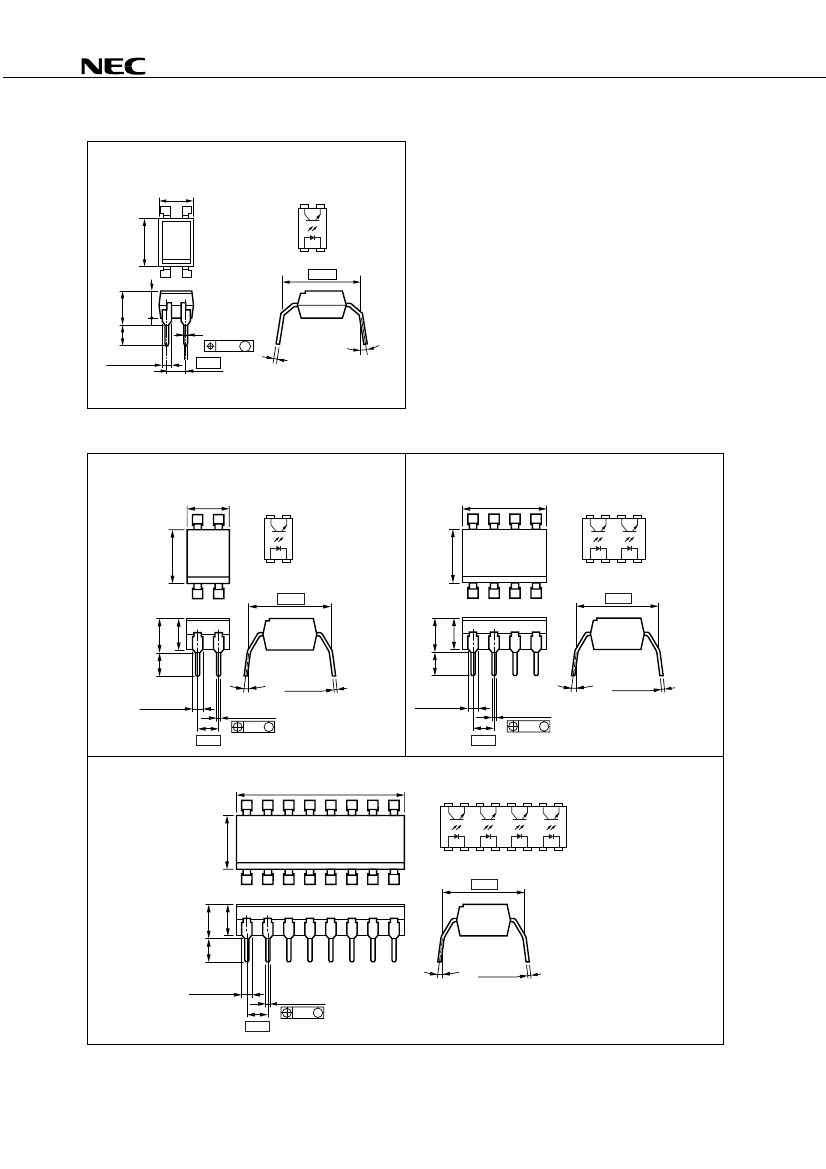

Lead Bending Type (New package)
PS2561L-1
4.6±0.35
TOP VIEW
4
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
6.5±0.5
0.25
+0.1
–0.05
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
Caution New package 1-ch only
Lead Bending Type
PS2561L-1
4.6±0.5
0.1
+0.1
–0.05
PS2561L-2
9.7±0.5
TOP VIEW
4
3
6.5±0.5
TOP VIEW
8
7
6
5
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
1
0.25
+0.1
–0.05
6.5±0.5
1. Anode
2. Cathode
3. Emitter
4. Collector
1
0.25
+0.1
–0.05
2
2
3
4
0.1
+0.1
–0.05
3.5±0.3
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
PS2561L-4
19.8±0.5
TOP VIEW
16 15 14 13 12 11 10 9
6.5±0.5
1
0.25
+0.1
–0.05
2 3 4 5 6 7 8
1, 3, 5, 7. Anode
2, 4, 6, 8. Cathode
9, 11, 13, 15. Emitter
10, 12, 14, 16. Collector
0.1
+0.1
–0.05
3.5±0.3
1.25±0.15
0.25
M
2.54
0.15
0.9±0.25
9.60±0.4
0.1
+0.1
–0.05
Data Sheet PN10234EJ02V0DS
3
PS2561-1,-2,-4,PS2561L-1,-2,-4,PS2561L1-1,-2,-4,PS2561L2-1,-2,-4

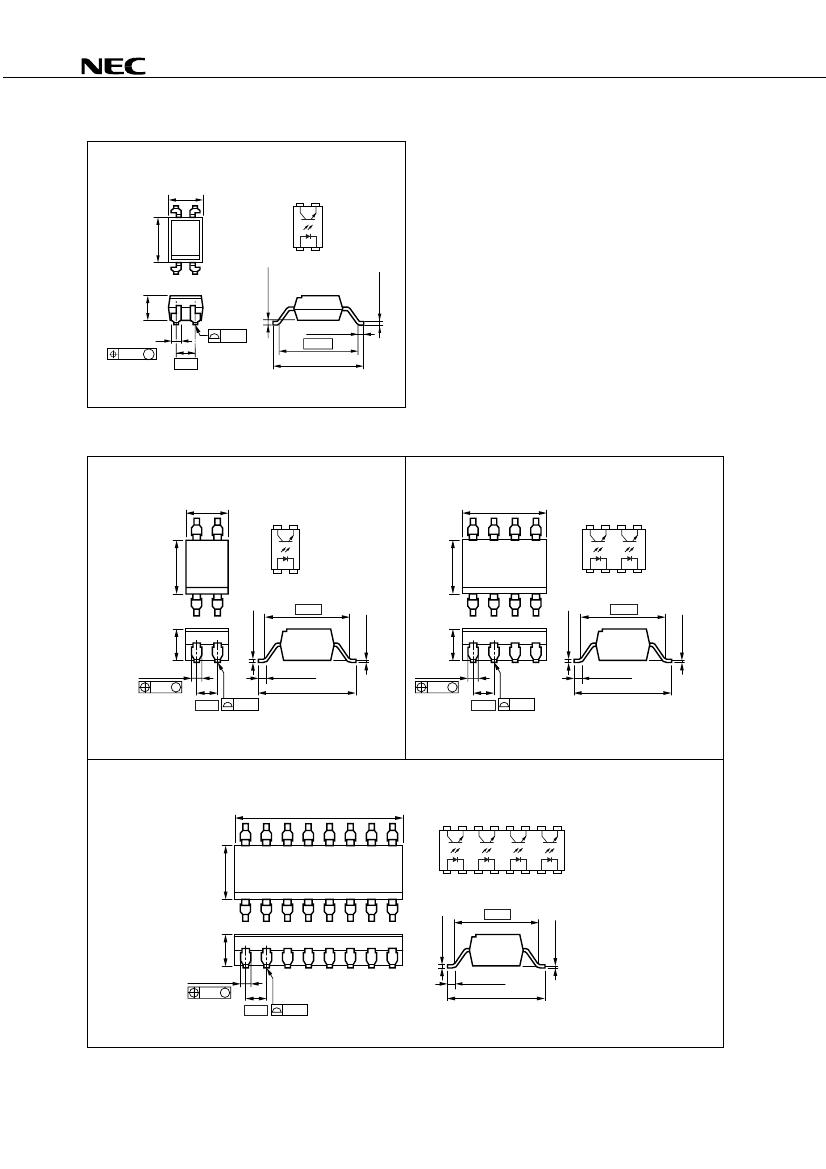

Lead Bending Type For Long Creepage Distance (New Package)
PS2561L1-1
4.6±0.35
4
6.5±0.5
TOP VIEW
4
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
10.16
3
1
3.15 3.85
±0.35 ±0.4
3.5
±0.3
2
0.50±0.1
0.25 M
2.54
0.25
–0.05
+0.1
1.25±0.15
0
to
15˚
Lead Bending Type For Long Creepage Distance
PS2561L1-1
4.6±0.5
PS2561L1-2
9.7±0.5
TOP VIEW
4
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
10.16
TOP VIEW
8
7
6
5
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
1
2
3
4
6.5±0.5
6.5±0.5
10.16
3.15±0.35 3.85±0.4
3.5±0.3
3.15±0.35 3.85±0.4
3.5±0.3
0 to 15˚
0.25
+0.1
–0.05
0 to 15˚
0.25
+0.1
–0.05
1.25±0.15
0.50±0.10
0.25
M
2.54
1.25±0.15
0.50±0.10
0.25
M
2.54
PS2561L1-4
19.8±0.5
TOP VIEW
1, 3, 5, 7.
2, 4, 6, 8.
9, 11, 13, 15.
10, 12, 14, 16.
1
2
3
4
5
6
7
8
Anode
Cathode
Emitter
Collector
16 15 14 13 12 11 10 9
6.5±0.5
10.16
3.15±0.35 3.85±0.4
3.5±0.3
0 to 15˚
0.25
+0.1
–0.05
1.25±0.15
0.50±0.10
0.25
M
2.54
4
Data Sheet PN10234EJ02V0DS
PS2561-1,-2,-4,PS2561L-1,-2,-4,PS2561L1-1,-2,-4,PS2561L2-1,-2,-4

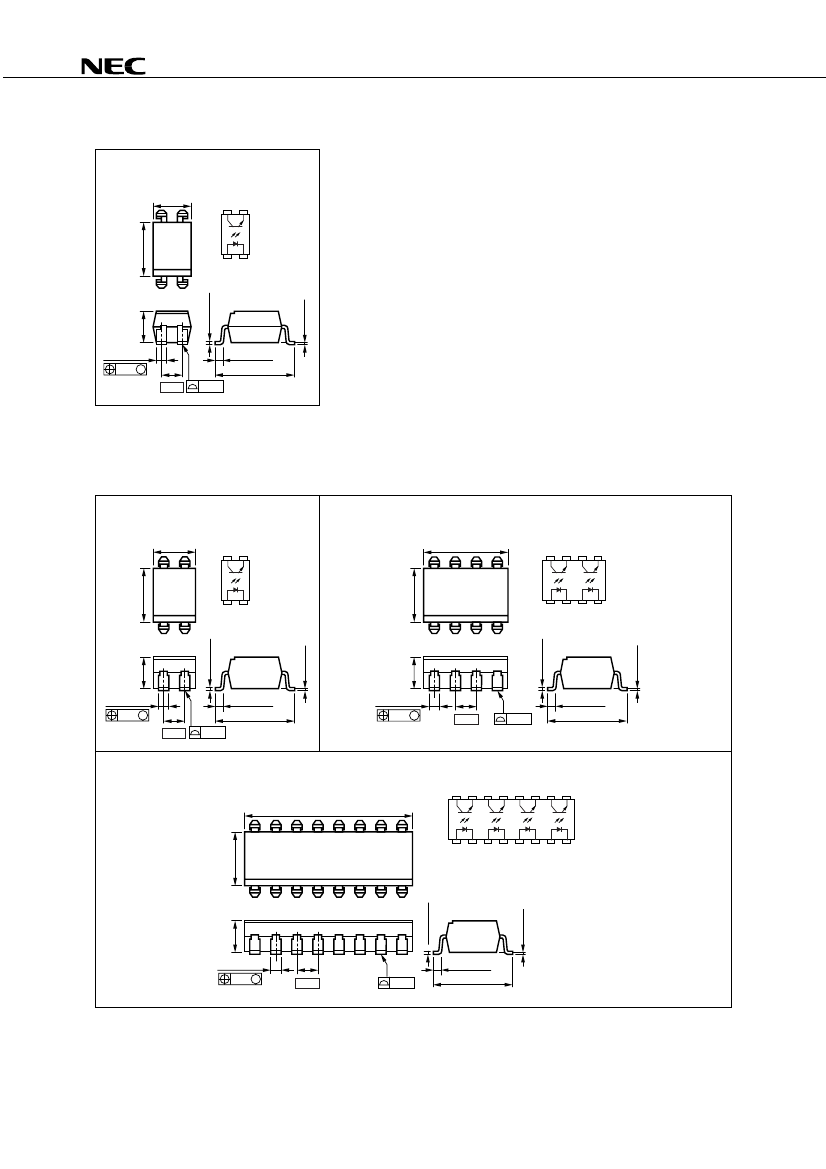

Lead Bending Type For Long Creepage Distance (Gull-Wing) (New Package)
PS2561L2-1
4.6±0.35
4
6.5±0.5
TOP VIEW
4
3
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
0.25±0.2
2
0.25
–0.05
+0.1
1
3.5±0.3
2
1.25±0.15
0.25 M
2.54
0.25
0.9±0.25
10.16
11.8
–0.5
+0.2
Lead Bending Type For Long Creepage Distance (Gull-Wing)
PS2561L2-1
4.6±0.5
PS2561L2-2
9.7±0.5
8
1. Anode
2. Cathode
3. Emitter
4. Collector
7
TOP VIEW
4
3
TOP VIEW
6
5
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
1
2
3
4
6.5±0.5
1
2
10.16
0.25±0.2
6.5±0.5
0.25
+0.1
–0.05
0.25
+0.1
–0.05
10.16
0.25±0.2
3.5±0.3
1.25±0.15
0.25
M
2.54
0.25
0.9±0.25
11.8
+0.2
–0.5
3.5±0.3
1.25±0.15
0.25
M
2.54
0.25
0.9±0.25
11.8
+0.2
–0.5
PS2561L2-4
19.8±0.5
TOP VIEW
16 15 14 13 12 11 10 9
1, 3, 5, 7.
2, 4, 6, 8.
9, 11, 13, 15.
10, 12, 14, 16.
1
2
3
4
5
6
7
8
Anode
Cathode
Emitter
Collector
6.5±0.5
0.25
+0.1
–0.05
10.16
0.25±0.2
3.5±0.3
1.25±0.15
0.25
M
2.54
0.25
0.9±0.25
11.8
+0.2
–0.5
Data Sheet PN10234EJ02V0DS
5
