39-351RED datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 39-351RED

39-351RED: DescriptionPushbutton Switch, SPST, Off-(on), Momentary, Solder Terminal, Panel Mount-threaded, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size113KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

39-351RED Overview

Pushbutton Switch, SPST, Off-(on), Momentary, Solder Terminal, Panel Mount-threaded, ROHS COMPLIANT

39-351RED Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Actuator angle
Actuator color	RED
Actuator length	0.175 inch
Actuator material	THERMOPLASTIC
Actuator stroke	0.889 mm
Actuator type	PUSHBUTTON
Other features	SEALED
body height	6.35 mm
Body length or diameter	7.92 mm
Casing diameter	0.164 inch
Nozzle length	0.125 inch
Casing type	8-40
center contact material	SILVER
Center contact plating	GOLD
Contact (AC) maximum rated R load	.5A@115VAC
Maximum contact current (AC)	0.5 A
Contact function	OFF-(ON)
Contact resistance	0.025 mΩ
Maximum contact voltage (AC)	115 V
Dielectric withstand voltage	1000VAC V
Electrical life	250000 Cycle(s)
End contact material	BRONZE
End contact plating	GOLD
Shell material	CADMIUM
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e4
Installation features	PANEL MOUNT-THREADED
Maximum operating force	6.67 N
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
seal	BUSHING AND BUTTON SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Terminal length	0.1 inch
Terminal material	BRONZE
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

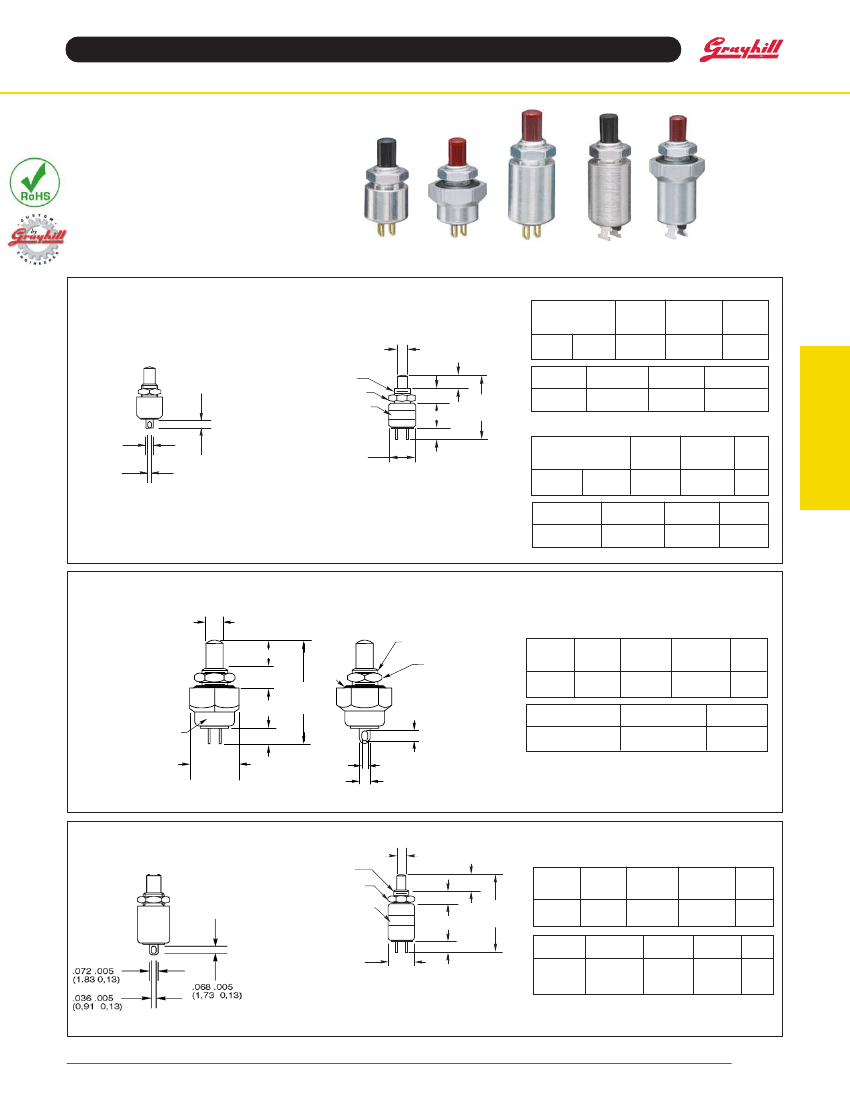

Butt Contact Pushbutton Switches

SERIES 39

SPST, 150 mA to 1/2 Amp

FEATURES

• Requires an Absolute Minimum of Space

• Molded-In Terminals in SPST–N.O.

• Solder Lug Terminals

DIMENSIONS

39-1

39-3

39-601*

In Inches (and millimeters)

Normally Open–SPST Economy and Standard Version

Economy Version

Electrical

Ratings

Operations *Complete

at Rated

Part

Load

Number

1,000,000

39-601 RED

39-601 BLK

Button

Color

Red

Black

Mtg.

Hole

11/64"

(4,37) DIA.

.110

.005

(2,79

0,13) DIA.

8-40 UNS-2A

THREAD

H = HEX MTG NUT

.063

.010 (1,59

0,25)

THICK

.219

.010 (5,56

0,25)

ACROSS FLATS

.068 .005

(1,73 0,13)

At 5 Vdc At 20 Vdc

150 mA 20 mA

Action

.615 (15,62)

REF.

E.I.A.

DATE

CODE

LABEL*

Momentary

Total

Travel

.035 ± .015

(0,89 ± 0,38)

Actuating

Force (oz.)

4 +4

-2

Pushbutton Switches

Standard

Electrical

Ratings

Operations

at Rated

Load

Complete

Part

Number

39-1

39-3

Button

Color

Red

Black

Mtg.

Hole

11/64"

(4,37) DIA.

.072 .005

(1.83 0,13)

.036 .005

(0,91 0,13)

.250 + .010/ –.005

(6,35 + 0,25/ – 0,13)

DIAMETER

A = .175 + .025/ –.020 (4,45 + 0,64/ – 0,51)

*Label increases

B = .125

. 010 (3,18

0,25)

nominal diameter

C = .215

.015 (5,46

0,38)

to .255 (6,48)

D = .100

.020 (2,54

0,51)

At 115 Vac

At 220 Vac

1,000,000

Amp Res.

Action

Momentary

Total

Travel

.035 ± .015

(0,89 ± 0,38)

Actuating

Force (oz.)

4 +4

–2

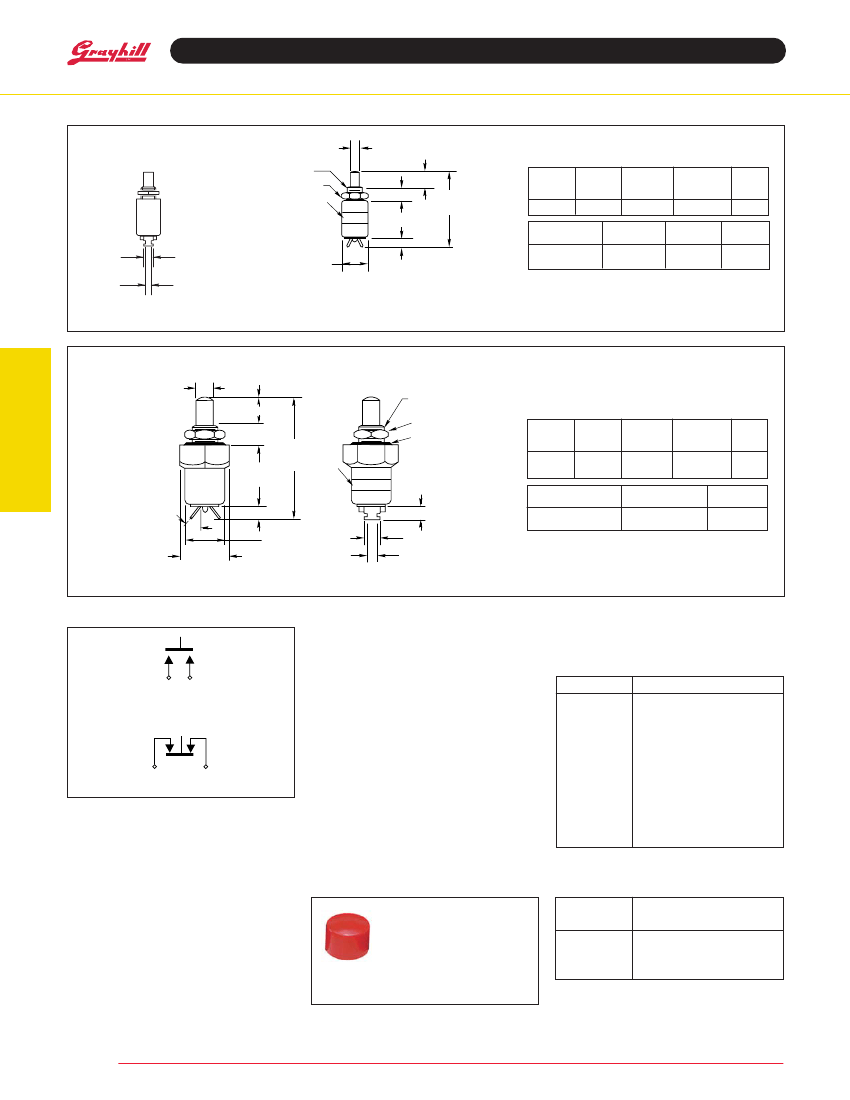

Normally Open–SPST with Sealed Bushing and Button

39-351*

.110± .005 DIA.

(2,79 ± 0,13)

#8-40 UNS-2A THREAD

A = .175 +.025/ –.020

(4,45 +0,64/ – 0,51)

B = .125 ± .010

(3,18 ± 0,25)

C = .250 ±.015

(6,35 ± 0,38)

D = .100 ± .020

(1,54 ± 0,51)

E.I.A.

DATE

CODE

.650

(16,51)

REF.

HEX MTG. NUT

.0625 (1,59) TYP.

THICK AND

.218 (5,54) TYP.

ACROSS FLATS

O = O RING

.312 ±.005

(7,92 ±0,13)

ACROSS

FLATS

.068 ± .005 (1,73 ± 0,13)

.036 ± .005 (0,91 ± 0,13)

.072 ± .005 (1,83 ± 0,13)

Rating at

115 Vac

Resistive

Rating at

220 Vac

Resistive

Operations

at Rated

Load

250,000

*Complete

Part

Number

39-351 RED

39-351 BLK

Button

Color

Red

Black

Amp

XXXX

Action

Momentary

Total

Travel

.035 ± .015

(0,89 ± 0,38)

Actuating

Force (oz.)

16 ± 8

Button is O-Ring

sealed internally.

Normally Open–SPST with Overtravel

39-12

39-24

8-40 UNS-2A

THREAD

H = HEX MTG NUT

.063 .010 (1,60 0,25)

THICK

.219 .010 (5,56 0,25)

ACROSS FLATS

E.I.A.

DATE

CODE

LABEL*

.755 (19,18)

REF.

.110 .005

(2,79 0,13) DIA.

Rating at

115 Vac

Resistive

Rating at

220 Vac

Resistive

Operations

at Rated

Load

100,000

Complete

Part

Number

39-12

39-24

Actuating

Force (oz.)

5±3

Button

Color

Red

Black

Mtg.

Hole

11/64"

(4,37)

DIA.

Amp

Action

.250 + .010/ – .005

(6,35 + 0,25/ – 0,13)

DIAMETER

A = .175 + .025/ –.020 (4,45 + 0,64/ – 0,51)

*Label increases

B = .125 .010 (3,18 0,25)

nominal diameter

C = .355 .015 (9,02 0,38)

to .255 (6,48)

D = .100 .020 (2,54 0,51)

Total

Travel

.130 ± .025

(3,30 ± 0,64)

Over

Travel

.015 (0,38)

Min.

Momentary

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

Pushbutton
