3.2x1.6mm SMD CHIP LED LAMP
Part Number: KPTR-3216ZGC-E
Green
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
3.2mmx1.6mm SMT LED,1.05mm thickness.
Low power consumption.
Wide viewing angle.
Ideal for backlight and indicator.
Vavrious colors and lens types available.
Package : 2000pcs / reel.
Moisture sensitivity level : level 3.
RoHS compliant.
Description
The Green source color devices are made with InGaN Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

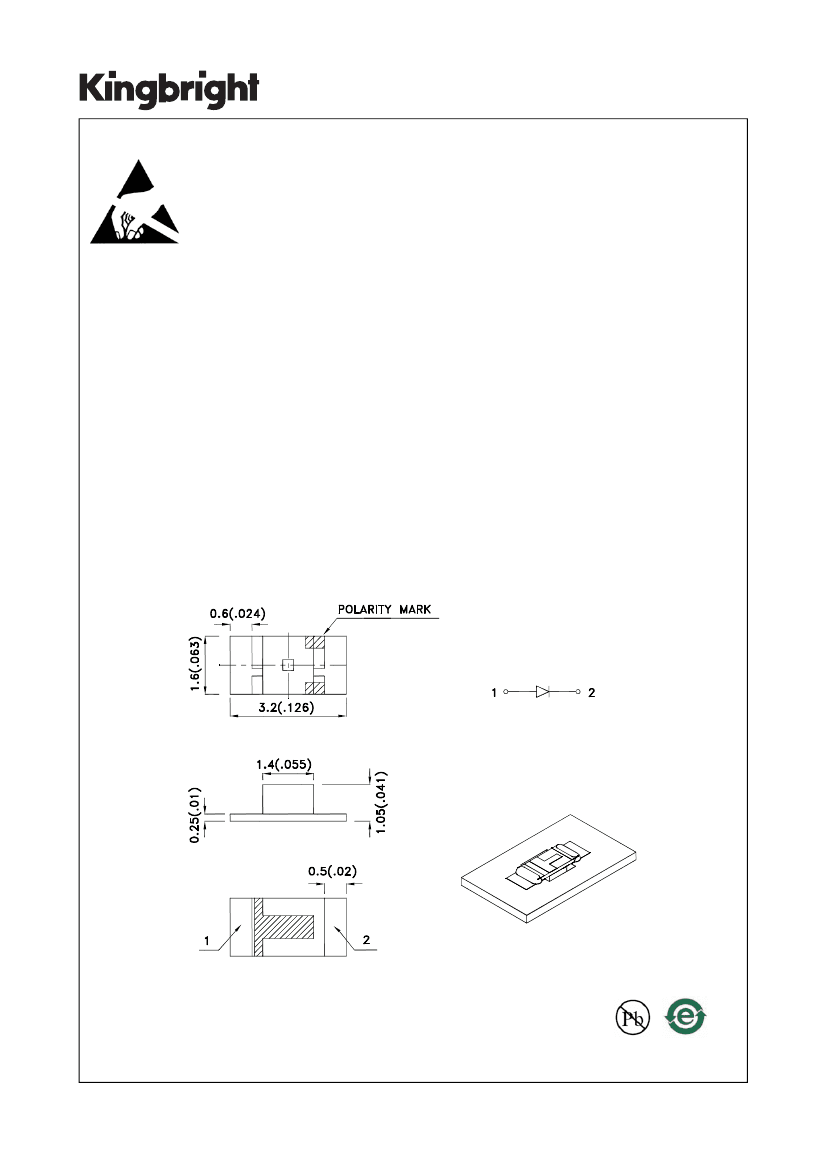

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.2(0.008") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4.The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAJ8281
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: DEC/21/2010
DRAWN: C.H.Han
PAGE: 1 OF 5
ERP: 1203010106
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
KPTR-3216ZGC-E
Green (InGaN)
Water Clear
400
Typ.
650
Viewing
Angle [1]
2θ1/2
120
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Green
Green
Typ.
520
525
35
100
3.2
4
50
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Green
120
30
100
5
-40°C To +85°C
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAJ8281
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: DEC/21/2010
DRAWN: C.H.Han
PAGE: 2 OF 5
ERP: 1203010106

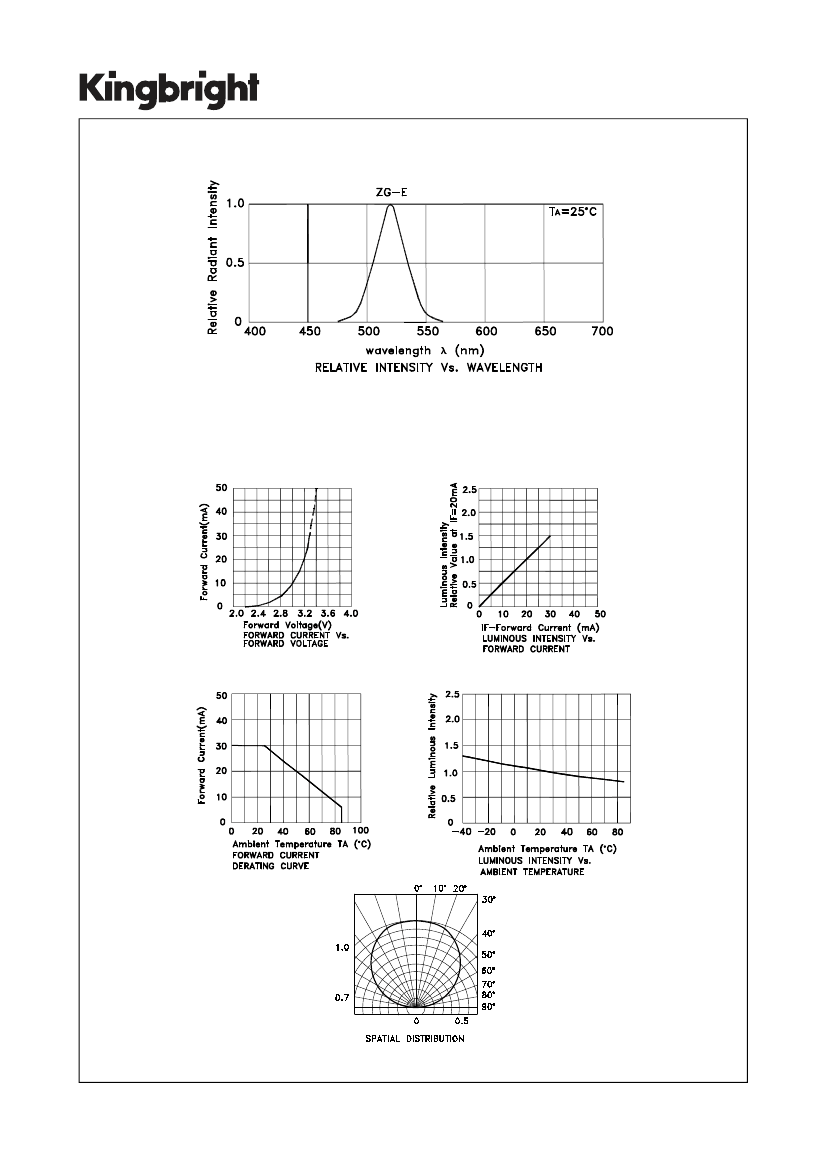

KPTR-3216ZGC-E

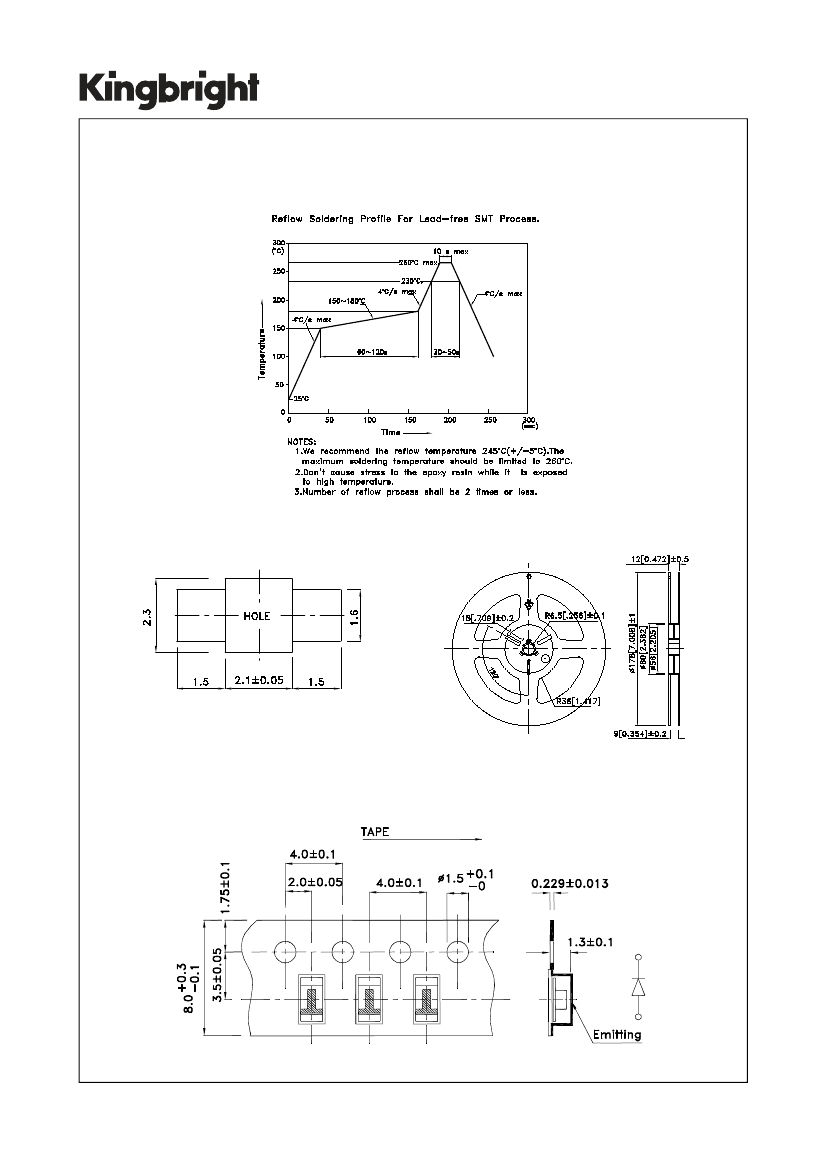

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)

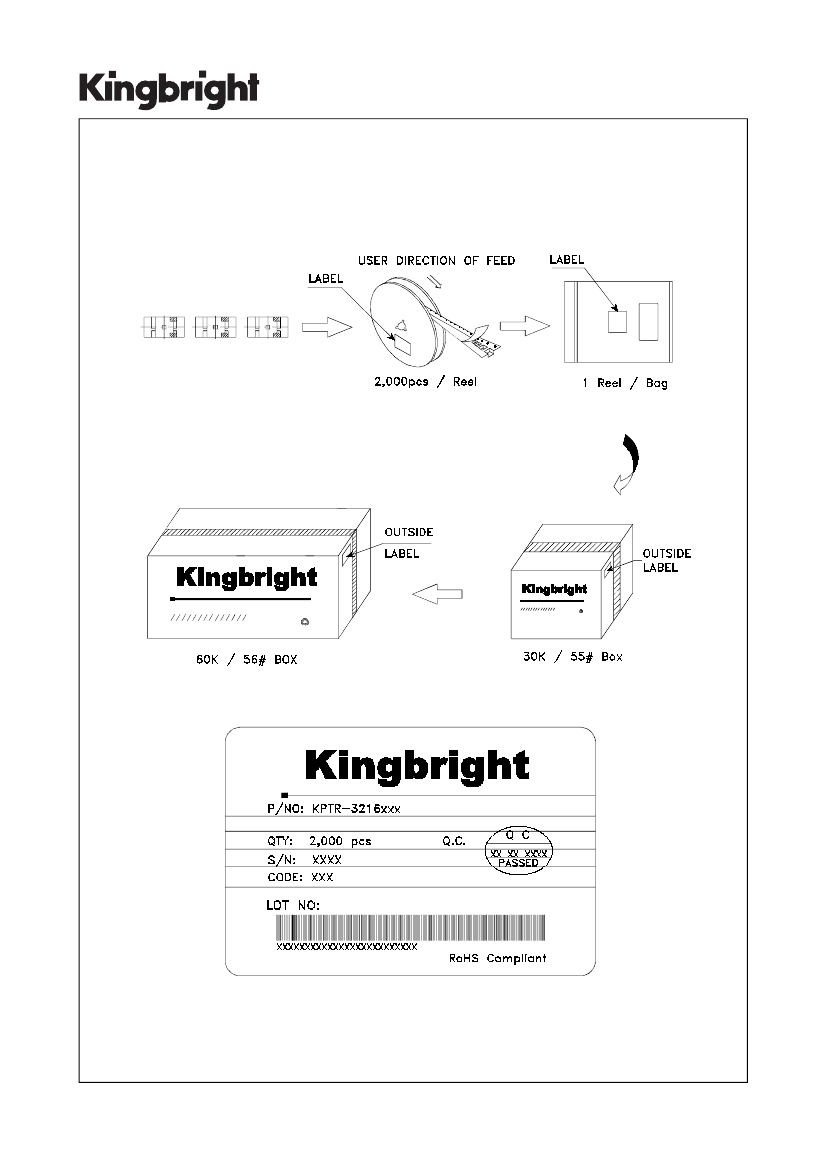

Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAJ8281
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: DEC/21/2010
DRAWN: C.H.Han
PAGE: 4 OF 5
ERP: 1203010106
