M4S72XBJ19.440MHZ datasheet, PDF

M4S72XBJ19.440MHZ: DescriptionOscillator, 19.44MHz Min, 80MHz Max, 19.44MHz Nom; CategoryPassive components oscillator; File Size78KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M4S72XBJ19.440MHZ Overview

Oscillator, 19.44MHz Min, 80MHz Max, 19.44MHz Nom

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
package instruction	SMDIP4,.38,200
Reach Compliance Code	unknown
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	80 MHz
Minimum operating frequency	19.44 MHz
Nominal operating frequency	19.44 MHz
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	CERAMIC
Encapsulate equivalent code	SMDIP4,.38,200
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	100 mA
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)

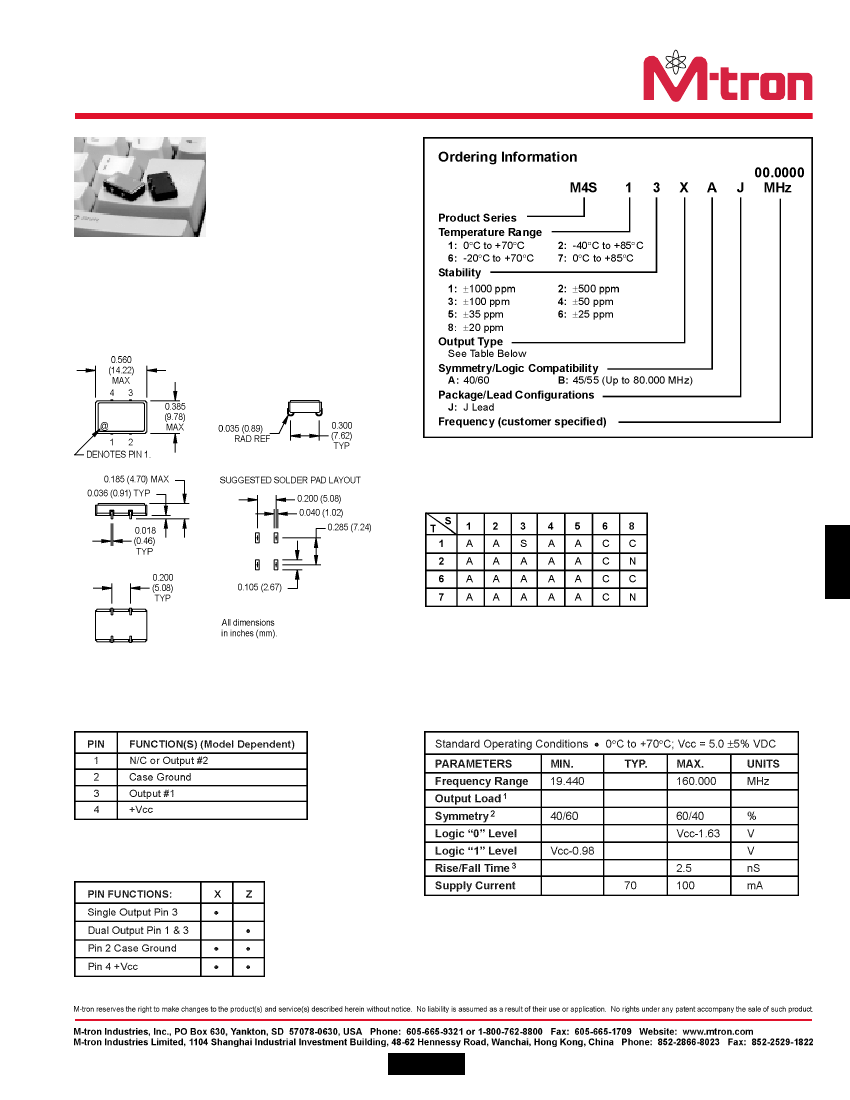

M4S Series 5.0 Volt PECL Oscillators

M4S Series Ceramic J-Lead PECL Clock

Oscillators with Optional Complementary

Outputs. PLL Version

Available Stabilities vs. Temperature

A = Available

N = Not Available

S = Standard

C = Consult Factory

Pin Connections

Electrical Specifications

PECL Output Type

Internally terminated outputs. See load circuit diagram #4 on page 137.

Symmetry is measured at Vcc-1.3 V level.

Rise/Fall times are measured between Vcc-0.98 and Vcc-1.63.

Utilizes PLL clock generation. Not recommended for low jitter applications.

See page 136, Figure 2 for suggested solder profile.
