M85049/90-11W03 Overview

circular mil spec backshells backshell bnd lock adptr R/A cad SZ 11

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	Circular MIL Spec Backshells
RoHS	N
MIL Type	MIL-DTL-38999 III, IV
Shell Size	11
Shell Material	Aluminum Alloy
Mating Style	Self Locking
Mounting Angle	Right Angle

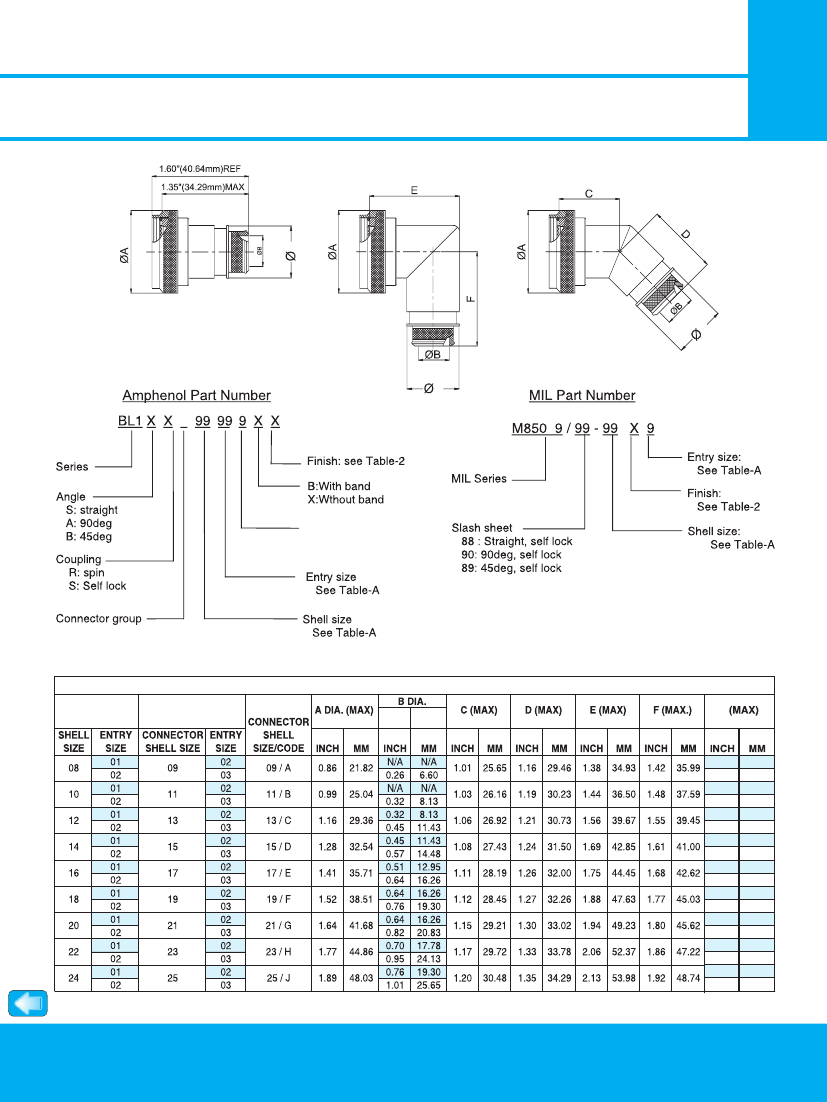

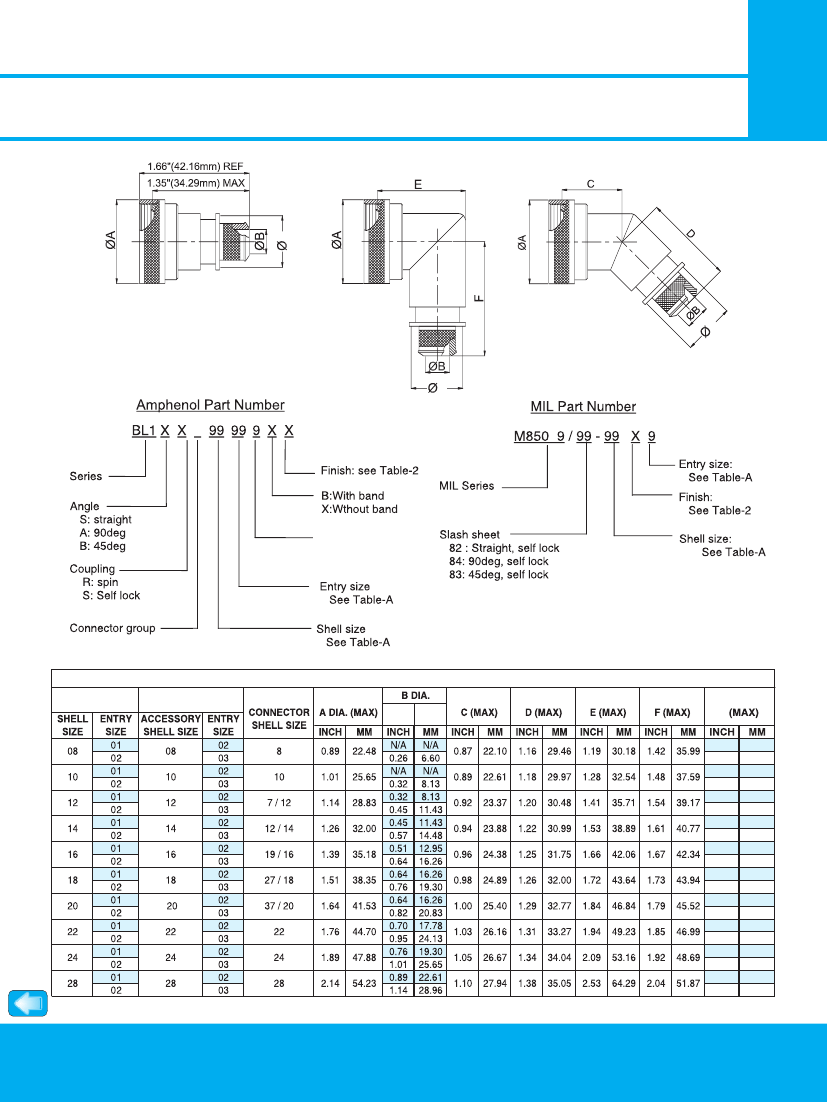

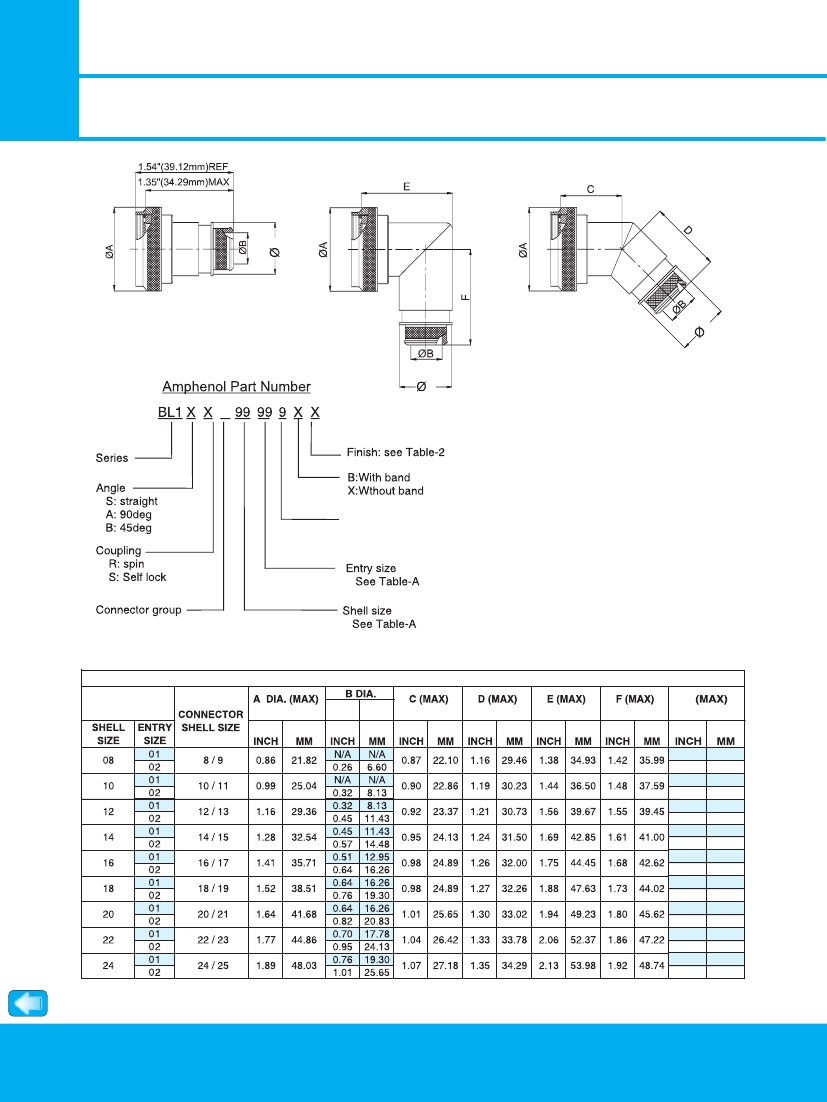

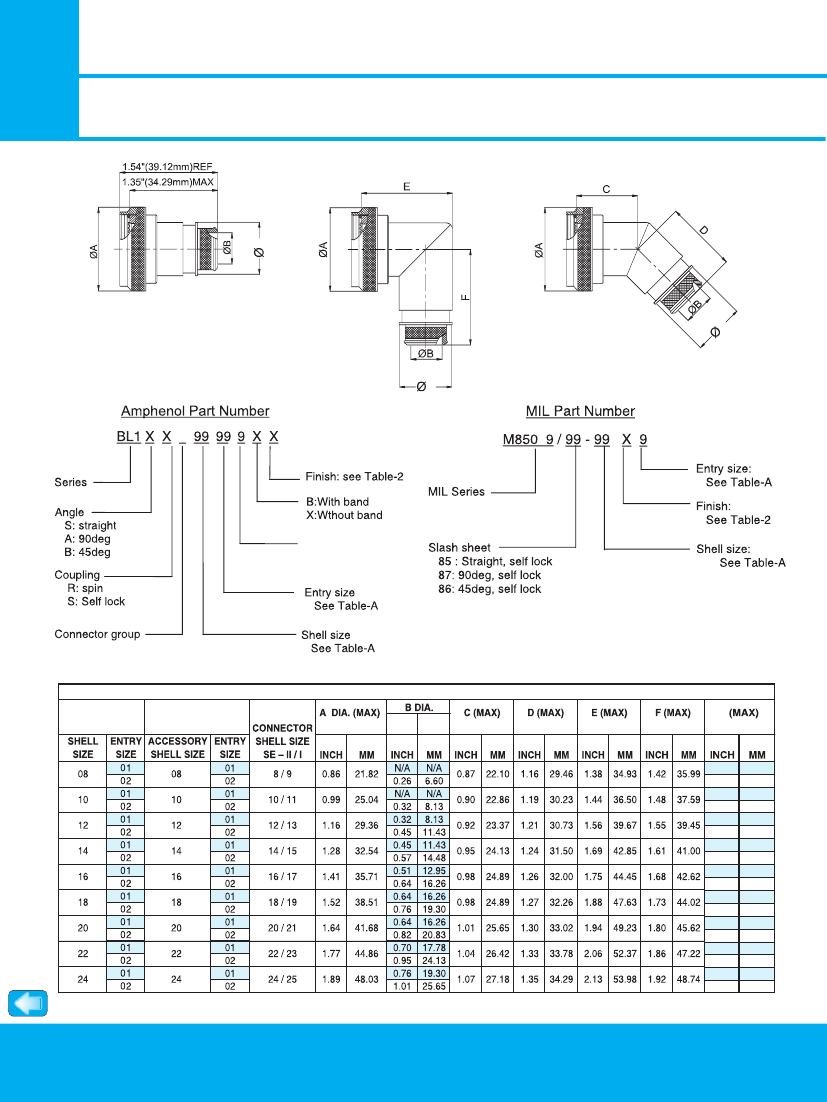

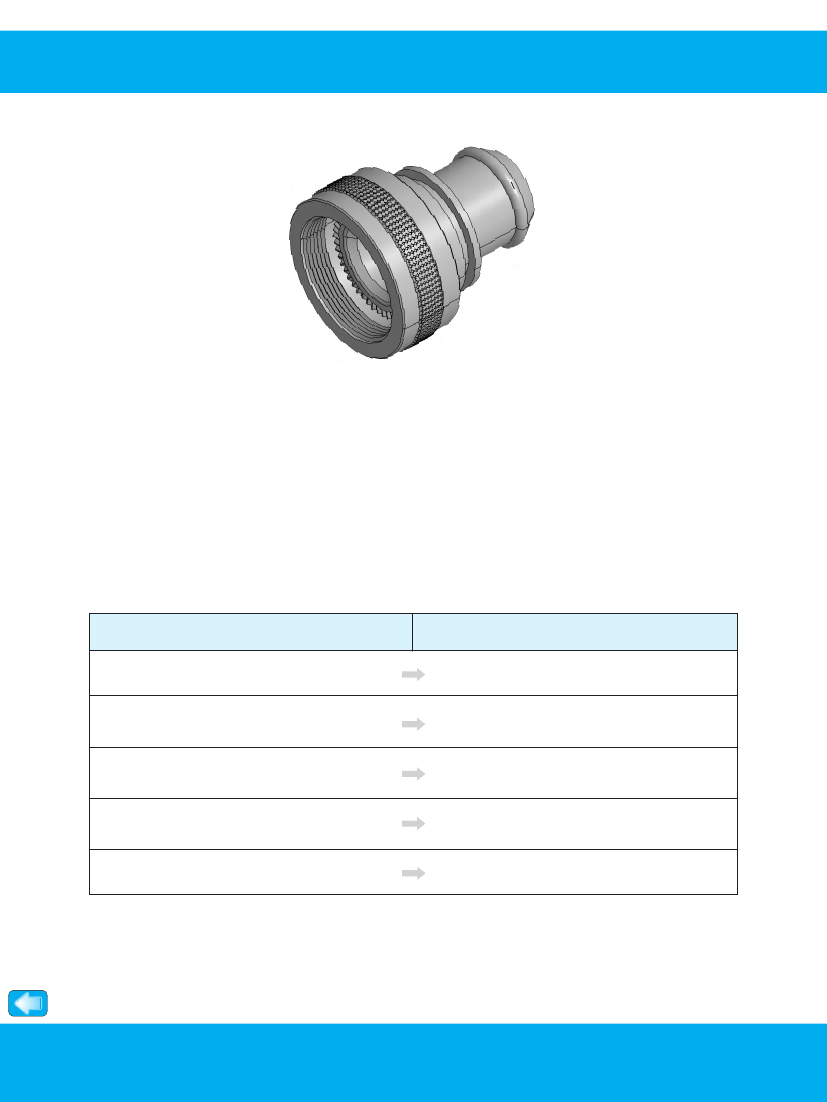

BAND LOCK ADAPTOR

This is another method of termination of screens. A high quality band will do the job in

this back shell. Tempered bands are tightened over the shields, which is pulled over the

banding area, using special assembly tools. Suitable over cover by heat shrink boot or

some other method as chosen by the designer could be used. Both crimp ring and

banded terminations give a low DC resistance.

For Connector Group

Page No.

VII-1

VII-2

VII-3

VII-4

VII-5

Note:

For Connector group Identification refer Table 1 - A, B, C, D

(Page 7-11)

and for Material / Plating Finish, Refer Table-2

(Page 12)

Amphenol Backshells

VII

email: sales@backshellworld.com

www.backshellworld.com
