IEC Connectors
Introduction
A full range of
quality
mains rated
inlets, outlets
and
connectors
conforming to
IEC
and EN 60320
specifications carrying
UL, CSA, VDE
and
other approvals.
With electrical ratings up to 20A, 250V (UL) these
connector ranges offer solutions to most mains
powered equipment and cable applications.
The combinations of mounting styles and
terminations include: flange fixing, snap to panel
and PCB mounting versions together with 2.8/
solder tabs, 4.8 and 6.3 fast on tabs, screw
terminal and PC spill versions.
Completing the range are insulating boots,
retaining and safety covers
In addition to the standard black moulding, most
styles are also available in either white or grey and
special colours to match OEM equipment can
also be supplied. (Subject to product approval
requirements)
Inlets and Outlet Connectors
Distribution Units
Power Entry Modules
EMI Mains Filters
239-263
264-268
269-291
292-300
IEC Connectors 238
IEC60320 Main Inlets and Outlets
Panel Mounting
IEC60 320-1
Sheet No:
C14
No Pins
Current Rating
10A, 250V a.c.
Flange Fixing
PX0579
PX0580
PX0580/PC
PX0580/PC/12132
PX0580/PC/7
PX0580/PC/7LC
Snap fit
PX0575
PX0575/PC
Fused Flange
PF0001
PF0001/PC
PF0002
PF0030
PF0030/PC
Fused
Snap fit
PF0011
PF0011/PC
Filtered
PS00
PS01
Fuse
Filtered
PS20
PS21
PS25
PS26
IEC Connectors
3
C16
3
10A, 250V a.c.
PX0590
PX0595
C18
2
10A, 250V a.c.
PX0690
PX0691
PX0691/PC
PF0006
PF0007
PF0016
C20
3
3 16A, 250V a.c.
PX0596
PX0598
IEC60 320-2-2
Sheet No:
F
No Pins
Current Rating
10A, 250V a.c.
Flange Fixing
PX0675
PX0675/PC
PX0675/PC/12599
PX0793 (
Shuttered
)
PX0793/1(
Shuttered
)
Snap fit
PX0695
PX0695/PC
PX0783
(
Shuttered
)
PX0716
PX0717
PX0718
PX0725
Fused Flange
Fused
Snap fit
Filtered
Fuse
Filtered
3
H
2
10A, 250V a.c.
PX0705
J
3
16A, 250V a.c.
PX0591
PX0592
239 IEC Connectors
IEC60320 Mains Connectors and Plug Connectors
Cable Mounting
IEC60 320-1
Sheet No:
C13
No Pins
Current Rating
10A, 250V a.c.
Rewirable
PX0587
PX0588
Side Entry
Rewirable
PX0587/SE
IEC Connectors
3
C15
3
10A, 250V a.c.
PX0597
C19
3
16A, 250V a.c.
PX0599
IEC60 320-2-2
Sheet No:
E
No Pins
Current Rating
10A, 250V a.c.
Rewirable
PX0686
Side Entry
Rewirable
PX0685
PX0686/SE
3
IEC Connectors 240

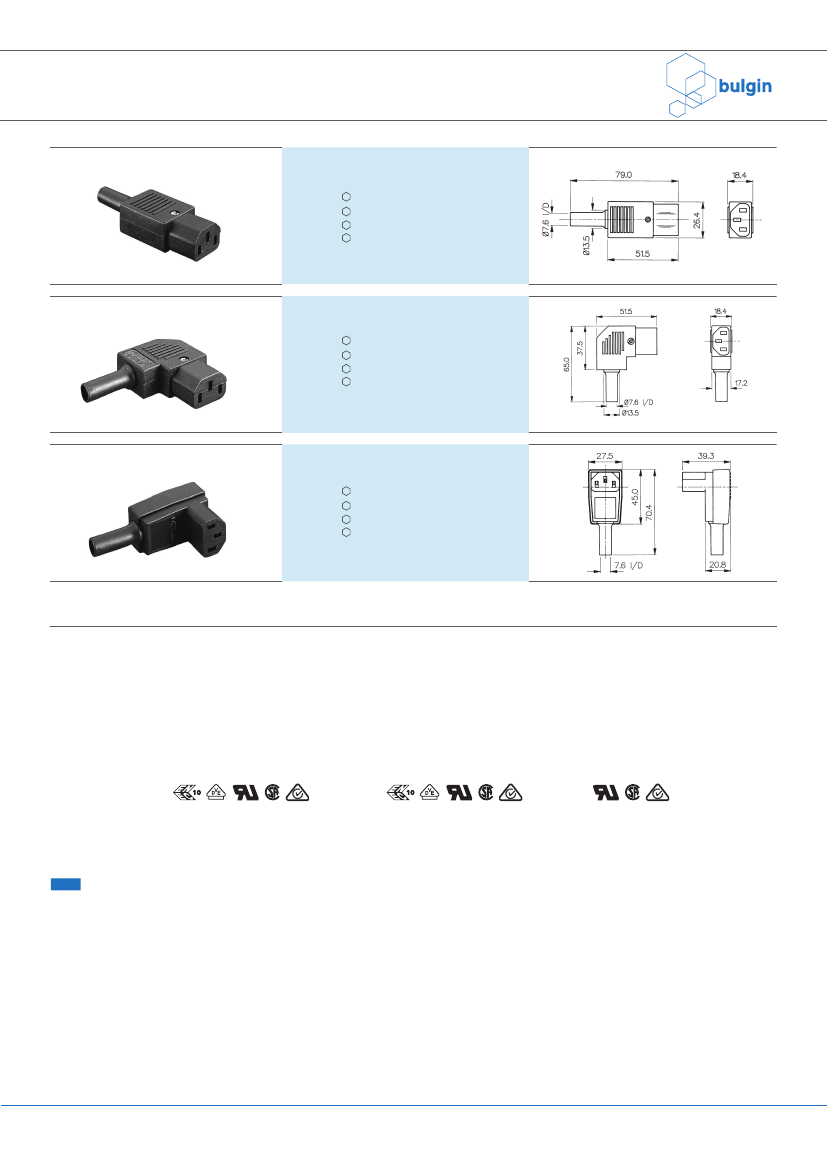

EN60 320-1 Standard Sheet C13 Class I
Rewirable Cold Condition
Straight Female Connector
Cable Mounting
Rewirable
Screw Terminals
10A, 250V a.c.
PX0587
Side Entry Female Connector
Cable Mounting
Rewirable
Screw Terminals
10A, 250V a.c.
PX0587/SE
Angled Female Connector
Cable Mounting
Rewirable
Screw Terminals
10A, 250V a.c.
PX0588
IEC Connectors
Specifications
Terminations:
Colours:
Max. Rating:
Contact Resistance:
Insulation Resistance:
A.C. Breakdown:
Operating Temp.
Withdrawal Force:
Mouldings:
Contacts
Approvals:
Accessories / Notes:
Mating Inlets:
RoHS
PX0587/Col
Screw Terminals
No suffix (Black), /WH (White), /GY (Grey
10A, 250V a.c.
<10mΩ
>10³ MΩ
Pole-Pole 4.5kV.
(Poles-Accessible) Parts 4kV
–40°C to +70°C
10N (Min.) 50N (Max.)
Nylon, Flammability Rating UL94V-0
Brass, Clean
PX0587/SE/Col
Screw Terminals
No suffix (Black), /WH (White), /GY (Grey)
10A, 250V a.c.
<10mΩ
>10³ MΩ
Pole-Pole 4.5kV.
(Poles-Accessible) Parts 4kV
–40°C to +70°C
10N (Min.) 50N (Max.)
Nylon, Flammability Rating UL94V-0
Brass, Clean
PX0588
Screw Terminals
-
10A, 250V a.c.
<10mΩ
>10³ MΩ
Pole-Pole 5kV.
(Poles-Accessible) Parts 3.5kV
–40°C to +70°C
10N (Min.) 50N (Max.)
Nylon, Flammability Rating UL94V-0
Brass, Clean
VDE and ENEC approval for black and white
versions only.
PX0575, PX0579, PX0580, PF0001,
PF0011, PF0030, PF0033
Compliant
VDE and ENEC approval for black and white
versions only.
PX0575, PX0579, PX0580, PF0001,
PF0011, PF0030, PF0033
Compliant
PX0575, PX0579, PX0580,
PF0001,PF0011, PF0030, PF0033
Compliant
241 IEC Connectors

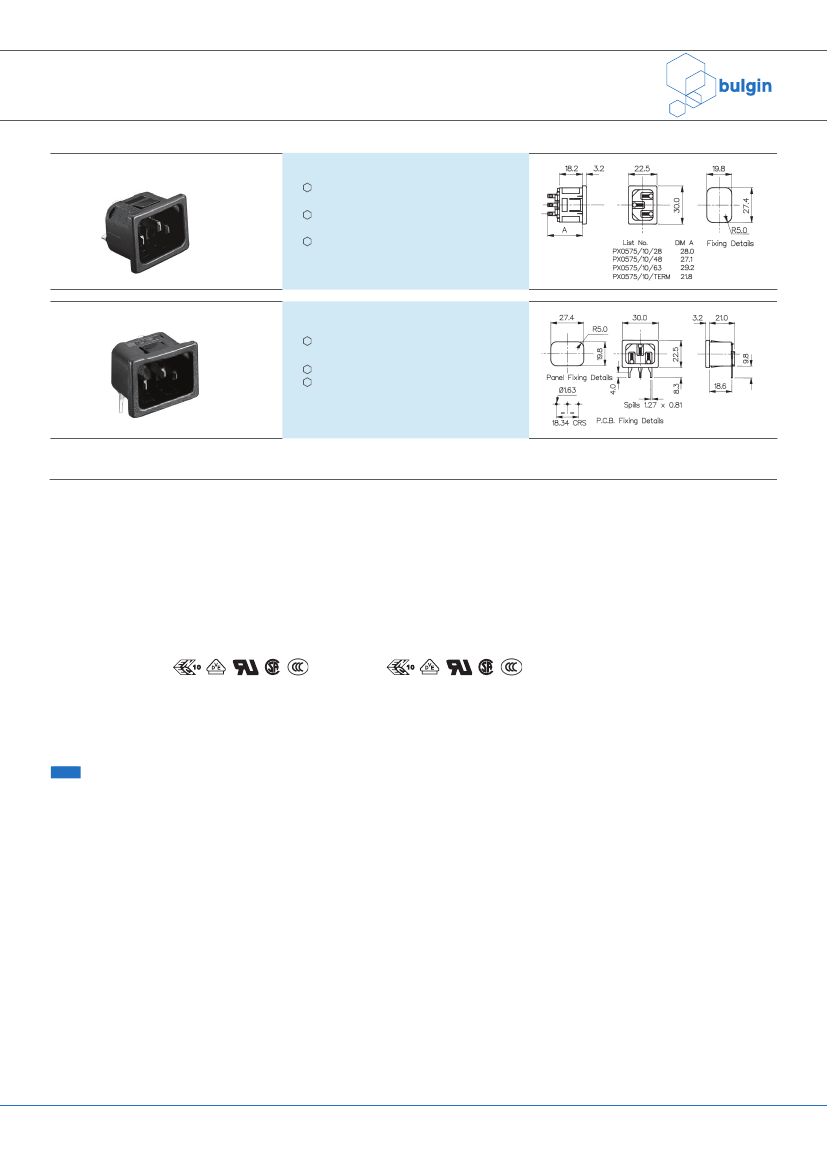

EN60 320-1 Standard Sheet C14 Class I
Rewirable Cold Condition
Snap Fit to Panel Inlet
Fits Panel Sizes 1, 1.5, 2.0 or
3.0mm
2.8, 4.8, 6.3mm Tabs or
Screw Terminals
10A, 250V a.c.
(15A, 250V a.c. UL & CSA)
PX0575/10/28
PC Snap Fit to Panel Inlet
Fits Panel Sizes 1, 1.5, 2.0 or
3.0mm
PC Spills
10A, 250V a.c.
(15A, 250V a.c. UL & CSA)
PX0575/10/PC
Specifications
Fixing(Panel):
Terminations:
Colours:
Max. Rating:
Contact Resistance:
Insulation Resistance:
A.C. Breakdown:
Operating Temp. Range:
Max. Pin Temp.:
Mouldings:
Contacts:
Approvals:
Accessories / Notes:
P.No. 11328 (See Page 152)
VDE and ENEC approval for black
versions only.
PX0587, PX0587/SE, PX0588
Compliant
Standard without cover.
With cover add /C to P.No.
PX0587, PX0587/SE, PX0588
VDE and ENEC approval for black versions only.
PX0587, PX0587/SE, PX0588
Compliant
IEC Connectors
PX0575/Panel/Term/Col
Snap fit, /10 (1mm), /15 (1.5mm),
/20 (2mm), /30 (3mm)
/28 (2.8mm solder), /48 (4.8mm tab)
No suffix (Black), /WH (White), /GY (Grey)
10A, 250V a.c.
(UL & CSA 15A, 250V a.c.)
<10mΩ
>10³ MΩ
Pole-Pole 5kV. Poles-Panel 5.4kV
–40°C to +70°C
+70°C
Nylon, Flammability Rating UL94V-0
Brass: Pins, Nickel Plated. Tabs, Tin
Plated, Screw Terms, Nickel Plated
PX0575/Panel/PC/Col
Snap fit, /10 (1mm), /15 (1.5mm),
/20 (2mm), /30 (3mm)
P.C. Spills
No suffix (Black), /WH (White), /GY (Grey)
10A, 250V a.c.
(UL & CSA 15A, 250V a.c.)
<10mΩ
>10³ MΩ
Pole-Pole 5kV. Poles-Panel 5.4kV
–40°C to +70°C
+70°C
Nylon, Flammability Rating UL94V-0
Brass: Pins, Nickel Plated.
Spills, Tin Plated
Mating Connectors:
RoHS
