Vishay BCcomponents
Ø 10 mm Film Dielectric Trimmers
TEST VOLTAGE (DC) FOR 1 MINUTE:
300 V
FEATURES
•
Housing diameter 10 mm
•
For a basic grid of 2.54 mm (0.1") or 2.50 mm
Pb-free
MAXIMUM CONTACT RESISTANCE:
10 mΩ
•
Top and bottom or top adjustment
•
Vertical and horizontal versions
•
Round or hexagonal head
e3
RoHS
COMPLIANT
MINIMUM INSULATION RESISTANCE:
10 000 MΩ
APPLICATIONS
•
For consumer and industrial equipment
CATEGORY TEMPERATURE RANGE:
PP
- 40 to + 70 °C
DESCRIPTION:
The vanes of the trimmer are stacked on a sturdy plastic
base. The color of the base indicates the maximum
capacitance (see Electrical Data Table). The dielectric is a
film of polypropylene (PP), polycarbonate (PC) or
polytetrafluorethylene (PTFE), which supports the vanes in
such a way that good stability is ensured and no microphony
can occur.
Flux absorption between the vanes is prevented.
Cleaning with solvents is not advised.
Versions are available with either a vertical spindle, or a
horizontal spindle.
Both versions have top adjustment by means of a
screwdriver or trimming key and bottom adjustment by
means of a key.
PC, PTFE
- 40 to + 85 °C
CLIMATIC CATEGORY (IEC 60068):
PP
40/070/21
PC, PTFE
40/085/21
MINIMUM STORAGE TEMPERATURE:
- 55 °C
QUALITY LEVEL:
Sampling and data evaluation for quality level in accordance
with
“MIL-STD-105D”
and
“IEC 60410”:
< 0.15 % major defects
< 0.65 % minor defects
Each capacitor is tested for minimum C
max
and is also
subjected to the full test voltage.
RELATED SPECIFICATION:
IEC 60418-1 and 4
EFFECTIVE ANGLE OF ROTATION:
180° (rotation in 180° only, see “Life of Trimmer”)
C
min
/C
max
:
2.5/15 to 7/105 pF
OPERATING TORQUE:
2 to 25 mNm
RATED VOLTAGE (DC):
150 V
MAXIMUM AXIAL THRUST:
2N
LIFE OF TRIMMER:
Maximum 10 cycles: rotation in 180° only (the electrical and
mechanical performance is not guaranteed if rotated beyond
10 cycles)
www.vishay.com
320
For technical questions, contact: filmcaps.roeselare@vishay.com
Document Number 28528
Revision 14-Feb-07
2281 808 .....
Ø 10 mm Film Dielectric Trimmers
Vishay BCcomponents
ROUND HEAD
∅
2.5
0.6
EXTENDED HEXAGONAL HEAD
∅
2
1
5.8
ROUND HEAD
∅
2.5
0.6
EXTENDED HEXAGONAL HEAD
∅
2
1
5.8
0.7
0.7
11
max.
15.3
0
-1
11
max.
15.3
0
-1
Z
4
± 0.5
rotor (2×)
1.15 max.
stator
3 ± 0.2
Z
4
± 0.5
rotor (2×)
3 ± 0.2
1.15 max.
stator
10.6
5
max. ± 0.1
10
0
- 0.2
2.5
10.6
5
max. ± 0.1
10
0
- 0.2
2.5
0.4 max.
5.85 ± 0.2
∅
1.6
5.85 ± 0.2
∅
1.6
DETAIL Z
turned 90°
DETAIL Z
turned 90°
0.65
± 0.2
0.6 ± 0.1
0.5
± 0.15
0.85
max.
0.6 ± 0.1
0.5
± 0.15

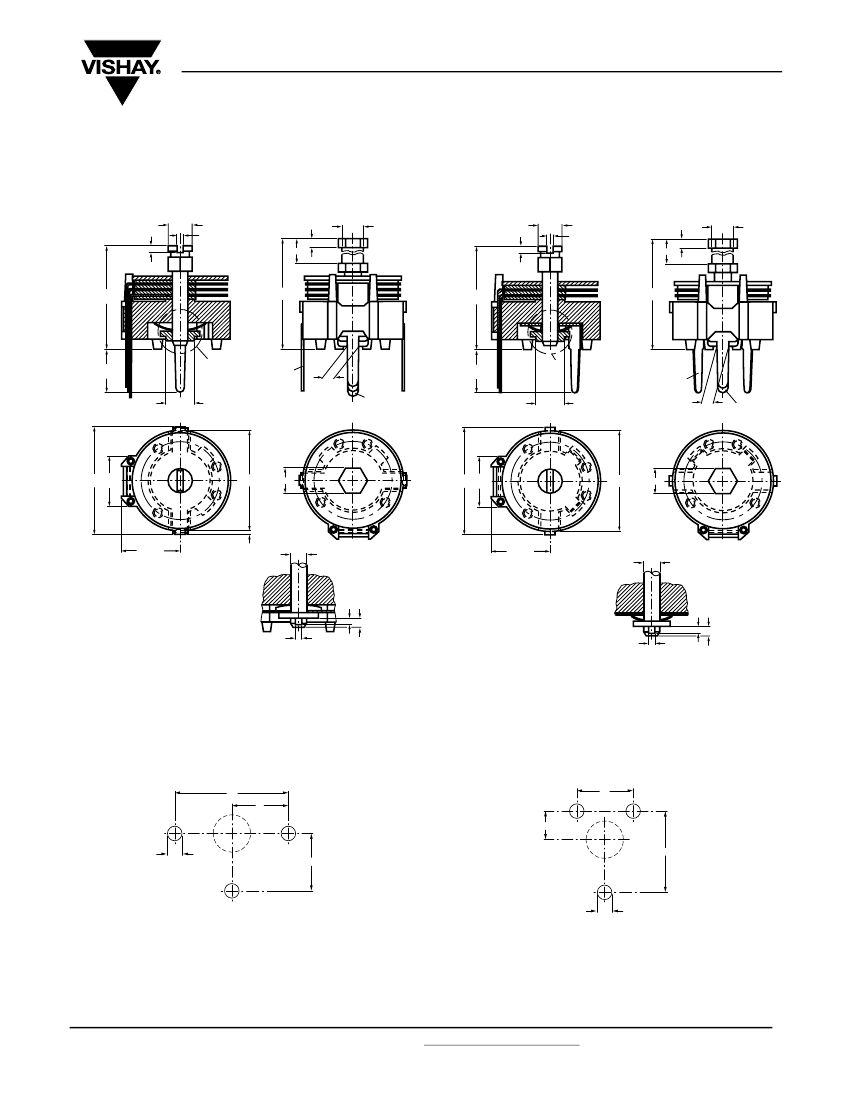

Trimmers 2281 808 ..... series, vertical version
Dimensions in millimeters
10
5
R
R
2.5
R
5
R
1.3
5
S
7.5
S
R = rotor, S = stator
The large hole is for bottom adjustment and the
diameter is determined by user’s requirements.
Hole pattern
R = rotor, S = stator
1.3
Hole pattern
Document Number 28528
Revision 14-Feb-07
For technical questions, contact: filmcaps.roeselare@vishay.com
www.vishay.com
321
2281 808 .....
Vishay BCcomponents
Ø 10 mm Film Dielectric Trimmers
ROUND HEAD
∅
2.5
0.6
EXTENDED HEXAGONAL HEAD
∅
2
1
5.8
10
5
R
R
0.7
1.3
5
15.3
0
-1
11
max.
S
4.8
± 0.2
110° ± 5°
Z
3 ± 0.2
3.1 ± 0.3
4 ± 0.5
11 max.
6.5 ± 0.1
1.15 max.
rotor (2×)
stator
R = rotor, S = stator
Hole pattern
ADJUSTMENT
0
- 0.2
5
± 0.1
10
2.5
For top adjustment a screwdriver or trimming key can be
used; for bottom adjustment a key is required as shown
below
∅
3
∅
1.7
∅
1.6
0.6
DETAIL Z
turned 90°
+ 0.2
0
+ 0.1
0
+ 0.1
0.7
0
2 min.
0.85
max.
0.6 ± 0.1
0.5
± 0.15

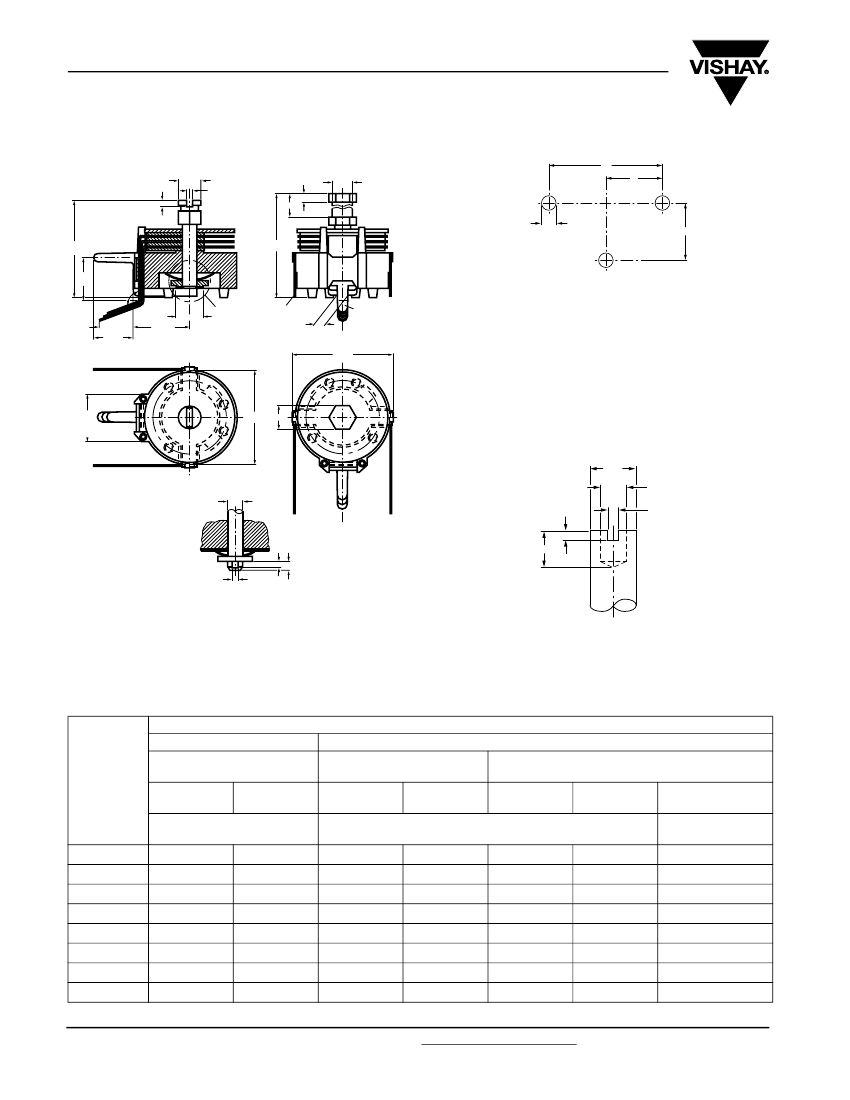

Trimmers 2281 808 ..... series, horizontal version
Bottom adjustment key
Dimensions in millimeters
ORDERING INFORMATION
CATALOG NUMBER 2281 808 ..... OR BFC2 808 .....*
HORIZONTAL VERSION
C
min
/C
max
(pF)
HOLE PATTERN
5 mm
×
10 mm
ROUND HEAD
HEX.
HEAD
HOLE PATTERN
5 mm
×
10 mm
ROUND HEAD
HEX.
HEAD
ROUND HEAD
VERTICAL VERSION
HOLE PATTERN
7.5 mm
×
5 mm
HEX.
HEAD
ROUND
HEAD
TOP ADJUSTMENT
-
-
-
-
-
35809
-
-
-
-
-
-
01001
-
-
-
TOP AND BOTTOM
ADJUSTMENT
2.5/15
3/22.5
5.5/40
5.5/50
5.5/65
6/80
7/105
6/120
61159
61229
61409
-
61659
61809
61101
-
-
-
-
-
64659
64809
64101
-
31159
31229
31409
01029
31659
31809
31101
31121
TOP AND BOTTOM ADJUSTMENT
-
-
-
-
34659
34809
-
-
32159
32229
32409
01006
32659
32809
32101
-
* ordering code for SAP system
www.vishay.com
322
For technical questions, contact: filmcaps.roeselare@vishay.com
Document Number 28528
Revision 14-Feb-07
2281 808 .....
Ø 10 mm Film Dielectric Trimmers
Vishay BCcomponents
MOUNTING
The trimmer can be mounted on printed-circuit boards with a
grid of 2.50 mm or 2.54 mm and a minimum hole diameter of
1.25 mm.
PACKAGING
Bulk packaged in cardboard boxes lined with expanded
plastic. For smallest packaging quantities (SPQ)
see Electrical Data Table.
ELECTRICAL DATA
GUARANTEED
MAX. C
min
/
SHAPE
SPINDLE
OF
FIG.
MIN. C
max
HEAD
AT 200 kHz
(pF)
1
vertical
2.5/15
round
2
horizontal
3
1
vertical
3/22.5
round
2
horizontal
3
1
vertical
5.5/40
round
2
horizontal
3
1
5.5/50
vertical
round
2
round
2
round
1
vertical
round
2
5.5/65
hexag.
1
round
3
horizontal
hexag.
3
round
1
hexag.
1
vertical
round
2
6/80
hexag.
2
round
3
horizontal
hexag.
3
round
1
vertical
round
2
7/105
round
3
horizontal
hexag.
3
6/120
vertical
round
2
* ordering code for SAP system
ADJ.
MODE
TAN
δ
AT
C
max
x 10
-4
DIEL.
1 MHz 100 MHz
TEMP.
COEFF.
(10
-6
/K)
MIN. f
res
COL.
SPQ
AT C
max
OF
(MHz) BASE
800
800
700
800
800
700
800
800
700
800
800
800
800
800
700
700
600
800
700
800
700
700
600
800
800
700
600
800
CATALOG
NUMBER
2281 ... ..... or
BFC2 ... .....*
.... 808 31159
.... 808 32159
.... 808 61159
.... 808 31229
.... 808 32229
.... 808 61229
.... 808 31409
.... 808 32409
.... 808 61409
.... 808 01029
.... 808 01006
.... 808 01001
.... 808 31659
.... 808 32659
.... 808 34659
.... 808 61659
.... 808 64659
.... 808 31809
.... 808 34809
.... 808 32809
.... 808 35809
.... 808 61809
.... 808 64809
.... 808 31101
.... 808 32101
.... 808 61101
.... 808 64101
.... 808 31121
top + bottom
PP
≤
10
≤
25
- 200 ± 700
420
blue
top + bottom
PP
≤
10
≤
25
- 200 ± 700
200
green
top + bottom
PP
≤
10
≤
25
- 200 ± 400
200
grey
top + bottom PTFE
top
≤
10
≤
25
- 200 ± 400
170
yellow
top + bottom
PP
≤
10
≤
25
- 200 ± 500
170
yellow
top + bottom
PC
≤
70
-
- 50 ± 400
170
red
top + bottom
PC
≤
70
-
- 50 ± 400
170
violet
top + bottom
PC
≤
70
-
- 50 ± 400
170
violet
TEST PROCEDURES AND REQUIREMENTS
IEC
60418-1
CLAUSE
4.2
14
19
21
21.1
21.2
Ua
Ub
IEC 60068
TEST
METHOD
TEST
method of mounting
capacitance drift
thrust
robustness of terminations:
tensile
bending
1N
1 cycle
no damage
no damage
www.vishay.com
323
method A
after TC measurement
axial thrust of 2 N
ΔC/C: ≤
4.5 % for C
max
< 40 pF;
ΔC/C: ≤
2.5 % for C
max
≥
40 pF
ΔC/C: ≤
0.3 %
PROCEDURE
REQUIREMENTS
Document Number 28528
Revision 14-Feb-07
For technical questions, contact: filmcaps.roeselare@vishay.com
2281 808 .....
Vishay BCcomponents
IEC
60418-1
CLAUSE
22
IEC 60068
TEST
METHOD
Na
Ø 10 mm Film Dielectric Trimmers
TEST
rapid change of temperature
PROCEDURE
1 cycle; 0.5 hours at lower and 0.5
hours at upper category
temperature
solder bath immersion 3 mm;
235 °C; 2 s
solder bath: 260 °C; 10 s
4000 ± 10 bumps; 40 g; 6 ms
frequency 10 to 55 Hz;
amplitude 0.35 mm;
1.5 hours
REQUIREMENTS
ΔC/C: ≤
1.5 %
23
T
Ta
Tb
soldering:
solderability
resistance to heat
impact bump
vibration
good wetting
no mechanical damage
no mechanical damage
ΔC/C: ≤
0.4 %;
no mechanical damage
ΔC/C: ≤
0.8 %;
no mechanical damage
ΔC/C: ≤
3 % for C
max
< 80 pF;
ΔC/C: ≤
6 % for C
max
≥
80 pF
16 hours at upper category
temperature
tan
δ: ≤
15 x 10
-4
for C
max
< 80 pF;
tan
δ: ≤
80 x 10
-4
for C
max
≥
80 pF
R
ins
:
≥
10 000 M
Ω
;
rotor contact R:
≤
10
Ω
24
25
Eb
Fc
26
26.1
B
climatic sequence:
dry heat
26.2
26.3
26.5
27
D
Aa
damp heat accelerated,
first cycle
cold
damp heat accelerated,
remaining cycles
1 cycle; 24 hours; + 40 °C;
95 to 100 % RH
16 hours; - 40 °C
1 cycle; 24 hours; + 40 °C;
95 to 100 % RH
21 days; + 40 °C;
90 to 95 % RH
voltage proof:
300 V for 1 minute
visual examination:
no mechanical damage
operating torque: 2 to 35 mNm
ΔC/C:
≤
3 % for C
max
< 100 pF;
≤
3 % for C
max
≥
100 pF
tan
δ: ≤
20 x 10
-4
for C
max
< 80 pF;
tan
δ: ≤
80 x 10
-4
for C
max
≥
80 pF
R
ins
:
≥
10 000 M
Ω
;
rotor contact R:
≤
10 m
Ω
voltage proof:
300 V for 1 minute
visual examination:
no mechanical damage
operating torque: 2 to 35 mNm
Ca
damp heat steady state
29
mechanical endurance
10 cycles
Maximum 10 cycles: rotation in
180° only (the electrical and
mechanical performance is not
guaranteed if rotated beyond 10
cycles)
ΔC/C: ≤
1 %
ΔC/C
after axial thrust:
≤
0.4 %;
rotor contact R:
≤
10 m
Ω
voltage proof:
300 V for 1 minute
visual examination:
no mechanical damage
operating torque: 1.5 to 37 mNm
www.vishay.com
324
For technical questions, contact: filmcaps.roeselare@vishay.com
Document Number 28528
Revision 14-Feb-07
