Straight male antenna switch
All RF switches are designed for
high production volumes and they
are manufactured on automatic
assembly lines. They are supplied
on tape and reel packaging which
meets the requirements of pick
and place machines (IEC 286-3;
EIA 481).
pcb layout
·
·
·
·
Male interface
More than 20,000 matings
Excellent guiding
Supplied on tape and reel
(500 pcs/reel)

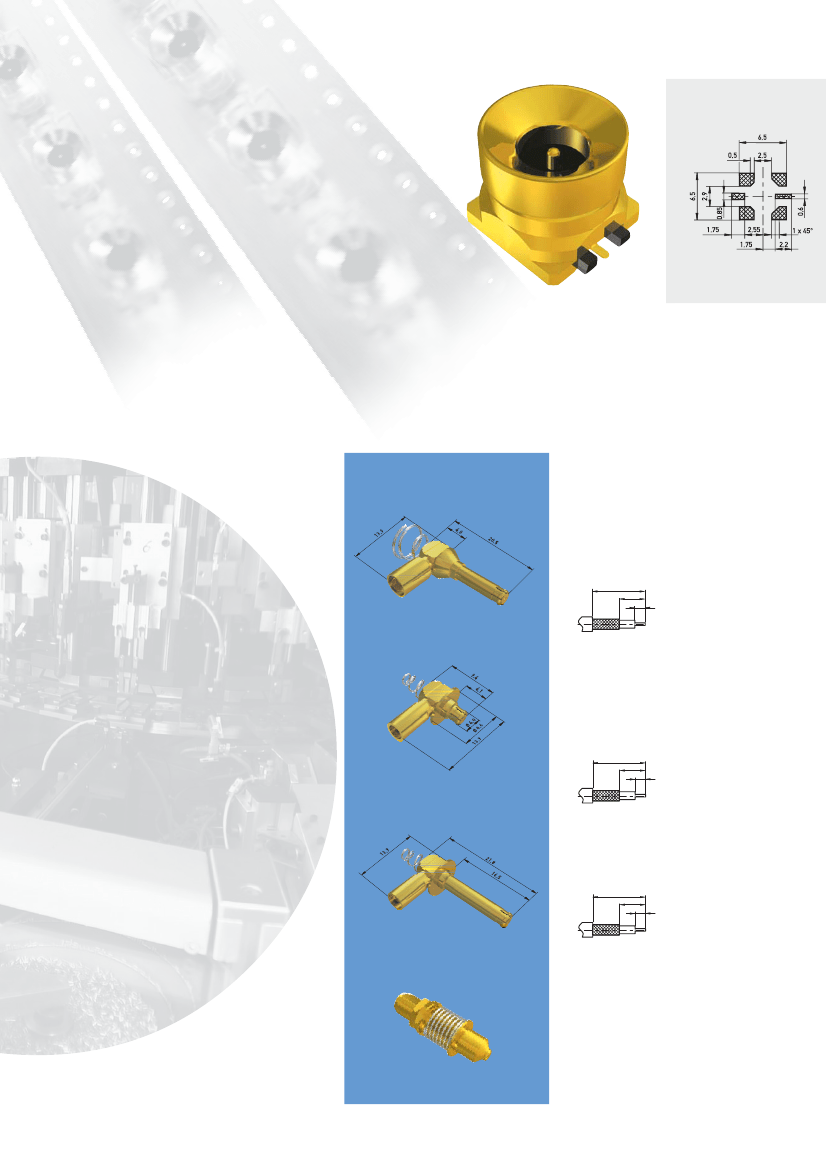

Floating mount cable plug (m)
· Part No 2677.93.1420.033
(cable: low loss cable
IMS Type: 1126780 – attenuation at
1.9 GHz: 0.815 dB/m)
Cable stripping
10,1
5
2
Floating mount cable plug (m)
· Part No 2283.93.1420.013
(cable: RG 17 8 B/U)
· Part No 2283.93.1420.023
(cable: RG 316 U)
Cable stripping
9,7
5
2
Floating mount cable plug (m)
· Part No 2684.93.1420.023
(cable: RG 316 U)
Cable stripping
9,7
5
2
Designed for high
volume production
Testadapter
(for automatic testing)
· Part No 2707.42.8914.103
· Spring loaded floating
system

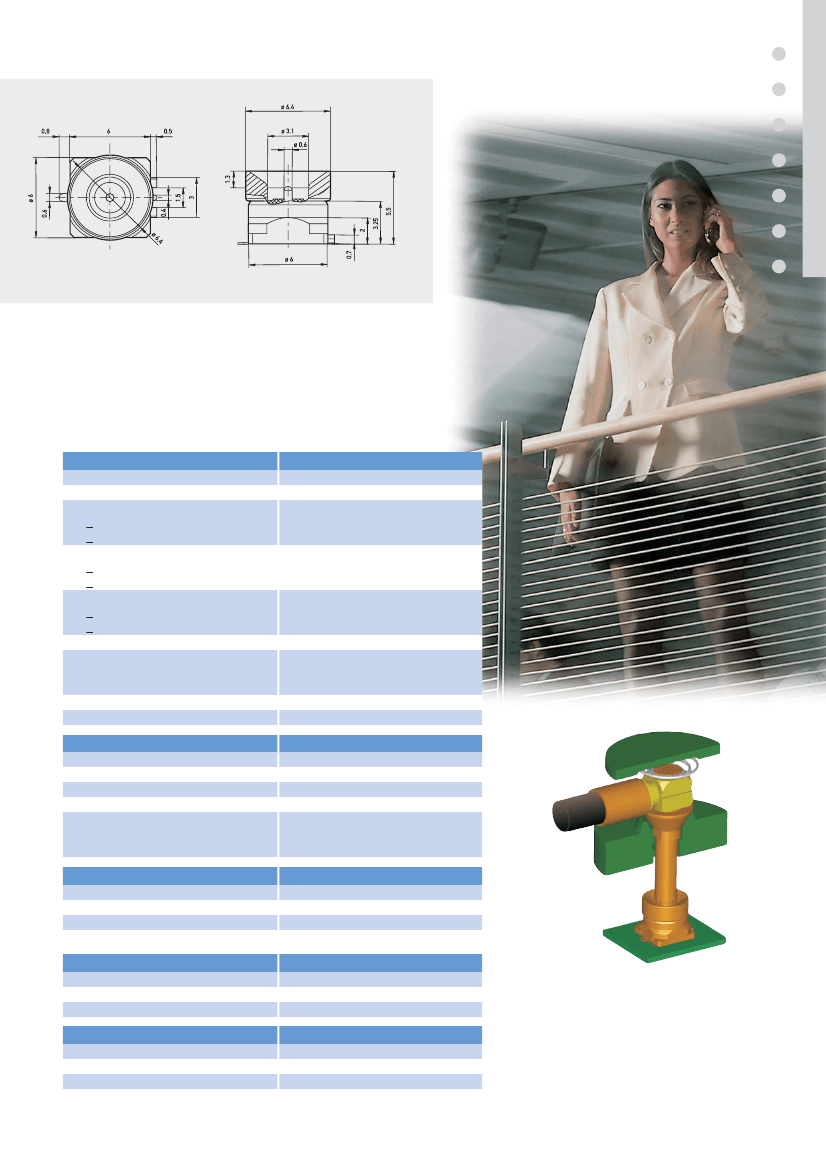

Top view
Side view
for more flexibility
Electrical characteristics
Impedance
Operating frequency
Return-loss
< 1 GHz
< 2 GHZ
Isolation
< 1 GHz
< 2 GHZ
Insertion loss
< 1 GHz
< 2 GHz
Insulation resistance
Contact resistance
Center contact
Outer contact
Operating voltage
Proof voltage
< 80 mOhm
< 5 mOhm
100 V
500 Veff/50 Hz
< 30 mOhm
< 5 mOhm
100 V
500 Veff/50 Hz
< 0.1 dB
< 0.1 dB
> 500 mOhm
< 0.1 dB
< 0.4 dB
> 500 mOhm
> 30 dB
> 22 dB
> 26 dB
> 25 dB
> 25 dB
> 23 dB
Unswitched
50 Ohm
DC...2 GHz
Switched
50 Ohm
DC...2 GHz
Mechanical characteristics
Engagement force
Separating force
Mating cycles
Contact pressure force (switch)
Misalignment
Axial x, y
Angular
± 1 mm on diameter
± 3°
0.8 N
2 N
1 N
20,000
(only switch, spring contact)
Materials
Housing
Insulator
Moveable / Stationary contacts
Other metal parts
Brass, Diecast
PA
Brass / Beryllium Copper
Brass
Plating
Housing
Moveable / Stationary contacts
Other metal parts
Optalloy + Flash Au
Au
Tribor or Au
Spring loaded
floating system
· Self-locating system
· Axial misalignment ± 1 mm
on diameter
· Angular misalignment ± 3°
· Excellent electrical performance
Environmental
Working temperature range
Moisture resistance
Relative humidity
Thermal cycling
IEC 60068-2-1 / Ab
IEC 60068-2-2 / Bb
IEC 60068-2-14 / Nb
IEC 60068-2-30 / Dp
