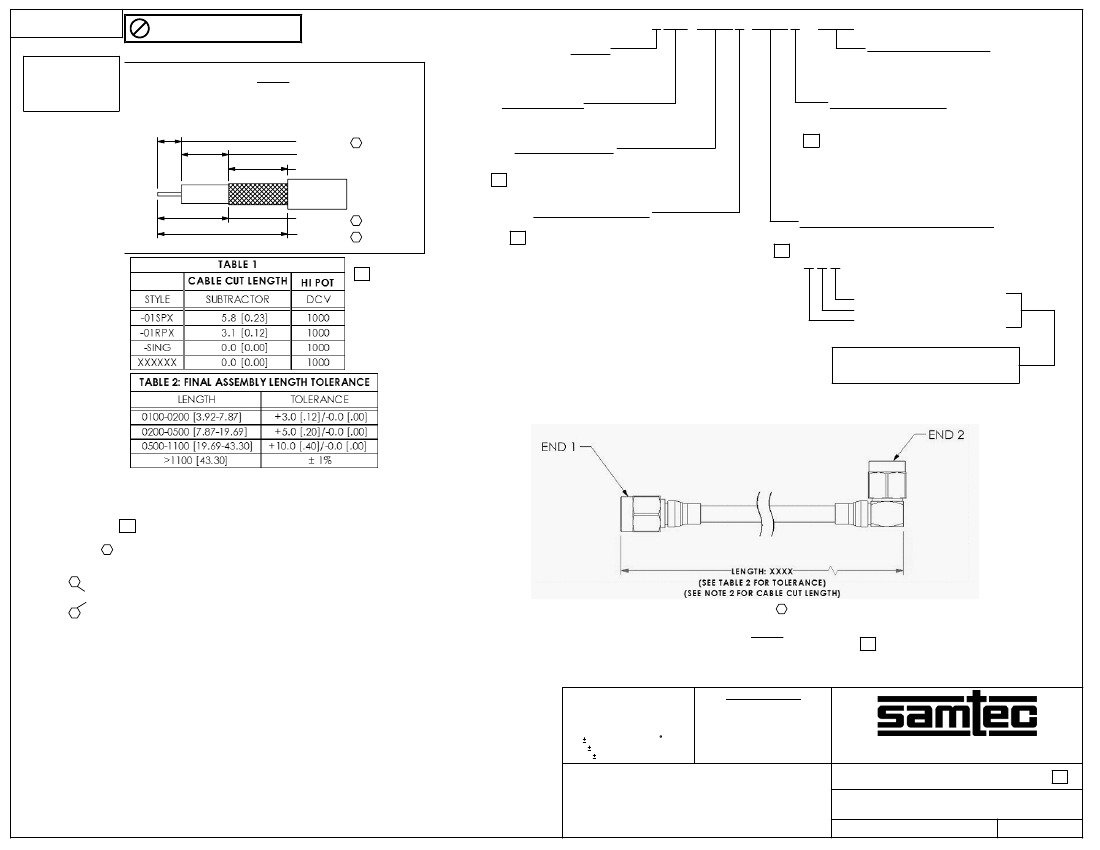

REVISION A
DO NOT
SCALE FROM
THIS PRINT
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
RX402-XXXXX-XXXXXX-XXXX
OPTION
F: SEMI FLEXIBLE
*R: SEMI RIGID
(SEE NOTE 10)
CABLE STRIPPING DIMENSIONS
PER CONFIGURATIONS
(SEE TABLE 1)(SEE NOTES 12,13,14,15)
"A" mm
"B" mm
"C" mm
C
FIG.2
OVERALL CABLE LENGTH
MILLIMETERS OF CABLE
0100 MIN. (SEE NOTE 8 & 9)
0895 MAX. FOR R OPTION (SEMI RIGID)
END 2 PLATING OPTION
1: GOLD ALL COMPONENTS
2: GOLD/NICKEL
4: ALTERNATE GOLD /GOLD FLASH/ NICKEL
7. ALTERNATE GOLD MEDIUM/ GOLD FLASH
(SEE SHEET 2 FOR PLATING SPECIFICS)
(LEAVE BLANK FOR -SING OR -XXXXXX
END 2 PREPARATION)
CABLE CALLOUT
402: CCA-402(RG-402 COAXIAL CABLE)
END 1 CONNECTOR
-01SP: SMA-P-C-XX-ST-CA9 (SEE SHEET 2)
*
-01RP: SMA-P-C-XX-RA-CA9 (SEE SHEET 2)
A
A
C
C
"D" mm
"E" mm
A
END 1 PLATING OPTION
1: GOLD ALL COMPONENTS
4: ALTERNATE GOLD /GOLD FLASH/ NICKEL
7. ALTERNATE GOLD MEDIUM/ GOLD FLASH
(SEE SHEET 2 FOR PLATING SPECIFICS)
A
A
* = NOT RELEASED
*
END 2 CONNECTOR OR PREPARATION
-01SP: SMA-P-C-XX-ST-CA9 (SEE SHEET 2)
*
-01RP: SMA-P-C-XX-RA-CA9 (SEE SHEET 2)
-SING: SINGLE ENDED (ONE END ONLY, SEE NOTE 11)
-XXXXXX: STRIPPED AND TINNED (THIS END ONLY-
SEE NOTES 11-16 & SHEET 2, FIG. 3)
(SEE FIG. 2) "C" FORMAT: X.X mm
(SEE FIG. 2) "B" FORMAT: X.X mm
(SEE FIG. 2) "A" FORMAT: X.X mm
DO NOT LEAVE ANY SPACE BLANK,
EACH MUST CONTAIN A
NUMERIC CHARACTER 0 THRU 9.
NOTES:
A
C
C
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. CABLE CUT LENGTH:
= (LENGTH: XXXX) - (SUBTRACTOR FOR END 1) - (SUBTRACTOR FOR END 2).
(SEE TABLE 1 FOR SUBTRACTORS)
3. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS.
4. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1.
C
5. AFTER FINAL ELECTRICAL TESTS, LABEL EACH CABLE ASSEMBLY WITH 1 LABEL -ET.
6. CRITICALS ON CONNECTOR PRINTS TO BE CHECKED IN PROCESS.
FIG.1
7. FINISHED ASSEMBLIES TO BE PACKAGED PER PACKAGING STANDARD CO-HD-WI-3040-M.
RF402-01SPX-01RPX-XXXX SHOWN
8. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS.
9. CABLE LENGTHS LONGER THAN 1000 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA.
10. MINIMUM BEND RADIUS FOR RF402 = 6.35 [0.250], RR402 SUPPLIED AS STRAIGHT ASSEMBLIES ONLY,
MAX LENGTH = 610MM [24"].
F:\DWG\MISC\MKTG\RX402-XXXXX-XXXXXX-XXXX -MKT.SLDDRW
11. FOR SING ENDED OR STRIPPED AND TINNED ASSEMBLIES: MAKE A DOUBLE ENDED
UNLESS OTHERWISE SPECIFIED,
PROPRIETARY NOTE
ASSEMBLY AT TWICE THE CABLE LENGTH AND TEST BEFORE CUTTING ASSEMBLY IN HALF.
DIMENSIONS ARE IN
THIS DOCUMENT CONTAINS INFORMATION
MILLIMETERS [INCHES].
12. DIM "A", "B", AND "C" HAVE A MINIMUM VALUE OF 0.0mm & A MAXIMUM VALUE OF 9.9mm.
CONFIDENTIAL AND PROPRIETARY TO
TOLERANCES ARE:
13. PRODUCTION OF STRIP AND TIN FOR CENTER DIELECTIC USE: A.
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DECIMALS
ANGLES
14. PRODUCTION OF STRIP AND TIN FOR SHIELD USE: D=A+B.
DISCLOSED TO OTHERS OR USED FOR ANY
.X: 0.3 [.01]
2
15. PRODUCTION OF STRIP AND TIN FOR JACKET USE: E=A+B+C.
PURPOSE OTHER THAN THAT WHICH IT WAS
.XX: 0.13 [.005]
OBTAINED WITHOUT THE EXPRESSED WRITTEN
16. FOR STRIPPED AND TINNED OPTION, ONLY THE CENTER CONDUCTOR IS TINNED.
.XXX: 0.051 [.0020]
CONSENT OF SAMTEC, INC.
A
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
MATERIAL:
SEE END 1 AND END 2 ASSEMBLY PRINTS
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
DESCRIPTION:
DWG. NO.
RF402 OR RR402 CABLE ASSEMBLY
A
RX402-XXXXX-XXXXXX-XXXX
01/11/2011
BY:
ALVIN W
SHEET
1
OF
2
REVISION A

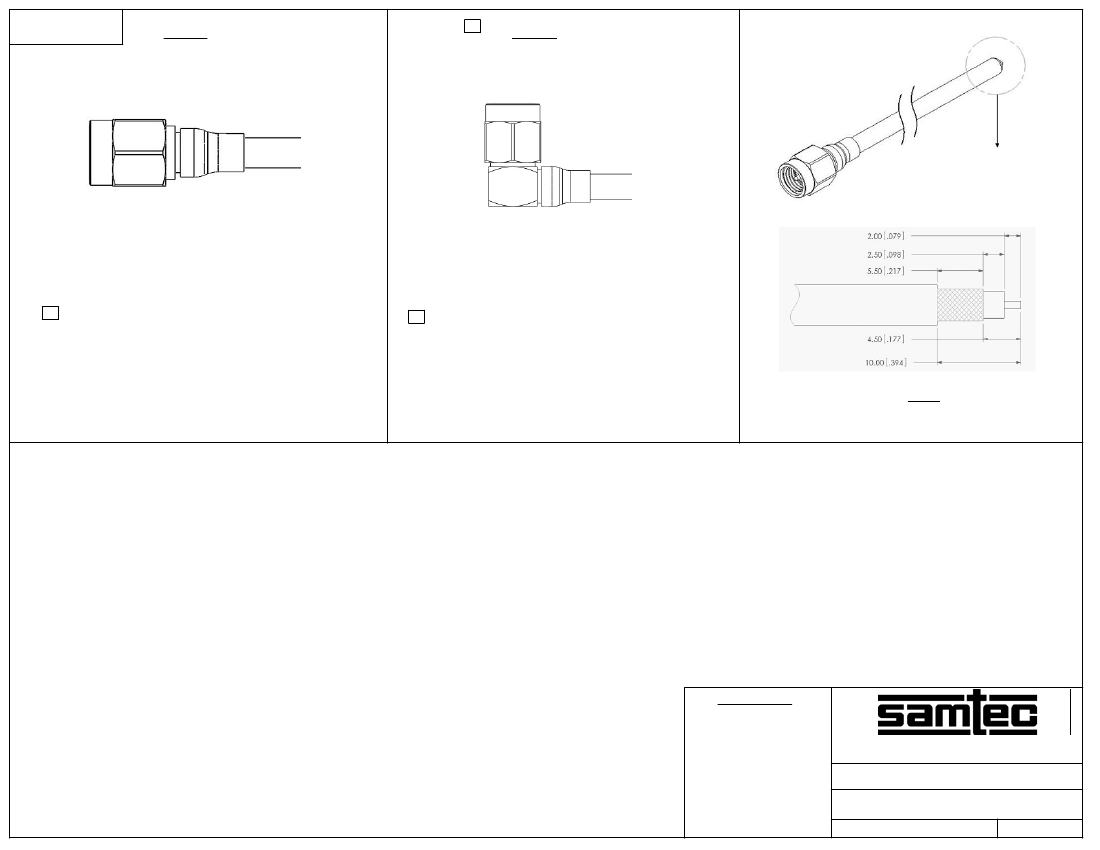

(STRAIGHT PLUG)
-01SP
A
(RIGHT ANGLE PLUG)
(USE DRAWING No. SMA-P-C-XX-RA-CA9
FOR ASSEMBLY INSTRUCTIONS)
*
-01RP
(USE DRAWING No. SMA-P-C-XX-ST-CA9
FOR ASSEMBLY INSTRUCTIONS)
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-HF-ST-CA9)
PLATING OPTIONS
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-HF-RA-CA9)
A
4: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-GN-ST-CA9)
7: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-GF-ST-CA9)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-P-C-XX-ST-CA9
THAT APPLY MUST BE VERIFIED.
A
4: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-GN-RA-CA9)
7: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMA-P-C-GF-RA-CA9)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-P-C-XX-RA-CA9
THAT APPLY MUST BE VERIFIED.
RX402-01SPX-202555-XXXX SHOWN
FIG.3
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
RF402 OR RR402 CABLE ASSEMBLY
RX402-XXXXX-XXXXXX-XXXX
01/11/2011
F:\DWG\MISC\MKTG\RX402-XXXXX-XXXXXX-XXXX -MKT.SLDDRW
BY:
ALVIN W
SHEET
2
OF
2
