106TTA450M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size421KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

106TTA450M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	106TTA450M	-	-	View	Buy Now

106TTA450M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, AXIAL LEADED

106TTA450M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
capacitance	10 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Tape & Reel/Ammo Pack, Epoxy Ends
dielectric materials	ALUMINUM (WET)
ESR	41447 mΩ
JESD-609 code	e3
leakage current	0.49 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	85 mA
surface mount	NO
Delta tangent	0.25
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Base Number Matches	1

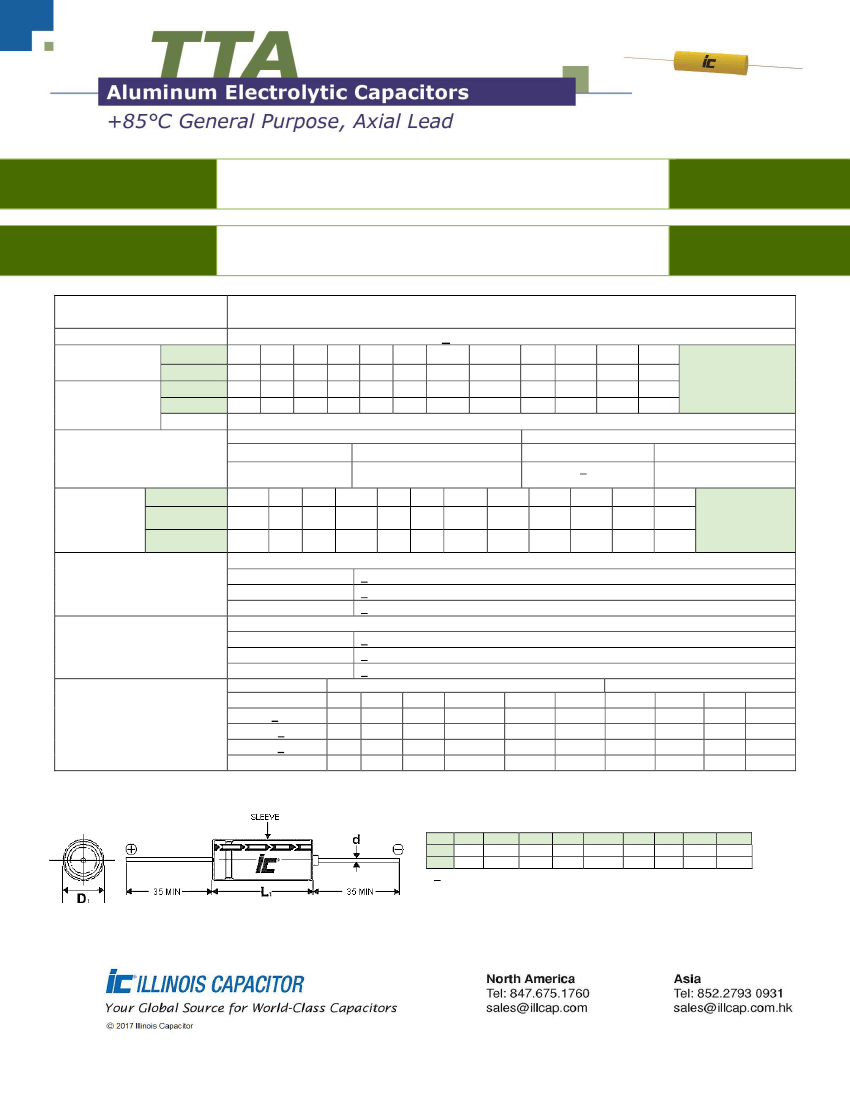

Preview

Download Datasheet

View All

FEATURES

APPLICATIONS

Operating Temperature

Range

Capacitance Tolerance

WVDC

Surge

voltage

SVDC

WVDC

Dissipation

Tan δ

Factor

Leakage current

Low

temperature

stability

Impedance ratio

(120 Hz)

Axial Lead

-

High Voltage

Filtering

–

Bypass

–

Coupling

–

Blocking

-40°C to +85°C (10 to 350 WVDC)

-25°C to +85°C (450 WVDC)

+20% at 120 Hz, 20°C

10

13

10

.24

16

20

16

.20

25

32

25

.16

35

44

35

.14

50

63

50

.12

63

100

160

200

250

350

450

79

125

200

250

300

400

500

63

100

160

200

250

350

450

.1

.2

.25

Add .02 for every 1000uF above 1000uF

10 to 100 WVDC

160 to 450 WVDC

1 Minutes

2 Minutes

1 Minute

.03CV or 4uA,

.01CV or 3uA,

CV<1000

CV>1000

Whichever is greater

.04CV+100uA

.1CV+40uA

10

16

25

35

50

63

100

160

200

250

350

450

4

10

3

8

2

5

2

4

2

3

2

3

2

3

4

15

4

15

4

15

4

10

6

-

WVDC

-25°C to

+20°C

-40°C to

+20°C

Load Life

Shelf Life

Ripple Current

Multipliers

2000 hours at 85°C with rated WVDC and ripple current applied

Capacitance change

<20% of initial measured value

Dissipation factor

<200% of maximum specified value

Leakage current

<100% of maximum specified value

1000 hours at 85°C with no voltage applied

Capacitance change

<20% of initial measured value

Dissipation factor

<200% of maximum specified value

Leakage current

<100% of maximum specified value

Capacitance

Frequency (Hz)

Temperature (°C)

uF

50

120

400

1k

10k

50k

+85

+70

+60

C<10

.8

1.0

1.3

1.45

1.65

1.7

1.0

1.3

1.5

10<C<100

.8

1.0

1.23

1.36

1.48

1.53

1.0

1.3

1.5

100<C<1000

.8

1.0

1.16

1.25

1.35

1.38

1.0

1.3

1.5

C>1000

.8

1.0

1.11

1.17

1.25

1.28

1.0

1.3

1.5

+30

1.8

D

d

B

5

0.5

6.3

0.5

8

0.6

0.5

10

0.6

0.5

12.5

0.6

0.8

16

0.8

0.5

18

0.8

0.5

22

0.8

1.0

25

0.8

1.0

D< 10mm, L

1

=L+1.5mm Max.

D> 10mm, L

1

=L+2mm Max.

D

1

=D+B Max.

mm

Aug-17
