Buccaneer
®
Connectors

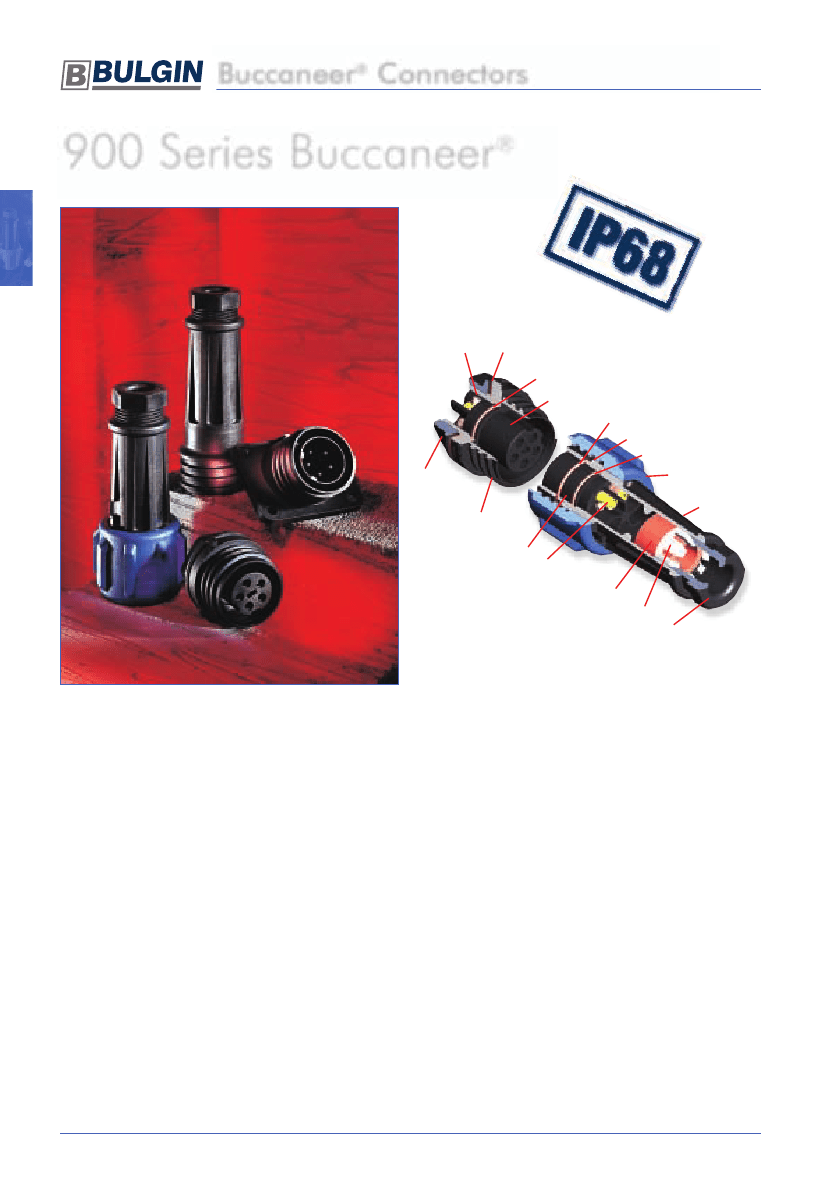

900 Series Buccaneer
Buccaneer
®
Connectors
®
Terminals
Sealing Gasket
O Ring
Contact Insert
O Ring
O Ring
O Ring
Retaining
Nut
Panel Body
Contact Insert
Terminals
Cable Gland
Gland Cage
Gland Nut
Locking Ring
Main Body
32A, 600V ac/dc rating
2, 3, 4, 5 and 7 pole
Plug or socket connection in each body style
Water and dustproof to IP68 when mated
IP68 rating tested at 15lb/sq in (10m depth) for 2
weeks
‘Scoop proof’ contacts
Field termination - screw terminations
Positive locating keyways - cannot be
misconnected
Sealing caps available to maintain IP68 rating of
unmated connectors
Leading earth contact for 3, 4, 5 and 7 pole versions
UL, CSA and VDE approvals
Trailing Neutral on 5 pole
Compact design
Easy assembly - no special tools required
Single or 3 phase applications
Bulkhead moulding available for use with flange
mounting body for 45˚ or 90˚ mounting (order each
separately)
Cost effective solution
Two cable connector versions for 15mm and 22mm
cable diameters
Separate strain relief on large cable version
14
Fax: +44 (0) 20 8507 2691
Email: sales@Bulgin.co.uk
Buccaneer
®
Connectors
900 Series Buccaneer
®

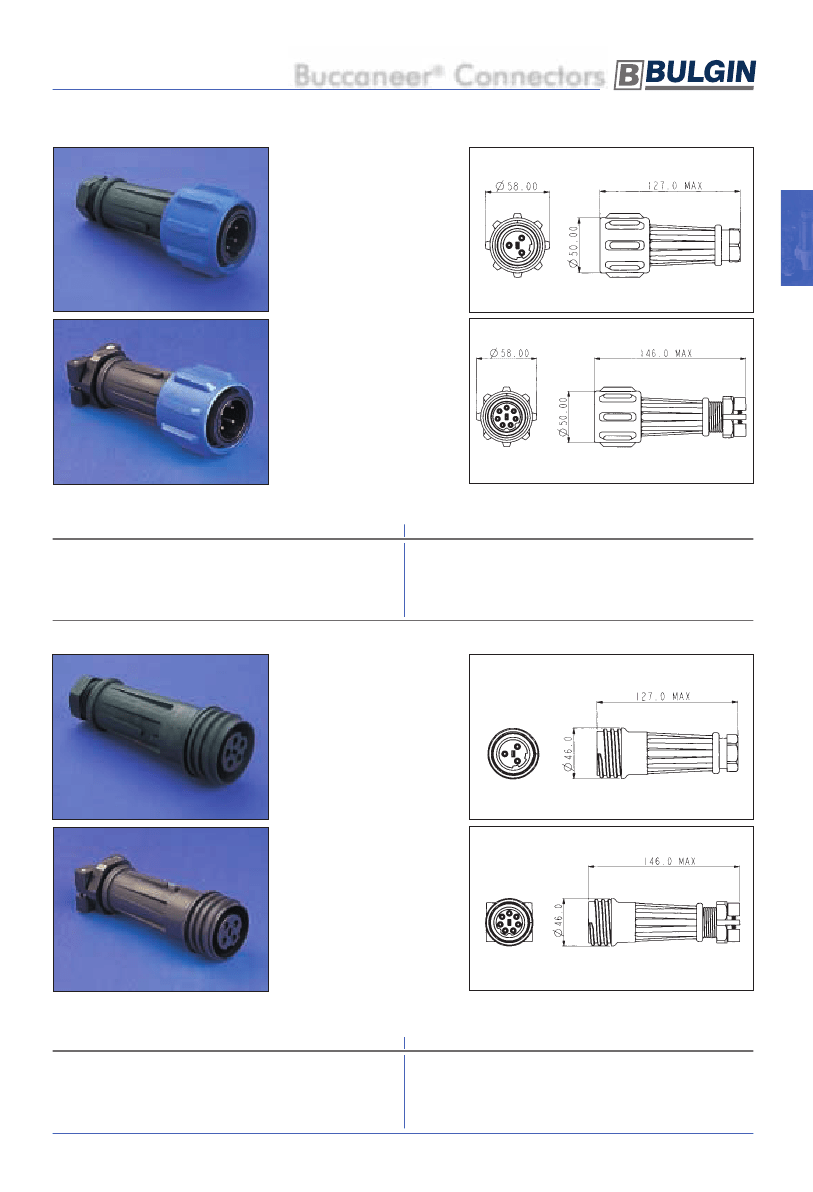

Flex cable connector
Positive, fast acting locking
ring - can be turned with a
gloved hand
Mates with in-line flex or
panel mounting versions
Plug or socket versions
PX0911/xx/x
PX0 Series13-15mm cable
dia. as standard, 7-13mm
with additional gland pack
PXA Series 20-22mm cable
dia. as standard, 14-20mm
with additional gland pack
Strain Relief Clamp
(PXA Series only)
Buccaneer
®
Large Cable
PXA911/02/S
PXA911/03/S
PXA911/04/S
PXA911/05/S
PXA911/07/S
Description
2
3
4
5
7
pole
pole
pole
pole
pole
Socket
Socket
Socket
Socket
Socket
Large Cable
PXA921/02/S
PXA921/03/S
PXA921/04/S
PXA921/05/S
PXA921/07/S
Description
2
3
4
5
7
pole
pole
pole
pole
pole
Socket
Socket
Socket
Socket
Socket
PXA911/xx/x
Flex Cable
Standard Cable
PX0911/02/P
PX0911/03/P
PX0911/04/P
PX0911/05/P
PX0911/07/P
Large Cable
PXA911/02/P
PXA911/03/P
PXA911/04/P
PXA911/05/P
PXA911/07/P
Description
2
3
4
5
7
pole
pole
pole
pole
pole
Plug
Plug
Plug
Plug
Plug
Standard Cable
PX0911/02/S
PX0911/03/S
PX0911/04/S
PX0911/05/S
PX0911/07/S
In-line flex cable connector
Mates with either
PX0911/xx/x or
PXA911/xx/x connectors
Plug or socket versions
PX0 Series 13-15mm cable
dia. as standard, 7-13mm
with additional gland pack
PX0921/xx/x
PXA Series 20-22mm cable
dia. as standard, 14-20mm
with additional gland pack
Strain Relief Clamp
(PXA Series only)
PXA921/xx/x
In-Line Flex Cable
Standard Cable
PX0921/02/P
PX0921/03/P
PX0921/04/P
PX0921/05/P
PX0921/07/P
Large Cable
PXA921/02/P
PXA921/03/P
PXA921/04/P
PXA921/05/P
PXA921/07/P
Description
2
3
4
5
7
pole
pole
pole
pole
pole
Plug
Plug
Plug
Plug
Plug
Standard Cable
PX0921/02/S
PX0921/03/S
PX0921/04/S
PX0921/05/S
PX0921/07/S
www.Bulgin.co.uk
Tel: +44 (0) 20 8594 5588
15
Connectors
Buccaneer
®
Connectors
900 Series Buccaneer
®

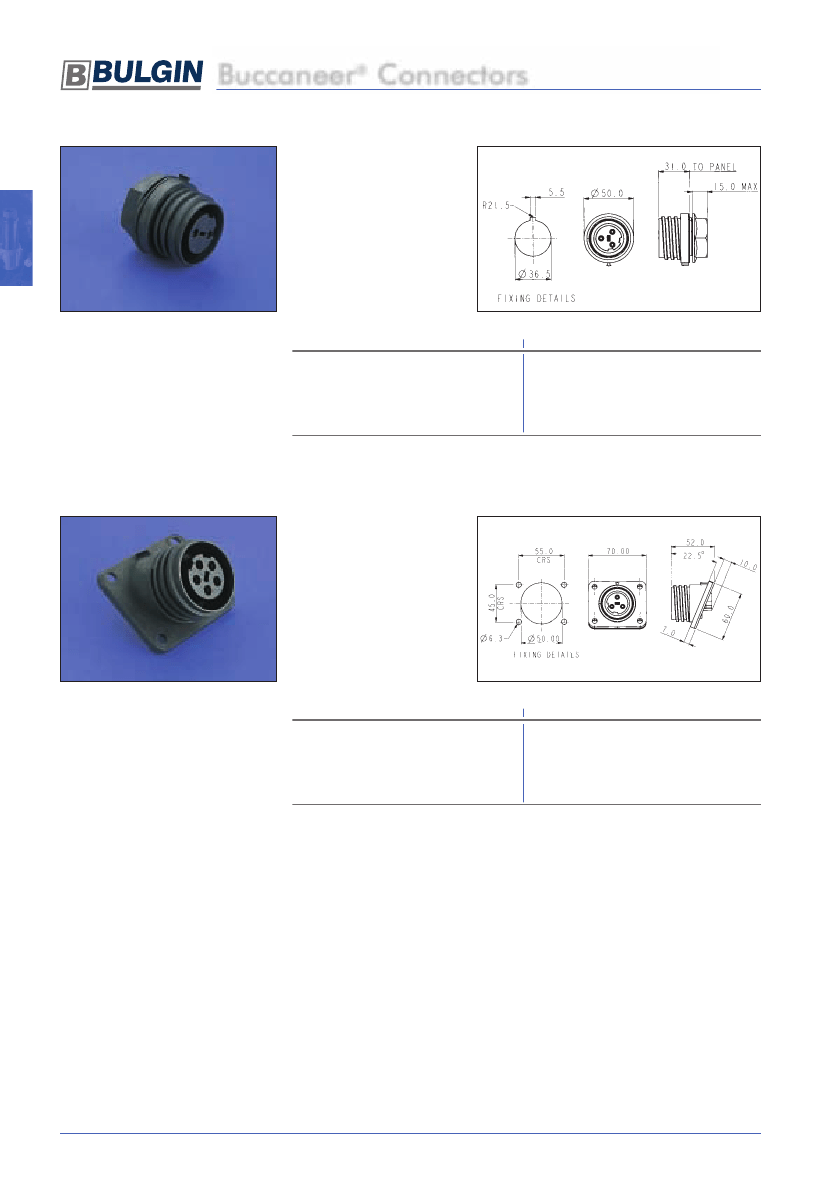

Panel mounting connector
Single hole fixing
Anti-rotation key
Buccaneer
®
Connectors
High grade sealing gasket
3-7mm panel thickness
Mates with PX0911/xx/x
and PXA911/xx/x
connectors
PX0931/xx/x
Panel Mounting
PX0931/02/P
PX0931/03/P
PX0931/04/P
PX0931/05/P
PX0931/07/P
2
3
4
5
7
pole
pole
pole
pole
pole
Plug
Plug
Plug
Plug
Plug
PX0931/02/S
PX0931/03/S
PX0931/04/S
PX0931/05/S
PX0931/07/S
2
3
4
5
7
pole
pole
pole
pole
pole
Socket
Socket
Socket
Socket
Socket
Flange mounting connector
Supplied with high grade
sealing gasket
Supplied with sealing
grommets for panel fixing
screws (M6 thread
recommended)
PX0941/xx/x
Mates with PX0911/xx/x
and PXA911/xx/x
connectors
Flange Mounting
PX0941/02/P
PX0941/03/P
PX0941/04/P
PX0941/05/P
PX0941/07/P
2
3
4
5
7
pole
pole
pole
pole
pole
Plug
Plug
Plug
Plug
Plug
PX0941/02/S
PX0941/03/S
PX0941/04/S
PX0941/05/S
PX0941/07/S
2
3
4
5
7
pole
pole
pole
pole
pole
Socket
Socket
Socket
Socket
Socket
16
Fax: +44 (0) 20 8507 2691
Email: sales@Bulgin.co.uk
Buccaneer
®
Connectors
900 Series Buccaneer
®

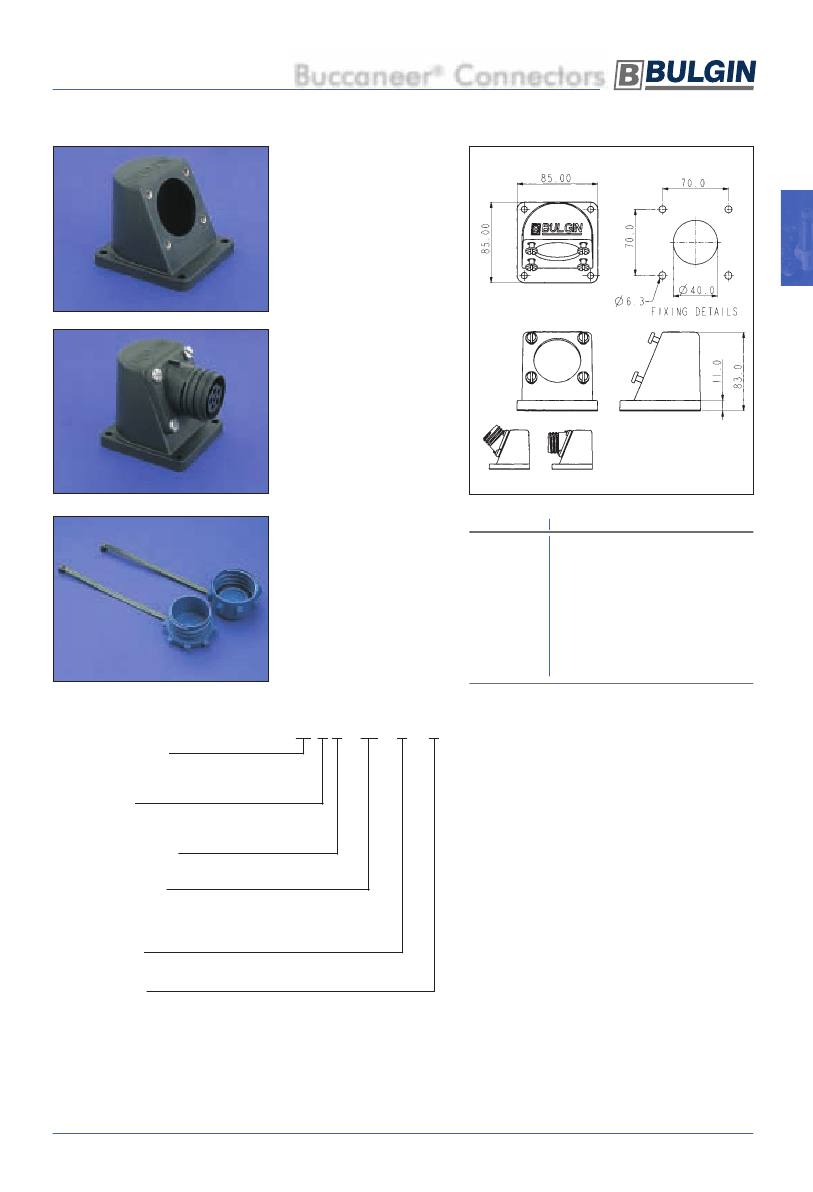

Additional bulkhead
adaptor moulding
Buccaneer
®
Accessories
PX0960
PX0970
PX0980
Sealing cap for use with PX0911/xx/x and
PXA911/xx/x
Sealing cap for use with all other styles
Pack of 3 additional cable glands for
PX0911 and PX0921 to suit cable sizes;
11-13mm, 9-11 and 7-9mm dia.
Pack of 3 additional cable glands for
PXA911 and PXA921 to suit cable sizes;
18-20mm, 16-18 and 14-16mm dia.
PXA980
Connectors
For use with flange
mounting connector
PX0941, to give 45˚ or 90˚
angle
Supplied with high grade
sealing gasket
PX0950
Supplied with sealing
grommets for panel fixing
screws (M6 thread
recommended)
PX0950 & PX0941
Sealing caps to maintain
IP68 rating of unmated
connectors
PX0960, PX0970
Part No System
Series Designation
09 = Standard Cable Accommodation
A9 = Large Cable Accommodation
Body Styles
1 = Flex, 2 = Flex In-line,
3 = Panel, 4 = Flange Panel
Contact Termination
1 = Screw Terminal
Number Contacts
02 = 2 pole, 03 = 3 pole,
04 = 4 pole, 05 = 5 pole
07 = 7 pole
Contact Type
P = Plug, S = Socket
Cable Acceptance
PX0 version:
Blank = 13-15mm
03 = 11-13mm
02 = 9-11mm
01 = 7-9mm
PXx9 x x / xx / x / xx
Yellow cable gland (standard)
Black cable gland
White cable gland
Dark Grey cable gland
PXA version:
Blank = 20-22mm
09 = 18-20mm
08 = 16-18mm
07 = 14-16mm
Yellow cable gland (standard)
Black cable gland
White cable gland
Dark Grey cable gland
www.Bulgin.co.uk
Tel: +44 (0) 20 8594 5588
17
Buccaneer
®
Connectors
900 Series Buccaneer
®
Specification
Electrical:
Mechanical:
2,3
32A
30A, CSA
600V ac/dc
4,5
32A
25A, CSA
7*
32A
Cable Acceptance:
Sealing:
IP68, EN60529IP68 tested @ 15lb/sq.in.
(10m depth) for 2 weeks
PX0911-PX0921 13 - 15mm O/D standard,
7-13mm with gland pack
PXA911-PXA921 20 - 22mm O/D standard,
14 - 20mm with gland pack
2.5 (13AWG) to 4mm
2
(10AWG) conductor,
single or multi stranded
Axial screw terminals
15mm dia, 150N
7mm dia, 80N
2.25 Nm
1.69 Nm
0.9 Nm
Buccaneer
®
Connectors
No Poles:
Current Rating:
Voltage Rating:
Contact Resistance:
Insulation Resistance:
Dielectric strength:
AC Breakdown voltage:
Operating
Temperature Range:
Approvals:
600V ac/dc 430V ac/dc
<10mΩ (initial)
>10
6
MΩ (@ 500V dc)
2.2kV ac min
6kV a.c. min.
–40°C to +85°C
Contact Accommodation:
Termination:
Cable Retention force:
Tightening Torques:
Panel mount nut
Cable gland nut
Flange & Bulkhead
fixing screws
* approvals pending
Material:
Body Mouldings:
Flammibilty Rating:
UV Resistance:
Contacts:
O Rings:
Panel Sealing Gasket:
Polyamide
UL94V-0
To EN50021: 1999
Machined Solid Brass, Nickel plated
Nitrile
Silicone Rubber
Dimensions:
Overall dimensions of connectors when mated together
PX0911 + PX0921
PXA911 + PXA921
PX0911 + PX0931
PXA911 + PX0931
PX0911 + PX0941
PXA911 + PX0941
230 mm max.
270 mm max.
135 mm max. (to panel)
175 mm max. (to panel)
145 mm max. (to panel, mid point on flange)
174 mm max. (to panel, mid point on flange)
18
Fax: +44 (0) 20 8507 2691
Email: sales@Bulgin.co.uk
