Johnson
SMA Fixed Attenuators
Connectivity for
Business Critical Continuity
SMA Fixed Attenuators
Commercial Series
Emerson Network Power Connectivity Solutions
extends
the Johnson line of products with the introduction of a range of
SMA Fixed Commercial Attenuators. This range of attenuators
is manufactured from non-inductive resistors making it an ideal
choice for customers who need to precisely adjust signal levels, in
applications that are under 2 watts. These attenuators are currently
available in stock in 1, 2, 3,6 and 10 db, and available in other
values on a made to order basis.
The important parameters associated with fixed attenuators
include the level of attenuation, the flatness over a specified
frequency range, VSWR, power-handling capability, package size,
and performance over a given temperature range. The average
power limit decreases linearly as temperature increases.
The Johnson line of rugged stainless steel fixed attenuators offers
industry leading quality and performance in addition to being
competitively priced.
ISO 9001:2000
Key Features & Benefits
■
SMA connectors per MIL-STD-348A
■
Rugged Stainless Steel Construction
■
Hex body for torque wrench
tightening
■
Excellent VSWR and Flatness
■
Compact design
■
Ideal for automated test applications

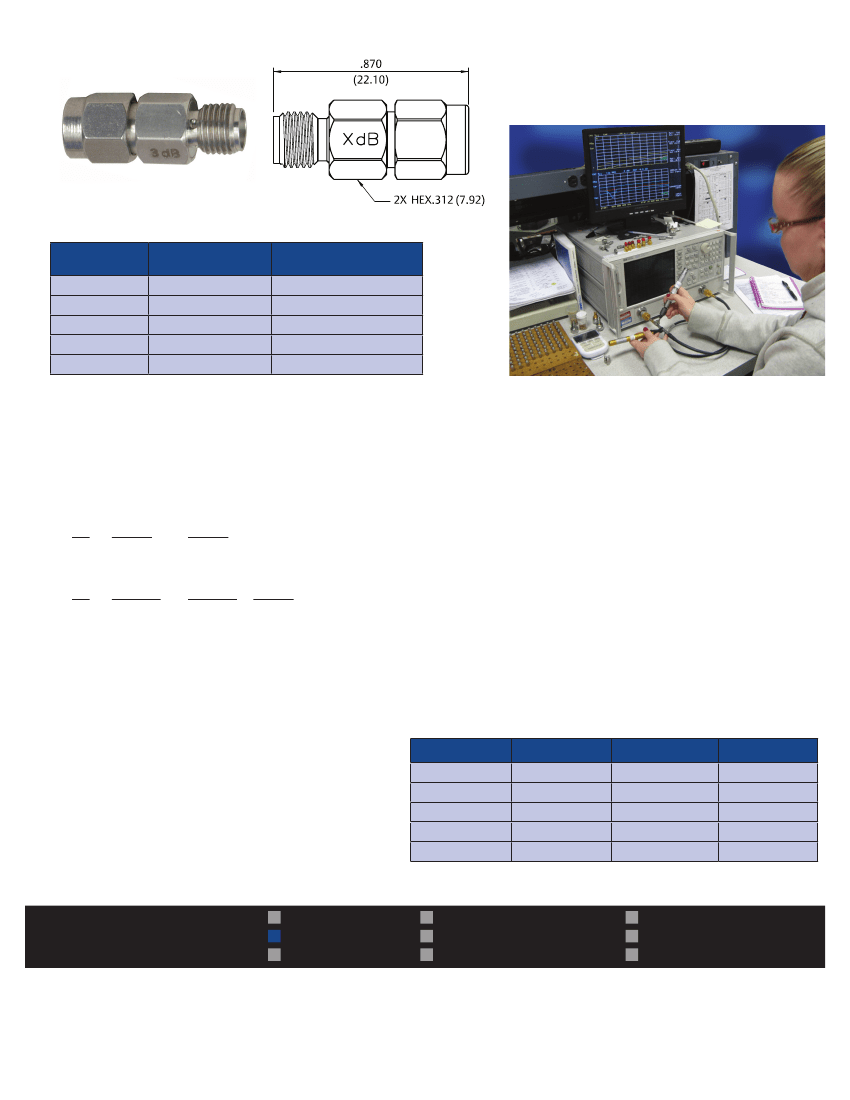

Technical Specifications
Attenuation
(dB Normal)*
1
2
3
6
10
Frequency
Range
(0-6 GHz)
(0-6 GHz)
(0-6 GHz)
(0-6 GHz)
(0-6 GHz)
Stainless Steel
Passivated
141-3901-801
141-3901-802
141-3901-803
141-3901-806
141-3901-810
* Standard values shown. Contact factory for other requirements.
* Inches (millimeters)
Electrical Specifications
I
mpedance:
50 Ohms
Frequency Range:
0-6 GHz
Attenuation Values:
1, 2, 3, 6, and 10 dB Nominal*
Attenuation Accuracy:
dB*
0 - 4 GHz
4 - 6 GHz
1-3
±0.3
±0.5
4-6
±0.4
±0.5
7-10
±0.5
±0.5
VSWR Max:
dB*
0 - 2.5 GHz
2.5 - 4 GHz
4 - 6 GHz
1-3
1.15 : 1
1.20 : 1
1.25 : 1
4-6
1.15 : 1
1.20 : 1
1.25 : 1
7-10
1.15 : 1
1.25 : 1
1.30 : 1
2 W Max @ +25°C
Average Input Power:
Derated Linearly to 0.5W at +125°C
*Other values available, please contact Factory
Mechanical Specifications
SMA Connectors:
Per MIL-STD-348A
Material Specifications
Connector Body
Coupling Nut
Retaining Ring
SMA Plug Gasket
Male Contact
Female Contact
Insulators
Attenuator Card
303 Stainless Steel per ASTM A582, Passivated per MIL-F-14-72 (EL 300)
303 Stainless Steel per ASTM A582, Passivated per MIL-F-14-72 (EL 300)
Beryllium Copper per ASTM B196, Unplated
Silcone Rubber per ZZ-R-765
Brass per ASTM B16, Gold Plated per MIL-G-45204 (.00003 min)
Beryllium Copper per ASTM B196, Gold Plated per MIL-G-45204
(.00003 min)
PTFE per ASTM D1710
Alumina per Mil-I-10, RoHs Compliant Terminal
s
Environmental Specifications
Temperature Range:
Thermal Shock:
Shock:
Vibration:
-55°C to +125°C
MIL-STD-202, Method 107, Condition B
except +100°C high temperature)
MIL-STD-202, Method 213, Condition I
MIL-STD-202, Method 204, Condition
D
Competitor Cross Reference
Emerson
141-3901-801
141-3901-802
141-3901-803
141-3901-806
141-3901-810
Aeroflex/Inmet
1AHC-1
1AHC-2
1AHC-3
1AHC-6
1AHC-10
Huber+Suhner
6601_SMA-50-2
6602_SMA-50-2
6603_SMA-50-2
6606_SMA-50-2
6610_SMA-50-2
XMA
2082-6346-01
2082-6346-02
2082-6346-03
2082-6346-06
2082-6346-10
