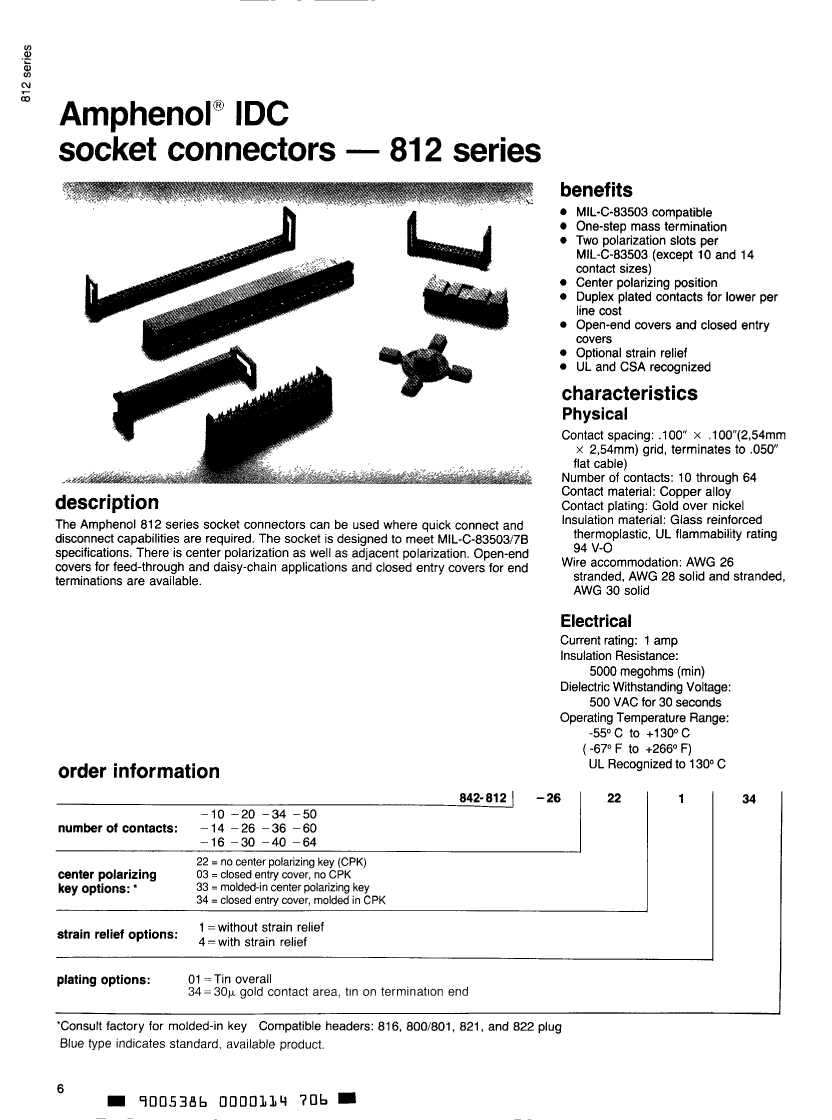

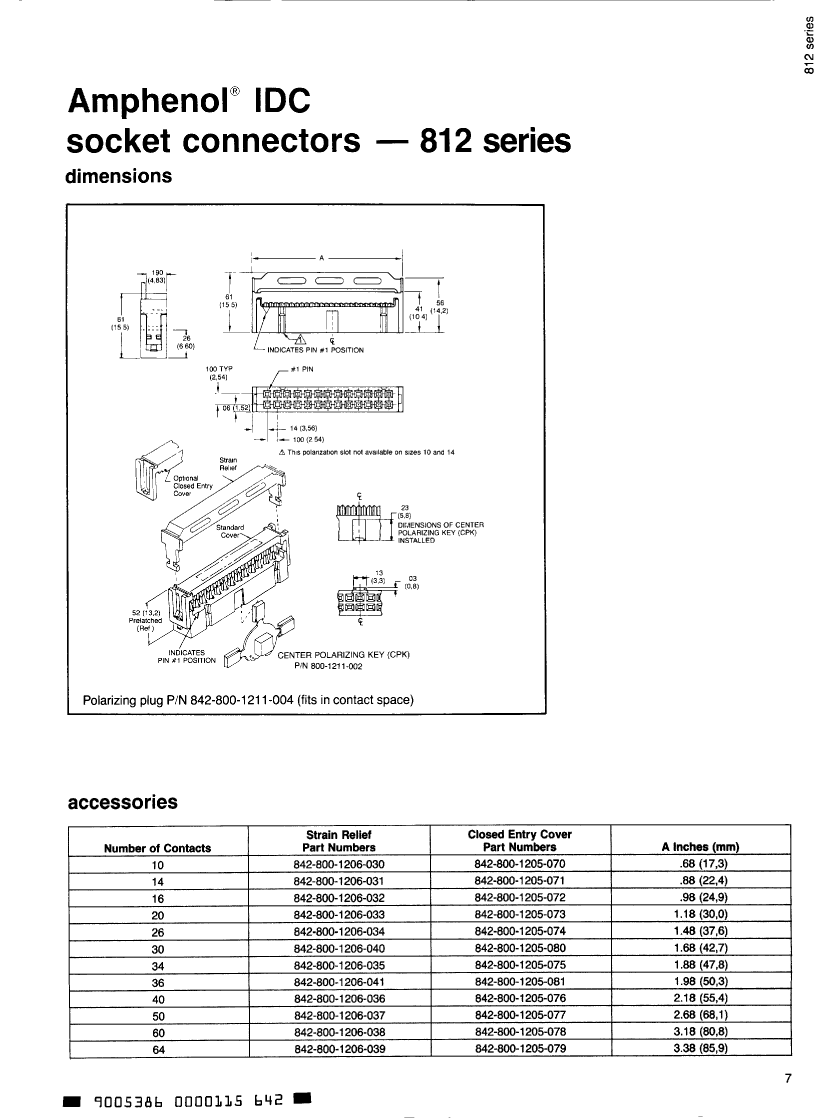

842-812-1403401: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Plug; CategoryThe connector The connector; File Size181KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

842-812-1403401 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Plug

Parameter Name	Attribute value
Objectid	300348618
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STRAIN RELIEF
body width	0.22 inch
subject depth	0.61 inch
body length	0.88 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	842-812
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Number of rows loaded	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
polarization key	CENTER
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	14
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG
