1N4756A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N4756A

1N4756A: DescriptionZener Diode, 47V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size62KB，2 Pages; ManufacturerEIC [EIC discrete Semiconductors]; Environmental Compliance

Download Datasheet Parametric View All

1N4756A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N4756A	-	-	View	Buy Now

1N4756A Overview

Zener Diode, 47V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2

1N4756A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EIC [EIC discrete Semiconductors]
Parts packaging code	DO-41
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	HIGH RELIABILITY, LOW LEAKAGE CURRENT
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	80 Ω
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Nominal reference voltage	47 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	5.5 mA
Base Number Matches	1

Preview

Download Datasheet

View All

ELECTRONICS INDUSTRY (USA) CO., LTD.

103 MOO 4, LATKRABANG EXPORT PROCESSING ZONE, LATKRABANG, BANGKOK 10520, THAILAND

TEL. : (66 2) 326-0102, 739-4580 FAX. : (66 2) 326-0933 E-mail : eicfirst @ iname.com http. : // www.eicsemi.com

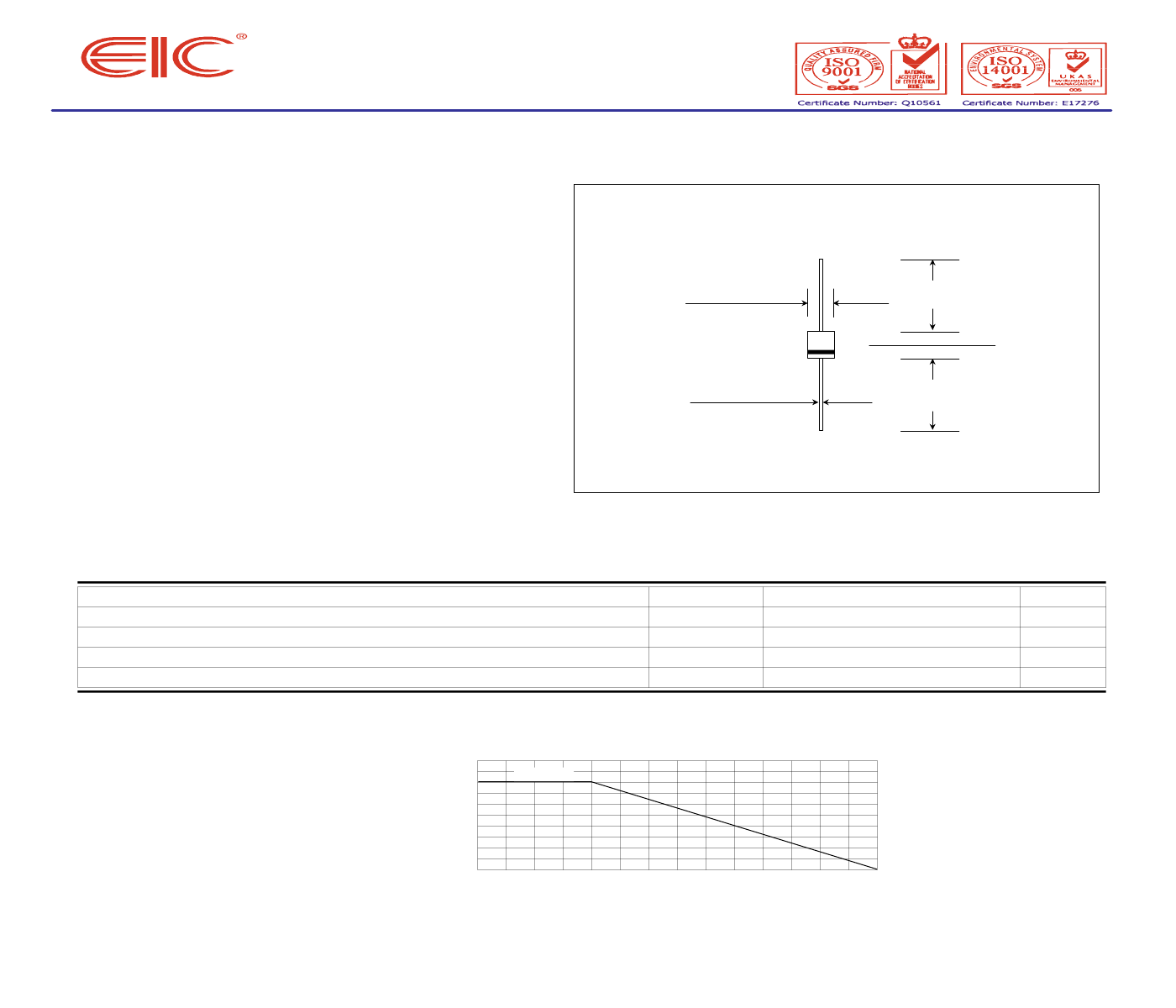

1N4728 - 1N4764

Z1110 - Z1200

: 3.3 - 200 Volts

: 1 Watt

FEATURES :

* Complete voltage range 3.3 to 200 Volts

* High peak reverse power dissipation

* High reliability

* Low leakage current

SILICON ZENER DIODES

DO - 41

0.107 (2.7)

0.080 (2.0)

1.00 (25.4)

MIN.

0.205 (5.2)

0.166 (4.2)

MECHANICAL DATA

* Case : DO-41 Molded plastic

* Epoxy : UL94V-O rate flame retardant

* Lead : Axial lead solderable per MIL-STD-202,

method 208 guaranteed

* Polarity : Color band denotes cathode end

* Mounting position : Any

* Weight : 0.339 gram

0.034 (0.86)

0.028 (0.71)

1.00 (25.4)

MIN.

Dimensions in inches and ( millimeters )

Rating at 25

C ambient temperature unless otherwise specified

MAXIMUM RATINGS

Rating

DC Power Dissipation at T

= 50

(Note1)

Maximum Forward Voltage at I

= 200 mA

Junction Temperature Range

Storage Temperature Range

Note :

(1) T

= Lead temperature at 3/8 " (9.5mm) from body

Symbol

Value

1.0

1.2

- 55 to + 175

Unit

Watt

Volts

Fig. 1 POWER TEMPERATURE DERATING CURVE

, MAXIMUM DISSIPATION

(WATTS)

1.25

L = 3/8" (9.5mm)

1.00

0.75

0.50

0.25

100

LEAD TEMPERATURE (

125

150

175

UPDATE : JUNE 30, 2000
