801-99-110-40-002000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-99-110-40-002000

801-99-110-40-002000: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket,; CategoryThe connector The connector; File Size323KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

801-99-110-40-002000 Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Socket,

801-99-110-40-002000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200)
Contact completed and terminated	TIN LEAD (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	801
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

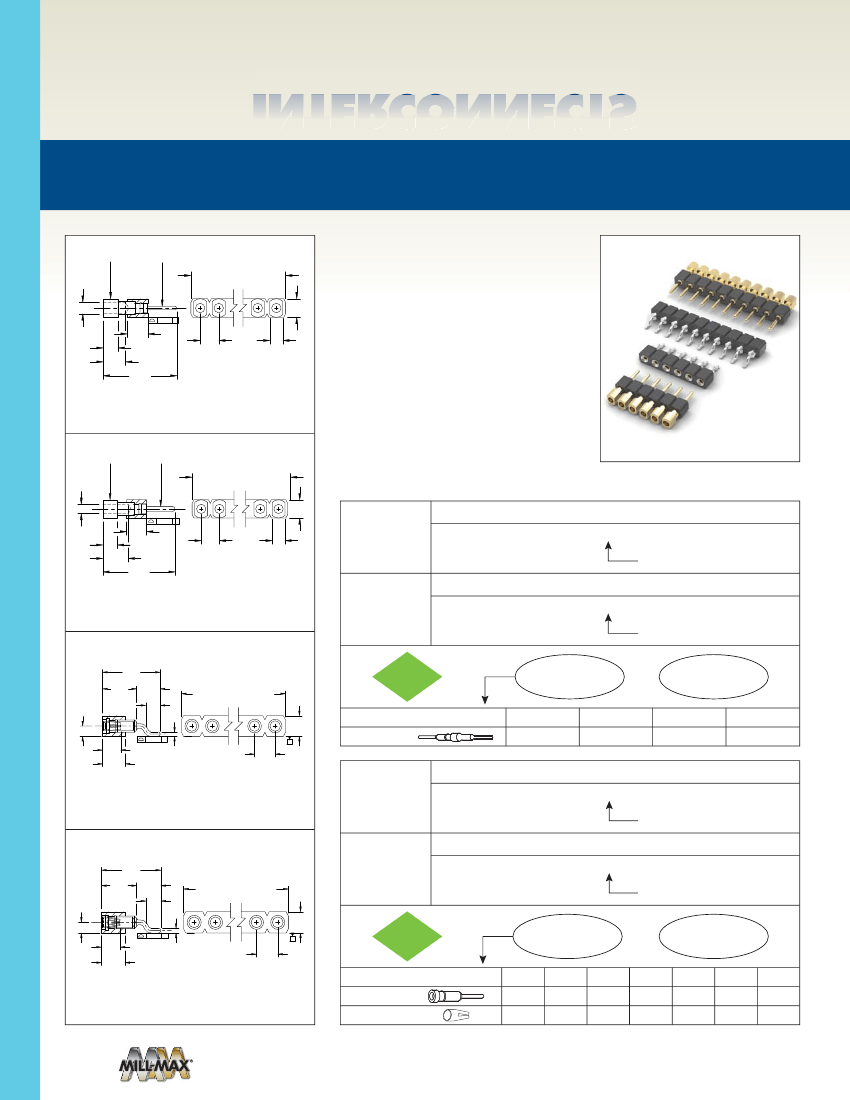

SERIES 310, 351, 800, 801 • .100” GRID HORIZONTAL SURFACE MOUNT

HEADERS AND Z-BEND SOCKETS • SINGLE ROW STRIPS

Mates with Series 310...023 Surface Mount

Z-Bend Socket (See Fig. 3)

.100 DIA.

.018 DIA.

•

Series 351 and 800 horizontal surface mount

headers are availble with .018” dia. pluggable

pins (MM #5102) and .028” dia. pluggable pins

(MM #1502). See page 224 for details

Number

of Pins x .100"

.062

.005 A

.100

•

Series 310 horizontal surface mount Z-Bend

sockets use MM #1023 receptacles that accept

pin diameters from .015”-.025”. Series 801 use

MM #1303 receptacles that accept pin

diameters from .025”-.037” and .025” square

leads. See pages 171 and 180 for details

.110

.100

.080

.120

.397

.070

(TYP)

Coplanarity .005”. For pin counts >10 positions, consult

Technical Support.

FIG. 1

Mates with Series 801...002 Surface Mount

Z-Bend Socket (See Fig. 4)

.100

DIA.

.028 DIA.

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

•

Ideal for daisy chaining Parallel boards

Number

of Pins x .100"

ORDERING INFORMATION

.100

.051

.005 A

Series 351...002

.018” Dia. Surface Mount Header

351-10-1_ _-40-002000

.110

.080

.140

.397

.100

.070

(TYP)

FIG. 1

Series 800...002

Specify number of pins

02-10

Coplanarity .005”. For pin counts >10 positions, consult

Technical Support.

.028” Dia. Surface Mount Header

800-10-0_ _-40-002000

FIG. 2

Mates with Series 351...002 Surface Mount

Header (See Fig. 1)

.279

.165

.114

.070

.100

.005 A

FIG. 2

Specify number of pins

RoHS

XX=Plating Code

See Below



”

02-10

For

Electrical, Mechanical

& Enviromental Data,

See page 264

2002/95/EC

Number of

Pins x

.100"

SPECIFY PLATING CODE XX=

Pin Plating

.050

.088

.110

.022 DIA.

.100

Series 310...023

.018” Dia. Surface Mount Z-Bend Socket

310-XX-1_ _-40-023000

Coplanarity .005”. For pin counts >10 positions, consult

Technical Support.

FIG. 3

Series 801...002

FIG. 3

Mates with Series 800...002 Surface Mount

Header (See Fig. 2)

Specify number of pins

02-10

.028” Dia. Surface Mount Z-Bend Socket

801-XX-0_ _-40-002000

PAGE 50 | INTERCONNECTS

.279

.165

.114

.070

.100

.005 A

FIG. 4

Number

of Pins x .100"

Specify number of pins

RoHS

XX=Plating Code

See Below

”

02-10

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.050

.088

.110

2002/95/EC

.022 DIA.

.100

Coplanarity .005”. For pin counts >10 positions, consult

Technical Support.

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)



200

”



200

”

100

”

200

”

Sn/Pb 200

”

Sn/Pb 200

”

Sn/Pb

200

”

FIG. 4

”

100

”

Sn/Pb

”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
