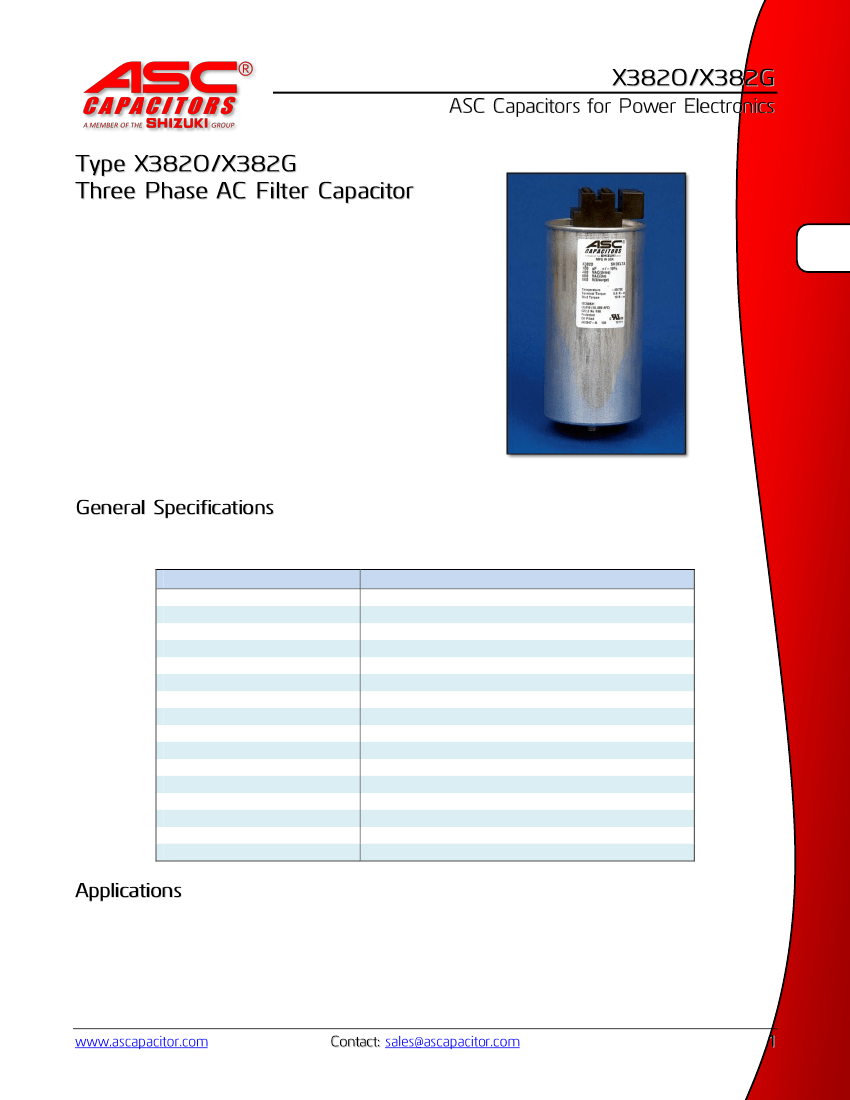

ASC™ X382 (Three Phase) capacitors are manufactured with
very high quality metallized polypropylene film, designed for
long life, low dielectric losses, higher RMS current ratings,
and low ESR.
The capacitors are filled with ASC™ soft gel or biodegradable
vegetable based oil designed to offer excellent thermal
conductivity to help reduce internal heating and extend the
life of the capacitor.
The capacitor is incorporated with internal UL recognized
fusing mechanisms that interrupt when pressure reaches a
tested level.
X382O
X382G
*Capacitance and KVAR ratings are dependent upon voltage levels, frequency and total current
** UL recognized product is limited to 620Vrms max
Parameter
Capacitance
Tolerance
KVAR Ratings
Rated Voltage
Temperature Range (operational)
Temperature Range (storage)
RMS Current (phase)
Standards
Can/ Cover
Terminals
Suggested Mounting Position
AFC Rating (UL810)
Tan δ
Terminal to Terminal Test
Terminal to Case Test
Reliability
Value
3 x 13µF – 3 x 233µF*
±5%, ±10% – Special tolerance on request
Available on request*
240 – 690 Vrms*
-40/70C (custom ratings available)
-40/85C
Up to 40 Arms – Higher values on request
IEC61071, IEC60831, UL810**
Aluminum
SIGUIT (6 slots with independent screw down clamps)
Oil – Upright, Gel – Any position
10,000 A
2 x 10
-4
Polypropylene
2.15 x Urms 10 seconds
U
T-CASE
= 2 U
I
+1000V or 3000V whichever is highest value
100 FIT
AC input and output filtering
Cap
[µF]
3 x 75
3 x 140
3 x 200
3 x 233
I
TERM
*
[A
RMS
]
56.0
56.0
56.0
104.0
56.0
56.0
56.0
104.0
104.0
104.0
56.0
56.0
56.0
104.0
104.0
56.0
56.0
56.0
104.0
104.0
56.0
56.0
56.0
104.0
104.0
I
MAX
†
(10°ΔT)
[A
RMS
]
16.0
22.0
32.0
35.0
I
PEAK
†
[kA]
1.1
1.6
2.3
3.0
0.6
0.8
1.2
1.8
1.8
2.6
0.5
0.7
1.0
1.3
1.8
0.6
0.8
1.2
1.1
1.4
0.3
0.4
0.7
0.9
1.4
I
SURGE
†
[kA]
3.3
4.8
6.8
9.0
1.9
2.5
3.8
5.4
5.6
7.8
1.3
2.0
3.0
4.0
5.4
1.8
2.5
3.6
3.4
5.2
1.0
1.4
2.1
2.9
4.3
R
th
C-E
[°C/W]
6.1
4.3
3.3
2.5
5.3
4.3
3.3
2.5
2.1
1.6
5.7
4.4
3.4
2.3
1.8
4.3
3.3
2.6
2.3
1.7
3.9
3.3
2.6
1.9
1.6
ESR
(1kHz)
[mΩ]
1.5
1.2
1.0
0.7
3.0
2.3
1.5
1.1
1.6
1.2
1.5
1.0
0.7
0.7
0.6
1.1
0.8
0.6
0.9
0.6
2.8
2.0
1.3
1.0
0.7
Diameter
“D” [mm]
75
85
100
116
75
85
100
116
116
136
75
85
100
116
136
85
100
116
116
136
75
85
100
116
136
Height
“H” [mm]
157
179
179
179
179
179
179
179
233
233
179
179
179
233
233
179
179
179
233
233
270
270
270
270
270
Weight
[kg]
0.9
1.2
2.1
2.5
0.9
0.9
1.8
2.5
2.9
4.1
1.0
1.3
1.8
2.9
4.1
1.3
1.8
2.4
2.9
4.1
1.3
1.8
2.4
3.3
4.6
Pieces
/ Box
10
9
9
5
10
9
9
5
5
4
10
9
9
5
4
10
9
9
5
4
10
9
9
5
4
240 Vrms
340 Vac Peak
516 Vsurge
450 Vrms
3 x 30
3 x 40
3 x 60
3 x 85
3 x 135
3 x 190
636 Vac Peak
10.0
13.0
18.0
40.0
40.0
40.0
968 Vsurge
525 Vrms
3 x 16
3 x 22
3 x 33
3 x 65
3 x 100
742 Vac Peak
8.0
12.0
18.0
30.0
40.0
1129 Vsurge
600 Vrms
3 x 19
3 x 27
3 x 38
3 x 55
3 x 85
3x13
3x18
3x27
3x38
3x55
849 Vac Peak
9.0
16.0
21.0
26.0
38.0
1290 Vsurge
**690 Vrms
976 Vac Peak
10.0
13.0
18.0
25.0
32.0
1484 Vsurge
(** Max UL Rating is 620 Vrms)
* I
TERM
is the maximum rated pass-though terminal current. This rating is applicable when connecting multiple
capacitors in parallel.
†
I
MAX
, I
PEAK
, and I
SURGE
current ratings are designated as maximum phase current ratings.
To convert I
MAX
to line current, use the following formula:
Note that I
PEAK
and I
SURGE
should not be converted to line currents with this formula because peak and surge events
are rarely shared equally among the phases.

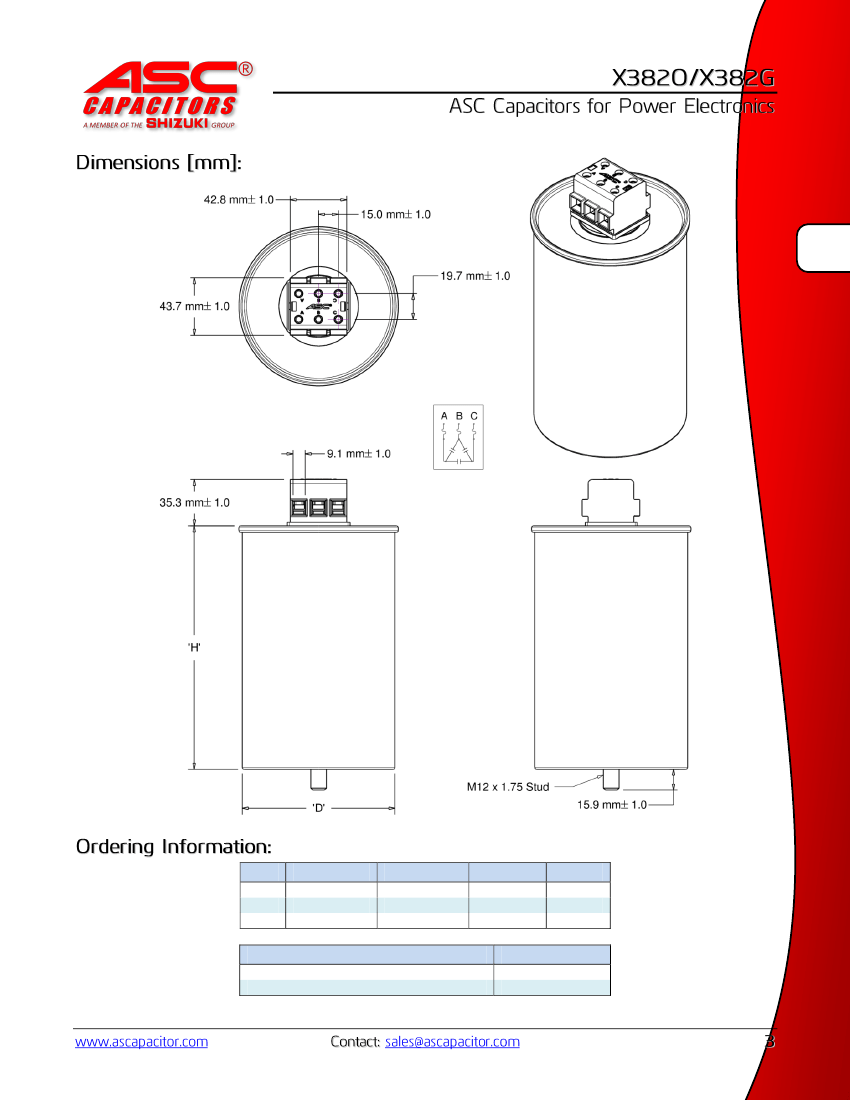

X382O
X382G
Type Fill Material Capacitance Tolerance Voltage
X382
O = Oil
G = Gel
3X13
↕
3X233
5 = ±5%
10 = ±10%
240
↕
690
Examples:
Type X382, Oil Filled, 3 x 200uF ±5%, 240 Vrms
Type X382, Gel Filled, 3 x 55uF ±10%, 600 Vrms
Order Code
X382O 3X200-5-240
X382G 3X55-10-600
