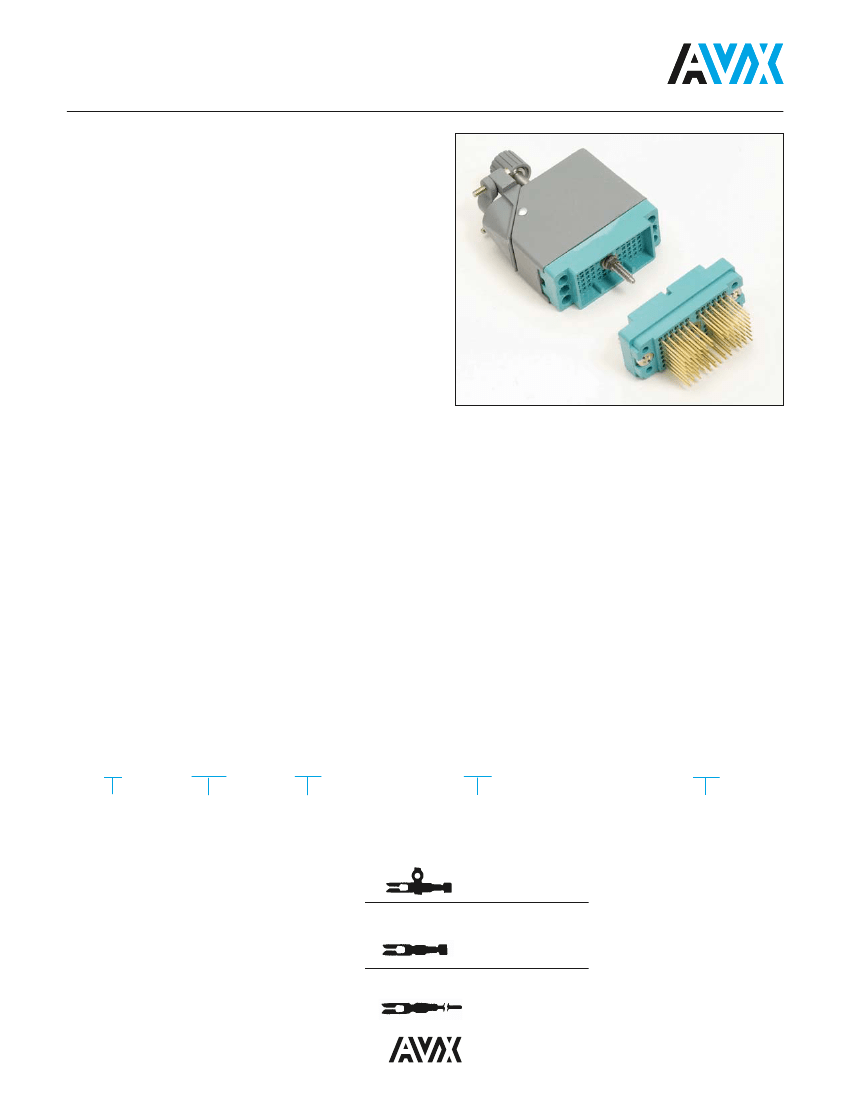

Series 8026 – 0.100" Rectangular Connector
FEATURES
•
Economical miniature high-density connectors suitable for
high-reliability and military applications.
•
0.100" (2.54mm) square grid rack and panel connectors
with male and female insulators are available in four sizes:
33, 75, 117 and 165 contacts.
•
Insertable / removable mini-varilok and mini-wrap contacts.
•
Crimp and/or solderless wrap terminations.
•
Exceptional versatility: all hardware can be mounted on
plug or receptacle (see ordering code).
•
Actuating screw facilitates mating and unmating; locks
mated connectors together.
•
Keyed and shrouded insulator design prevents incorrect
mating and protects contacts from mishandling.
•
Simplified polarizing hardware permits 36 polarization
combinations per connector pair.
•
Optional covers with top or side cable entry and clamp.
•
Optional cable clamps.
•
Choice of any combination of hardware — or no hardware.
•
U.L. recognized-diallyl phthalate material.
TECHNICAL SPECIFICATIONS
CONTACTS
Current Rating:
5 amperes
Contact Resistance:
6 milliohms
Withdrawal Force:
2 to 8 ounces max. per contact
Material:
Phosphor Bronze
Standard Plating:
Gold, 10 microinches min.,
over Nickel,
50-100 microinches
Spacing:
0.100" (2.54mm)
INSULATORS
Insulation Resistance:
5,000 megohms, min.
(diallyl phthalate insulators)
5,000 megohms, min.
(polycarbonate insulators)
Operating Temperature:
-40ºC to +120ºC
Dielectric Withstanding
Voltage:
Sea Level: 1,000 Volts rms
Materials:
0.100" (2.54mm) spacing –
diallyl phthalate, glass-filled,
flame resistant
ORDERING CODE
00
8026
033
Number of
Contacts
033 = 33
075 = 75
117 = 117
165 = 165
000
Contact Code
Order crimp contacts
separately by Part Number.
Otherwise specify contact code 491.
000 = Crimp (3000 - contact reel)
Part Number
60 8216 0323 00 339
000 = Crimp (loose contact)
Accepts #22-30 AWG wire
Part Number
60 8216 0313 00 339
491 = Wire wrappable removable contact .025"
(.635mm) sq. x .564" (14.33mm) tail
Part Number
60 8216 0413 00 339
803
Variation Code
Add 050 to order alternative
keying (Pin & Socket)
i.e. 701 = Standard hermaphroditic
keying
751 = Pin and socket keying
Complete a 15 digit assembly number
for each mating part, male and female.
28
Varicon
®
Series 8026 – 0.100" Rectangular Connector

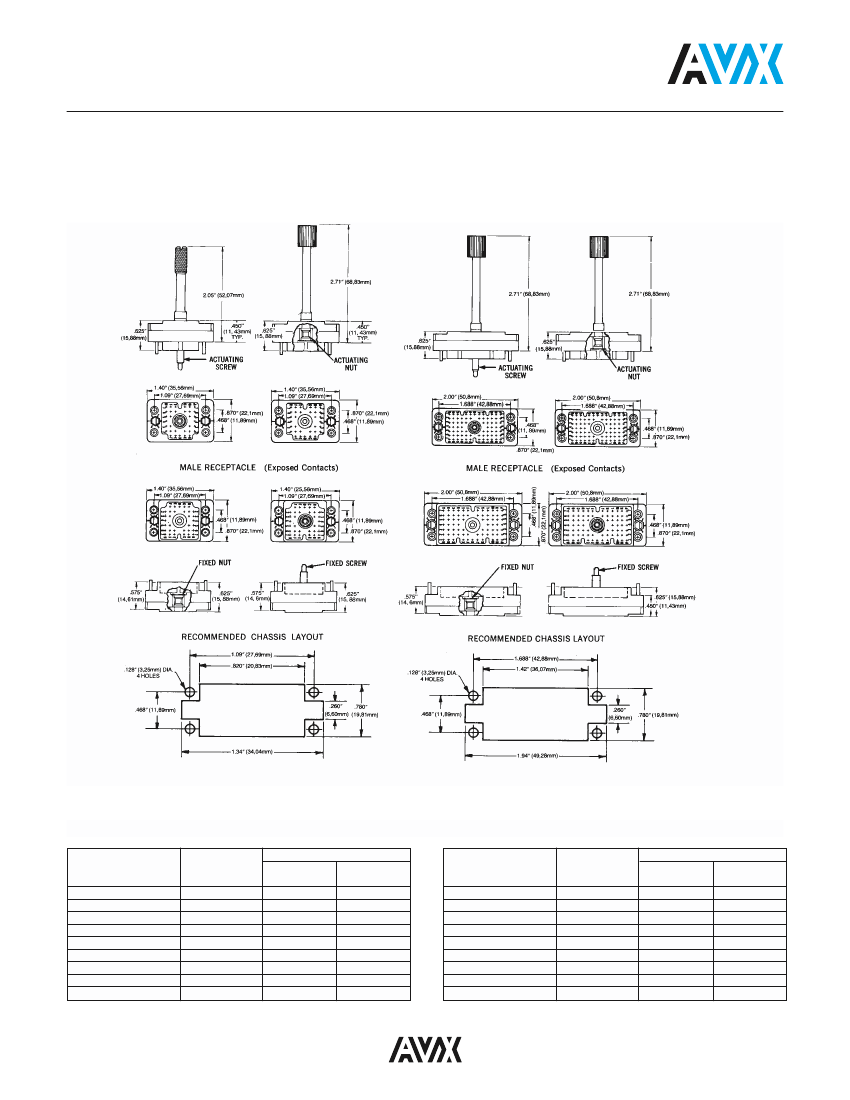

117 CONTACTS
Female Plug (Recessed Contacts)
For variation code number
See Table 4
Page 29
165 CONTACTS
Female Plug (Recessed Contacts)
For variation code number
See Table 3
Page 29
See Table 4
Page 29
See Table 3
Page 29

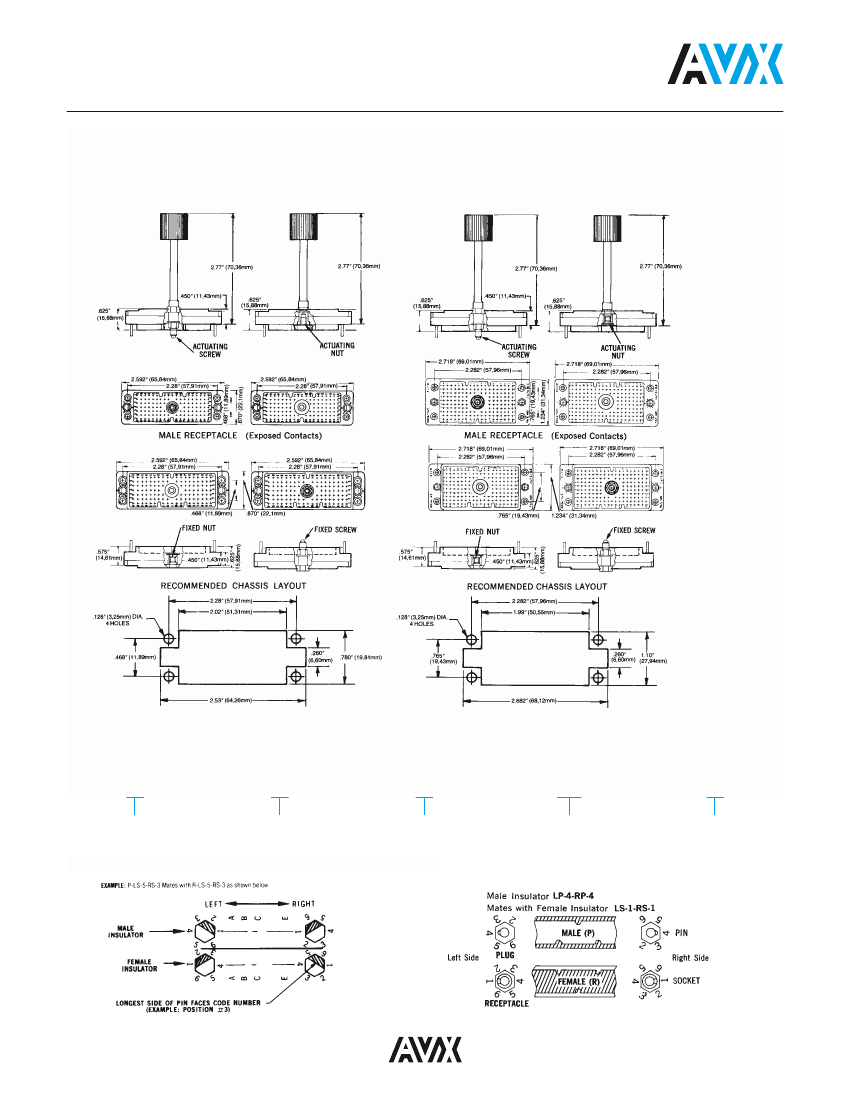

POLARIZATION CODE
Polarizing pins, when desired, are factory set in position #1.
Customer can reset as shown below, use tool No. 06 1989
02. To order factory settings other than position #1, fill out
the “Polarizing Code” below and submit it along with the
completed connector ordering code.
P
Insulator Body Type
P = Male, R = Female
LS
Left Side Pin
5
Left Side Pin Position
1 through 6
RS
Right Side Pin
3
Right Side Pin Position
1 through 6
POLARIZATION / KEYING
ALTERNATIVE KEYING
EXAMPLE (PIN & SOCKET)
NOTE:
Same size of pin and socket keying hardware are used
on all existing 8026 connectors (33, 75, 117, 165) – both sides
31
