008345232950042 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 008345232950042

008345232950042: DescriptionCONNECTOR, 32 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER/WIRE WRAP, RECEPTACLE; CategoryThe connector The connector; File Size619KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

008345232950042 Overview

CONNECTOR, 32 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER/WIRE WRAP, RECEPTACLE

008345232950042 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Kyocera
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8345
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER/WIRE WRAP
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

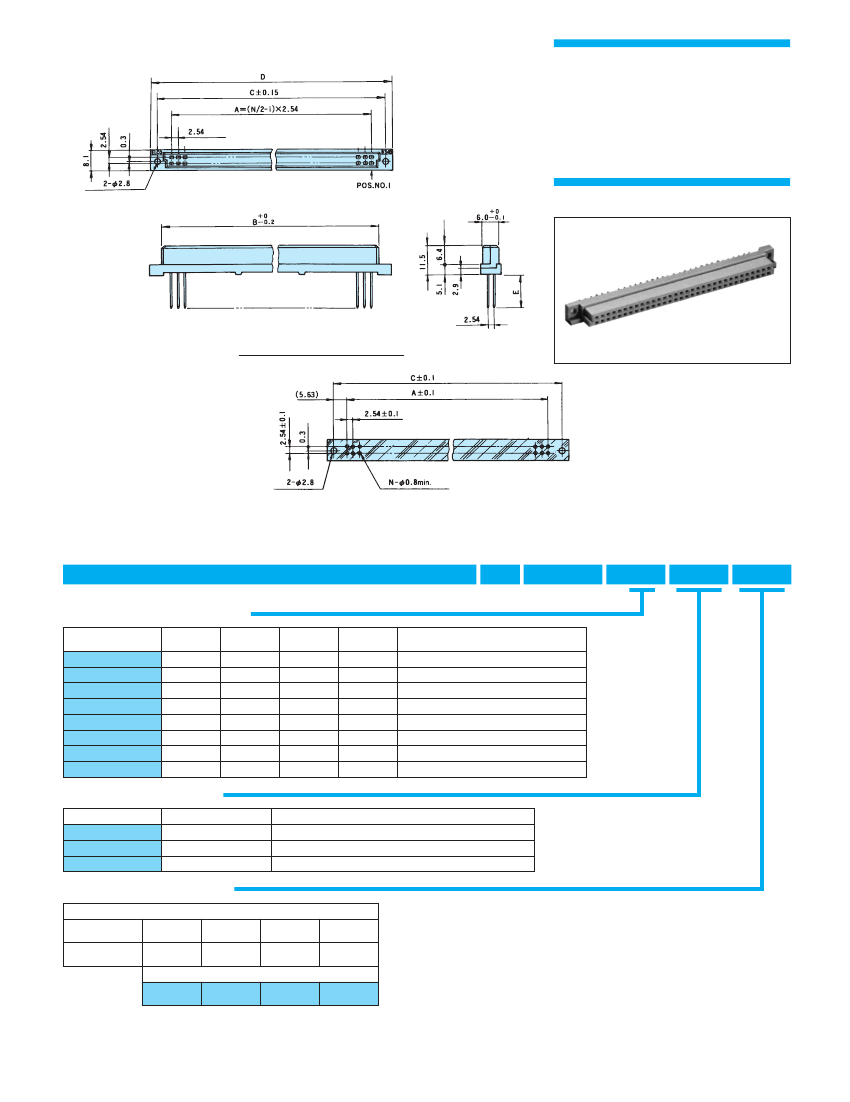

SERIES

ネジ取付½½

Screw position

8345

ハンダ付/ワイヤーラッピング

DIN-B/拡張DIN-Nタイプリセプタクル2列ストレート

Soldering/Wire-wrapping

DIN-B/Extended DIN-N type

Vertical type 2-row receptacle

推奨取付寸法

Recommended mounting dimensions

b列 Row

a列 Row

b列 Row

●拡張DIN-Nタイプとは½社がDIN規格41612に準拠して独自に開発した½品です。

●

The extended DIN-N type is a type developed originally by us in conformity with DIN41612

注文コード

/Ordering

code

型番構成/

Part number

8345

2XX

9XX

0XX

極数

/Number

of positions

極数/

Number of positions

100

＊

22.86

35.56

38.1

53.34

60.96

78.74

111.76

124.46

29.12

41.82

44.36

59.6

67.22

85.0

118.02

130.72

34.12

46.82

49.36

64.6

72.22

90.0

123.02

135.72

39.12

51.82

54.36

69.6

77.22

95.0

128.02

140.72

備考/Remarks

拡張DIN-Nタプ/Extended

DIN-N type

イ

拡張DIN-Nタプ/Extended

DIN-N type

イ

拡張DIN-Nタプ/Extended

DIN-N type

イ

拡張DIN-Nタプ/Extended

DIN-N type

イ

拡張DIN-Nタプ/Extended

DIN-N type

イ

＊注文コー

ドは00

＊

Ordering code

拡張DIN-Nタプ/Extended

DIN-N type

イ

is “00”

拡張DIN-Nタプ/Extended

DIN-N type

イ

DIN-Bタプ/DIN-B

type

イ

テール½状

/Tail

shape

コー

ドNo.

/Code

No.

テール½状/Tail

shape

テール長さ＝E/Tail

length=E

900

949

950

標準/Standard

キンク加工/Kinked

13.0

2.9

（適用基板厚1.6/Applicable

board thickness 1.6)

バリエーション

/Variation

0.76

接触部/

金/Gold

Contacting area

ポス

ト部

ハンダ/Solder ハンダ/Solder ハンダ/Solder ハンダ/Solder

Post area

バリエーシンコー

/Variation

code

ョ

ド

メッキ

μm

/Plating

(

0.1

0.25

0.5

金/Gold

012

022

032

042

※鉛フリーめっきは型番最後尾に＋が付きます。詳しくは営業にお問い合わせください。

For the lead-free plated type, “+” is added to the end of each part number. For details, please consult the sales representative.
