008345348950023 Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder/Wire Wrap Terminal, Receptacle,

008345348950023 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Kyocera
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	GOLD (10)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8345
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER/WIRE WRAP
Total number of contacts	48
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

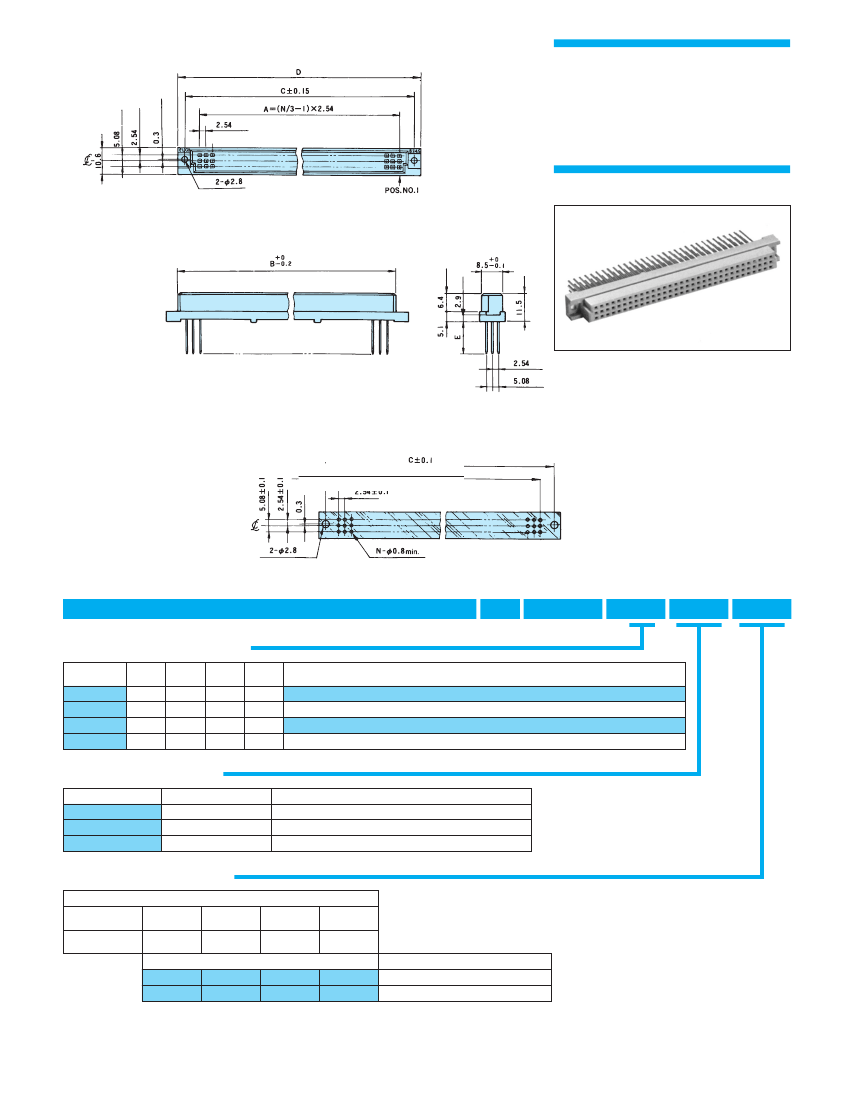

SERIES

ネジ取付½½

Screw position

8345

ハンダ付/ワイヤーラッピング

DIN-Cタイプリセプタクル3列ストレート

Soldering/Wire-wrapping

DIN-C Vertical type 3-row receptacle

推奨取付寸法

Recommended mounting dimensions

c列 Row

c

b列 Row

b

a列 Row

a

a列 Row

a

b列 Row

b

c列 Row

c

注文コード

/Ordering

code

型番構成/

Part number

00

8345

3XX

9XX

0XX

極数

/Number

of positions

極数/Number

of positions

32

A

38.10

78.74

B

44.36

85.00

C

49.36

90.00

D

備考/Remarks

48

64

96

54.36 48極のa、

c列実装、

注文コー

ドは48/Pins

are inserted into rows a and c of the insulator for 48-positions connector Ordering code is 48

54.36

95.00 96極のa、

c列実装、

注文コー

ドは96/Pins

are inserted into rows a and c of the insulator for 96-positions connector Ordering code is 96

95.00

テール½状

/Tail

shape

コー

ドNO.

/Code

No.

テール½状/Tail

shape

テール長さ＝E/Tail

length=E

900

949

950

標準/Standard

キンク加工/Kinked

13.0

2.9

（適用基板厚1.6/Applicable

board thickness 1.6)

バリエーション

/Variation

0.76

接触部/

金/Gold

Contacting area

ポス

/

ト部

ハンダ/Solder ハンダ/Solder ハンダ/Solder ハンダ/Solder

Post area

バリエーシンコー

/Variation

code

ョ

ド

コンタク

ト実装/Mounting

contacts

013

023

033

043

全列実装/All

rows are filled

014

024

034

044

a＋c列実装/Row

a and c are filled

※鉛フリーめっきは型番最後尾に＋が付きます。詳しくは営業にお問い合わせください。

For the lead-free plated type, “+” is added to the end of each part number. For details, please consult the sales representative.

メッキ

μm

/Plating

(

μ

m)

0.1

0.25

0.5

金/Gold

13
