0125-0029 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 0125-0029

Preview

0125-0029: DescriptionToggle Switch, SPST, Latched, Quick Connect Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size91KB，1 Pages; ManufacturerTherm-O-Disc (Emerson)

Download Datasheet Parametric View All

0125-0029 Overview

Toggle Switch, SPST, Latched, Quick Connect Terminal, Panel Mount-threaded

0125-0029 Parametric

Parameter Name	Attribute value
Maker	Therm-O-Disc (Emerson)
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body height	7.39 mm
Body length or diameter	15.87 mm
Installation features	PANEL MOUNT-THREADED
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	TOGGLE SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

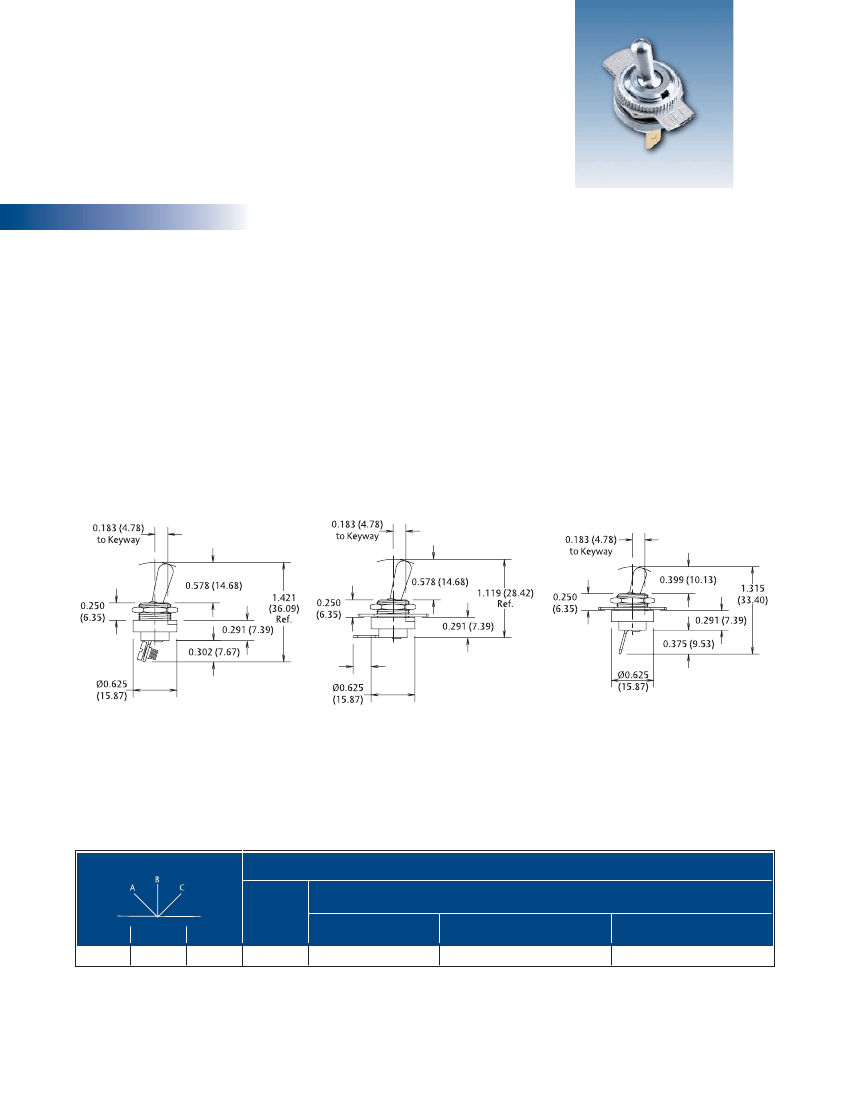

McGILL

®

0125 Series

Shorting Switches

A single pole switch is commonly used for grounding or shorting gasoline motor ignition systems

mounted with single wire to ignition coil primary. When in the “off” position, the terminal shorts

to bushing mounting. It is especially suitable for chain saws and power lawn motors.

Construction

• Available with screw or spade terminals.

• .399” or .578” bat handle lengths.

• Indicating plate available.

0125-0001

0125-0029

Approximate dimensions in inches and (millimeters).

0125-0069

Circuit Arrangement

0125 Series

Cat. No.

A

on

B

—

C

off

Poles

SPST

Screw Terminal

0125-0001

.250 – Lo Spade Terminal

0125-0029

.250 75 Degree Spade

0125-0069

17
