046274038100800+ datasheet, PDF

Datasheet> All Categories > The connector> The connector> 046274038100800+

046274038100800+: DescriptionCard Edge Connector; CategoryThe connector The connector; File Size100KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

046274038100800+ Overview

Card Edge Connector

046274038100800+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.106 inch
subject depth	0.173 inch
body length	0.925 inch
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SINGLE PRONG
Filter function	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.6 mm
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	38
Base Number Matches	1

Preview

Download Datasheet

View All

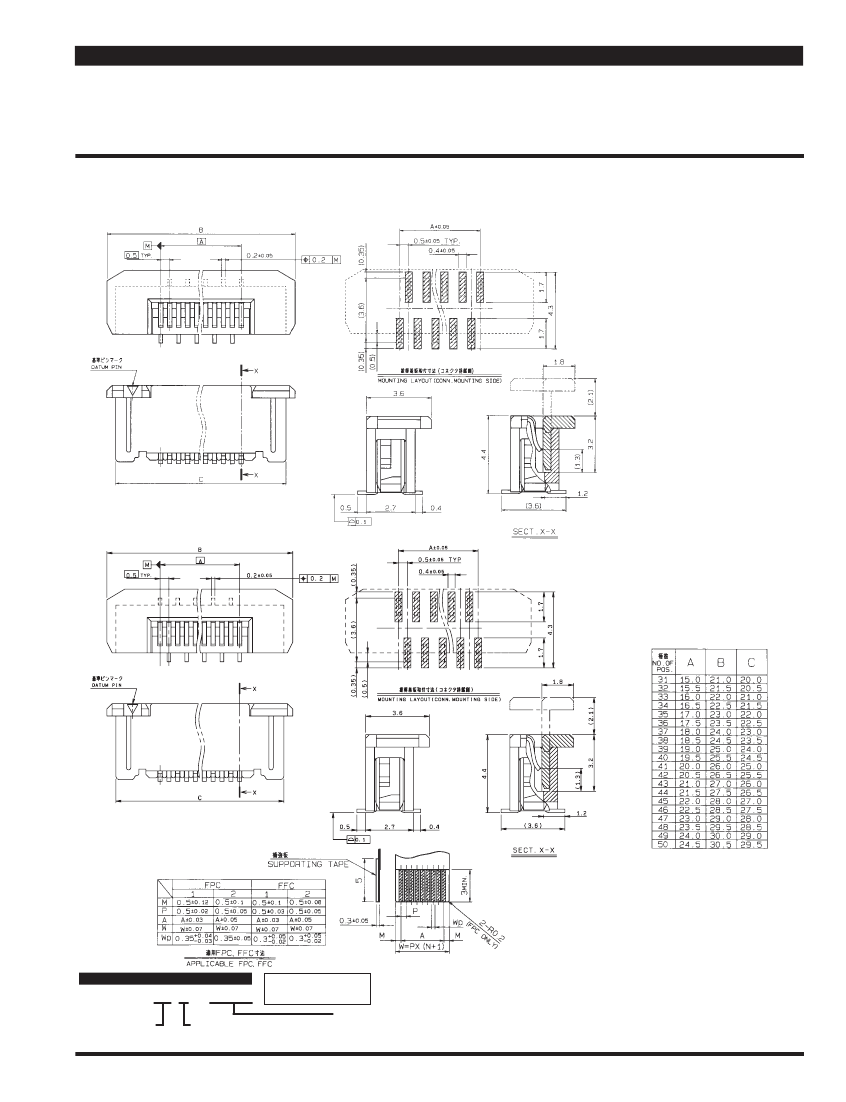

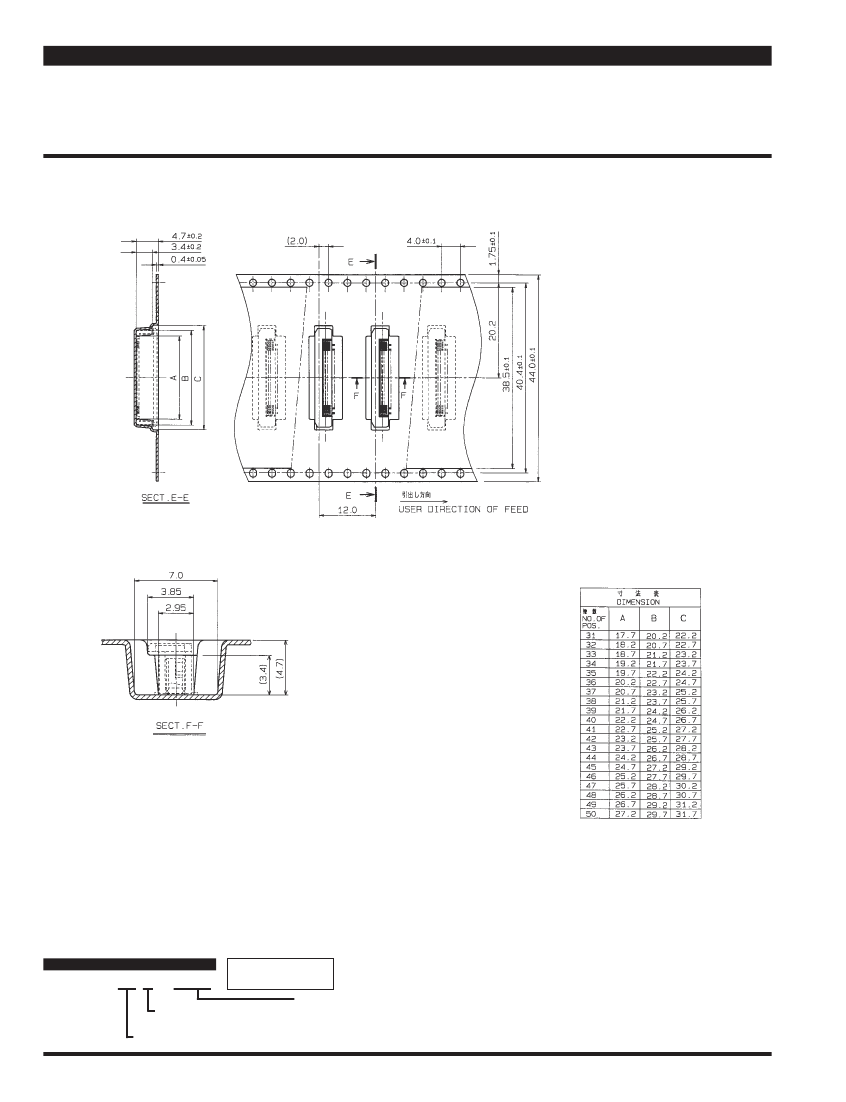

0.5mm Pitch

SERIES

6274

標準タイプ

Standard type

0.5mmピッチ

ストレート

SMT

片面接点スライドロック

0.5mmPitch Vertical SMT Single- sided contact Slide lock

逆千鳥タイプ

Reverse type

注文コード

ORDERING CODE

RoHS 対応品

RoHS Compliant Product

04 6274 0XX X00 XXX+

極数

NUMBER OF

POSITIONS

0：標準タイプ Standard type

1：逆千鳥タイプ Reverse type

800＋：スズ銅めっき Sn-Cu Plated

894＋：金めっき Au Plated

生産対応可½極数については、営業部に

ご確認願います。

Feel free to contact our sales department

for available numbers of positions.
