086223005101800 datasheet, PDF

086223005101800: DescriptionCard Edge Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size106KB，2 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

086223005101800 Overview

Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Kyocera
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
Base Number Matches	1

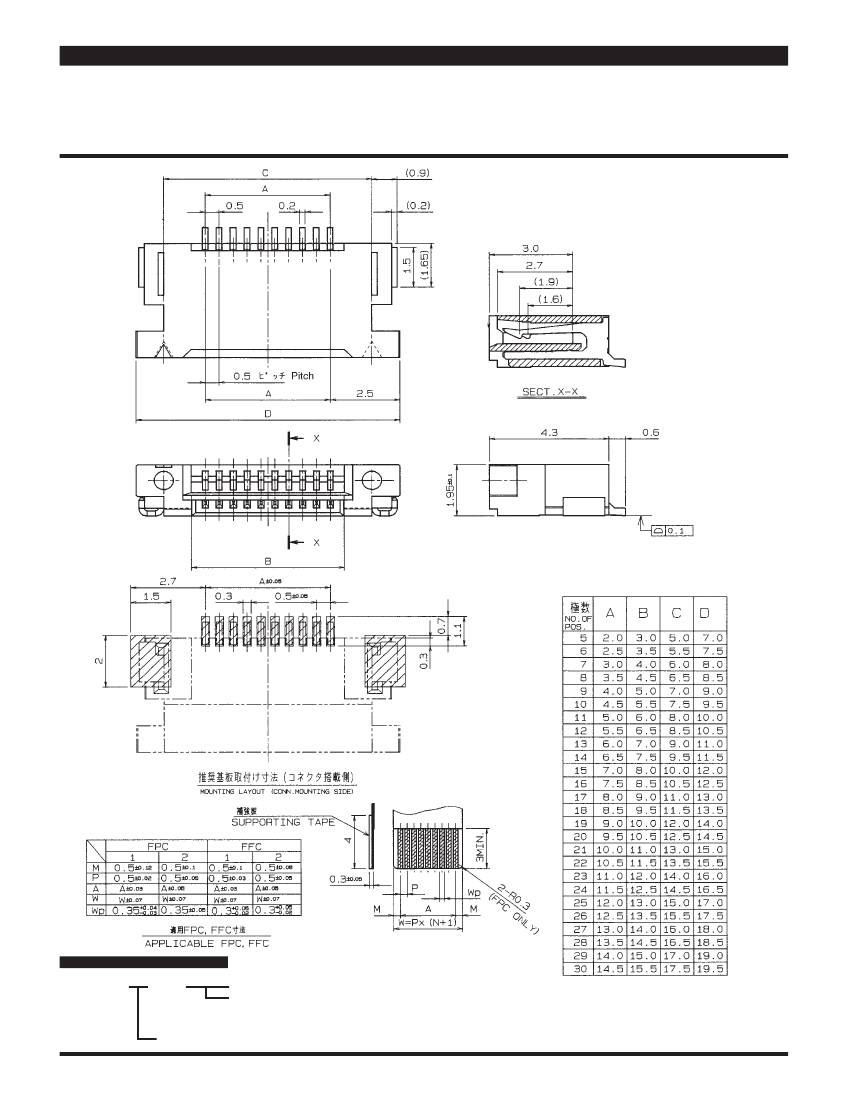

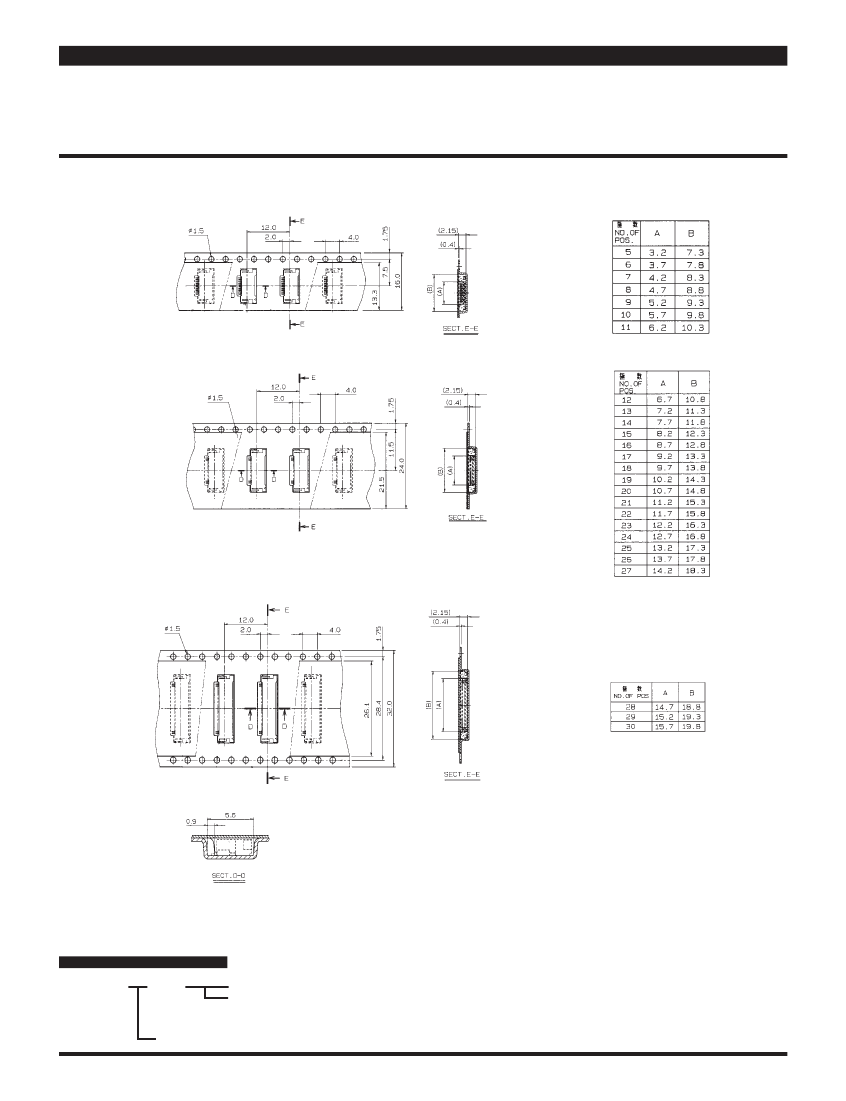

0.5mm Pitch

SERIES

6223

0.5mmピッチ NON-ZIF RA SMT

上接点

0.5mmPitch LIF RA SMT Top contact

注文コード

ORDERING CODE

08 6223 0XX 101 XXX X

800+：スズ銅めっき Sn-Cu Plated（RoHS対応品 RoHS Compliant Product）

800：スズ鉛めっき Sn-Pb Plated

829+：金めっき Au Plated（RoHS対応品 RoHS Compliant Product）

極数

NUMBER OF POSITIONS

生産対応可½極数については、営業部にご確認

願います。

Feel free to contact our sales depart-

ment for available numbers of positions.
