1-102692-8

Description
HEADER CONNECTOR,PCB MNT,RECEPT,72 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL
CategoryThe connector    The connector

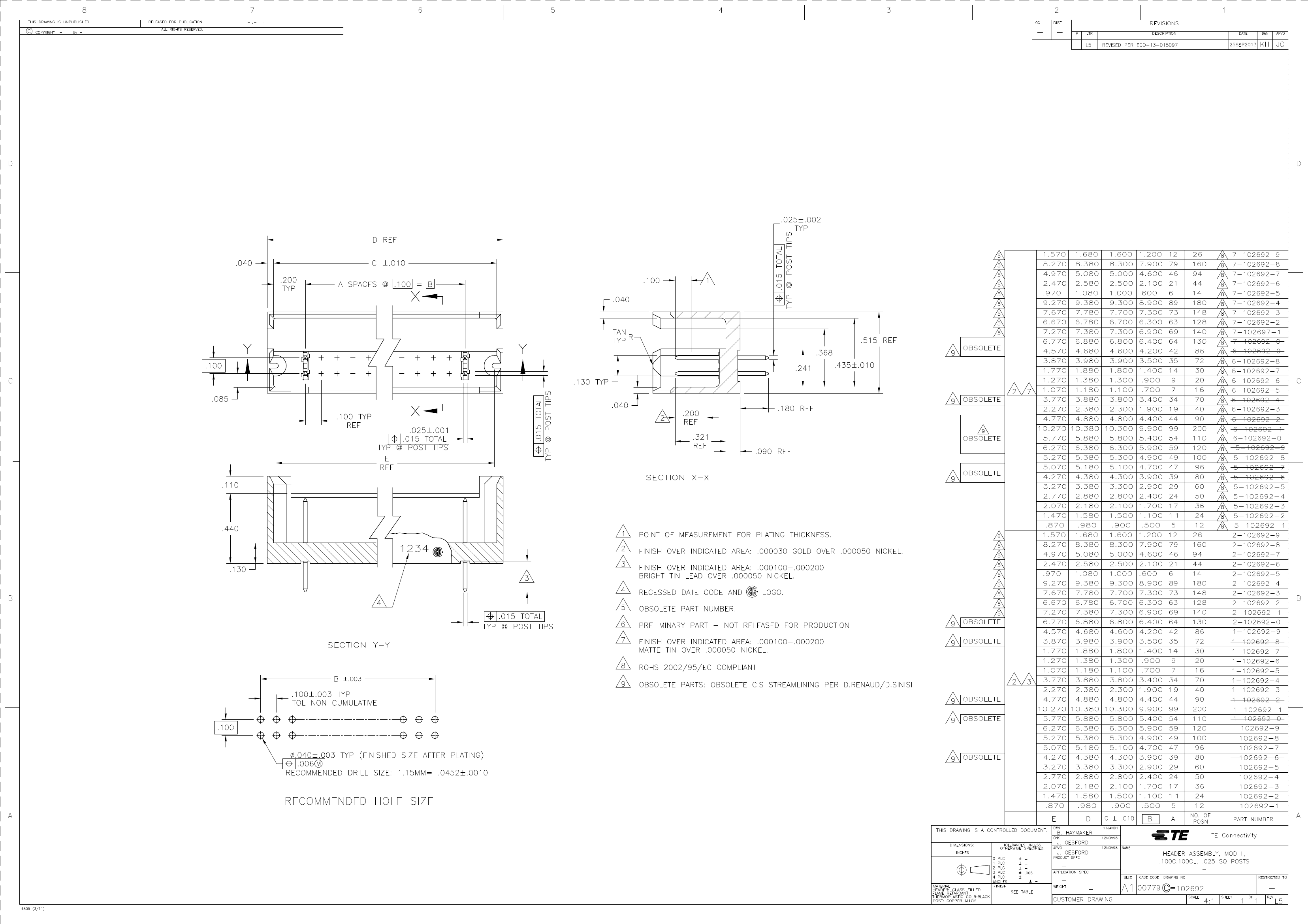

File Size210KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

1-102692-8 Online Shopping

Suppliers Part Number Price MOQ In stock
1-102692-8 - - View Buy Now

1-102692-8 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,72 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL

1-102692-8 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codeunknown
Is SamacsysN
body width0.515 inch
subject depth0.55 inch
body length3.98 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance12 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage250VAC V
Durability200 Cycles
maximum insertion force1.112 N
Insulation resistance103000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial number102692
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyHOUSING SIDE
Rated current (signal)2 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.18 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts72
Evacuation force-minimum value.2085 N
Base Number Matches1
