PIVOT BLOCK 3.5 mm
Terminal Blocks
DESCRIPTION
3.5 mm centerline IDC plug
Alternative to screw clamp plugs
Two-piece pluggable terminal block system
Mates with 3.5 mm horizontal and vertical
terminal block headers
• Proven tool-less pivot wire termination
• Solid and stranded 26 AWG and 22-24 AWG
wire
•
•
•
•
Revised 05/02
1308617
new product
APPLICATIONS
•
•
•
•
•
•
•
Security and Alarms
HVAC Equipment
Elevators/Escalators
Process Controls
Industrial Machinery
Power Supplies
Instrumentation

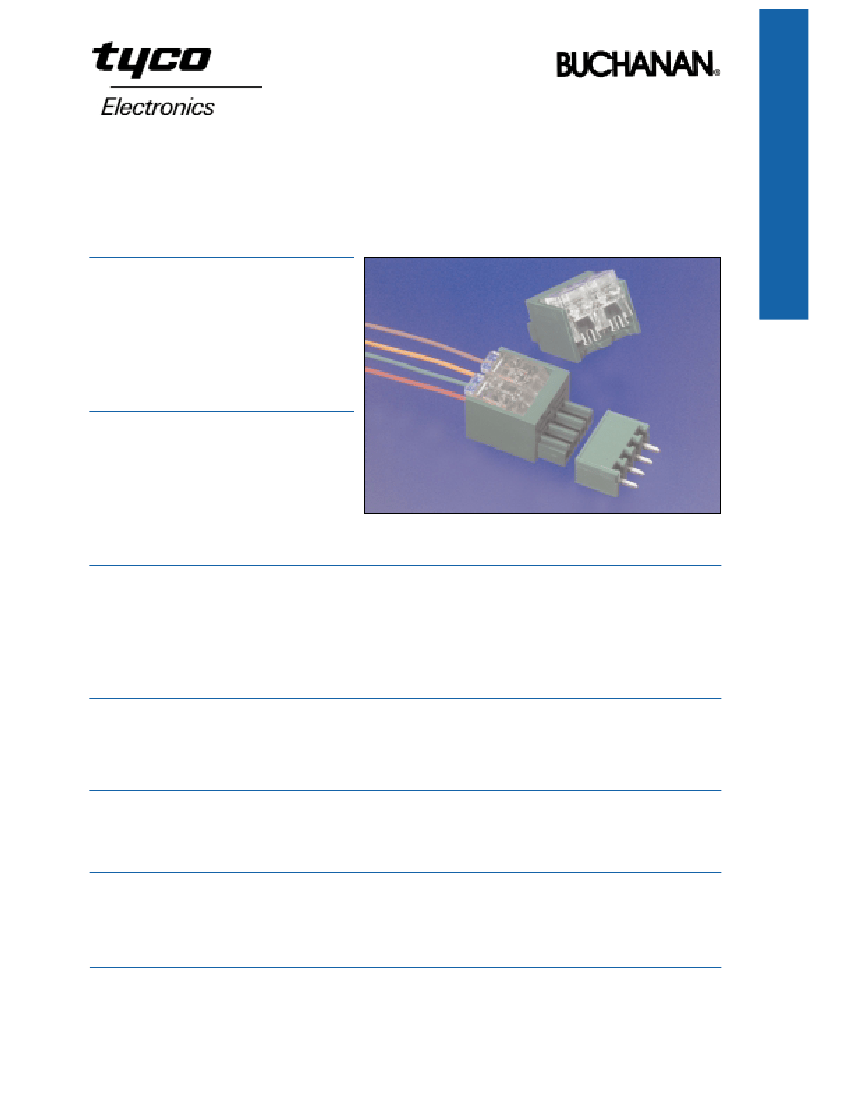

Photo 112220
KEY FEATURES
• Multi-position connector, tool-less IDC termination
and tactile feel when terminated
• No wire stripping required
• 3.5 mm terminal block system
• 2-16 positions (22-24 AWG)
• 2-16 positions (26 AWG)
• Flanged version available
• Designs available to terminate 26 AWG solid and
stranded or 22-24 AWG solid and stranded wires
• Mates with horizontal and vertical terminal
block headers
• Wire stuffer allows visual inspection of wire termination
ELECTRICAL
• 2.5 A max. current, per contact (26 AWG)
• 5 A max. current, per contact (22-24 AWG)
• 250 V operating voltage, max.
• 1500 V dielectric withstanding voltage
• 5 milliohm initial resistance
MECHANICAL
• 10 cycles durability wire termination
• 15 lbs. closing force max. (2 position)
• 10 lbs. opening force max. (2 position)
• Screws for mounting flange M2.5 fixing screw
MATERIALS
• Wire stuffer:
• Housing:
Polycarbonate
PBT Polyester, Green (standard color)
(Blue color also available)
• Contact:
• Plating:
Phosphor Bronze
Tin Lead over Nickel
FOR MORE INFORMATION
Technical Support
Phone: 1-800-522-6752
Internet: www.tycoelectronics.com
E-mail: newproducts@tycoelectronics.com
PIVOT BLOCK 3.5 mm
Terminal Blocks
STANDARDS & SPECS
• UL 1059
• UL 1863 pending (26 AWG only)
• CSA 22.2 No. 158-1987
• Product Specification:
108-1981
• Application Specification: 114-13037
PRODUCT OFFERING & DIMENSIONS
Closed Position
.270 [6.87] (2 Pos)
.408 [10.37] (3 Pos)
Wire Stuffer
.705
[17.90]
.463
[11.77]
.138
[3.50] Typ.
.163 [4.15]
Housing
.211 [5.35]
.618
[15.70]
.854
[21.70]
Wire Entry Hole
Open Position
(shipped all open)
Contact
22-24 AWG
No. of
Positions
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
26 AWG
Part Number
(green color)
1445902-2
1445903-2
1445902-3
1445903-3
1445902-4
1445903-4
1445902-5
1445903-5
1445902-6
1445903-6
1445902-7
1445903-7
1445902-8
1445903-8
1445902-9
1445903-9
1-1445902-0
1-1445903-0
1-1445902-1
1-1445903-1
1-1445902-2
1-1445903-2
1-1445902-3
1-1445903-3
1-1445902-4
1-1445903-4
1-1445902-5
1-1445903-5
1-1445902-6
1-1445903-6
Description
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
IDC T/B
IDC T/B with Screw Flange
Part Number
(blue color)
1445075-2
1445192-2
1445075-3
1445192-3
1445075-4
1445192-4
1445075-5
1445192-5
1445075-6
1445192-6
1445075-7
1445192-7
1445075-8
1445192-8
1445075-9
1445192-9
1-1445075-0
1-1445192-0
1-1445075-1
1-1445192-1
1-1445075-2
1-1445192-2
1-1445075-3
1-1445192-3
1-1445075-4
1-1445192-4
1-1445075-5
1-1445192-5
1-1445075-6
1-1445192-6
Part Number
(green color)
1445677-2
1445678-2
1445677-3
1445678-3
1445677-4
1445678-4
1445677-5
1445678-5
1445677-6
1445678-6
1445677-7
1445678-7
1445677-8
1445678-8
1445677-9
1445678-9
1-1445677-0
1-1445678-0
1-1445677-1
1-1445678-1
1-1445677-2
1-1445678-2
1-1445677-3
1-1445678-3
1-1445677-4
1-1445678-4
1-1445677-5
1-1445678-5
1-1445677-6
1-1445678-6
1308617-2.5M-GIC-FP-05/02-0G3B
Printed on recycled paper.
C
BUCHANAN, PIVOT BLOCK and TYCO are trademarks.
©2001 and 2002 by Tyco Electronics Corporation. All Rights Reserved.
